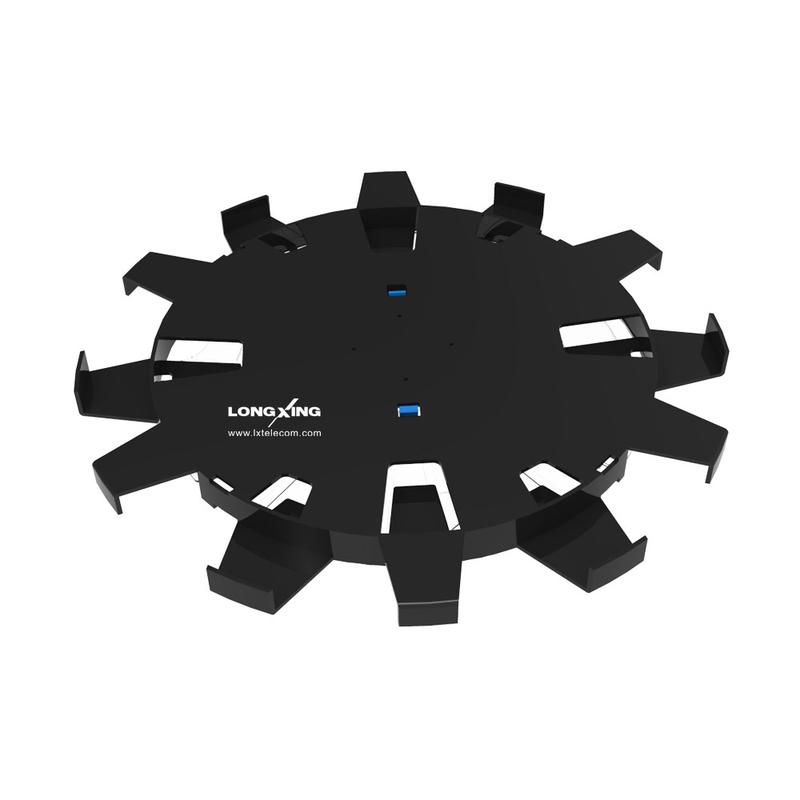

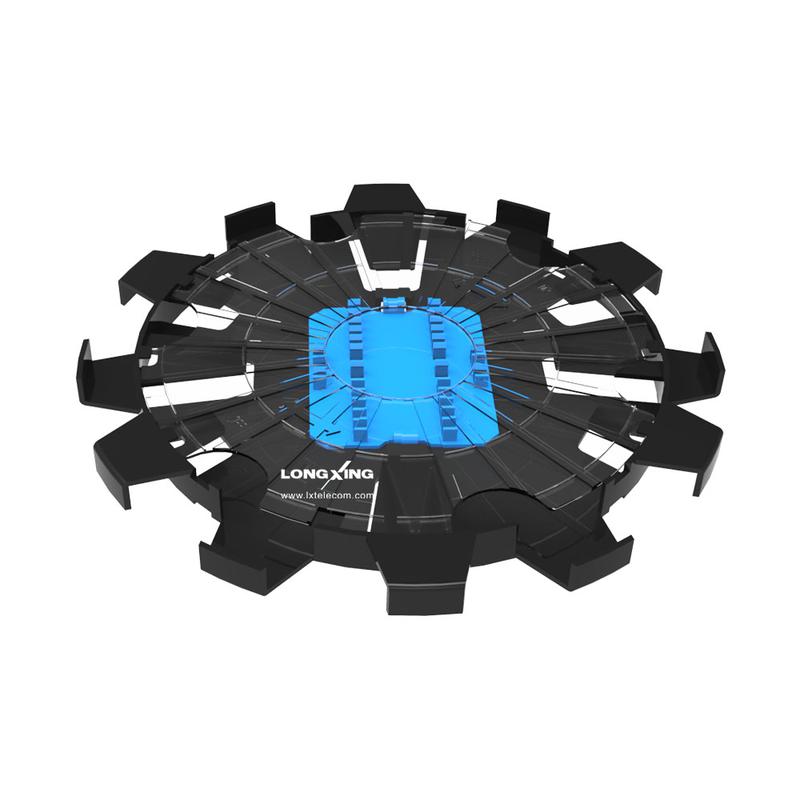

Round Splice Tray UFO Type ST-1D24C
Overview

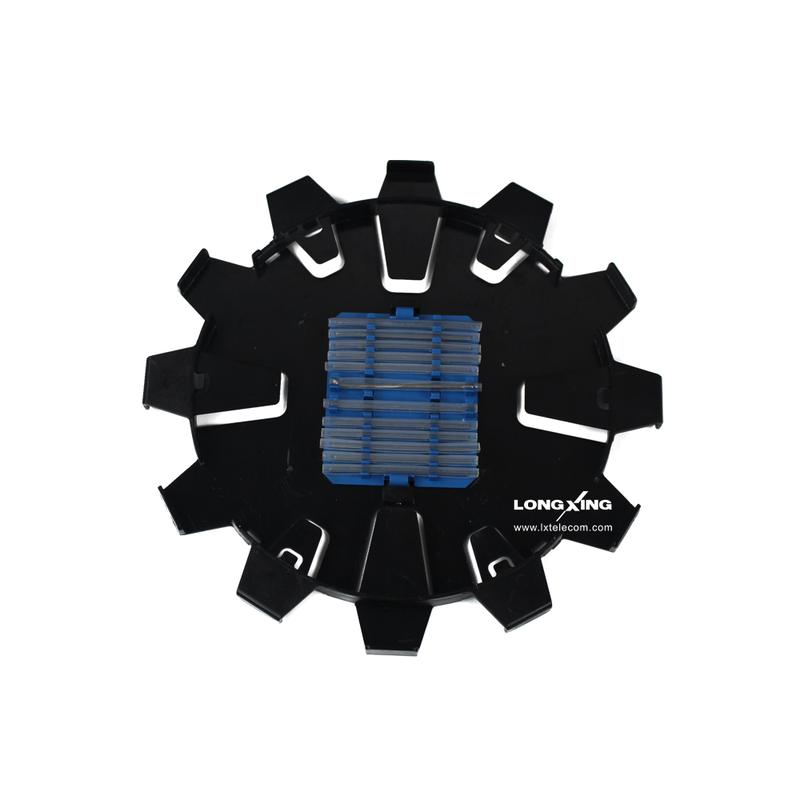

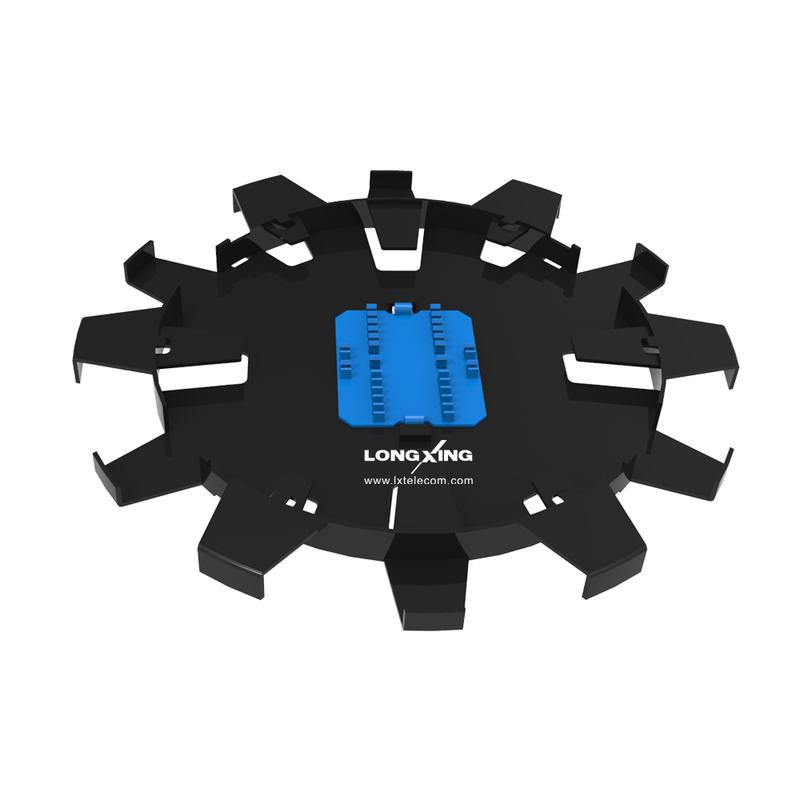

The LongXing GPX82-6B splice module provides protection and a mounting location for round splice trays. Each splice module is two mounting positions tall and holds 24 splice trays. Each splice tray can house up to 24 splices, which offers a combination of splicing protection and associated fiber/pigtail storage. The fiber optical splice trays are applicable to the fiber distribution cabinets, terminal boxes, fiber splicing patching shelves.
Features
l UFO style splice tray
l Round disk shape design to fit special requests.
l For fusion splicing of optical fibers with large bent radius.
l Material: ABS Material.
l Capacity: 12 or 24 Cores.
l Scientific design to meet special installation requirements better.
l Both splice and fiber/pigtail storage.
l Two sizes available.
Add To Quote List
Add To Compare
Inquiry Now
l Round disk shape design to fit special requests.
l For fusion splicing of optical fibers with large bent radius.
l Material: ABS Material.
l Capacity: 12 or 24 Cores.
l Scientific design to meet special installation requirements better.
l Both splice and fiber/pigtail storage.
l Two sizes available.
| Dimensions and Capability | ||
| ST-1D24C-1 | ST-1D24C-2 | |

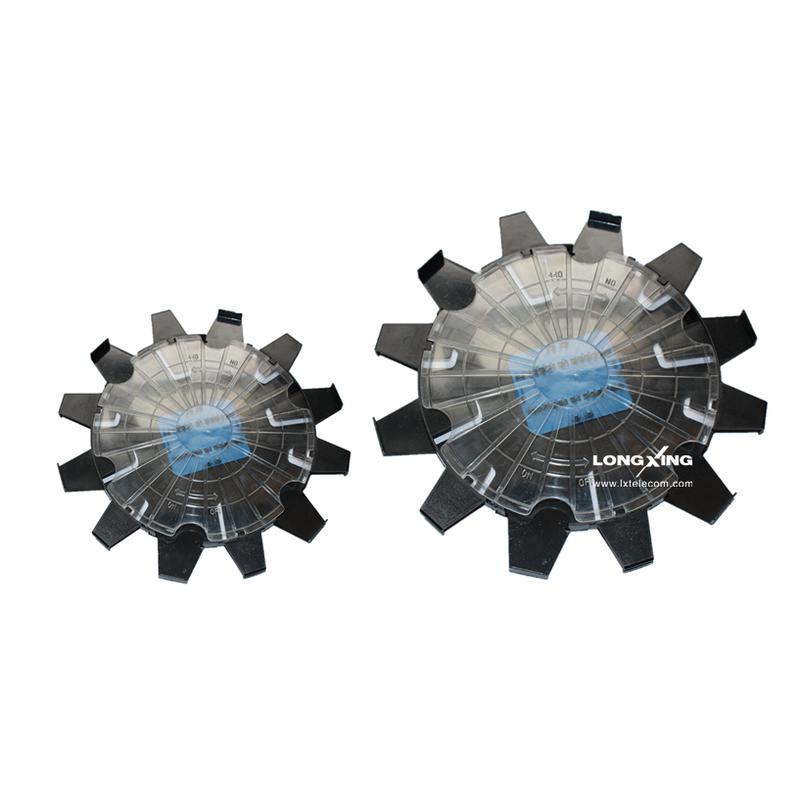

| Dimensions (W*H*D) | Φ170mm,δ10mm; | Φ220mm,δ14mm |
| Capacity | 12 or 24 cores | |
| Optional Accessories | Heat Shrink Tubes, Heat Shrink Splice Holder | |
| Max diameter of entry cable | 7.0mm; | 10.0mm |
| Weight | 0.100 KG | 0.150KG |
| Operation Conditions | |
| Temperature | -40℃ -- 55℃ |
| Sealing performance | Remain unchanged for72 hours on pressure 70kpa |
| Air Pressure | 70kPa – 106kPa |
| Tensile Strength | >1000N |
| Compressive Strength | Withstand 2000N/10Cm² in 1min |
| Shipping Information | ||
| ST-1D24C-1 | ST-1D24C-2 | |
| Package Contents | Splice Tray Base with Splice Holder; Splice Tray Cover | |
| Package Dimensions(W*H*D) | 220mm*220mm*60mm | 280mm*280mm*60mm |
| Material | Carton box | |
| Weight | 0.65 KG | 0.70KG |
| Lead Time | 10-15 working days normally | |
