Fiber Optic Splice Tray ST-2D24D

Overview

Splice tray is used in optical distribution frame, distribution box, and splice closures, which is engineered for use with indoor or outdoor splice hardware with both loose tube and tight-buffered optical cable designs. The compact splice cassettes designed for simple, cost effective low and mid-sized fiber splicing applications. Each cassette is supplied with splice holders that secure and protect both fusion and mechanical splices; also the top cover is included.

Features

l ABS material used ensures the body strong and light

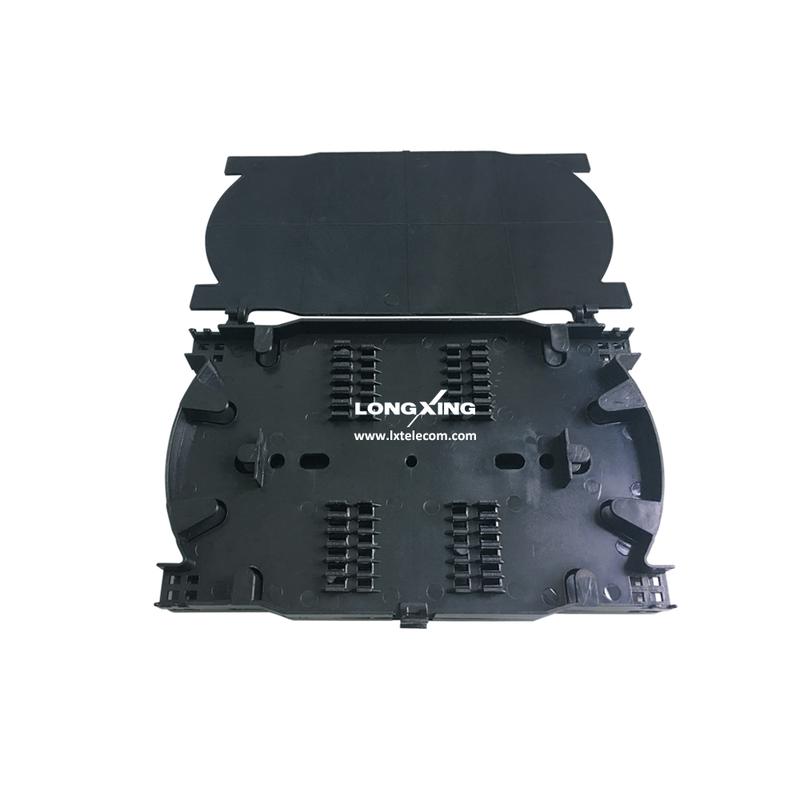

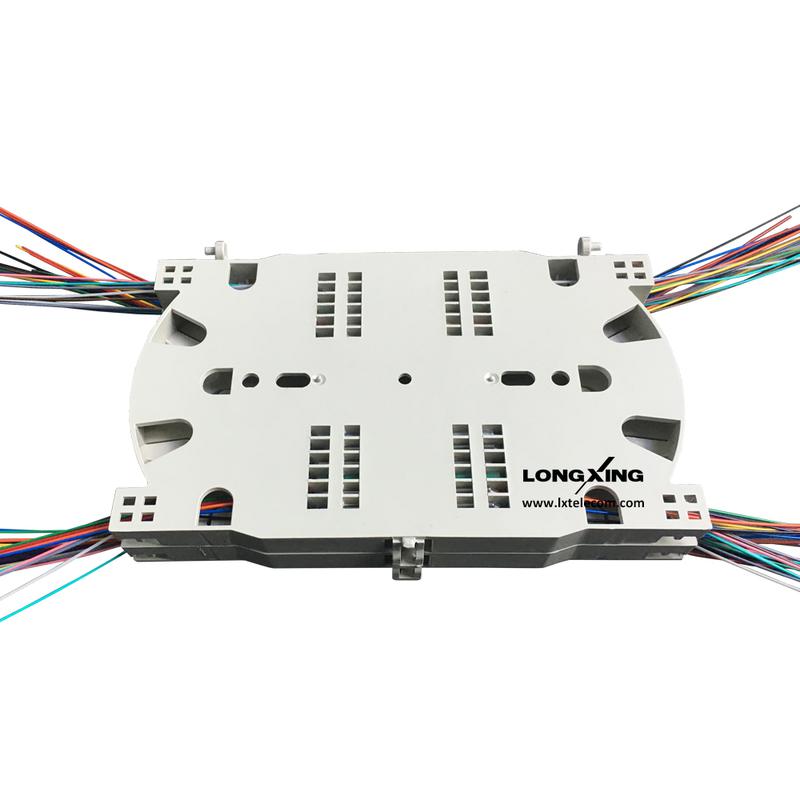

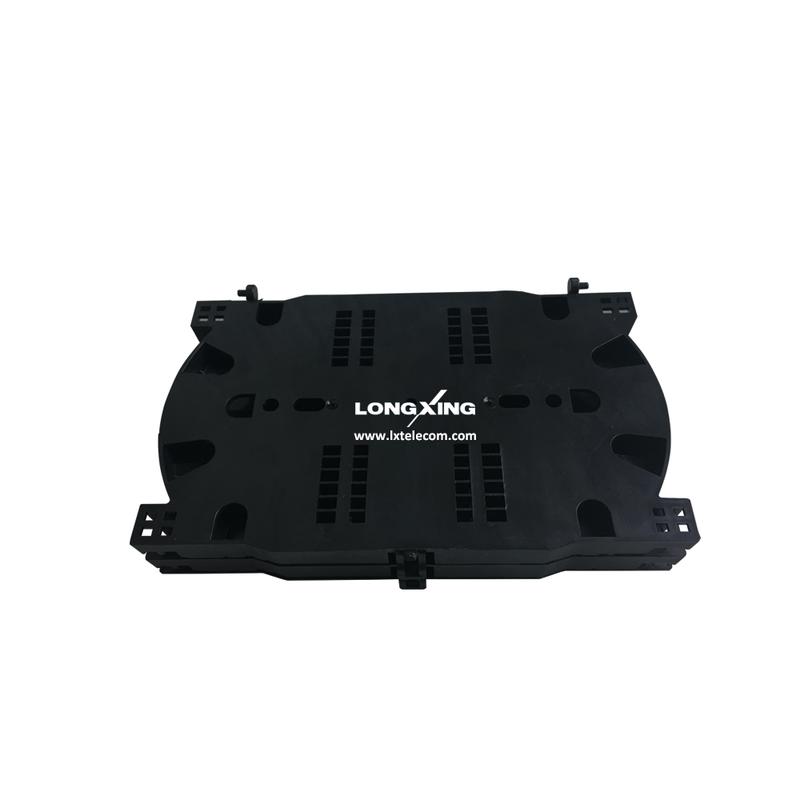

l Color option: black(ST-2D24D-1) or white(ST-2D24D-2)
l The fusing distribution board of the unit box is double layer structure, integrating the fusing and distribution into one unity.
l 24-fiber splice trays
l Protect and manage heat shrink style spliced fibers

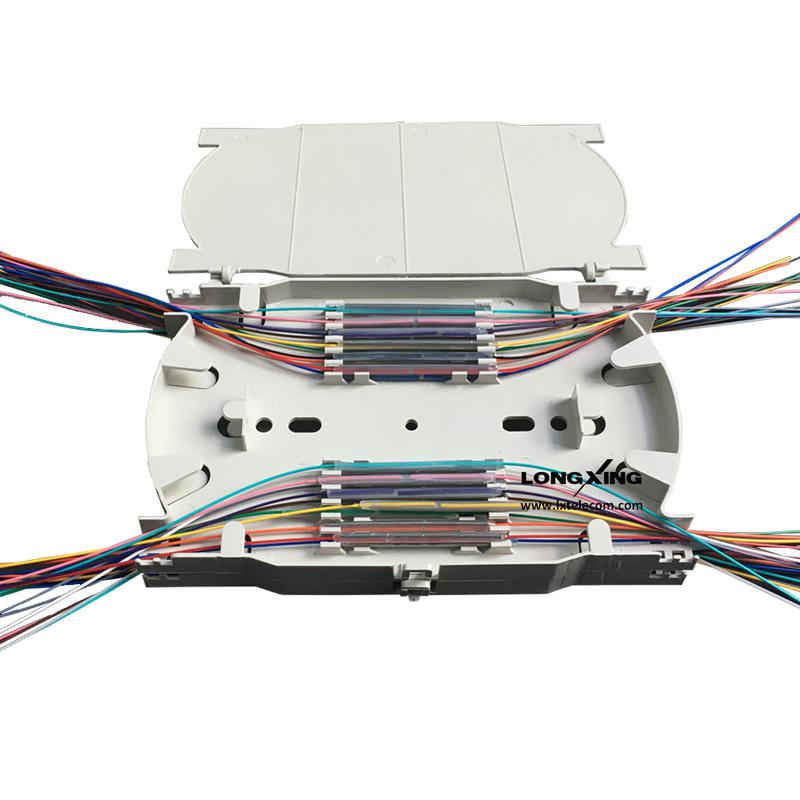

l Heat shrink splice holder and sleeves included

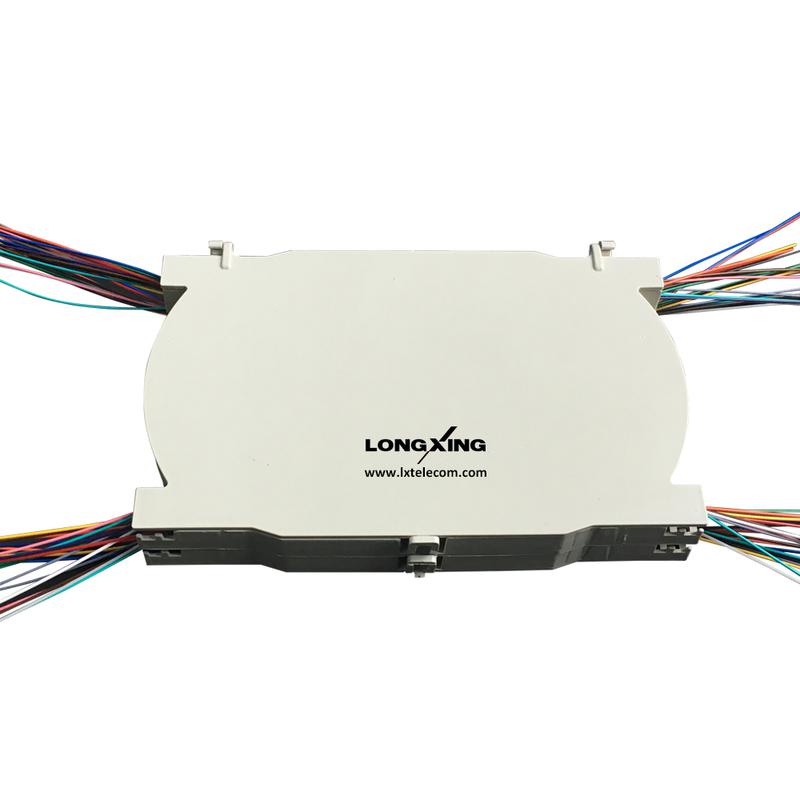

l Clear cover allows viewing or inspection of fibers without having to remove cover
l Use for single-mode or multimode fiber
l Durable injection-molded plastic trays and covers
l Longer bending radius for fiber, Easy operation of fiber/pigtails
l Easily disposed for particular needs
l Suitable for ribbon or non-ribbon optical fiber cable
Add To Quote List Add To Compare
Dimensions and Capability
Dimensions (W*H*D) 160mm*100mm*15mm per unit
Capacity 24 cores per unit
Optional Accessories Heat Shrink Tubes, Heat Shrink Splice Holder
Max diameter of entry cable 3.0mm
Weight 0.065 KG per unit



Operation Conditions
Temperature -40℃ -- 55℃
Sealing performance Remain unchanged for72 hours on pressure 70kpa
Air Pressure 70kPa – 106kPa
Tensile Strength >1000N
Compressive Strength Withstand 2000N/10Cm² in 1min



Shipping Information
Package Contents Splice Tray Base with Splice Holder; Splice Tray Cover
Package Dimensions(W*H*D) 200mm*150mm*65mm per unit
Material  Carton box
Weight  0.5 KG per unit
Lead Time 10-15 working days normally
