MTP/MPO Fiber Optic Connector
Overview

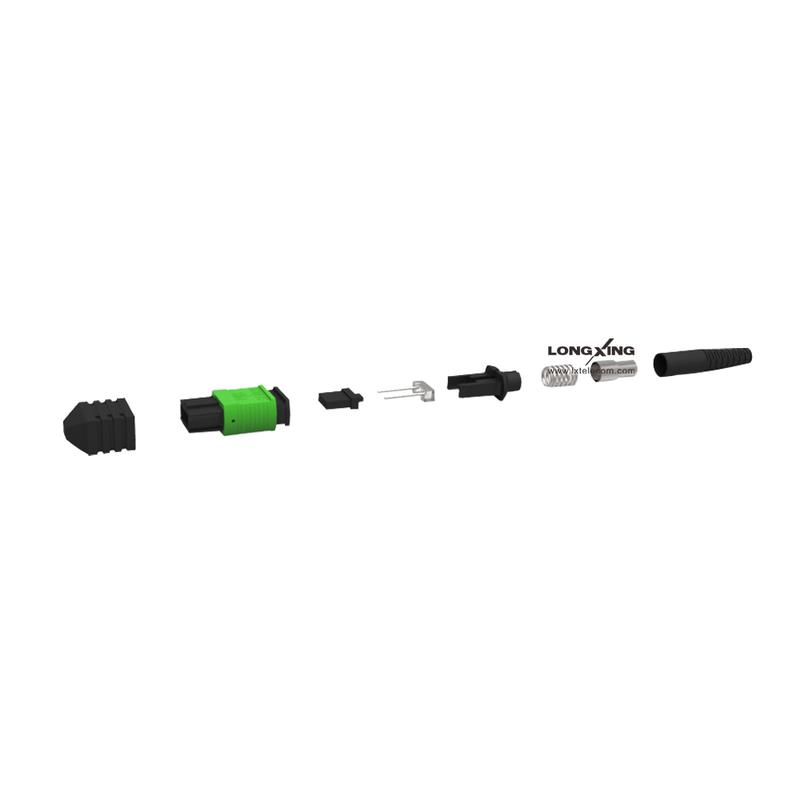

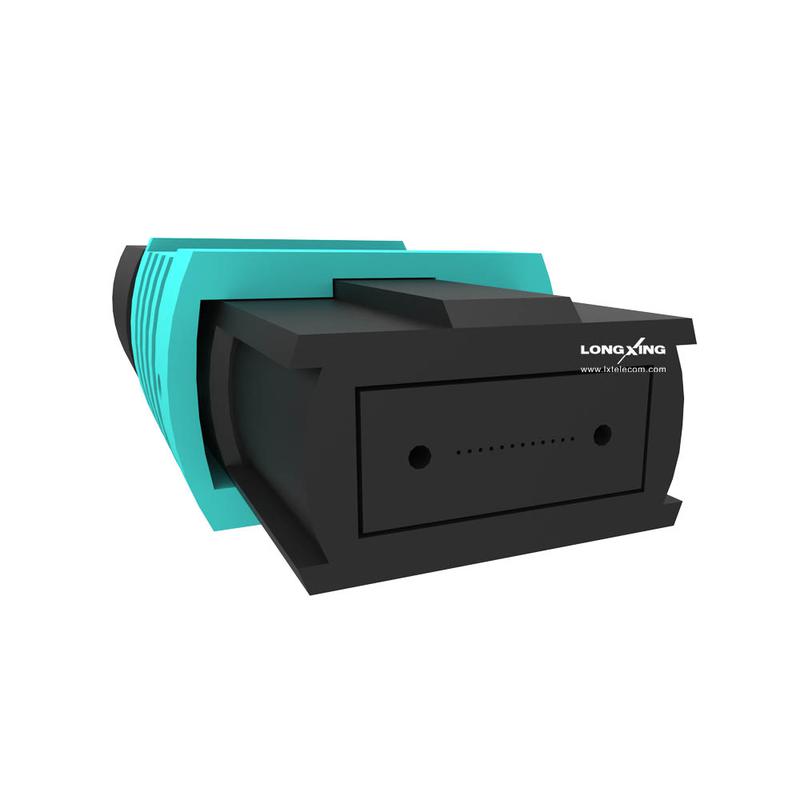

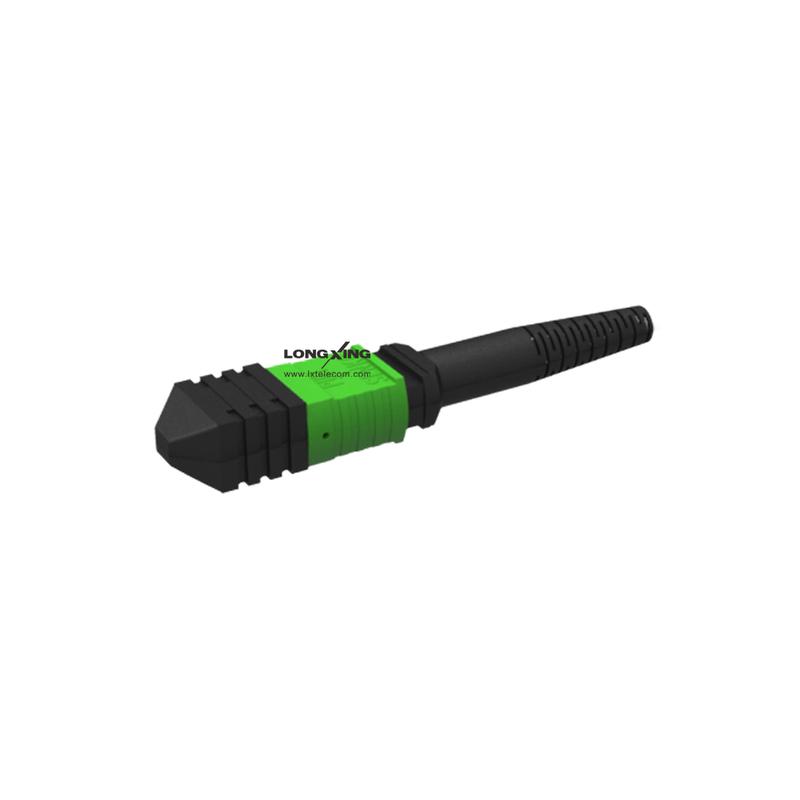

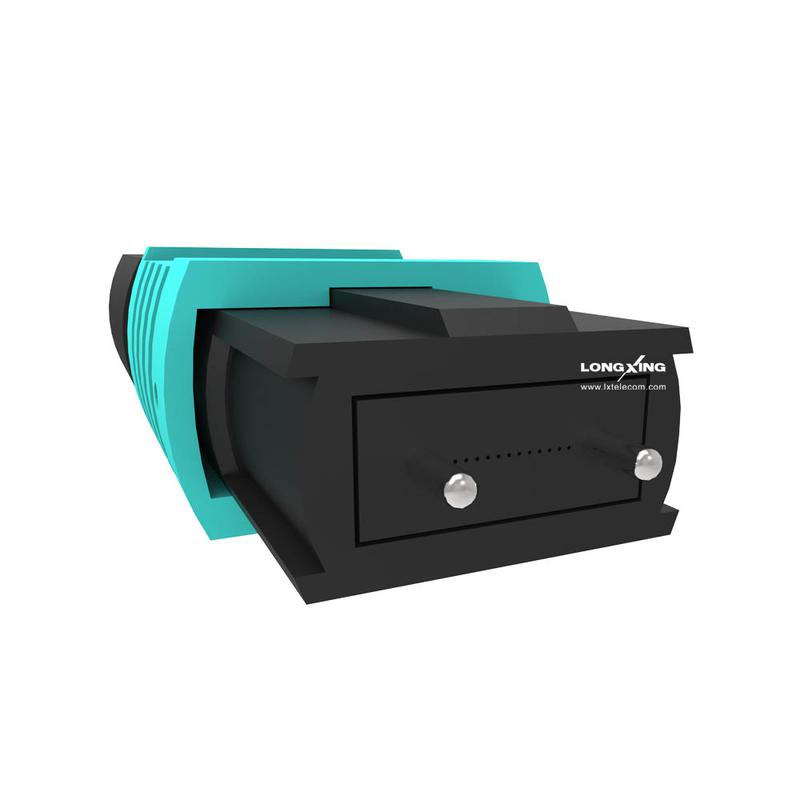

MTP/MPO connector produced by LongXing specially for multi-fiber ribbon cable, it use precision molded MT ferrules, together with metal guide pins and precise housing dimensions ensure fiber alignment when mating, realize high density interconnection. MTP/MPO pre-termination save time and reduce the risk of damage fragile optical connectors, the plug and play system is the perfect solution for today’s optical fiber installations.
Features
l Precision molded MT ferrule
l Compact design, available for 4,8,12,24 fiber ribbons
l High precision guide pins for exact alignment
l Male and female available
l High density interconnection
l Available for singlemode (angled) and multimode (flat) performance
l Fiber type can be bare fiber ribbon and ruggedized ribbon
l Color coded housings available to differentiate fiber type, polish type and connector grade
l Housing is removable for quick change of pin clamps and easy ferrule cleaning / re-polishing
l Array fiber to single fiber fanouts and cassettes
Add To Quote List
Add To Compare
Inquiry Now
l Compact design, available for 4,8,12,24 fiber ribbons
l High precision guide pins for exact alignment
l Male and female available
l High density interconnection
l Available for singlemode (angled) and multimode (flat) performance
l Fiber type can be bare fiber ribbon and ruggedized ribbon
l Color coded housings available to differentiate fiber type, polish type and connector grade
l Housing is removable for quick change of pin clamps and easy ferrule cleaning / re-polishing
l Array fiber to single fiber fanouts and cassettes
| Technical Specifications | ||
| Parameters | Standard Multimode MT Ferrule |
Standard Single-mode MT Ferrule |
| Return Loss( dB) | ≥25 dB (Flat Polish) | ≥60 dB (8° Polish) |
| Insertion Loss (dB) | 0.15dB Typical 0.50dB Maximum |
0.20dB Typical 0.70dB Maximum |
| Wire map configurations | |||||
| Straight Type A wiring (Straight Through) |
Total flipped Type B wiring (Cross) |
Pair flipped Type C wiring (Cross Pair) |
|||
| Fiber | Fiber | Fiber | Fiber | Fiber | Fiber |
| 1 | 1 | 1 | 12 | 1 | 2 |
| 2 | 2 | 2 | 11 | 2 | 1 |
| 3 | 3 | 3 | 10 | 3 | 4 |
| 4 | 4 | 4 | 9 | 4 | 3 |
| 5 | 5 | 5 | 8 | 5 | 6 |
| 6 | 6 | 6 | 7 | 6 | 5 |
| 7 | 7 | 7 | 6 | 7 | 8 |
| 8 | 8 | 8 | 5 | 8 | 7 |
| 9 | 9 | 9 | 4 | 9 | 10 |
| 10 | 10 | 10 | 3 | 10 | 9 |
| 11 | 11 | 11 | 2 | 11 | 12 |
| 12 | 12 | 12 | 1 | 12 | 11 |
