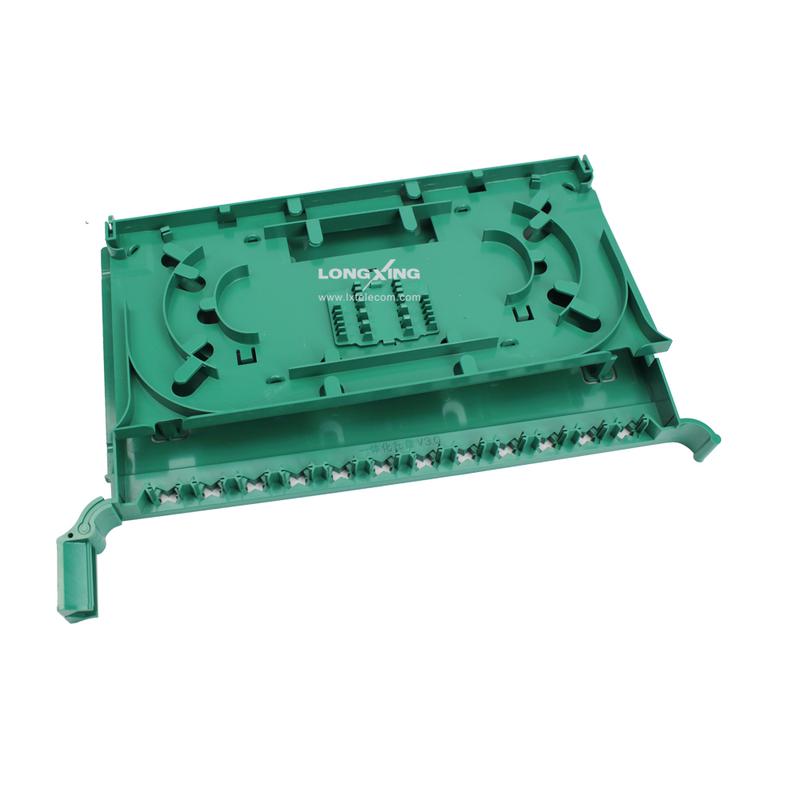

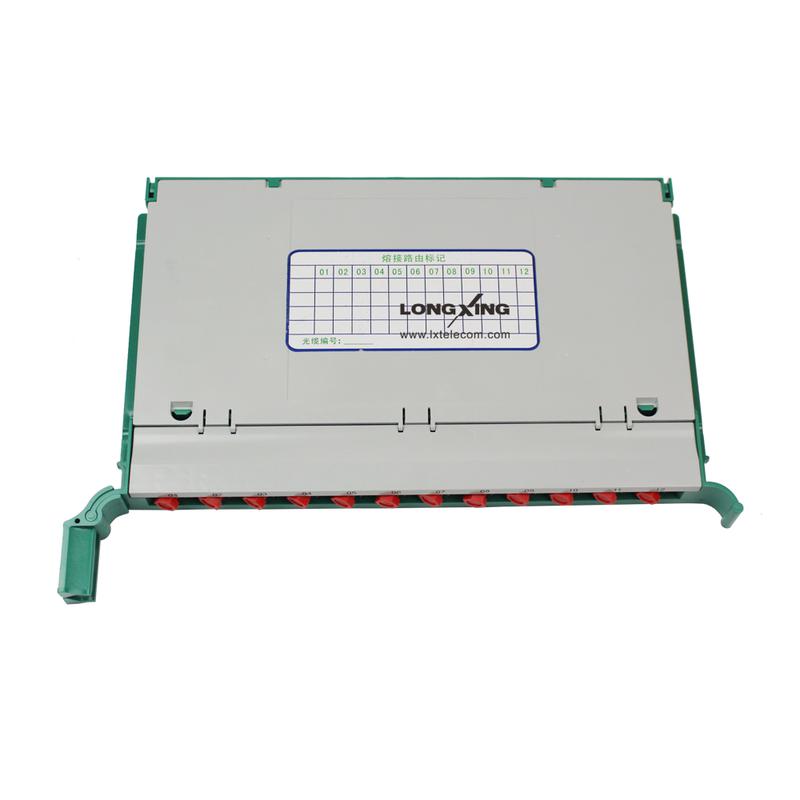

Optical Splice & Distribution Module Series B (B0)
Overview
Optical distribution module Series BI-B0 is designed for the purpose of optic fiber organization, storage and fiber optic fusion protection within patch panels, fiber optical outdoor cabinets etc. LongXing provides the highest quality fiber management trays at the best prices.
Features
l ABS material
l Light and beautiful plastic structure
l RoHS compliant
l Ensuring minimum fiber bending radius
l Double layer structure and a cover-plate on the tray after fusion
l Multi functions: optical fusion, storage and distribution
l Suitable for many kinds of adapters: FC, SC, ST, LC etc.
l Suitable for both ribbon fiber and bundle fiber
l Adapters are installed with a certain angel, easy for maintenance
Add To Quote List
Add To Compare
Inquiry Now
l Light and beautiful plastic structure
l RoHS compliant
l Ensuring minimum fiber bending radius
l Double layer structure and a cover-plate on the tray after fusion
l Multi functions: optical fusion, storage and distribution
l Suitable for many kinds of adapters: FC, SC, ST, LC etc.
l Suitable for both ribbon fiber and bundle fiber
l Adapters are installed with a certain angel, easy for maintenance
| Dimensions and Capability | |
| Dimensions (H*W*D) | 25*301*180 mm |

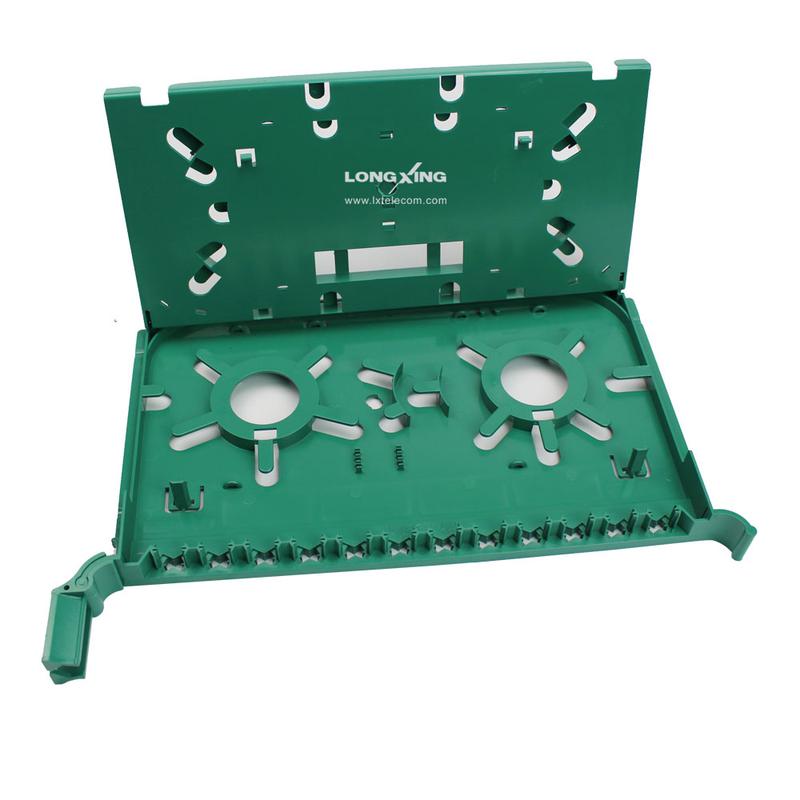

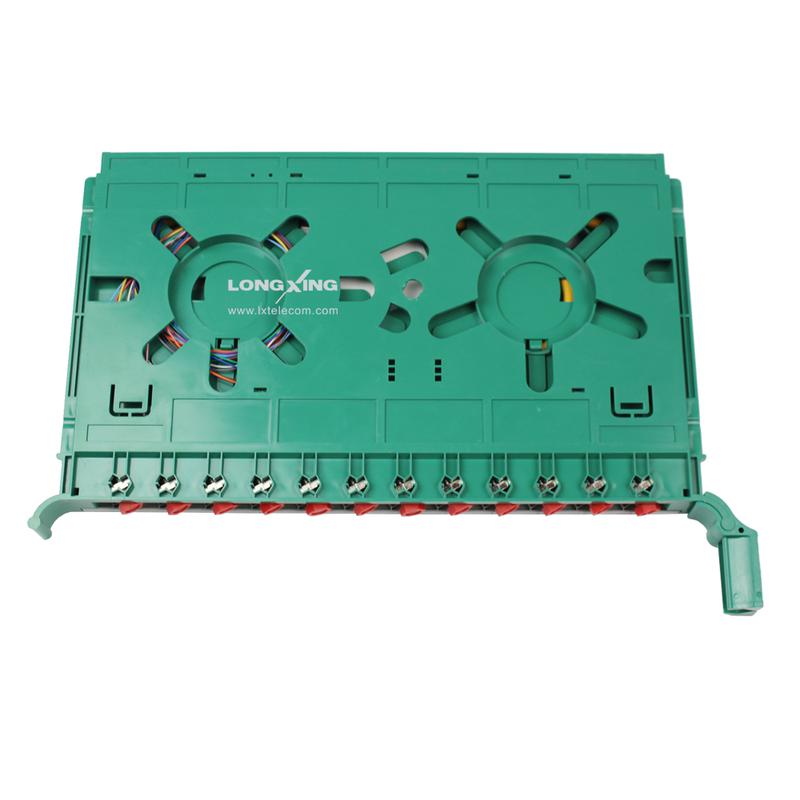

| Two-layer structure | Upper: splice incoming fibers with pigtails and store over length pigtails Lower: fiber storage and connect pigtails with adapters |
| Adapter Capacity | 12 for SC / FC adapters 24 for LC adapters |
| Direction for exit cable | Left or right |
| Color | Green |
| Operation Conditions | |
| Temperature | -5℃ -- 60℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Optical distribution modules |
| Package Dimensions(W*H*D) | 170mm*50mm*130mm |
| Material | Carton box |
| Weight | 0.65 KG |
| Lead Time | 10-15 working days normally |
