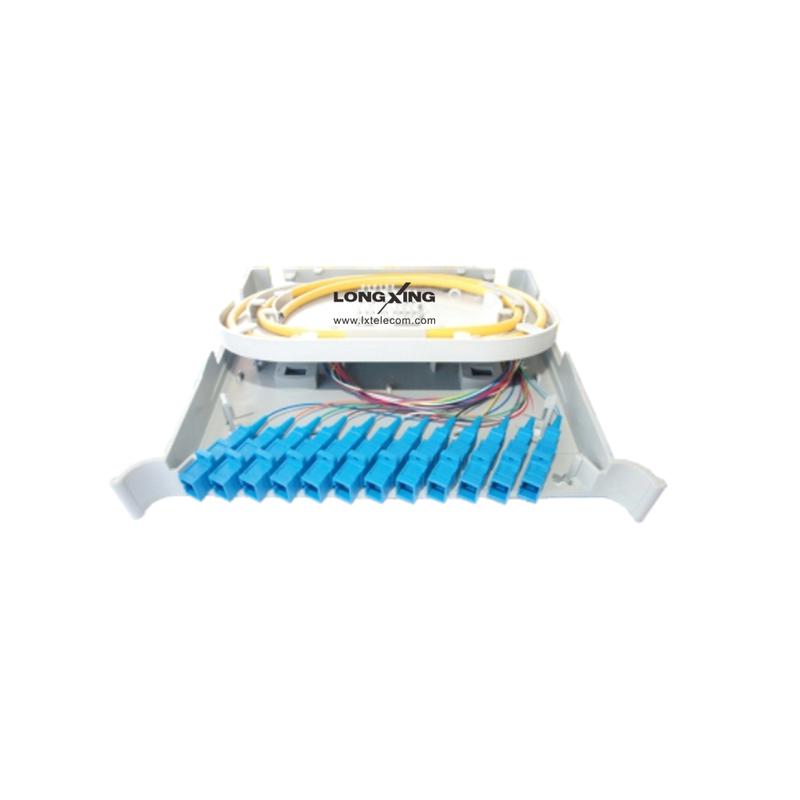

Optical Splice & Distribution Module Series F (F1, F2)
Overview
Optical distribution modules are designed for the purpose of optic fiber organization, storage and fiber optic fusion protection within optical cable distribution frame,patch panels, optical cable outdoor cabinets etc.
Features
l ABS material
l Light and beautiful plastic structure
l Space saving
l RoHS compliant
l Ensuring minimum fiber bending radius
l Double layer structure
l Multi functions: optical fusion, storage and distribution
l Suitable for both ribbon fiber and bundle fiber
Add To Quote List
Add To Compare
Inquiry Now
l Light and beautiful plastic structure
l Space saving
l RoHS compliant
l Ensuring minimum fiber bending radius
l Double layer structure
l Multi functions: optical fusion, storage and distribution
l Suitable for both ribbon fiber and bundle fiber
| Dimensions and Capability | ||
| F1 | F2 | |
| Direction for exit cable | Left or right | |
| Capacity | 12 fibers without adapter | 12 fibers with SC/FC/LC adapter |
| Two-layer structure | Upper: splice incoming fibers with pigtails and store over length pigtails Lower: fiber storage |
Upper: splice incoming fibers with pigtails and store over length pigtails Lower: fiber storage and connect pigtails with adapters |
| Color | Grey | |
| Dimensions (H*W*D) | 25mm*212mm*180mm | |
| Operation Conditions | |
| Temperature | -5℃ -- 60℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Optical distribution modules |
| Package Dimensions(W*H*D) | 75mm*260mm*230mm |
| Material | Carton box |
| Weight | 0.65kg |
| Lead Time | 10-15 working days normally |
