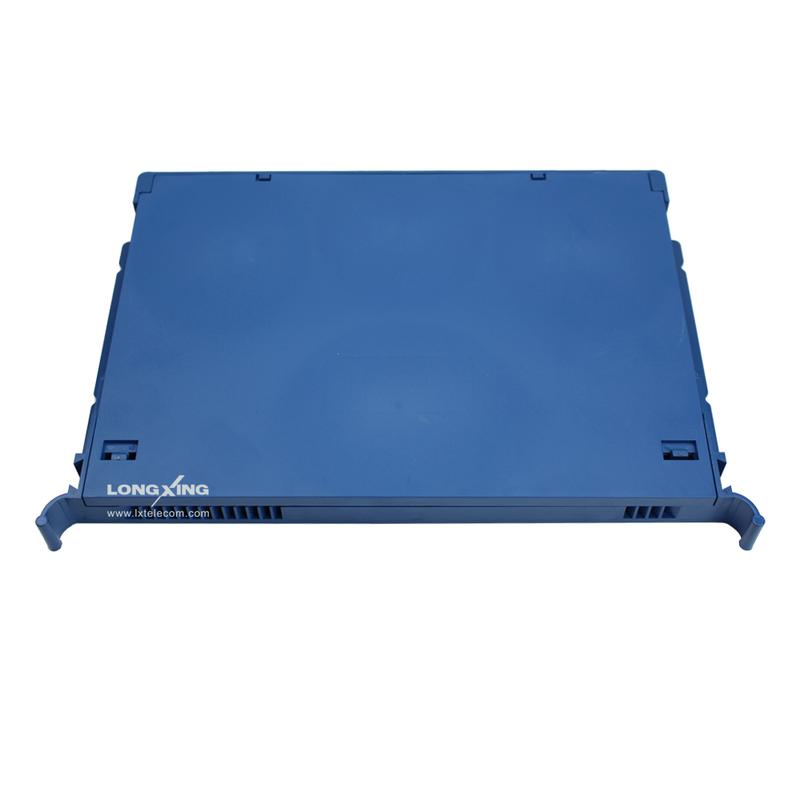

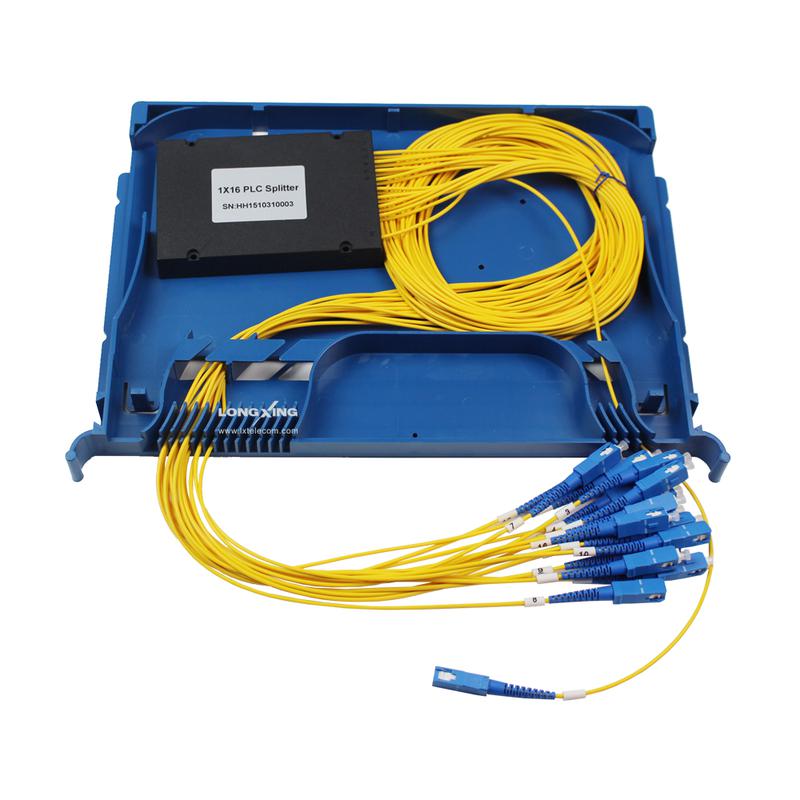

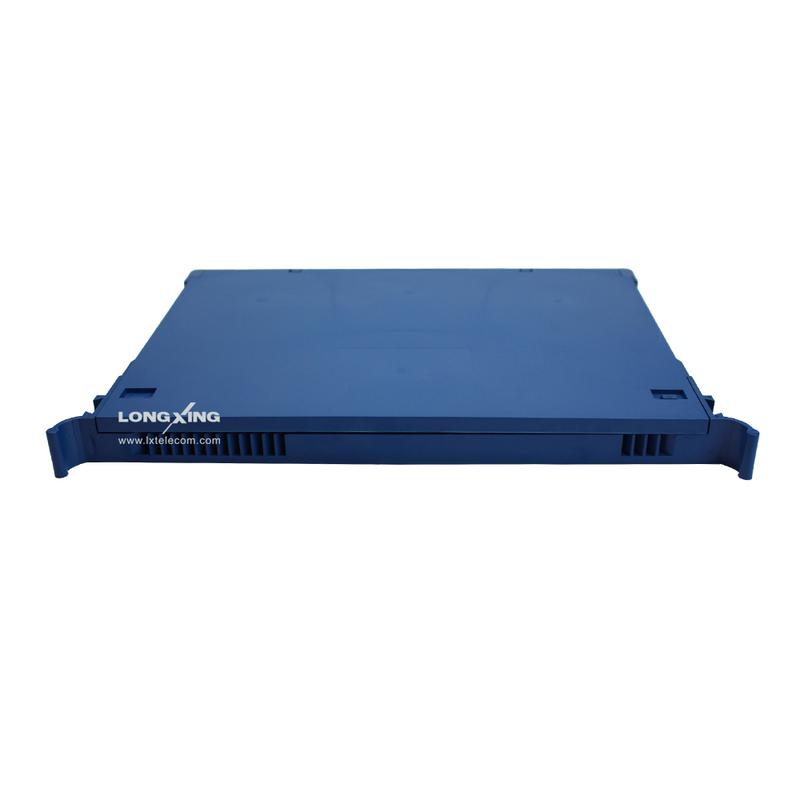

Optical Splice Module Series A (A6)
Overview
Optical distribution module Series AS-A6 is designed for splitters with the purpose of optic fiber organization, storage and fiber optic fusion protection within ODF,
patch panels, fiber optical
outdoor cabinets etc. LongXing provides the highest quality fiber management trays at the best prices.
Features
l ABS material
l Light and beautiful plastic structure
l RoHS compliant
l Max split ratio of 2*16
l A cover-plate provided on the tray after fusion
l Splitter compartment for easy operation and maintenance
l Secure protective device for radius curvature of fibers
Add To Quote List
Add To Compare
Inquiry Now
l Light and beautiful plastic structure
l RoHS compliant
l Max split ratio of 2*16
l A cover-plate provided on the tray after fusion
l Splitter compartment for easy operation and maintenance
l Secure protective device for radius curvature of fibers
| Dimensions and Capability | |
| Dimensions (H*W*D) | 25*303.4*205 mm |
| Capacity | Max split ratio of 2*16 |
| Adapter Capacity | No space for adapters |
| Direction for exit cable | Left |
| Color | Blue |
| Operation Conditions | |
| Temperature | -5℃ -- 60℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Optical distribution modules |
| Package Dimensions(W*H*D) | 170mm*50mm*130mm |
| Material | Carton box |
| Weight | 0.65 KG |
| Lead Time | 10-15 working days normally |
