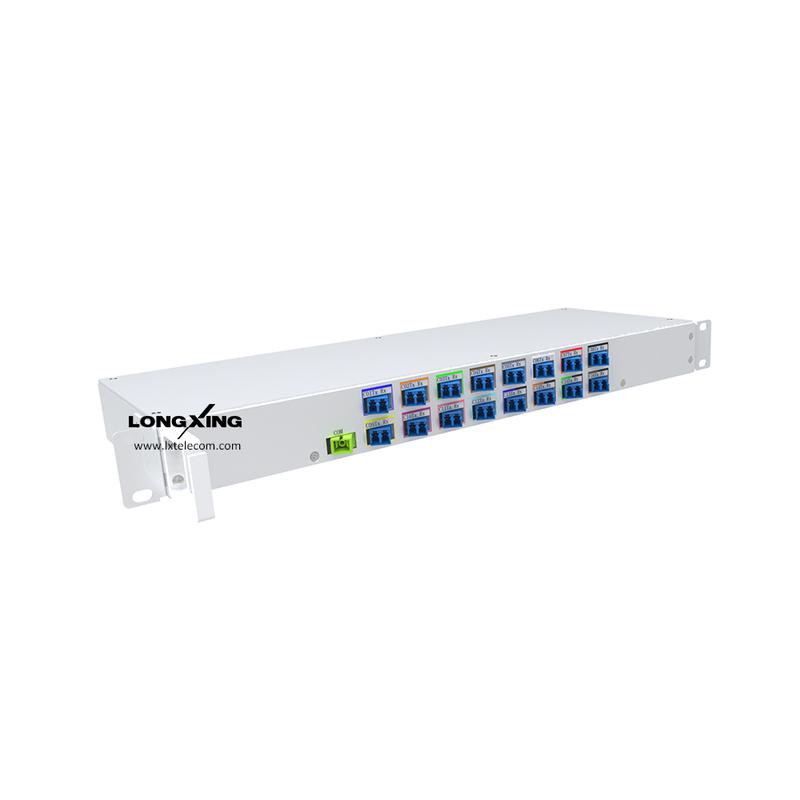

WDM MUX DEMUX ODU-L28-P1
Overview
In fiber-optic communications, WDM (wavelength-division multiplexing) is a technology which multiplexes a number of optical carrier signals onto a single optical fiber by using different wavelengths (i.e., colors) of laser light.
This technique enables bidirectional communications over one strand of fiber as well as multiplication of capacity. Generally, WDM technology is applied to an optical carrier which is typically described by its wavelength.
Features
l Low Insertion Loss
l Wide pass band
l High Channel Isolation
l High Stability and reliability
l Epoxy-free on Optical Path
Add To Quote List
Add To Compare
Inquiry Now
l Wide pass band
l High Channel Isolation
l High Stability and reliability
l Epoxy-free on Optical Path
| Mechanical Specification | ||
| Parameter | 16 Channel DWDM MUX+DEMUX | |
| Channel Wavelength(nm) | 100G DWDM(1529.55nm-1561.42nm) | |
| Clear Channel Passband(nm) | ±0.1 | |
| Channel Spacing (GHz) | 100 | |
| Channel Passband (@-0.5dB bandwidth) (nm) | >0.3 | |
| Insertion Loss(dB) MUX & DEMUX | ≤5.5, (with Connectors) | |
| Channel Ripple(dB) | <0.5 | |
| Isolation(dB) | Adjacent | >25 |
| Non-adjacent | >30 | |
| Insertion Loss Temperature Sensitivity (dB/℃) | <0.005 | |
| Wavelength Temperature Shifting (nm/℃) | <0.002 | |
| Polarization Dependent Loss(dB) | <0.5 | |
| Polarization Mode Dispersion(PS) | <0.5 | |
| Directivity(dB) | >50 | |
| Return Loss(dB) | >40, (with Connectors) | |
| Maximum Power Handling(mW) | 300 | |
| Operating Temperature(℃) | -25 ~ +70 | |
| Storage Temperature(℃) | -40 ~ +85 | |
| Package Dimensions(L*W*H) (mm) | 485*250*44 | |
| Color of the box and front plate | White | |

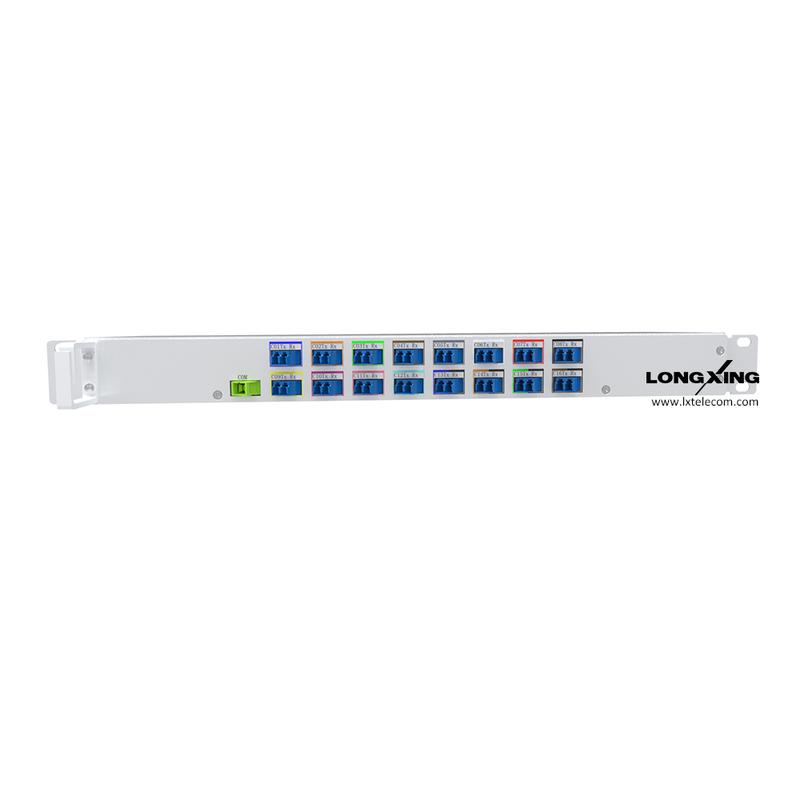

*16 Channel WDM MUX DEMUX ODU-L18-P1 Side View
| Case | ||
| Parameters | Values | |
| Packaging Dimension | 19 inch, 1U | |
| Fiber Type | G657A1 | |
| Adapter Type | COM Ports: LC/UPC | 100G Ports: LC/UPC |
