Optical Distribution Frame GPX09R
Overview
LongXing optical fiber distribution frame GPX09R is made of top quality steel and deformed aluminum alloy and treated with galvanizing, oxidation and electrostatic plastic spraying. The frame has solid structure and pleasing appearance.
Features
l This frame is made of top quality steel and deformed aluminum alloy and treated with galvanizing, oxidation and electrostatic plastic spraying
l The frame has solid structure and pleasing appearance
l Fully-closed structure with the advantages of good performance of dust-proof, pleasing and neat appearance
l Cable fixing unit is installed on the top of the frame which has excellent performances for fixing the cables
l Fully front side operation, convenient for maintenances

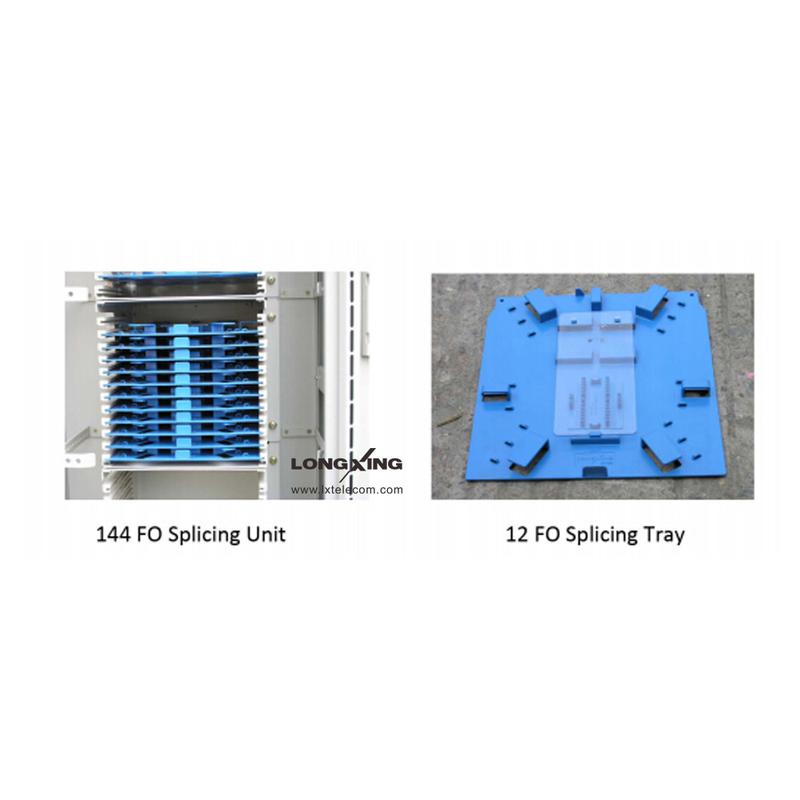

l Modular design of 144-FO-Splicing-Unit is adopted. Each unit holds up to 12 12-FO-Splice-Tray
Add To Quote List
Add To Compare
Inquiry Now
l The frame has solid structure and pleasing appearance
l Fully-closed structure with the advantages of good performance of dust-proof, pleasing and neat appearance
l Cable fixing unit is installed on the top of the frame which has excellent performances for fixing the cables
l Fully front side operation, convenient for maintenances
l Modular design of 144-FO-Splicing-Unit is adopted. Each unit holds up to 12 12-FO-Splice-Tray
| Dimensions and Capability | |||
| Dimension(H*W*D) | Capacity(Core / Unit) | Max Unit | Max capacity |
| 2000*840*300 | 144 | 10 | 1440 |
| 2200*840*300 | 144 | 12 | 1728 |
| 2600*840*300 | 144 | 16 | 2304 |
| Operation Conditions | |
| Temperature | -5℃ -- 60℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | ODF 1 unit |
| Package Dimensions(W*H*D) | It depends on the dimensions of the product |
| Material | wooden box |
| Weight | It depends on the dimensions of the product |
| Lead Time | 10-15 working days normally |
