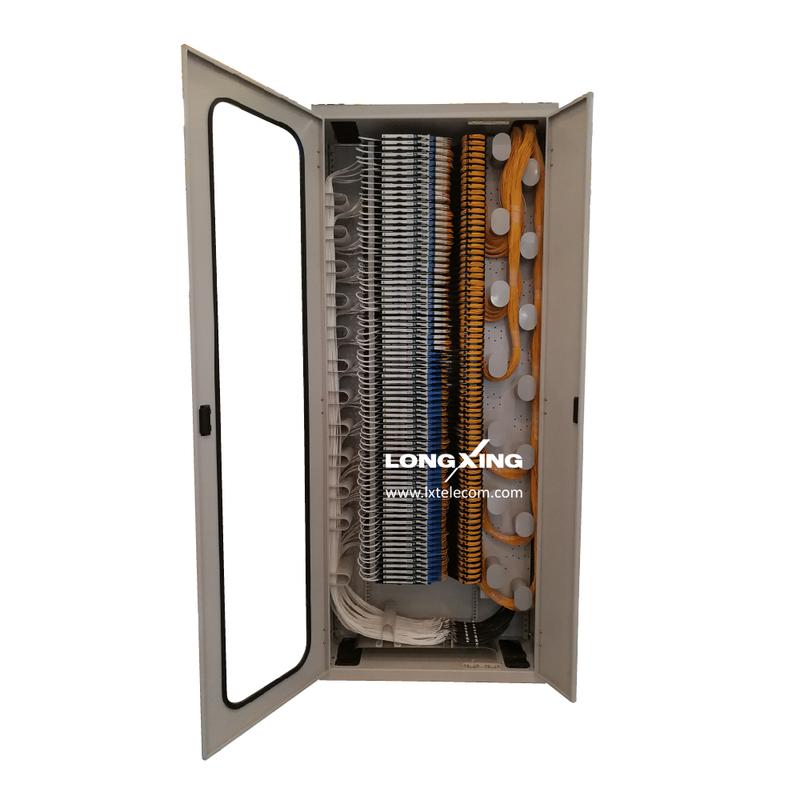

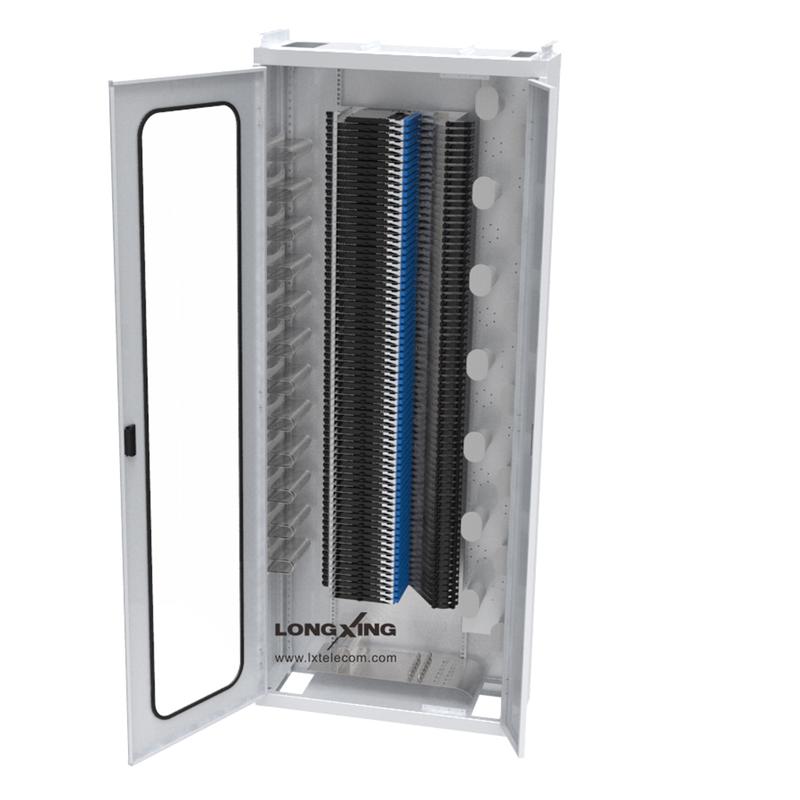

Optical Distribution Frame GPX82-10


LongXing optical fiber distribution frame GPX82-10 provides flexible cabling access, expandable frame concept, integrated cable management and a future proof modular design with the highest termination capacity possible and superior cable management. High density side access type of patch panel is also designed to fit a variety of termination, splice, and storage applications. This frame and subrack are very popular worldwide, especially in South East, European, Latin American market. One of our partners in Vietnam is Pyramid Vietnam Coporation.


l Enhanced visual appearance
l Highly stable and rigid construction
l Standard 19”& ETSI installations

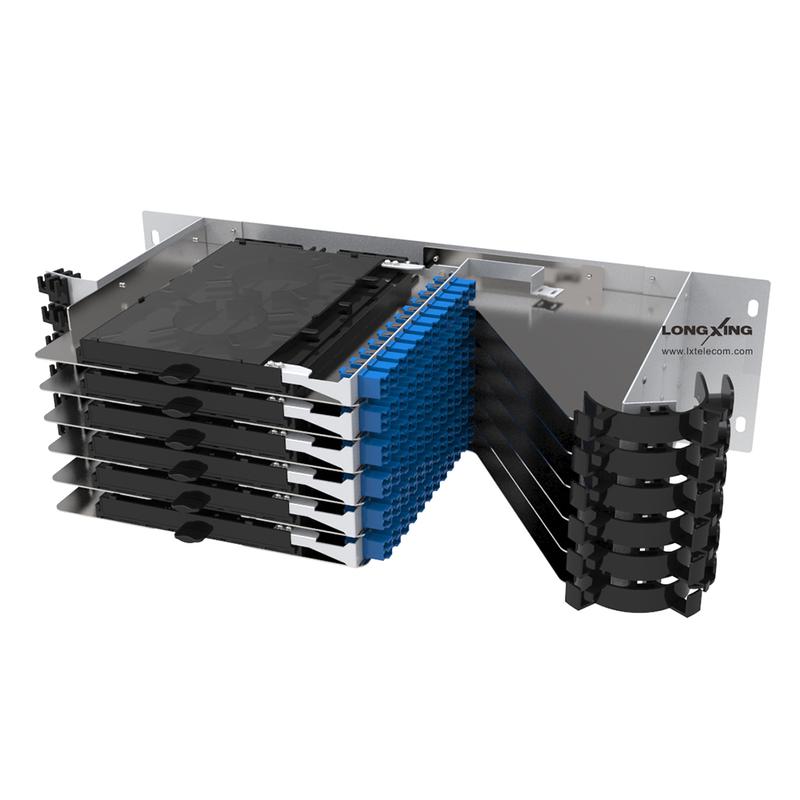

l Designed to be used together with high density side access type patch panels
l Maximum fiber density of 2016 ports (splice & patch) and superior cable management
l Special cable glands to fix the maximum number of bundle cables on the ground
l Slot type cable guide compartments to feed the modules via miniflex tubes
l No crushed or stressed fibers
l Wide range of splice, patch and cable storage options
l Bend radius protection of 35 mm throughout entire frame and all modules
l Max cable protection

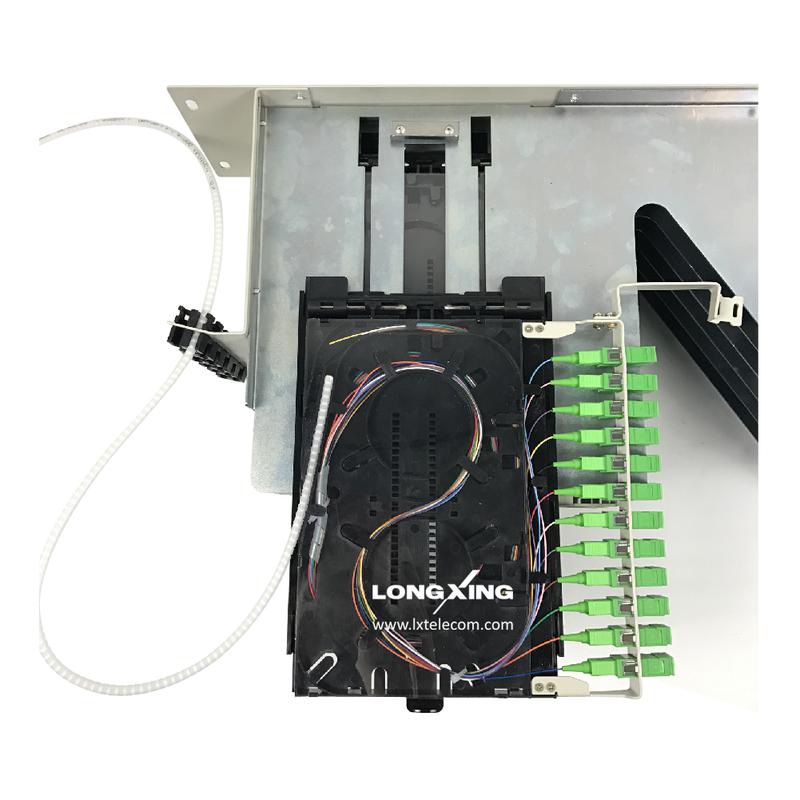

l Interchangeable cassettes for various cable/tube counts and connector styles
l Accepts WDM and splitter cassettes
l Integral patch cords management


Add To Quote List Add To Compare
Dimensions and Capability
Dimensions(H*W*D) 2200mm*900mm*300mm
Material Cold rolled steel; Powder coated
Color RAL 7035
Weight 120 kg / empty
Maximum Port Capacity 2016 Port (Splice & Patch)
Maximum Subracks Allowed 14*3U Patch Panel (144 Ports)
Compliance GR-449-core of Telcordia Specification
