Optical Distribution Frame GPX82-4

Overview

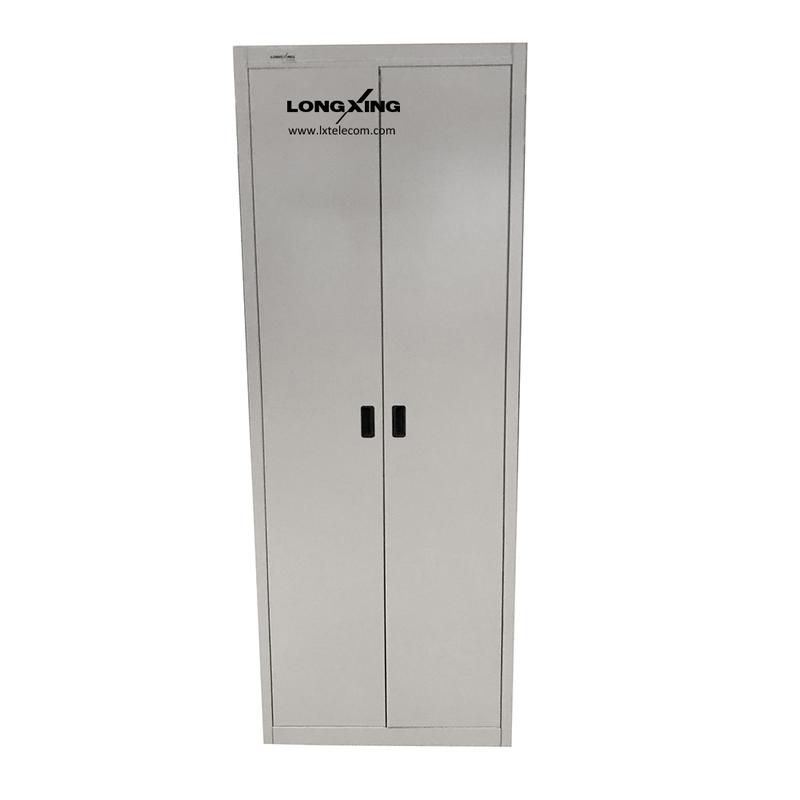

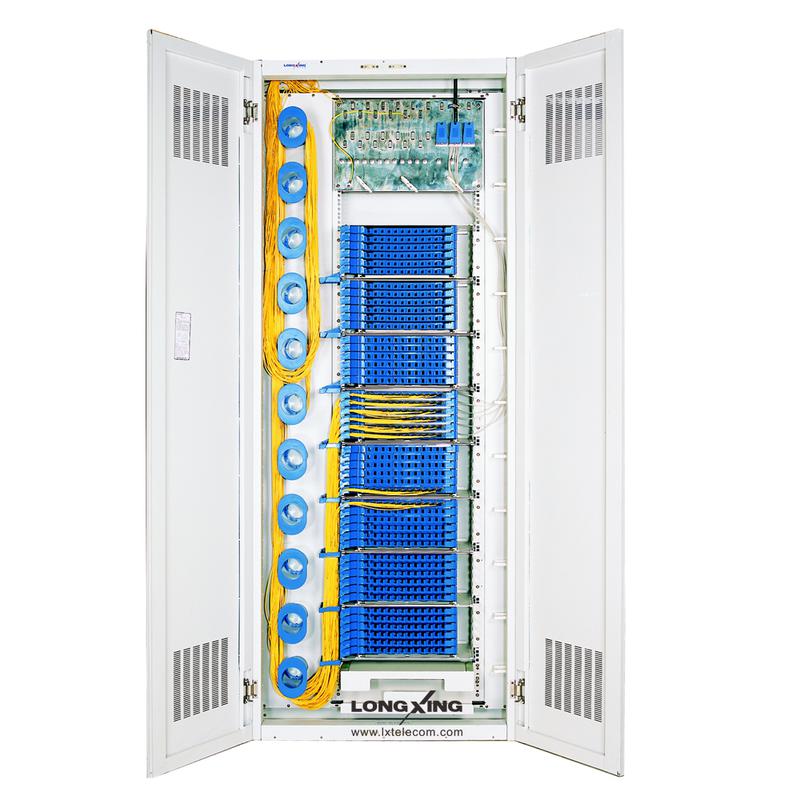

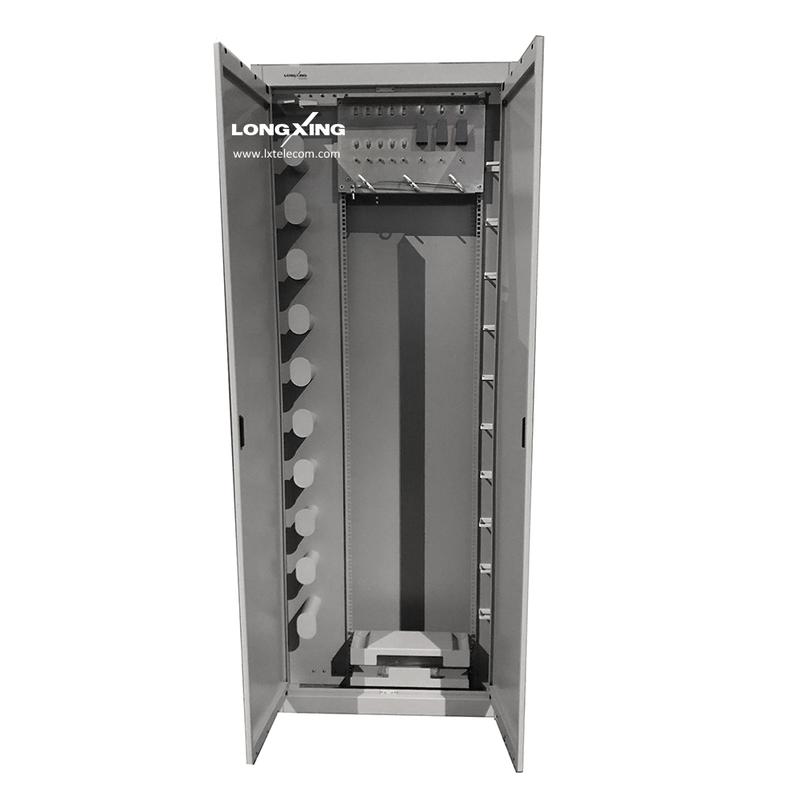

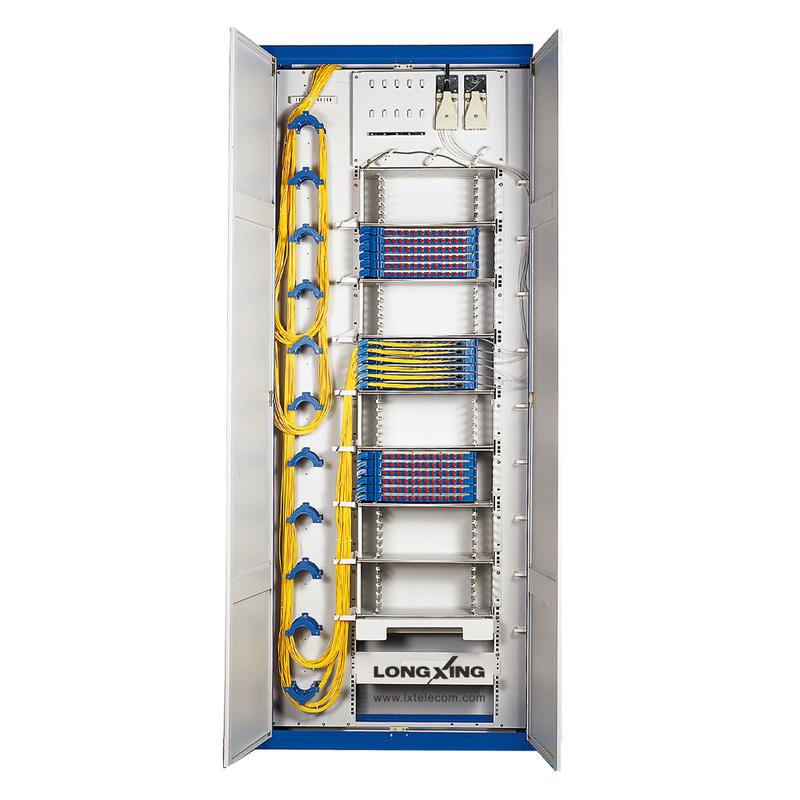

LongXing optical fiber distribution frame GPX82-4 is made of top quality steel and deformed aluminum alloy and treated with galvanizing, oxidation and electrostatic plastic spraying. The frame has solid structure and pleasing appearance.

Features

l Fully-closed structure with the advantages of good performance of dust-proof, pleasing and neat appearance
l Enough space for fiber distribution and storage space and very easy for installation and operations
l Fully front side operation, convenient for maintenances
l Curvature radius of 40mm
l Cable inlet system is installed on the top of the frame which has excellent performances for fixing the cables
l Cables can be inlet either from the top or the bottom of the frame subject to different requirements
l This frame is suitable for both common bundle cables and ribbon type cables
l Reliable cable fixture cover and earth protection device provided

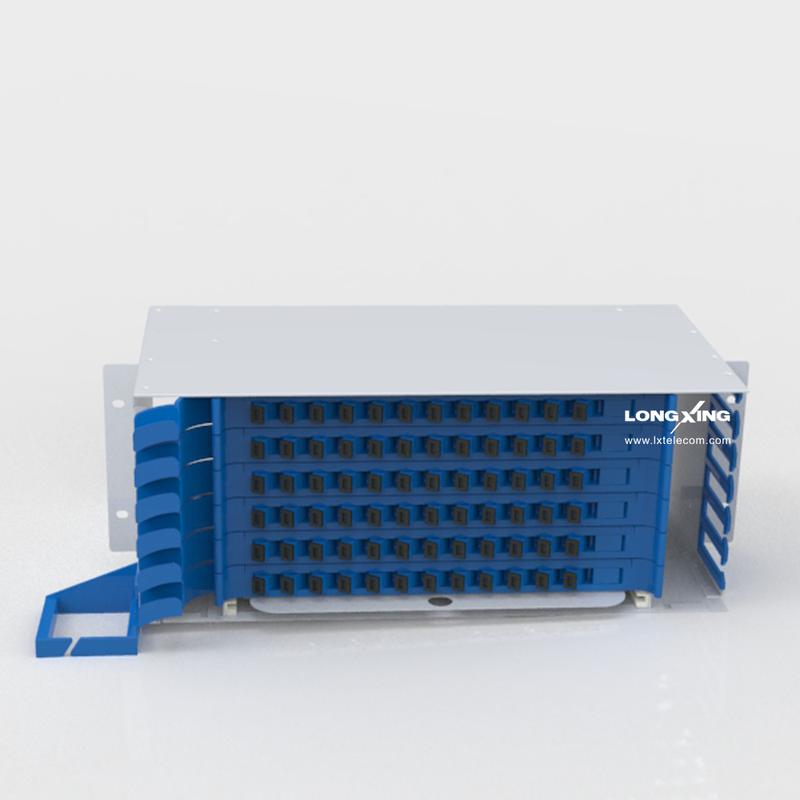

l Integrated splice and distribution unit is adopted. Each unit holds up to 12 FC adapters and up to 24 SC/LC adapters. All units have specially designed slots and can be easily pulled out for operation at any time
l Fiber separation hook of the splice and distribution module (the hook on the left) can be disassembled to fit for both wide and narrow structure frame
l Every 6 units make up a module. Longxing’s Dual SC adapters could double the capacity of Splice and distribution units’ capacities to max 24FO each
l All adapters are installed 40 degrees inclining to the operation surface which is easier for connecting and also protect installers’ eyes from the lights
l No screw needed for installing adapters
Add To Quote List Add To Compare
Dimensions and Capability
Dimensions(H*W*D) Modules Max Capacity (FC) Max Capacity (LC/SC)
2600*840*300 10 720 1440
2200*840*300 8 576 1152
2000*840*300 7 504 1008



Operation Conditions
Temperature -5℃ -- 60℃
Humidity 90% at 30℃
Air Pressure 70kPa – 106kPa



Shipping Information
Package Contents ODF 1 unit
Package Dimensions(W*H*D) It depends on the dimensions of the product
Material wooden box
Weight It depends on the dimensions of the product
Lead Time 10-15 working days normally
