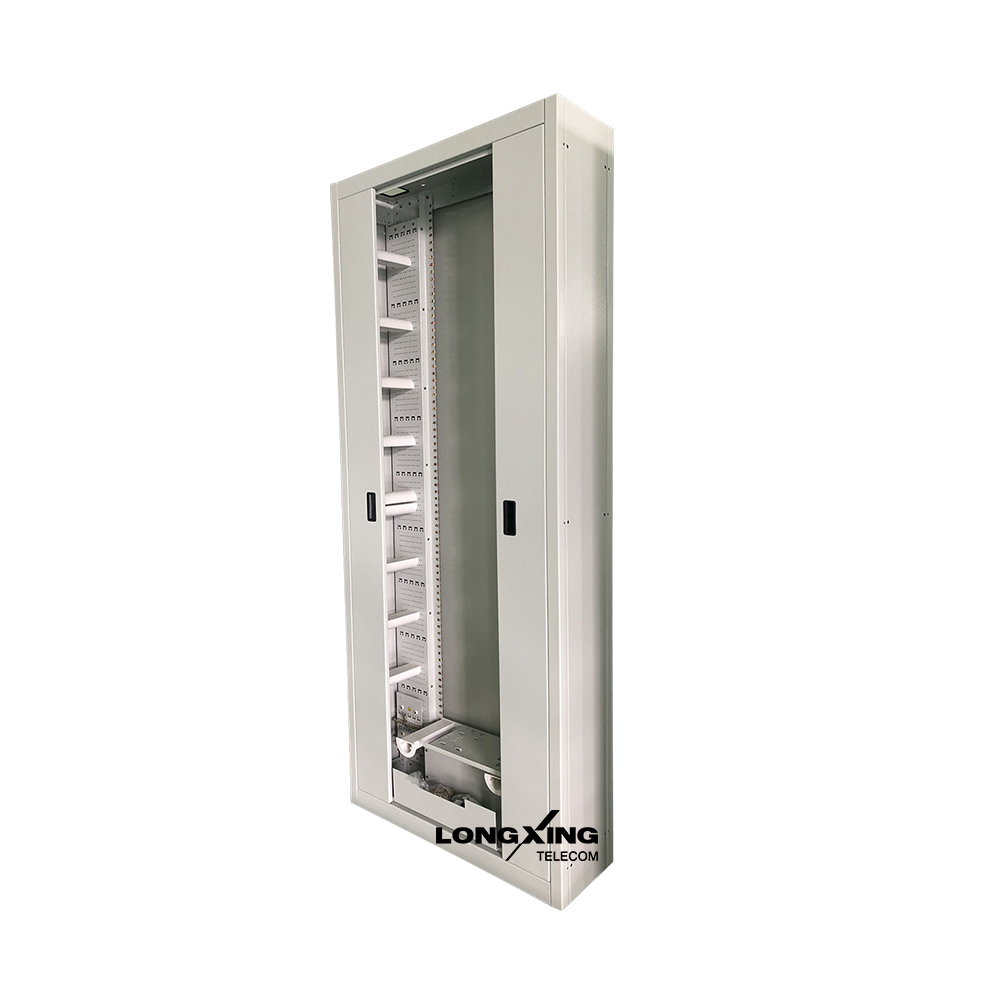

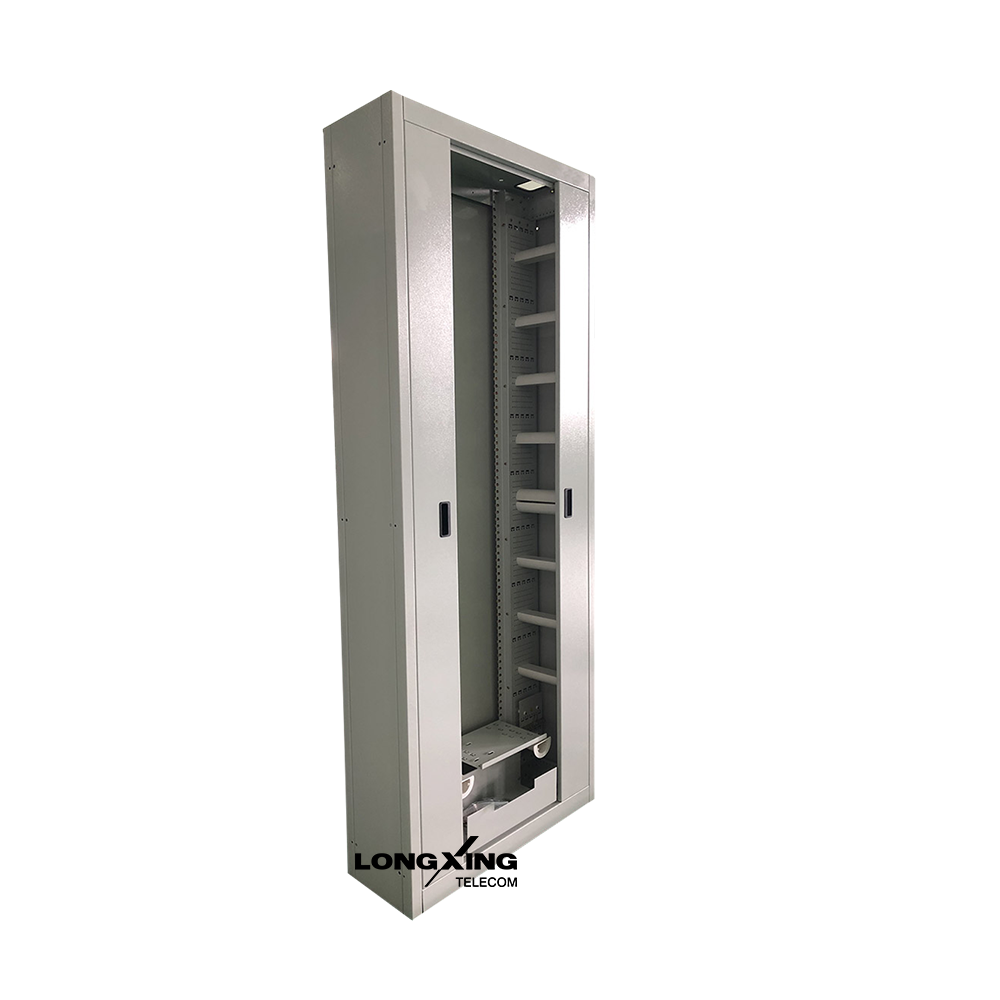

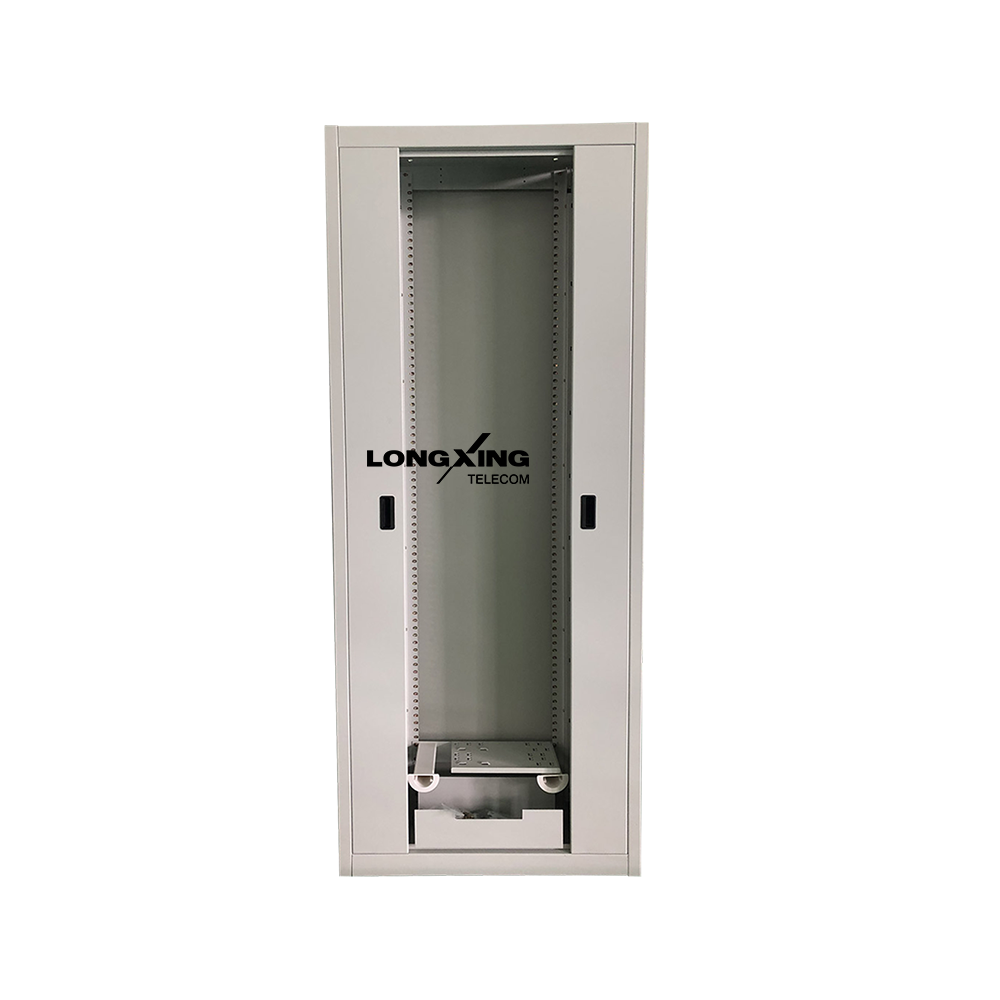

Optical Distribution Frame GPX82-5

Overview

LongXing optical fiber distribution frame GPX82-5 is made of top quality steel and deformed aluminum alloy and treated with galvanizing, oxidation and electrostatic plastic spraying, and it has the advantages of anti-corrosion, solid structure and pleasing appearance.

Features

l There are 19” mounting rails in the middle of the frame for installing ODFs
l Available color: white, black, grey or any other colors on request
l All the plastic elements in the frame are fire-resistant meets UL-94
l Reliable cable fixture cover and earth protection device/ grounding system provided
l A sticky label with the warning “Caution laser radiation” will be stuck to the frame
l Enough space for fiber distribution and storage space and very easy for installation and operation
l Fully front side operation, convenient for maintenances
l Minimum bend radius is controlled of 30mm
l Cable guides mounted on left and right side of canal are removable and relocatable to different positions within the same vertical line, to ensure a minimum bend radius of 30mm for the patch cords from any ODFs
l There are two lateral canals with separate doors (on left and right side of the frame) for distribution and management of fiber optical cables
l The side-hinged doors help to well protect the patch cords distribution area
l The optical cable inlet system is installed on the top or bottom of the frame which has excellent performances for fixing the incoming cables
l Cables can be entered to the frame either from top or the bottom of the frame subject to different requirements
l This Frame is suitable for both bundle (loose) cables and ribbon type cables
Add To Quote List Add To Compare
Dimensions and Capability
Dimensions (H*W*D)mm Capacity (SC) Capacity (LC) ODU-L10-4U
2,200*900*300 864 1728 Max. 9 units



Operation Conditions
Temperature -5℃ -- 60℃
Humidity 90% at 30℃
Air Pressure 70kPa – 106kPa



Shipping Information
Package Contents ODF 1 unit
Package Dimensions(W*H*D) It depends on the dimensions of the product
Material wooden box
Weight It depends on the dimensions of the product
Lead Time 10-15 working days normally
