Rack Mount Patch Panel ODU-L11

Overview

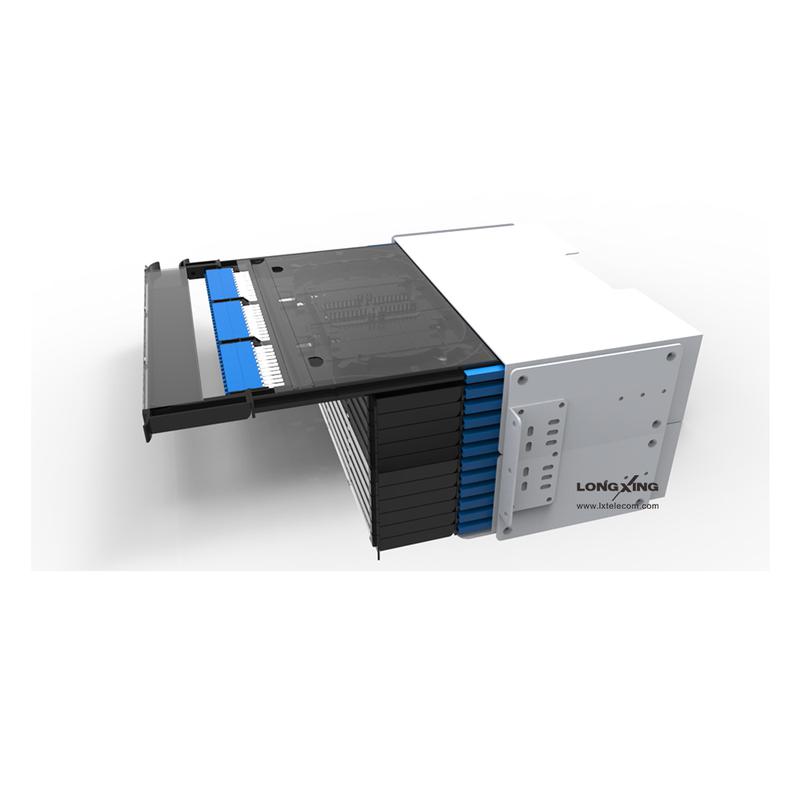

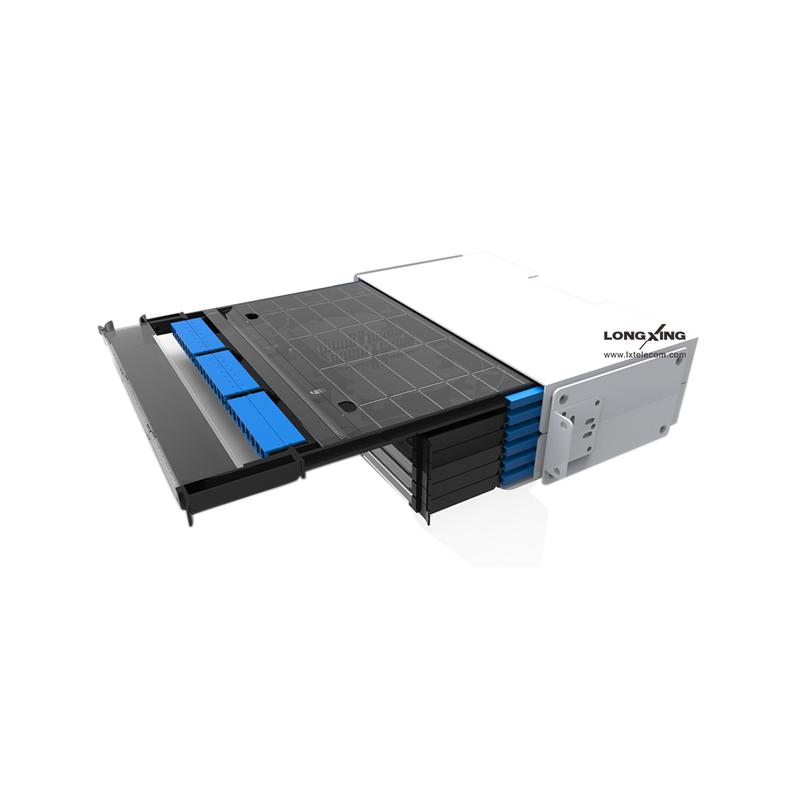

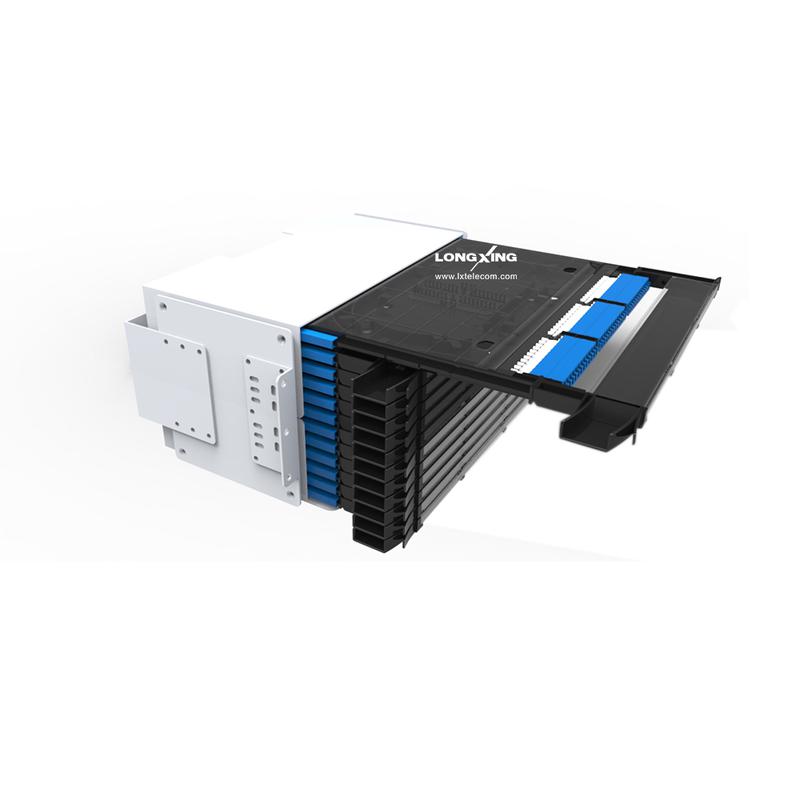

ODF (Optical Distribution Frame) rack mount patch panel ODU-L11 is designed for a high-density fiber management system, adaptable with standard 19”, 21'' and 23'' frame and currently being widely used in high density optical fiber distribution frames, which can be deployed in data center, central office, FTTH, FTTB, etc. The rack mount panel is made of top quality metal material and could contain up to 12 high density Integrated splice and distribution unit (up to 432 LC or 288 SC). Splice and distribution are integrated in one modules. A 1U panel will hold 3 modules, a 2U panel will hold 6 modules and a 4U panel will hold 12 modules. Each module can complete the splice and distribution processes of 24 SC or 36 LC.

Features

l   Top quality steel with electrostatic painted ensures the strong body and pleasing appearance.
l   Easy installation:19”, 21'' and 23'' rack mounting.
l   For standard 19” racks use.
l   Front rack mount brackets work with most network cabinets.
l   Easy operations: using sliding rails to install the high density modules.
l   Easy removable of modules
l   Multi-functions – Works with LongXing Series modules H1 (not just for splicing & terminating, also with options for splitters or fiber storage).
l   Protected patch panel offers secure environment for adapters, patch cords and pigtails.
l   Adoptable adapter types: SC, LC
Add To Quote List Add To Compare



Dimensions and Capability
Height Depth(mm) Width Module H1 Module Quantity
Capacity
SC LC

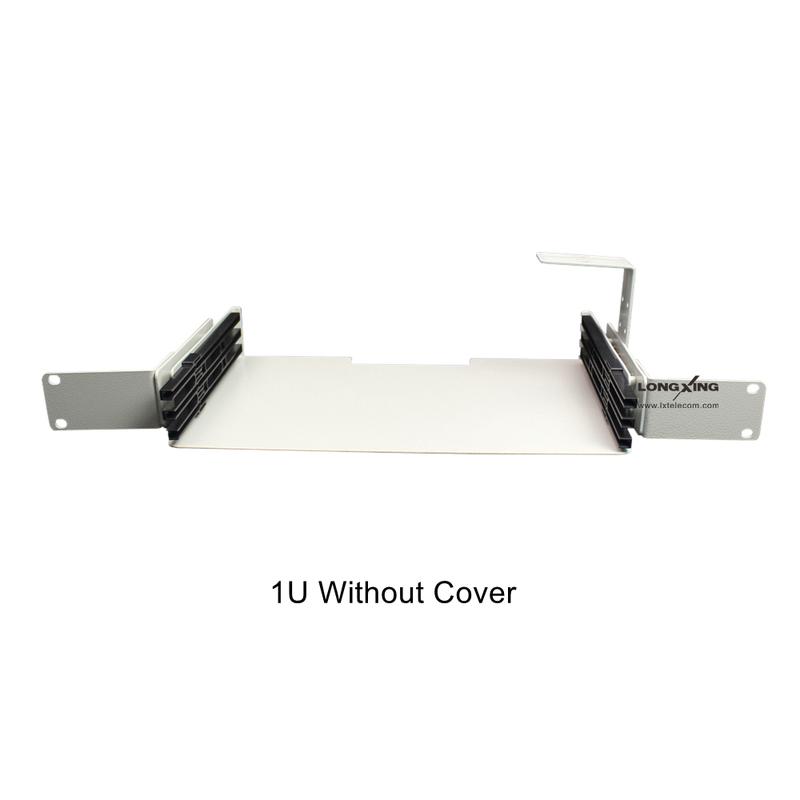

1U (without cover) 280 19''/21''/23''  72 108                 3
2U 280 19''/21''/23''  144 216                 6
3U 280 19''/21''/23''  216 324                 9
4U 280 19''/21''/23''  288 432                12



Shipping Information
Package Contents Patch panel, 1 unit
Package Dimensions(W*H*D) It depends on the dimensions of the product
Material Carton box
Weight It depends on the dimensions of the product
Lead Time 10-15 working days normally
