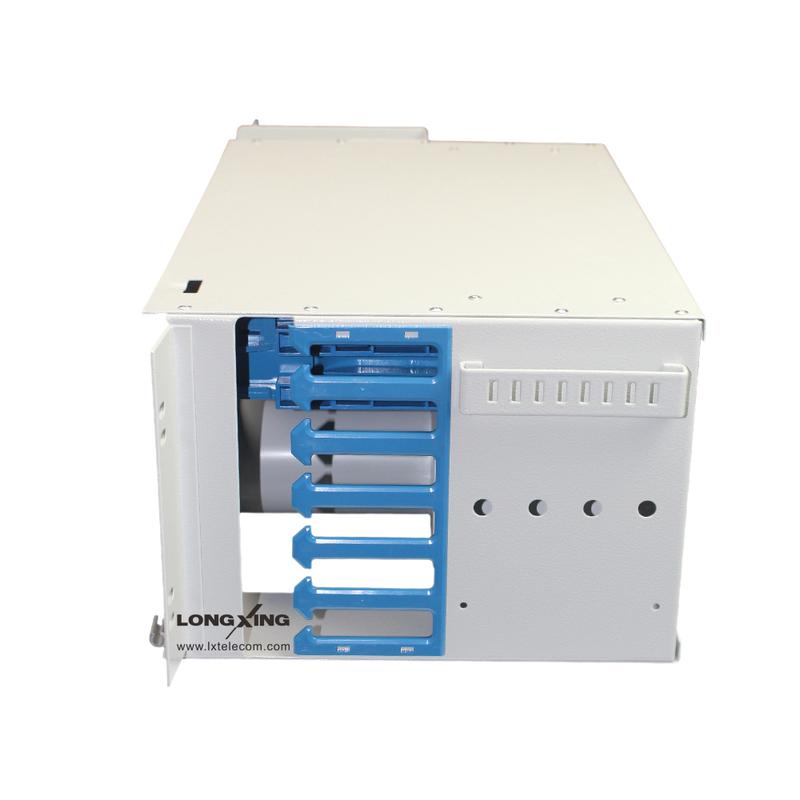

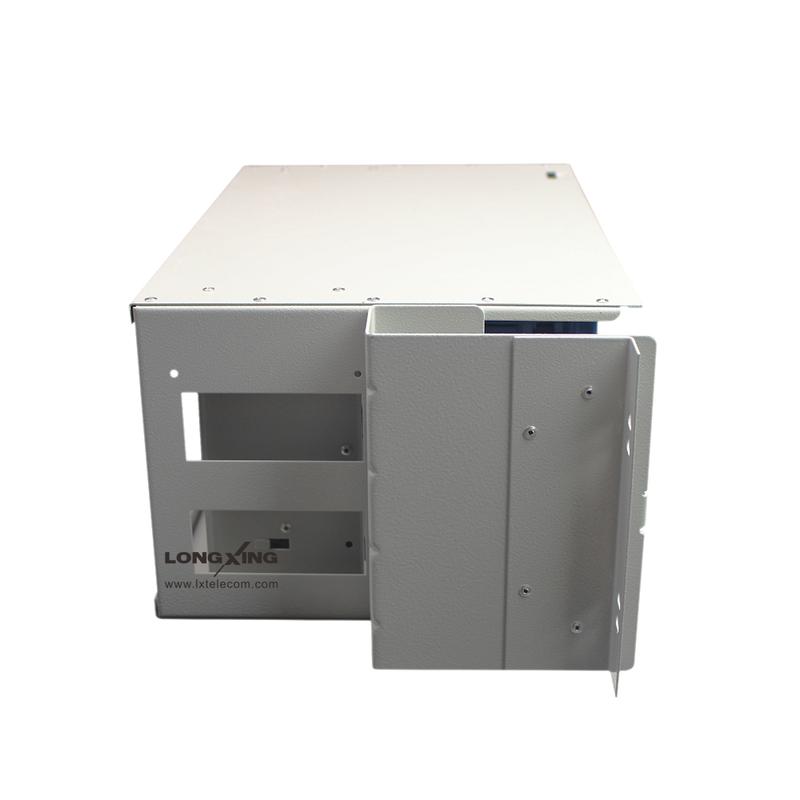

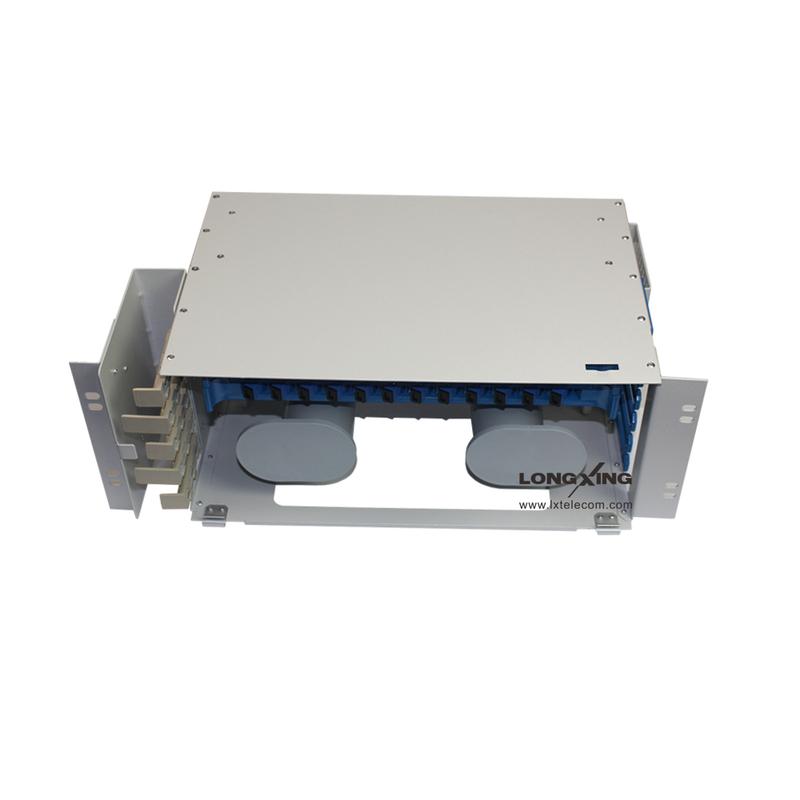

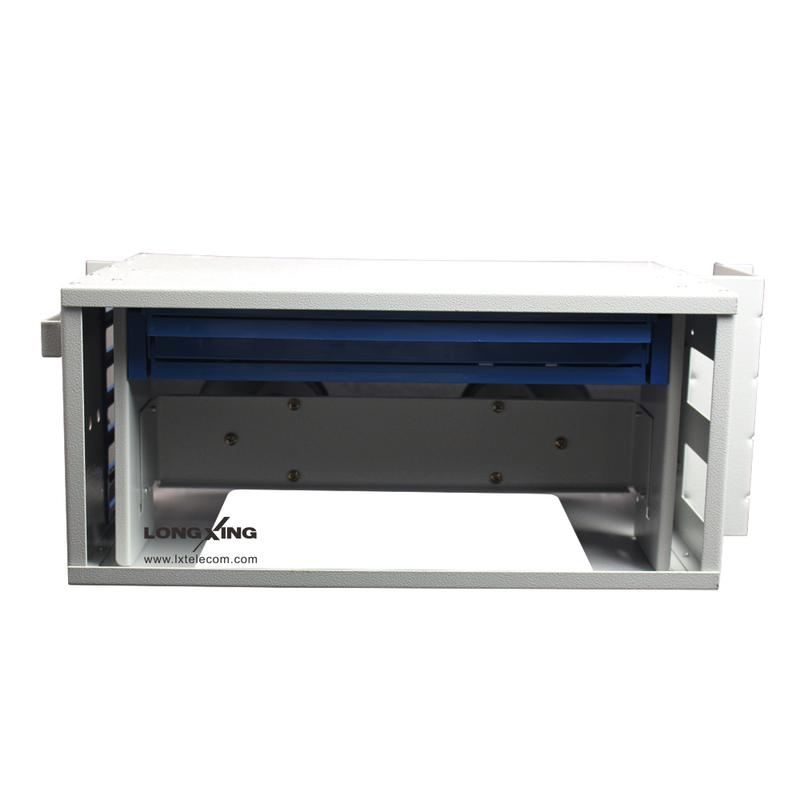

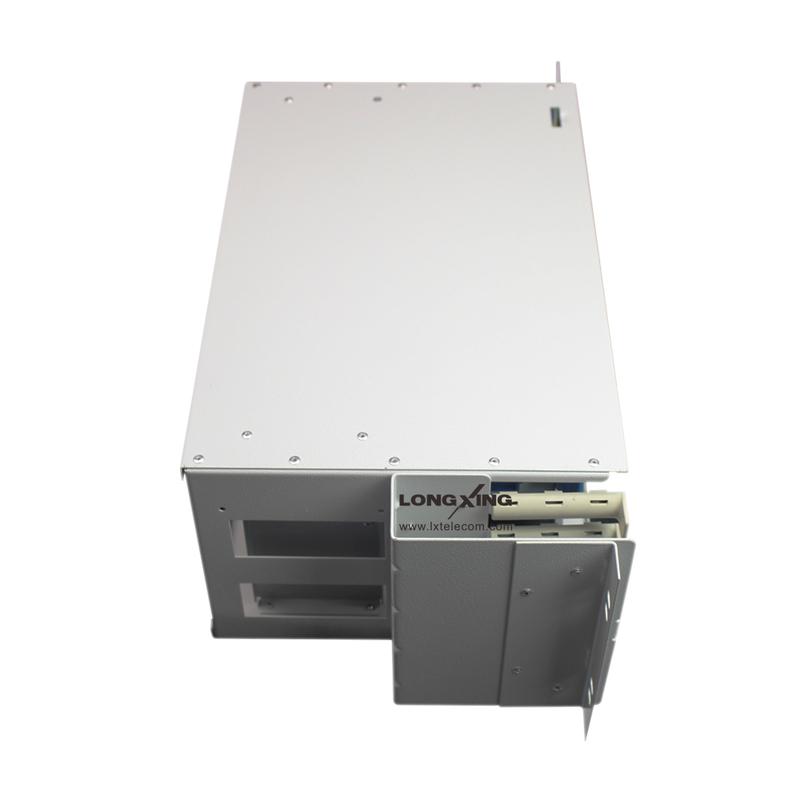

Rack Mount Patch Panel ODU-L2

Overview

ODF (Optical Distribution Frame) rack mount patch panel ODU-L2 case is adaptable with standard 19", 21'' and 23'' frames and currently being widely used in Longxing’s optical fiber distribution frames. The rack mount is made of top quality metal material. Splice and distribution are integrated in one module. This unit provides excellent fiber patching management. It is an ideal solution for rack or cabinet-mounting in areas.

Features

l   Top quality steel with electrostatic painted ensures the strong body and pleasing appearance.
l   Easy installation:19”, 21'' and 23'' wall mounting.
l   Front rack mount brackets work with most network cabinets.
l   Removable front door with designation labels.
l   Integrated splicing, distribution with fiber storage.
l   Vertical cable guides on exit side allow for managed routing and protection of the fiber exiting the panel.
l   Multi-functions - Works with all LongXing Series A modules1 (not just for splicing & terminating, also with options for splitters or fiber storage).
l   Protected patch panel offers secure environment for adapters, patch cords and pigtails.
l   Adoptable adapter types: FC, SC, ST simplex adapters and LC duplex adapters .
Add To Quote List Add To Compare
Dimensions and Capability
Height Depth(mm) Width Module A1 Module A3
Capacity Module
Capacity
Capacity Module
Capacity
FC/SC/ST LC duplex FC/SC
4U 250 19''/21''/23''  12 24 1 24 1
24 48 2 48 2
5U 250 19''/21''/23''  36 72 3 72 3
48 96 4 96 4












Operation Conditions
Temperature -5℃ -- 60℃
Humidity 90% at 30℃
Air Pressure 70kPa – 106kPa



Shipping Information
Package Contents Patch panel, 1 unit
Package Dimensions(W*H*D) It depends on the dimensions of the product
Material Carton box
Weight It depends on the dimensions of the product
Lead Time 10-15 working days normally
