Rack Mount Patch Panel ODU-L21


ODF (Optical Distribution Frame) rack mount patch panel ODU-L21 ultimate new design with the most advanced splice & patch system and cable management ever developed for high density applications on carrier & transmission side.

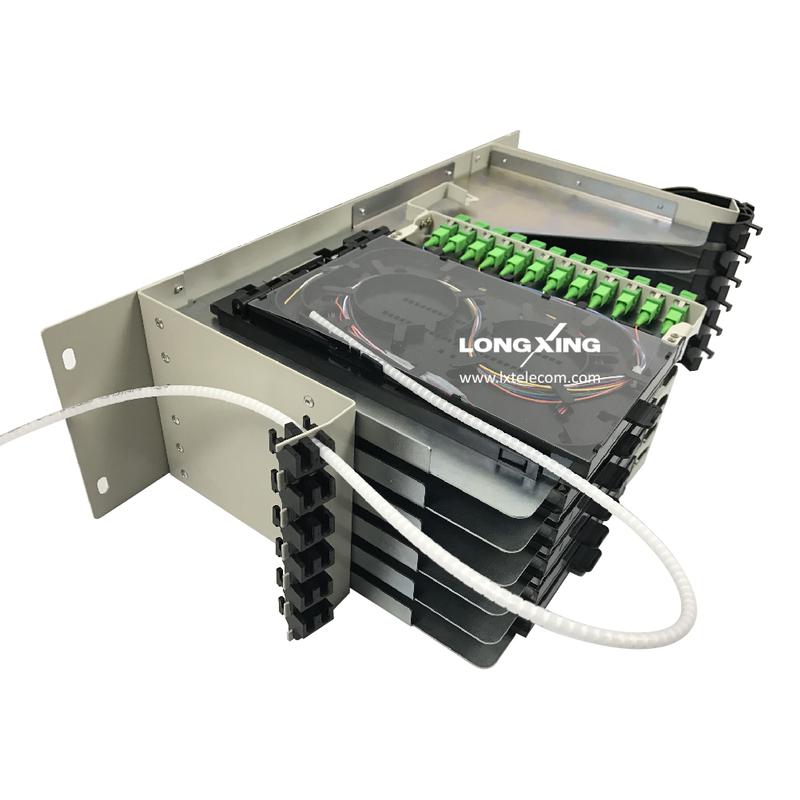

l Compact 3U patch panel, each U accommodates 2 fiber trays
l Each U accommodates 2 fiber trays with each max. Capacity of 24 fibers
l Max capacity of the patch panel is 144 fibers for SSF Duplex adapters
l Patch Panels are rear mounted for improved access

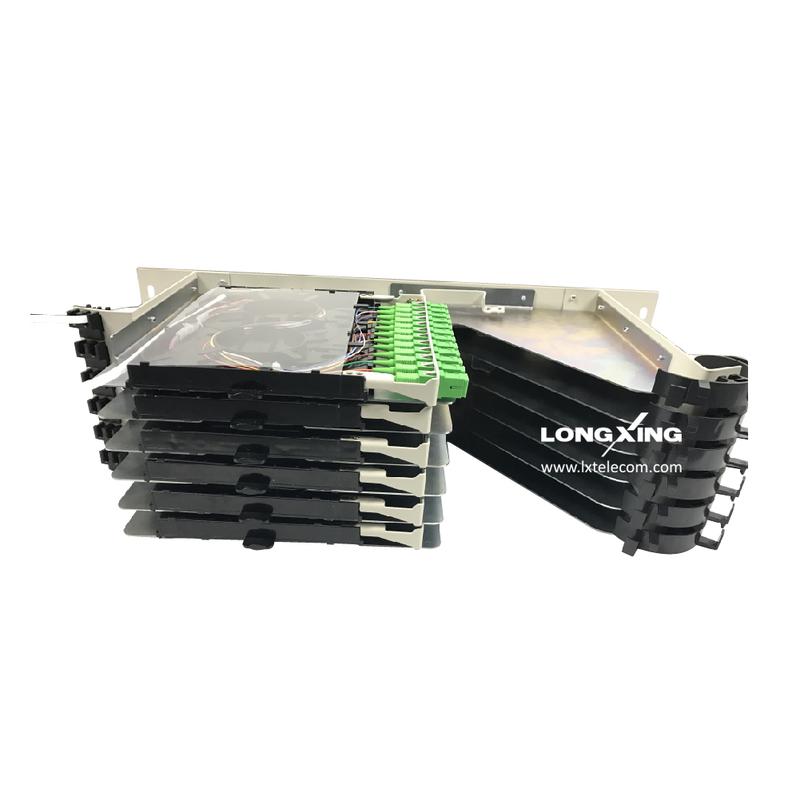

l Fiber trays and connected patch cords can slide in and out independently as a pull-out unit
l Easy side access ensures laser safety

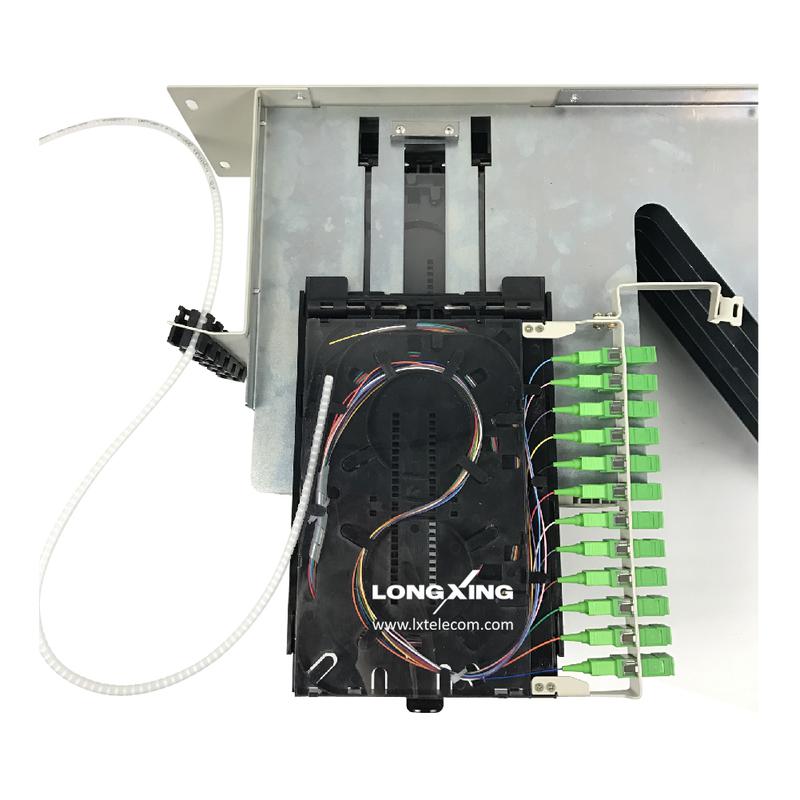

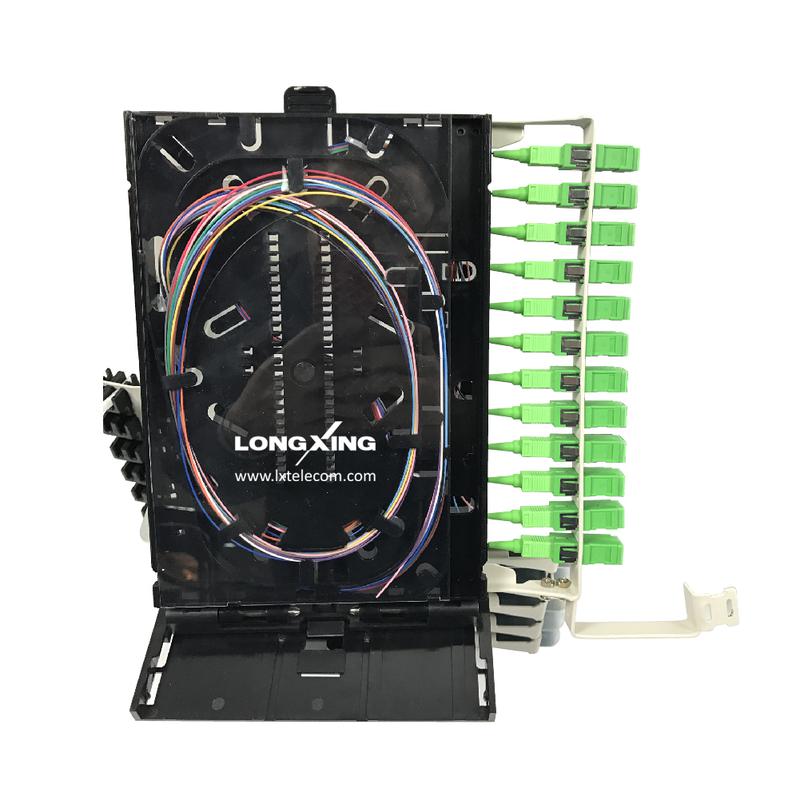

l Special splice module design, which allows splicing on one side and professional cable storage on the other side without cable congestion
l Modules are tiltable up to 135 degree for ease of installation and maintenance
l Special incoming cable fixing unit which ensures strong, easy and quick cable fixing for miniflex tubes-no need to use time consuming plastic cable ties

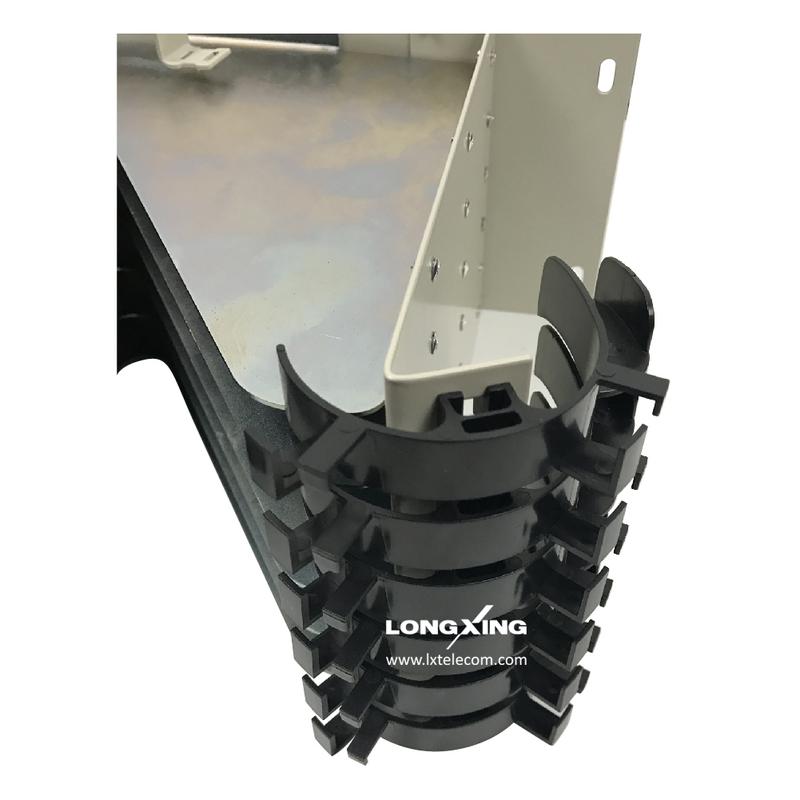

l Integrated outgoing patch cords clamps and routing guides, which ensures min bend radius criteria of 35mm and professional cable management.
Add To Quote List Add To Compare
Dimensions and Capability
Dimensions(H*W*D) 133mm*486mm*258mm
Cold rolled steel; Powder coated
Color RAL 7035
Weight 4 kg
Maximum Port Capacity 144 Ports for SSF Double Connectors

* Height is upon request.
