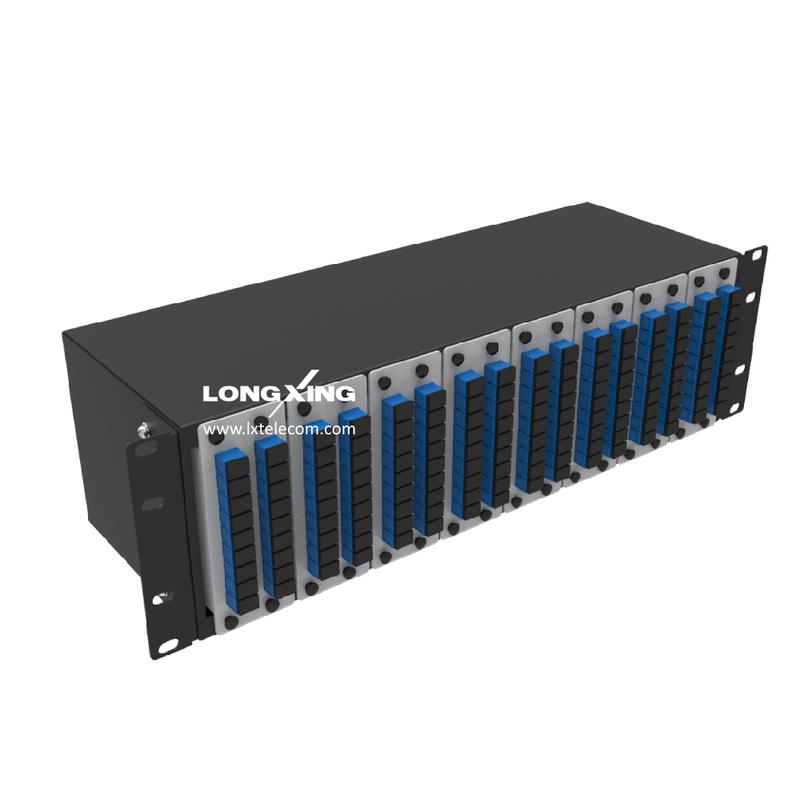

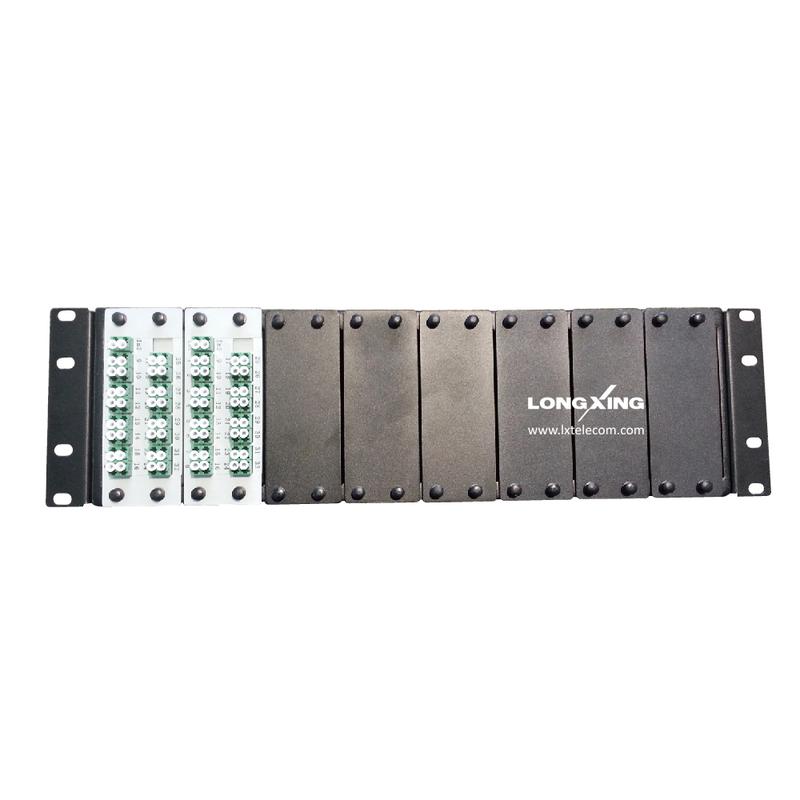

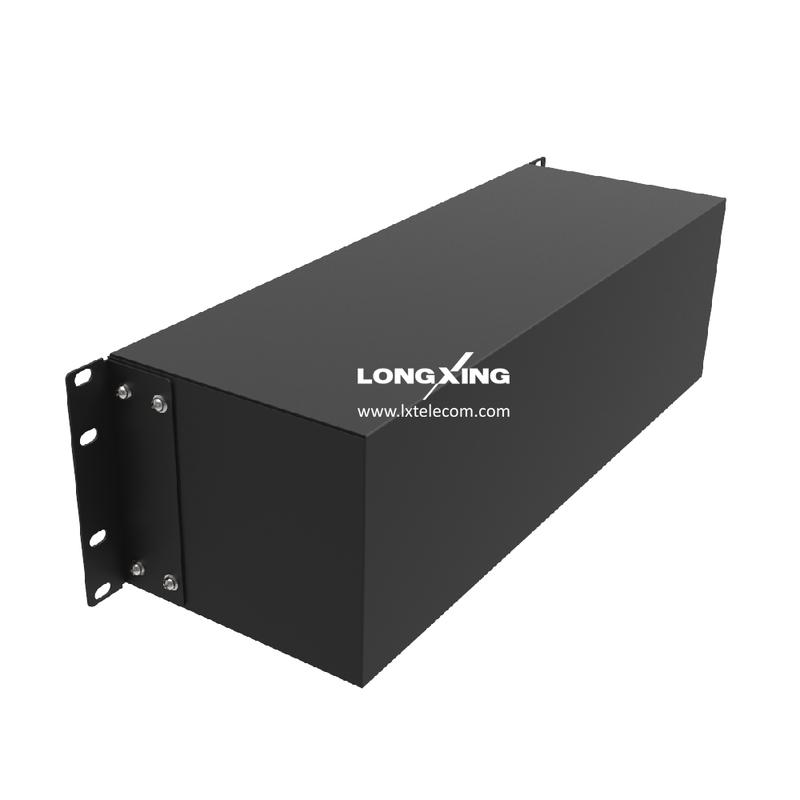

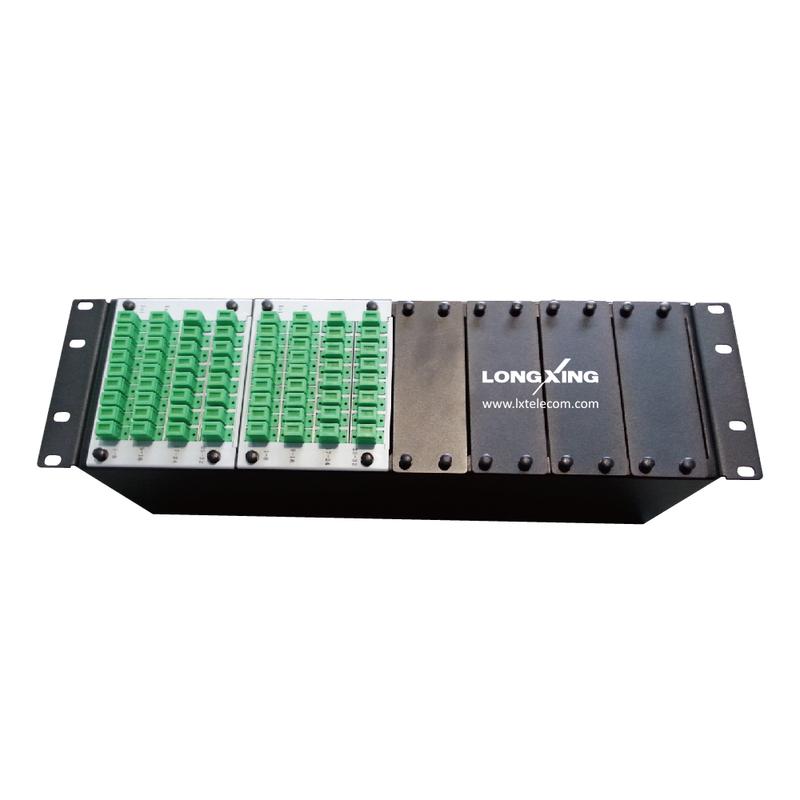

Fiber Splitting Enclosure (3U) ODU-L23

Overview

LongXing's Rack Mount Fiber Splitting Enclosure (3U) ODU-L23 is an integrated unit for fiber management with a protection function, to hold OSP-M1 PLC Splitter. This high-density patch panel is constructed of light weight, yet durable, rolled steel. OSP-M1 PLC Splitter must be ordered separately. The splitters are available loaded with either LC or SC type adapters. The whole body of an OSP-M1 PLC Splitter is housed in a strong PLASTIC box which can be used alone or be easily installed in standard fiber patch panel or fiber patch enclosure. Fiber adapters are pre-terminated on the box for fast and reliable connecting with subscribers or other devices.

Features

l Loaded with OSP-M1 PLC Splitter
² 3 U Rack Mount to hold 4 pieces of 2*32 OSPM PLC Splitter
² Customized design available upon request.
l Compact Design
l Mount to standard EIA 19 " rack rails
l Steel construction with Black Powder Coating
l Ensure signal integrity, proper cable routing, bend radius control and cable protection
l Provide higher patch field density in fewer rack units saving valuable space
l Assures flexibility and ease of network deployment and moves, adds, and changes
l Provides a complete system solution for connectivity
Add To Quote List Add To Compare
Dimensions and Capability
height Depth Width Capacity Quantity of Splitter
3U 150 19 " 96 Qty. 8, 1*16
3U 150 19 " 96 Qty. 4, 2*32



Shipping Information
Package Contents Patch panel, 1 unit
Package Dimensions(W*H*D) It depends on the dimensions of the product
Material Carton box
Weight It depends on the dimensions of the product
Lead Time 10-15 working days normally
