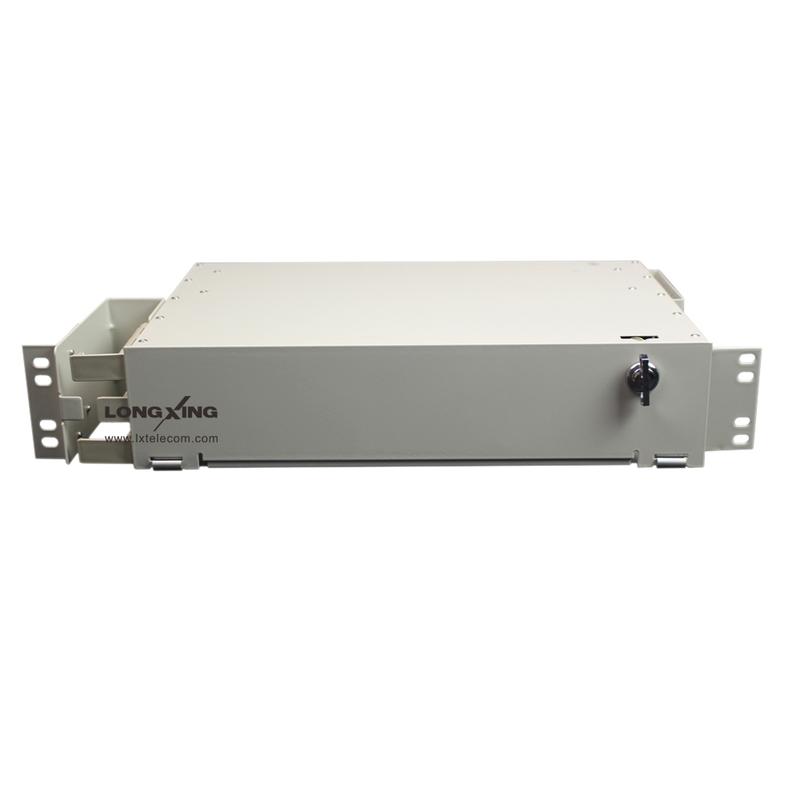

Rack Mount Splitting Panel ODU-L24

Overview

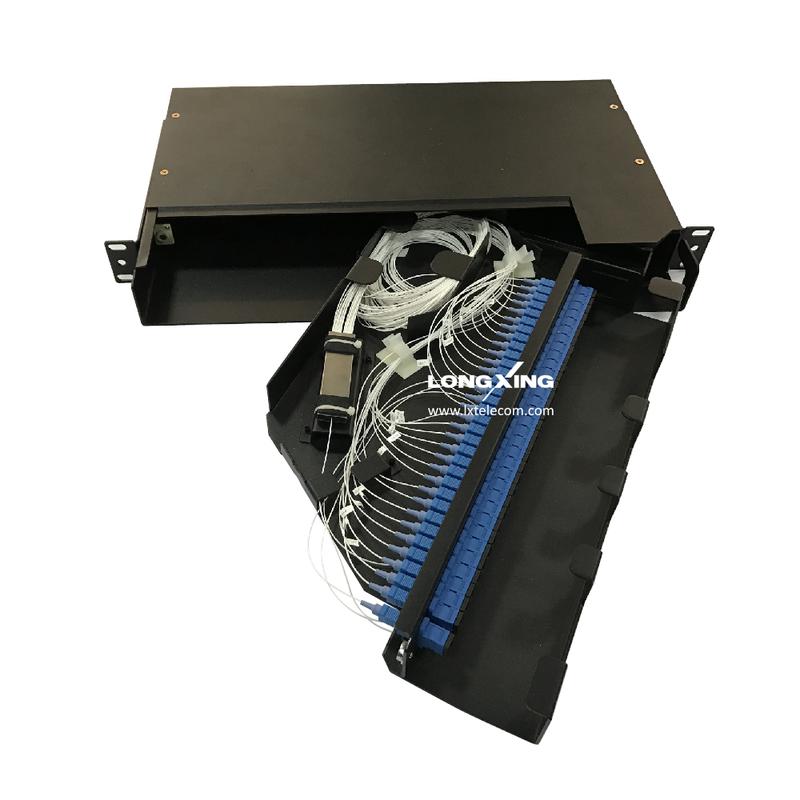

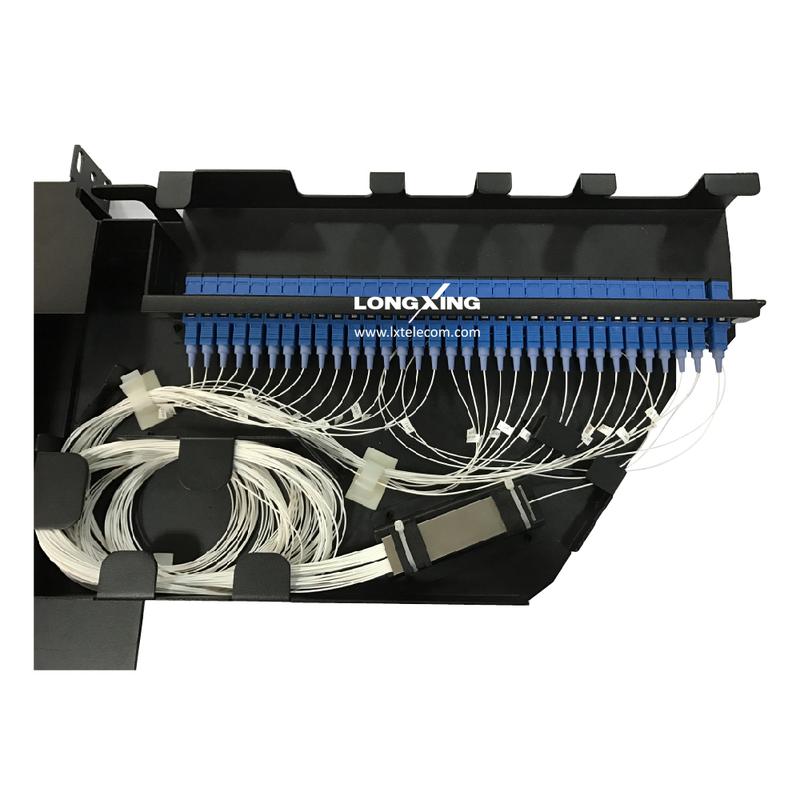

LongXing's Rack Mount Patch Panel ODU-L24 is an integrated unit for fiber management with a protection function, to hold OSPW PLC Mini Type Splitter. Ensures professional cable management and ease of fiber termination with front cable manager for patch cords. This high-density patch panel is constructed of light weight, yet durable, rolled steel. OSPW PLC Mini Type Splitter must be ordered separately. The splitters are available loaded with either LC or SC type adapters.

Features

l 1 U (enables splitting up to 32 SC or 64 LC ports)

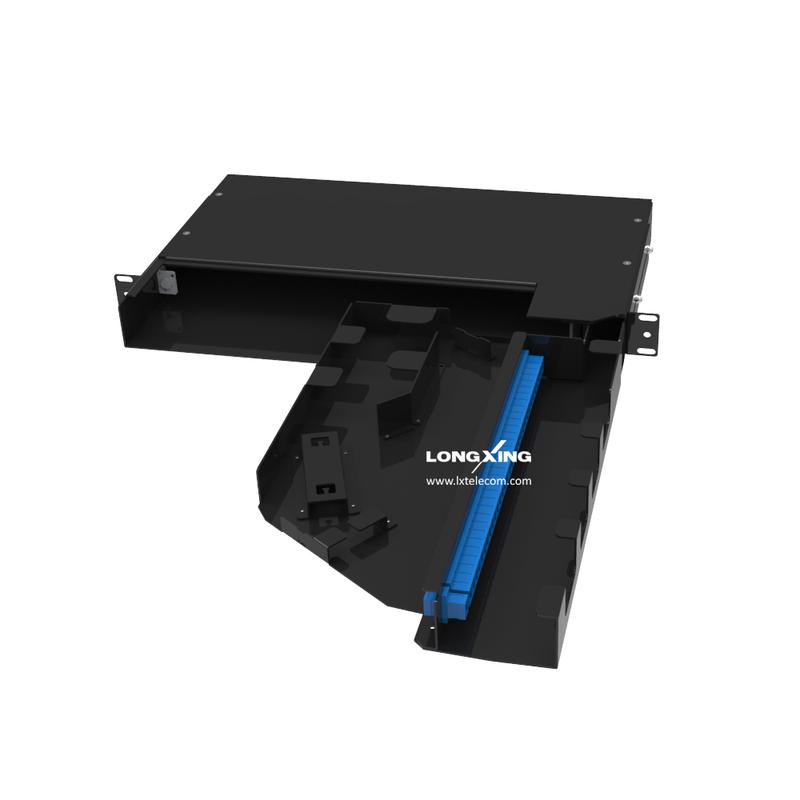

l Swing Out system with front cable management for patch cords
l Manages small & large quantities of fiber with a high packing density
l Compact Design
l Mount to standard EIA 19 " rack rails
l Steel construction with Black Powder Coating
l Ensure signal integrity, proper cable routing, bend radius control and cable protection
l Provide higher patch field density in fewer rack units saving valuable space
l Assures flexibility and ease of network deployment and moves, adds, and changes
l Provides a complete system solution for connectivity
l 1:2, 1:4, 2:4, 1:8, 2:8, 1:16, 2:16, 1:32, 2:32, 1:64, 2:64 splitters of SC/LC connector types can be embedded inside.
Add To Quote List Add To Compare
Dimensions and Capability
height Depth Width Capacity Quantity of Splitter
1U / 44.5mm 280 19 " 32 SC Qty. 1, 1*32 / 2*32
1U / 44.5mm 280 19 " 64 LC Qty. 1, 1*64 / 2*64
* Customized design available upon request.



Shipping Information
Package Contents Patch panel, 1 unit
Package Dimensions(W*H*D) 530mm*380mm*115mm
Material Carton box
Weight 3 KG
Lead Time 10-15 working days normally
