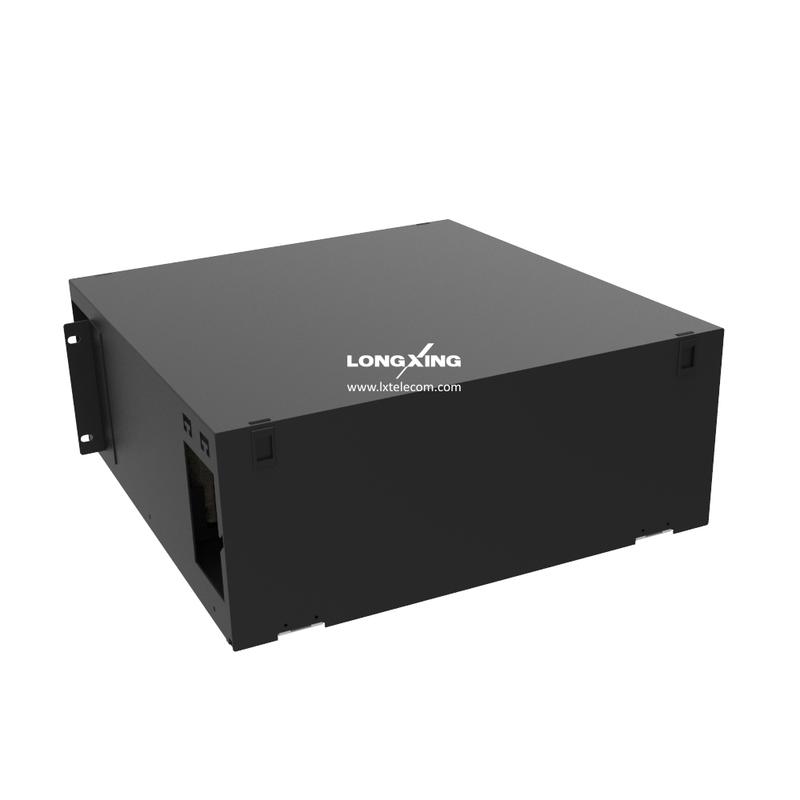

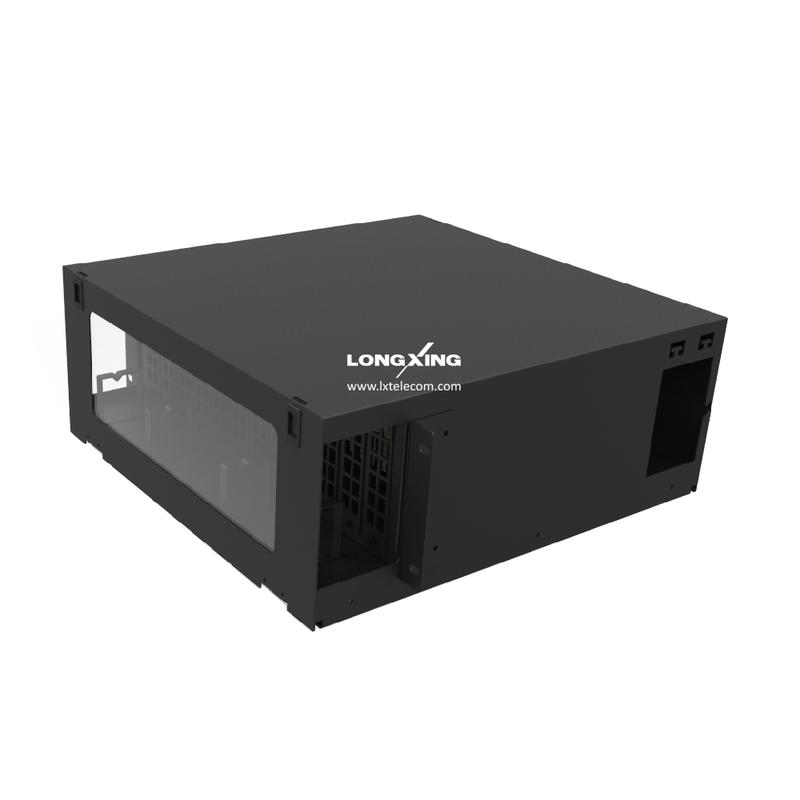

High Density Splicing Patch Panel ODU-L25

Overview

LongXing High density splicing patch panel ODU-L25 series can be installed on standard 19” racks and provides an ultra high density solution for splicing drop cables with pigtails & pigtails with pigtails. Each 4U patch panel can splice up to 288 cores. Spacious interior with cable clamps and fiber management rings ensures all the drop cables and pigtails are safely organized. Sliding mechanism both forward and backward ensures that the operations will be convenient.

Features

l Top quality steel with cover by nonflammable electrostatic painted ensures a
strong body, resistance to corrosive influences and pleasing appearance.
l Front and rear door have push buttons; allow easy access to the splicing trays.

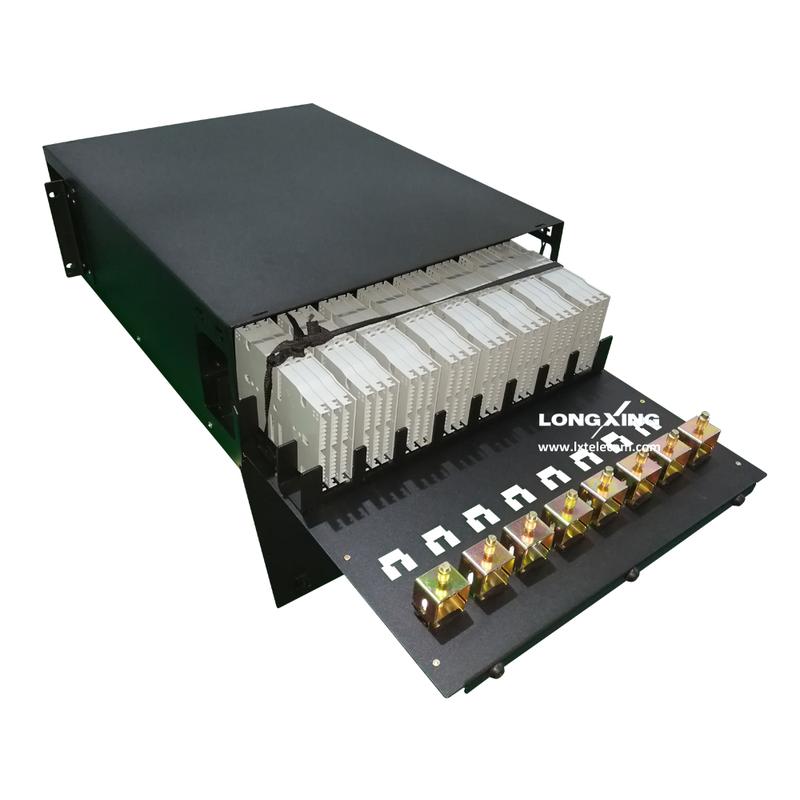

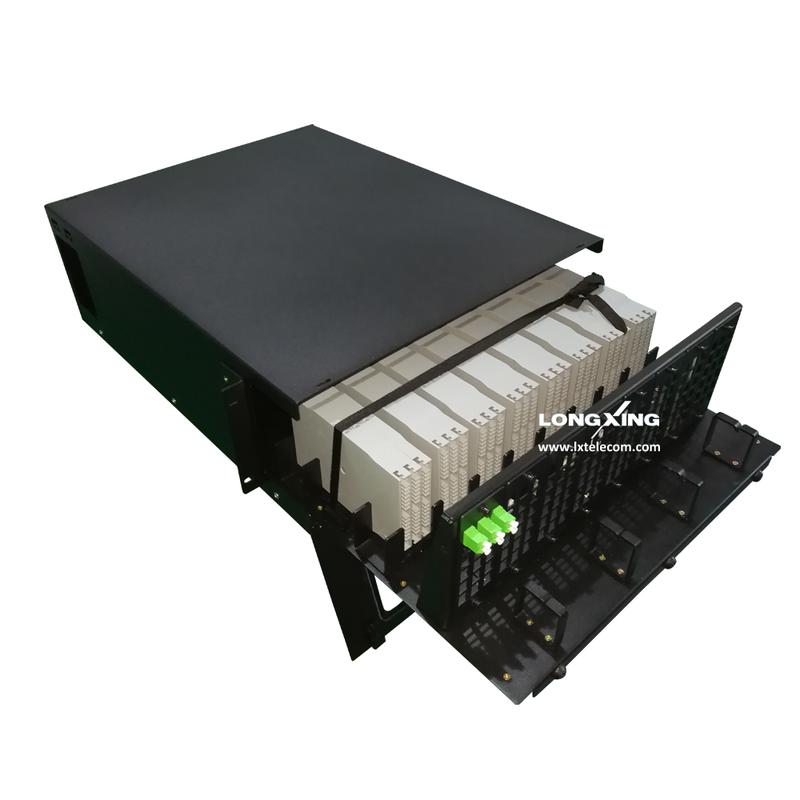

l Easy operations: Sliding mechanism both forward and backward.
l Easy installations: 19’’ wall mounting.
l For standard 19’’ racks use (other rack width options available on request)
l Adoptable adapter types: SC simplex adapters and LC duplex adapters.
Add To Quote List Add To Compare
Dimensions and Capability
Model Height Depth Width Capacity
SC LC duplex
L25-1 (Fiber to fiber) 4U 450 19’’ 144 288
L25-2 (Drop cable to fiber) 4U 550 19’’ 144 288



Operation Conditions
Temperature -5℃ -- 60℃
Humidity 90% at 30℃
Air Pressure 70kPa – 106kPa



Shipping Information
Package Contents Patch panel, 1 unit
Package Dimensions(W*H*D) It depends on the dimensions of the product
Material Carton box
Weight It depends on the dimensions of the product
Lead Time 10-15 working days normally
