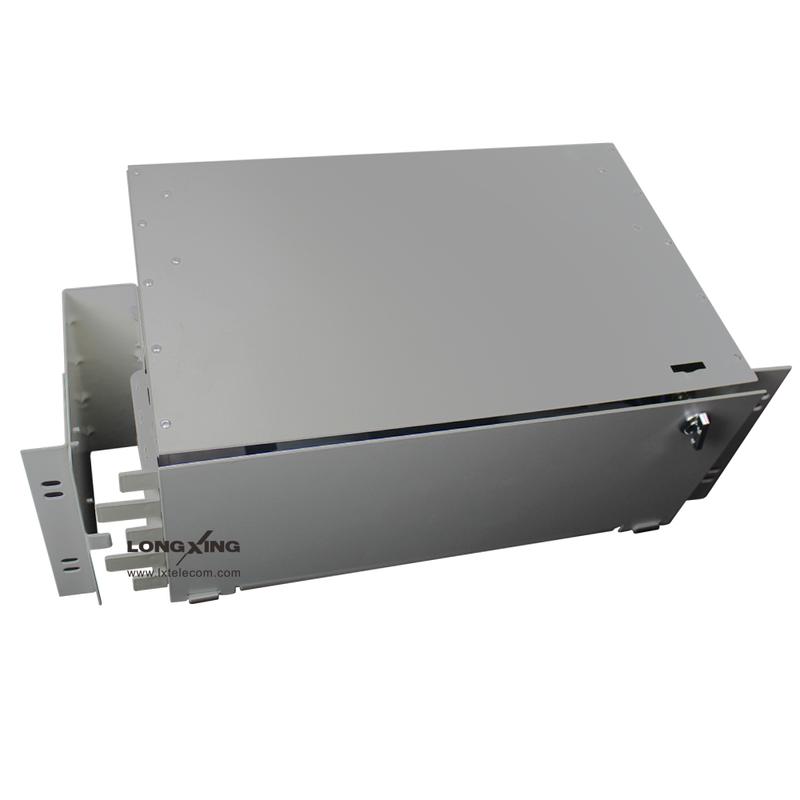

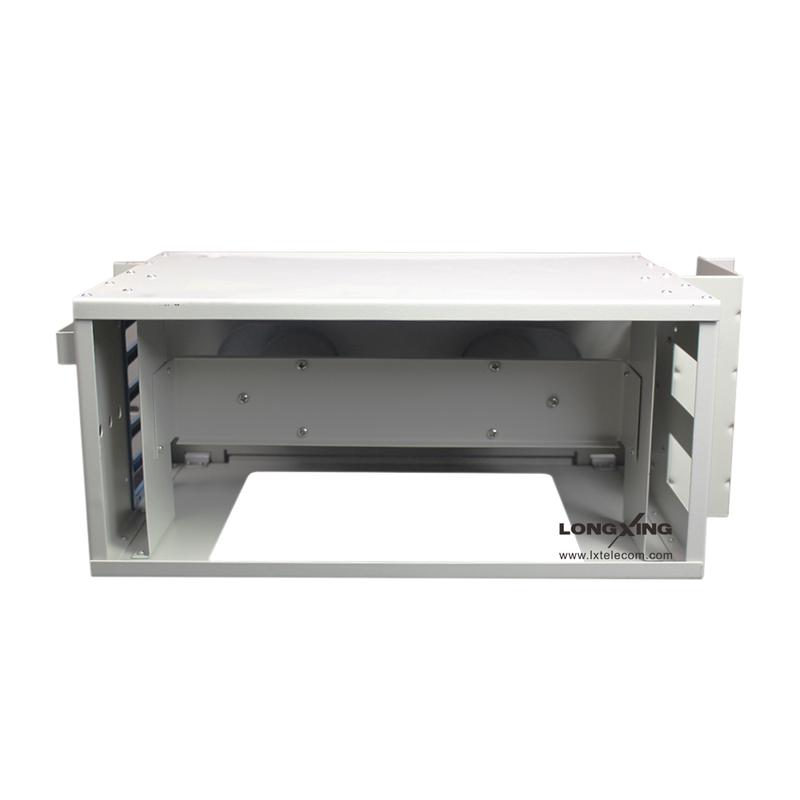

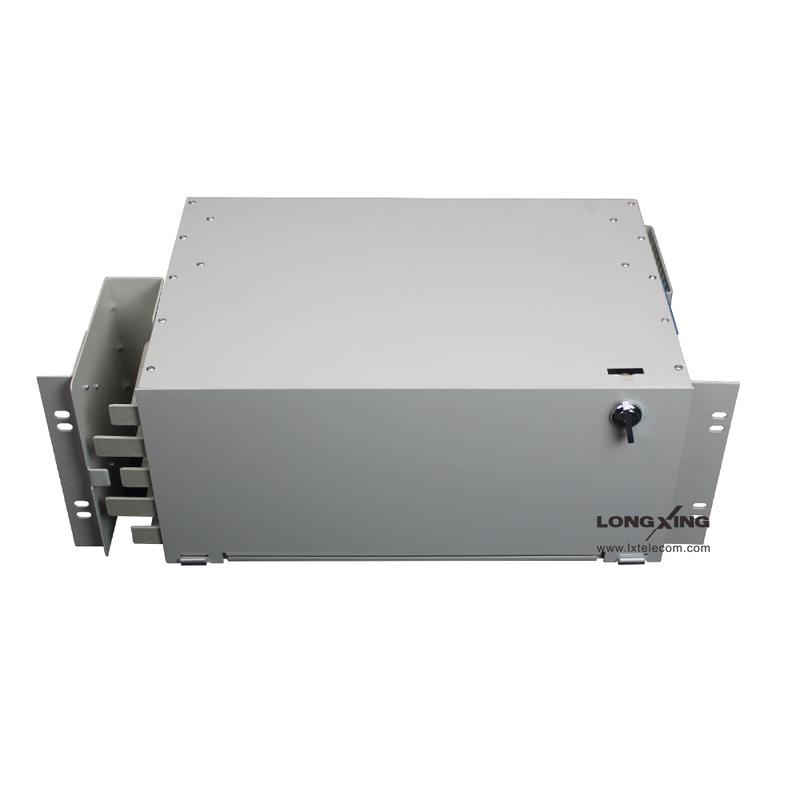

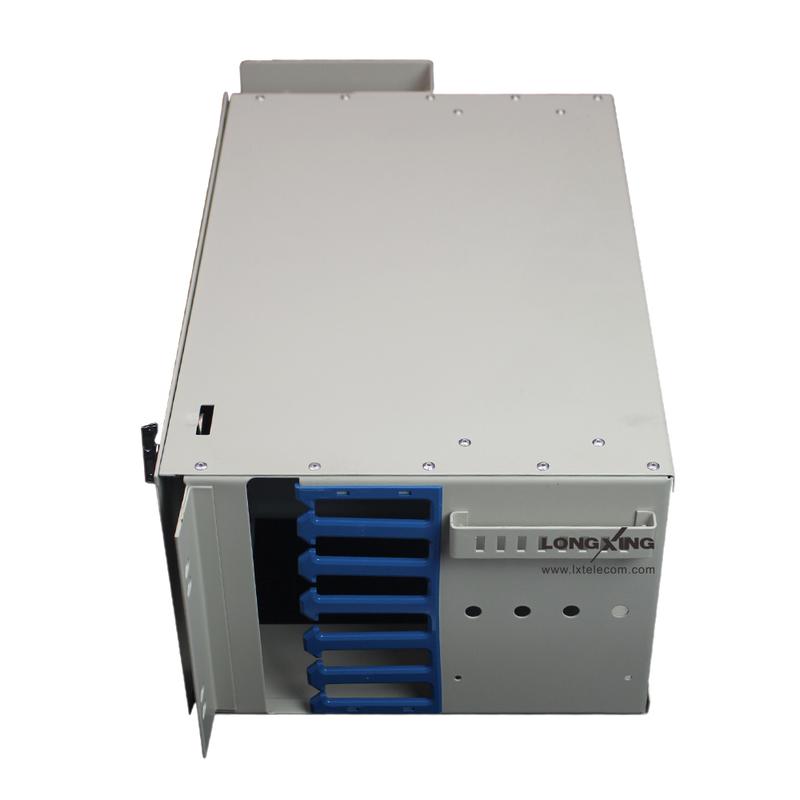

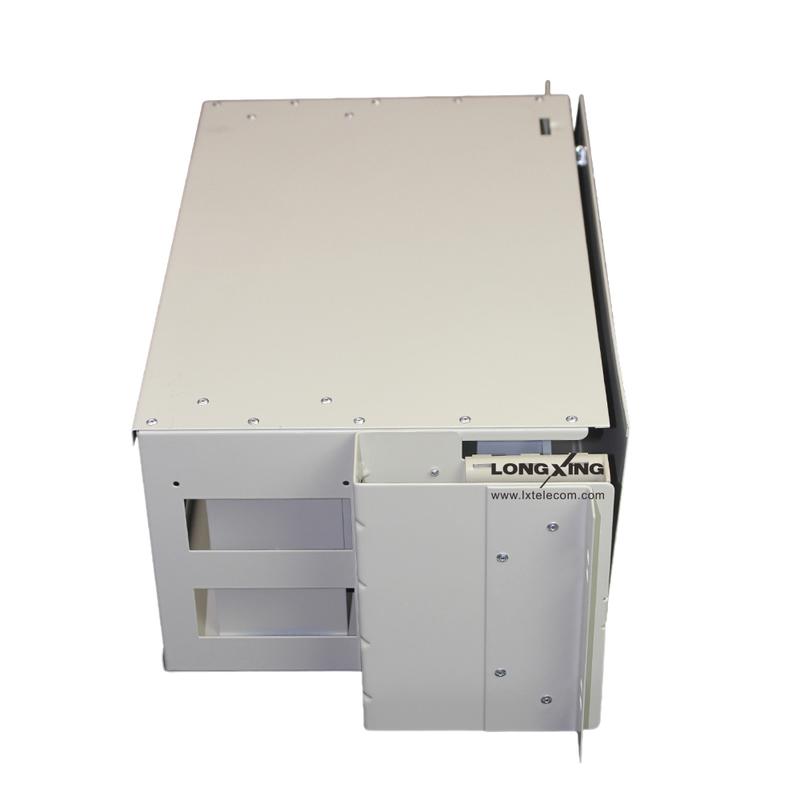

Rack Mount Patch Panel ODU-L3

Overview

Rack Mount Patch Panel ODU-L3 provides a centralized point for termination, splice, storage and distribution of optical fibers, which are middle capacity and both side operation, are suitable for central offices connection points in the OAN, data centers, local area network etc. It is an ideal solution for rack or cabinet-mounting in compact areas. This unit provides excellent fiber patching management.

Features

l   Top quality steel with electrostatic painted ensures the strong body and pleasing appearance.
l   Easy installations:19”, 21'' and 23'' wall mounting.
l   Front rack mount brackets work most network cabinets.
l   Easy to maintain and extend.
l   Removable front door with designation labels.
l   Function of fiber storage.
l   Fully stable patch panel, no risk of movement.
l   Vertical cable guides on exit side allow for managed routing and
protection of the fiber exiting the panel.
Add To Quote List Add To Compare
Dimensions and Capability
Height Depth(mm) Width Capacity
4U 250 19''/21''/23''  144



Operation Conditions
Temperature -5℃ -- 60℃
Humidity 90% at 30℃
Air Pressure 70kPa – 106kPa



Shipping Information
Package Contents Patch panel, 1 unit
Package Dimensions(W*H*D) 540mm*238mm*310mm/640mm*238mm*310mm
Material Carton box
Weight It depends on the dimensions of the product
Lead Time 10-15 working days normally
