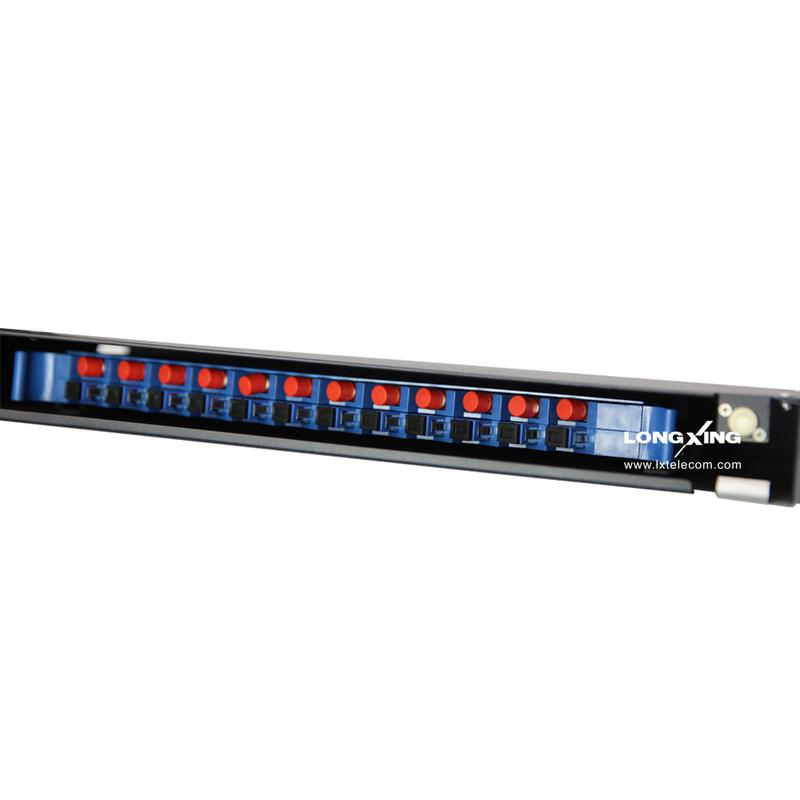

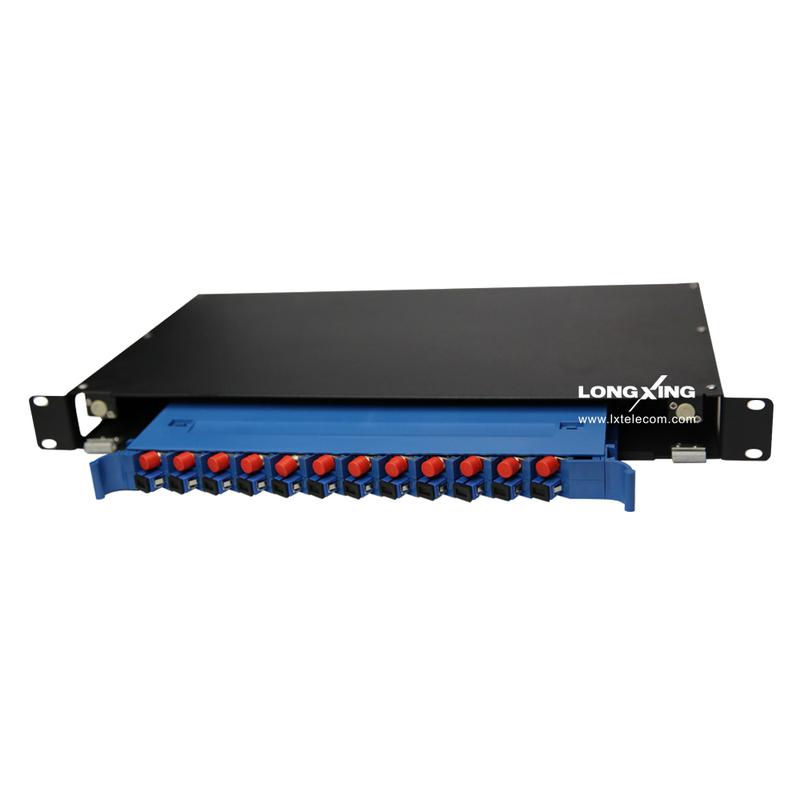

Rack Mount Patch Panel ODU-L4
Overview
19” ODF rack mount can be installed on standard 19”, 21'' and 23'' racks and currently being widely used in LongXing’s optical fiber distribution frames. LongXing supplies top quality optical fiber distribution frame with very competitive prices, every single module is tested in the workshop before delivering to our customers. LongXing’s standard technical specifications are listed below; Customer/special requirements are welcomed.
Features
l Removable front door with designation labels.
l Top quality steel with cover by electrostatic painted ensures the strong body and pleasing appearance.
l Easy operations: Drawer-type
l Easy installations: 19”, 21'' and 23'' wall mounting.
l For standard 19”, 21'' and 23'' racks use (other rack width options available on request).
l Fully stable patch panel, no risk of movement.
l Multi-functions - Works with all LongXing Series A modules (not
just for splicing & terminating, also with options for splitters or fiber storage).
l Protected patch panel offers secure environment for adapters, patch cords and pigtails.
l Adoptable adapter types: FC, SC, ST simplex adapters and LC duplex adapters .
Add To Quote List
Add To Compare
Inquiry Now
l Top quality steel with cover by electrostatic painted ensures the strong body and pleasing appearance.
l Easy operations: Drawer-type
l Easy installations: 19”, 21'' and 23'' wall mounting.
l For standard 19”, 21'' and 23'' racks use (other rack width options available on request).
l Fully stable patch panel, no risk of movement.
l Multi-functions - Works with all LongXing Series A modules (not
just for splicing & terminating, also with options for splitters or fiber storage).
l Protected patch panel offers secure environment for adapters, patch cords and pigtails.
l Adoptable adapter types: FC, SC, ST simplex adapters and LC duplex adapters .
| Dimensions and Capability | |||||||
| Height | Depth(mm) | Width | Module A1 | Module A3 | |||
| Capacity | Module Capacity |
Capacity | Module Capacity |
||||
| FC/SC/ST | LC duplex | FC/SC | |||||
| 1U | 300 | 19''/21''/23'' | 12 | 24 | 1 | 24 | 1 |
| 2U | 300 | 19''/21''/23'' | 24 | 48 | 2 | 48 | 2 |
| 3U | 300 | 19''/21''/23'' | 36 | 72 | 3 | 72 | 3 |
| 48 | 96 | 4 | 96 | 4 | |||
| 4U | 300 | 19''/21''/23'' | 60 | 120 | 5 | 120 | 5 |
| 72 | 144 | 6 | 144 | 6 | |||
| Operation Conditions | |
| Temperature | -5℃ -- 60℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Patch panel, 1 unit |
| Package Dimensions(W*H*D) | It depends on the dimensions of the product |
| Material | Carton box |
| Weight | It depends on the dimensions of the product |
| Lead Time | 10-15 working days normally |
