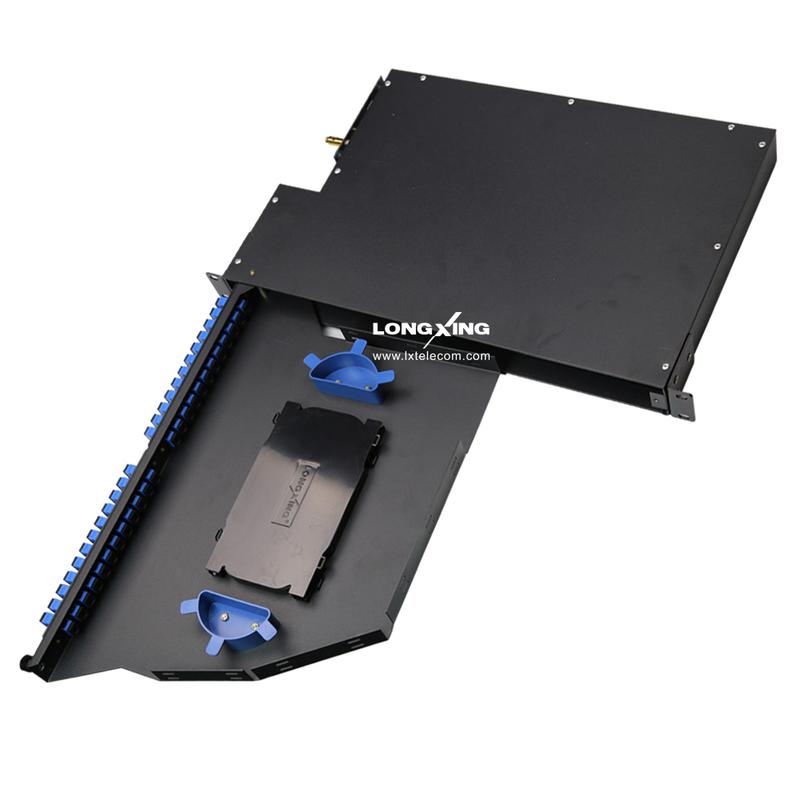

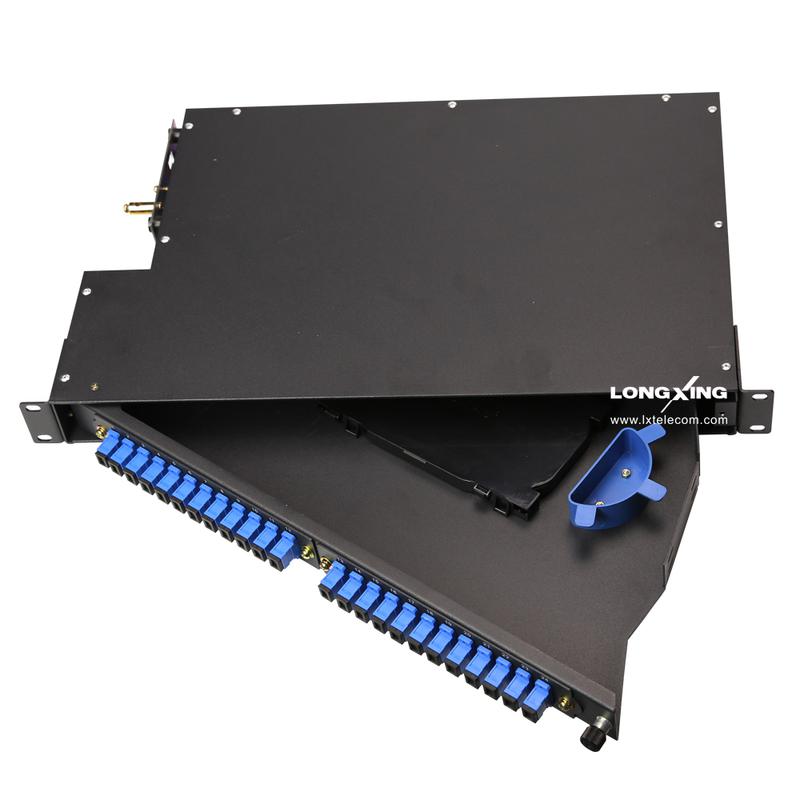

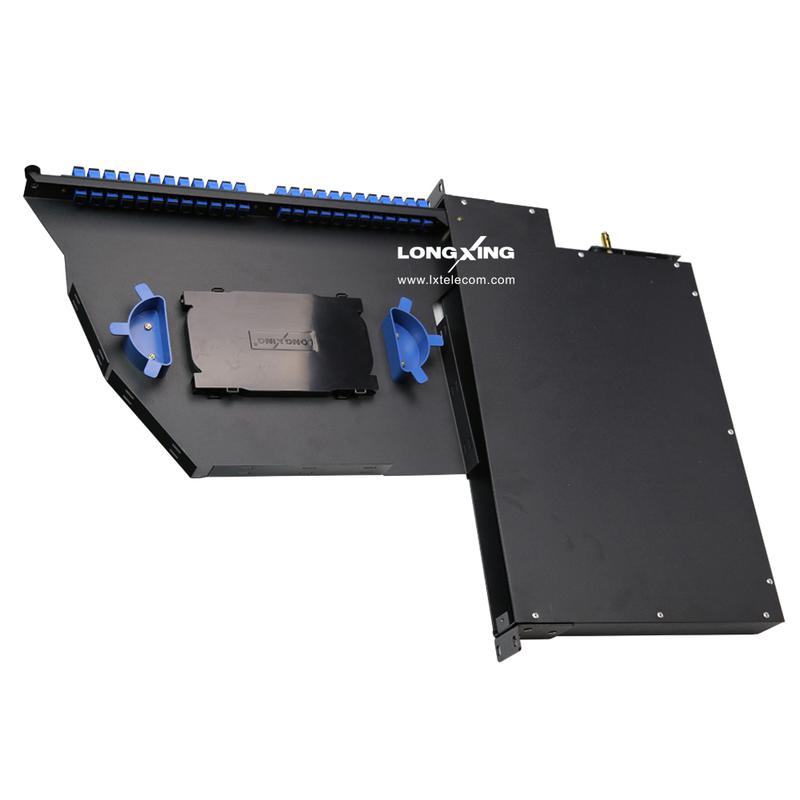

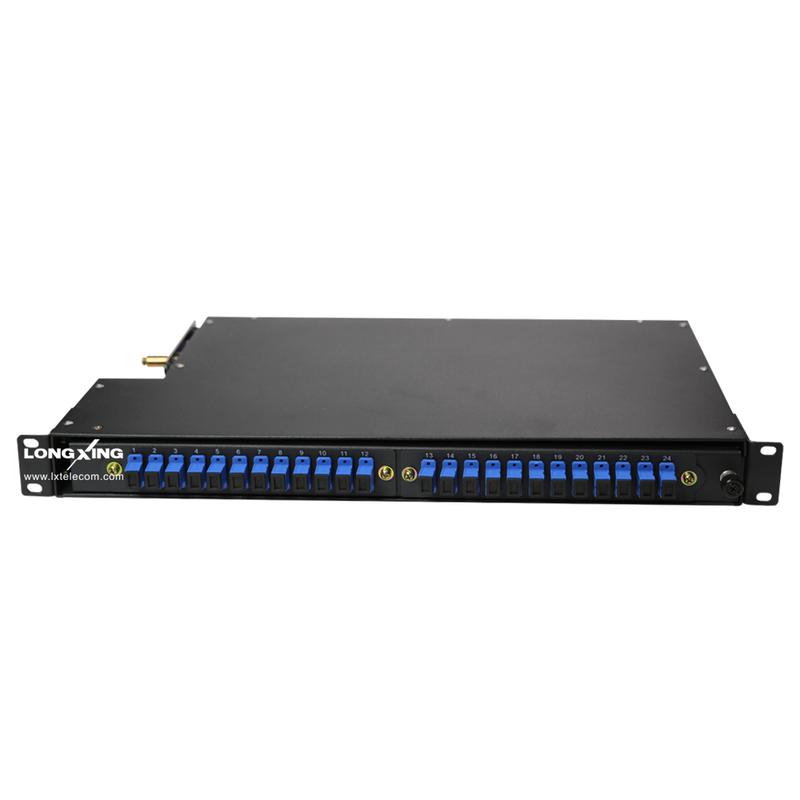

Rack Mount Patch Panel ODU-L6
Overview
Rack Mount Patch Panel ODU-L6 provides a centralized point for termination, splice, storage and distribution of optical fibers, which are middle capacity and both side operation, are suitable for central offices connection points in the OAN, data centers, local area network etc. It is an ideal solution for rack or cabinet-mounting in areas. in compact areas. This unit provides excellent fiber patching management.
Features
l Minimum bend radius controlled.
l Top quality steel with electrostatic painted ensures the strong body and pleasing appearance.
l Fit for 19”, 21'' and 23'' ODF Rack.
l Protected patch panel offers secure environment for adapters, patch cords and pigtails.
l Fully stable patch panel, no risk of movement.
l Adoptable adapter types: FC, SC and LC duplex adapters .
l Adapter Panel adopted for easy operation.
Add To Quote List
Add To Compare
Inquiry Now
l Top quality steel with electrostatic painted ensures the strong body and pleasing appearance.
l Fit for 19”, 21'' and 23'' ODF Rack.
l Protected patch panel offers secure environment for adapters, patch cords and pigtails.
l Fully stable patch panel, no risk of movement.
l Adoptable adapter types: FC, SC and LC duplex adapters .
l Adapter Panel adopted for easy operation.
| Dimensions and Capability | ||||
| Height | Depth(mm) | Width | Capacity | |
| FC/SC/ST | LC Duplex | |||
| 1U | 280 | 19''/21''/23'' | 24 | 48 |
| 2U | 280 | 19''/21''/23'' | 48 | 96 |
| Operation Conditions | |
| Temperature | -5℃ -- 60℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Patch panel, 1 unit |
| Package Dimensions(W*H*D) | It depends on the dimensions of the product |
| Material | Carton box |
| Weight | It depends on the dimensions of the product |
| Lead Time | 10-15 working days normally |
