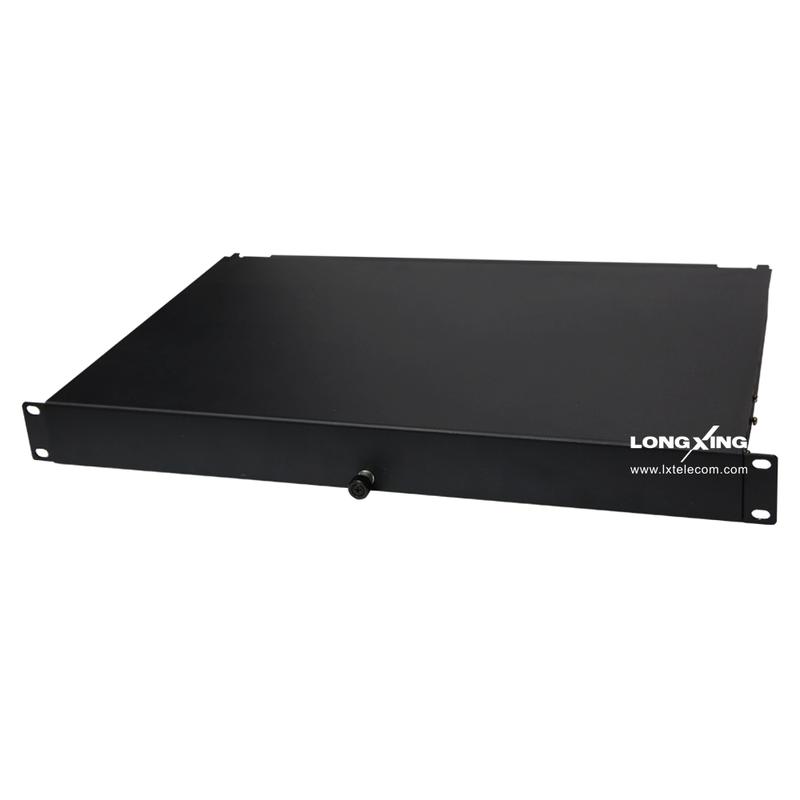

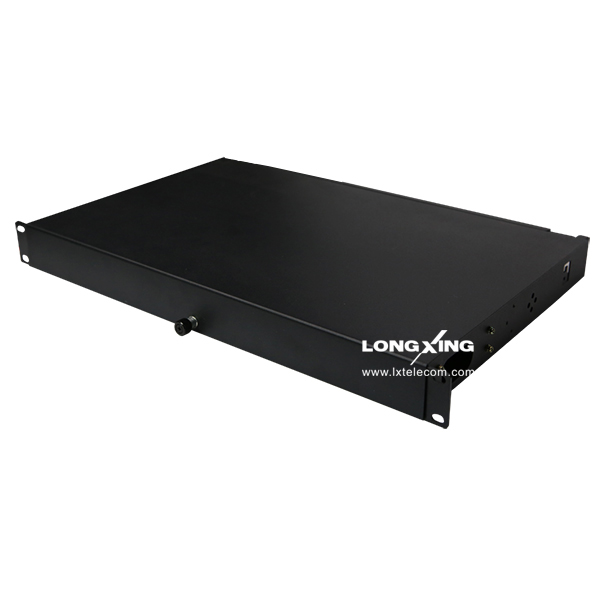

Rack Mount Patch Panel ODU-L7
Overview
Rack Mount Patch Panel ODU-L7 provides a centralized point for termination, splice, storage and distribution of optical fibers, which are middle capacity and both side operation, are suitable for central offices connection points in the OAN, data centers, local area network etc. It is an ideal solution for rack or cabinet-mounting in areas. This unit provides excellent fiber patching management.
Features
l Removable front-top cover for easier operations.
l Top quality steel with electrostatic painted ensures the strong body and pleasing appearance.
l Easy installations:19”, 21'' and 23'' wall mounting.
l Easy operations: Drawer-type.
l Fully stable patch panel, no risk of movement.
l Protected patch panel offers secure environment for adapters, patch cords and pigtails.
l Height: 1U-2U, depends on capacity and adapter type chosen.
Add To Quote List
Add To Compare
Inquiry Now
l Top quality steel with electrostatic painted ensures the strong body and pleasing appearance.
l Easy installations:19”, 21'' and 23'' wall mounting.
l Easy operations: Drawer-type.
l Fully stable patch panel, no risk of movement.
l Protected patch panel offers secure environment for adapters, patch cords and pigtails.
l Height: 1U-2U, depends on capacity and adapter type chosen.
| Dimensions and Capability | ||||
| Height | Depth | Width | Capacity | |
| FC/SC/ST | LC duplex | |||
| 1U | 280 | 19''/21''/23'' | 16 | 16 |
| 24 | 24 | |||
| 2U | 280 | 19''/21''/23'' | 32 | 32 |
| 48 | 48 | |||
| Operation Conditions | |
| Temperature | -5℃ -- 60℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Patch panel, 1 unit |
| Package Dimensions(W*H*D) | It depends on the dimensions of the product |
| Material | Carton box |
| Weight | It depends on the dimensions of the product |
| Lead Time | 10-15 working days normally |
