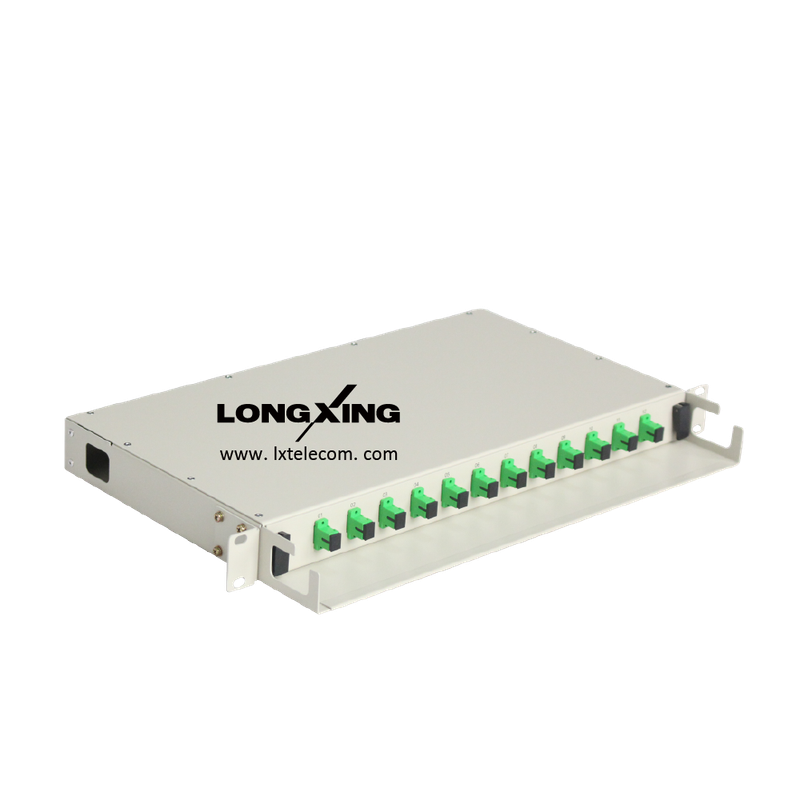

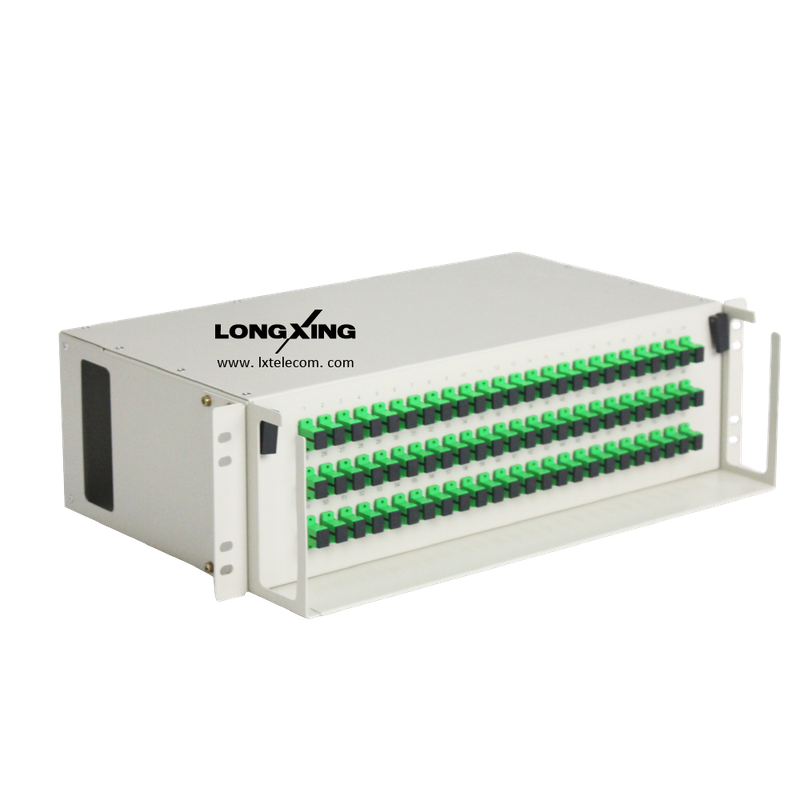

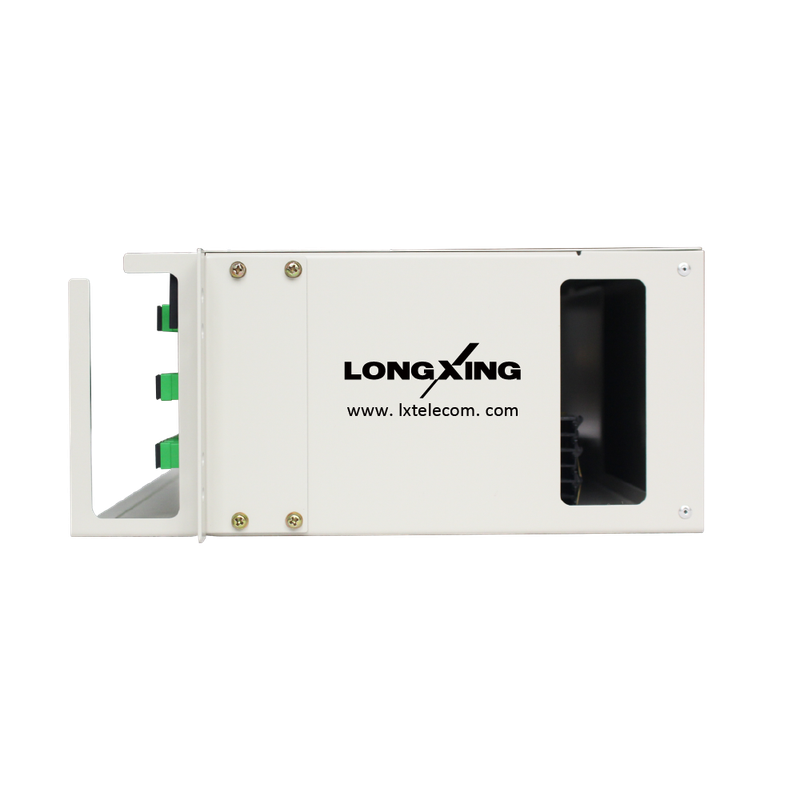

Rack Mount Patch Panel ODU-L8 (2nd Generation)

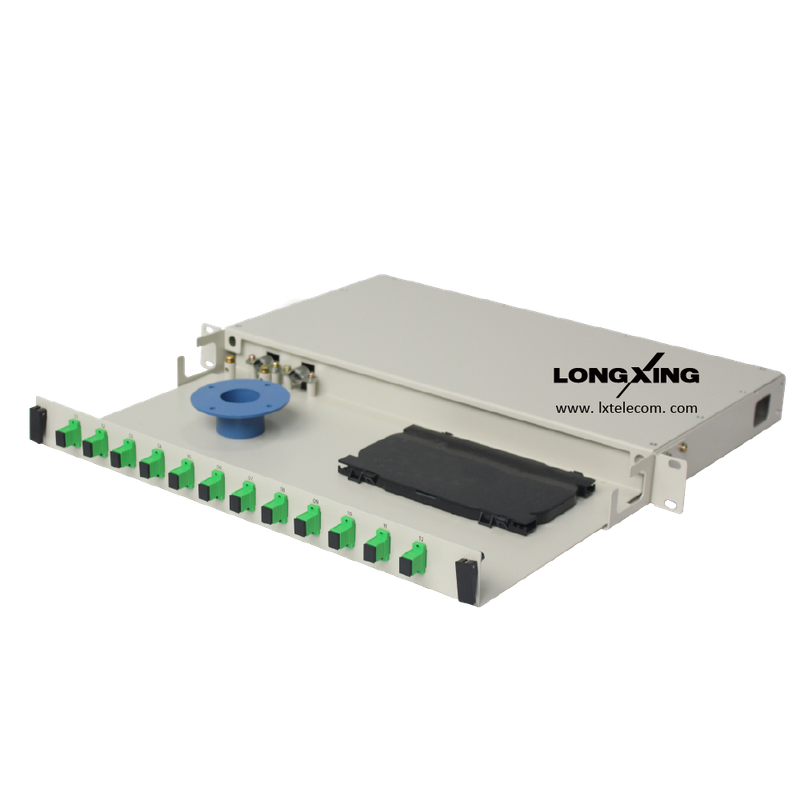

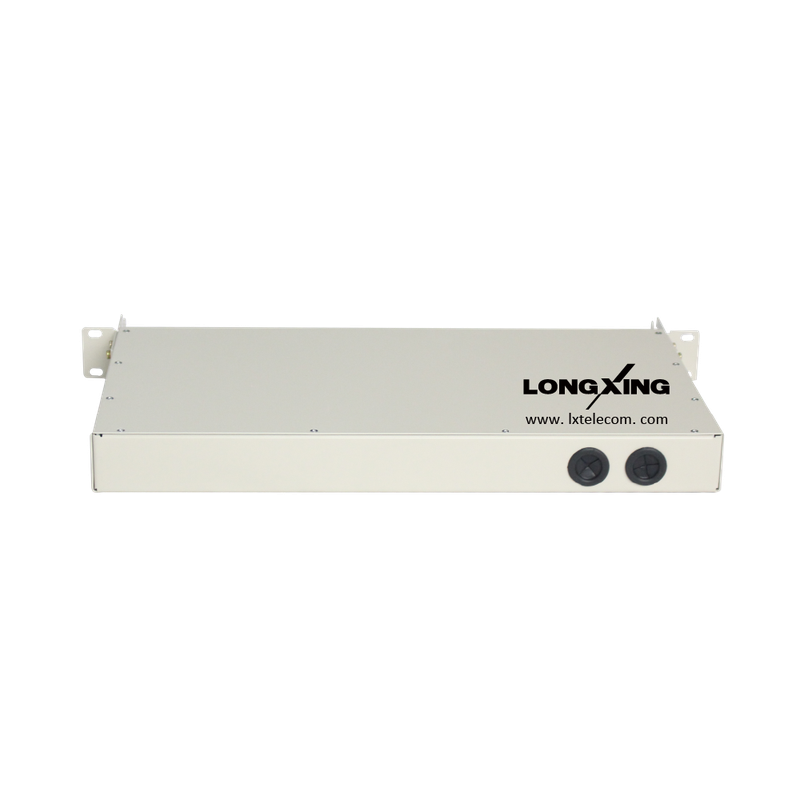

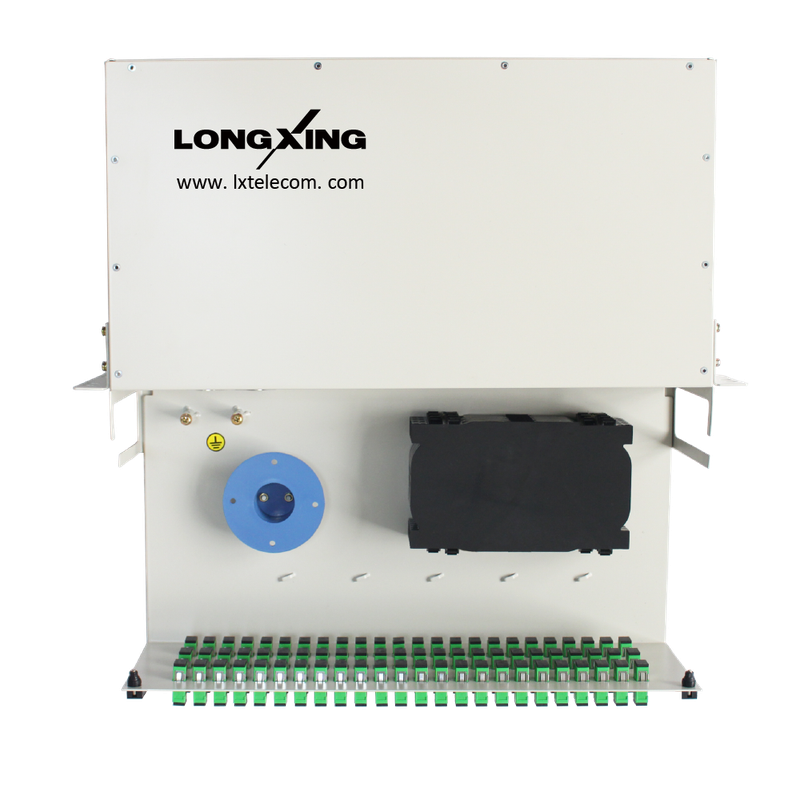

This rack mount fiber patch panel is designed to fit on a standard 19”, 21'' and 23'' rack or optical fiber distribution frames, and provide optimal protection for your fiber optic applications. There are two cable entry points on the back of the fiber housing fitted with rubber grommets to protect the fiber optic cable from damage. Upon on customer's request, it can being loaded up to 48 connections, each fiber enclosure includes one cable routing spool and 24 fiber splice tray. LongXing’s standard technical specifications are listed below; customer/special requirements are welcomed.

l   2nd Generation: Open design of cable exits for easier access and maintenance.
l   Top quality steel with electrostatic painted ensures the strong body and pleasing appearance.
l   Easy installations: 19”, 21'' and 23'' wall mounting.
l   Easy operations: Drawer style.
l   Cable inlet system provided on the rear side which has excellent performances for fixing outdoor cables.
l   Fully stable patch panel, no risk of movement.
l   Adoptable adapter types: FC, SC and LC.
l   Options of splice trays & fiber management guides.
l   Protected patch panel offers secure environment for adapters, patch cords and pigtails.
