Optical Splitter Rack Type
Overview

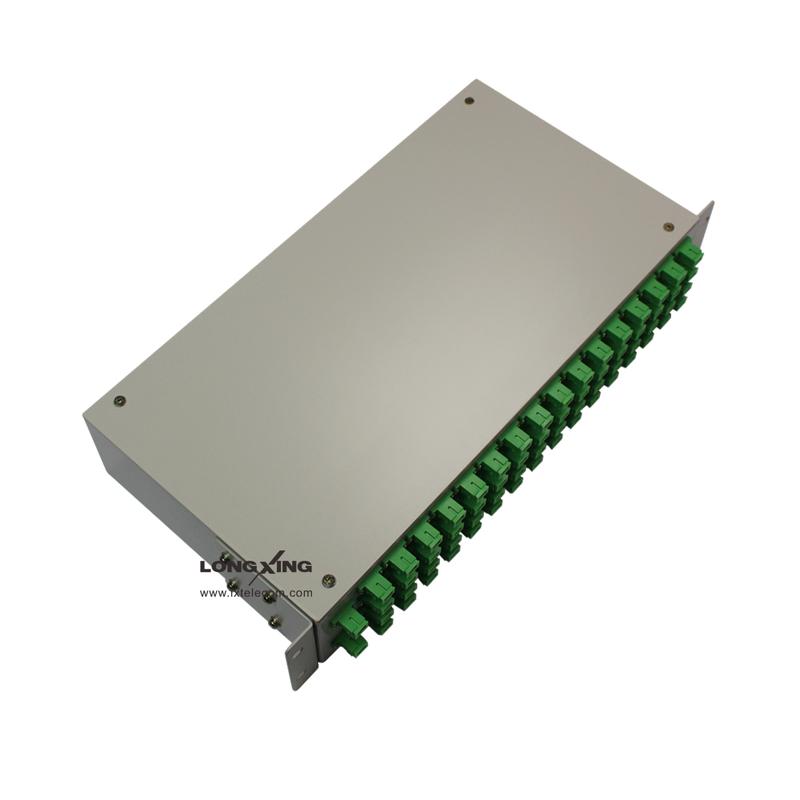

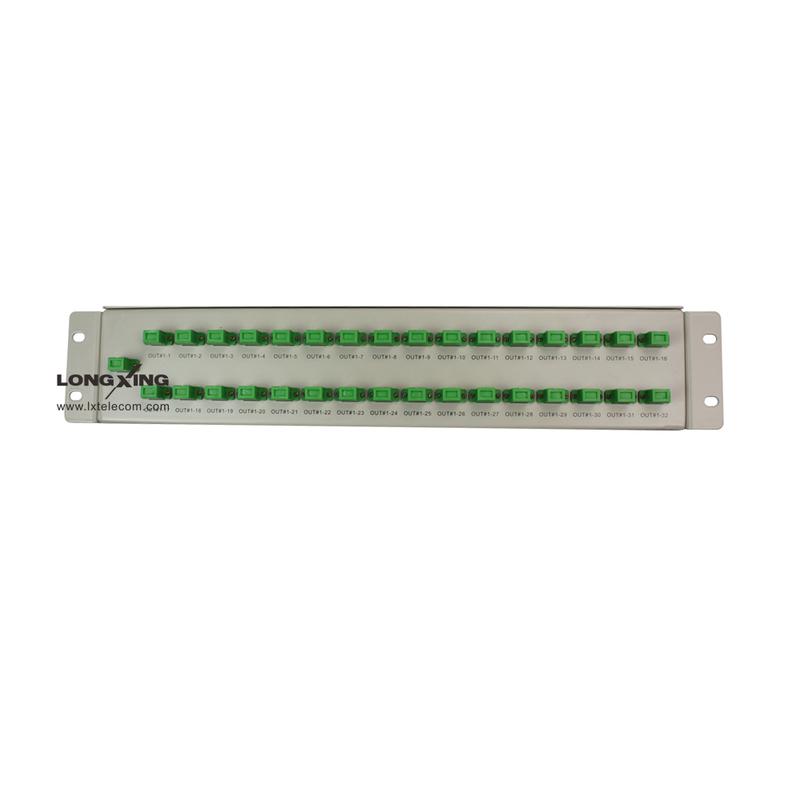

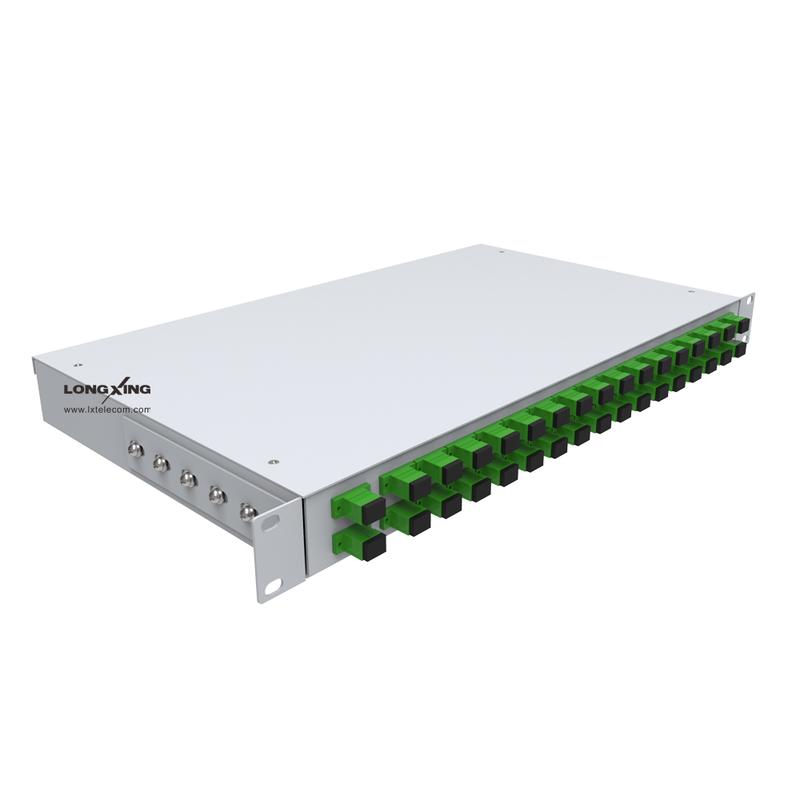

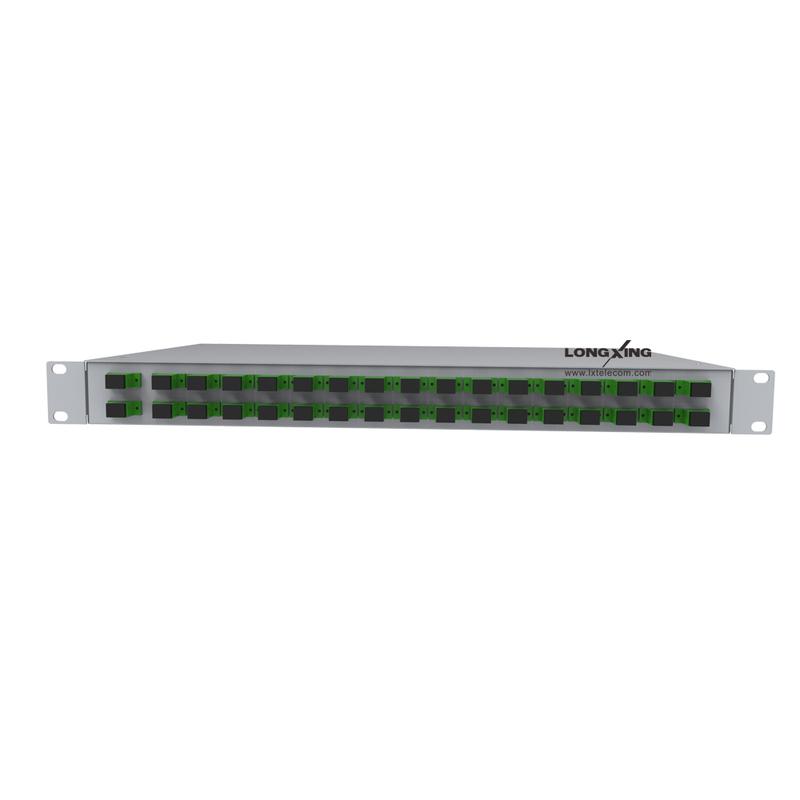

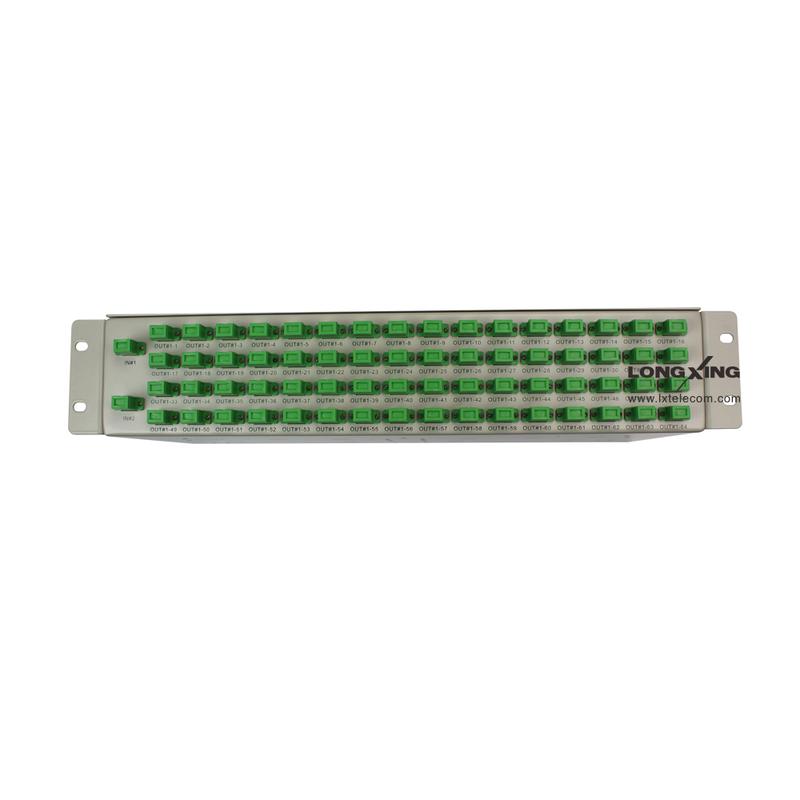

This optical splitter rack mount use Planer Lightwave Circuit (PLC) technology for split ratio 2, 4, 8, 16 and 32. The Optical splitter rack mount is designed by standard of YD/T2000-2009, YD/T1117-2001. Optical splitter rack mount is using metal box packaging which can be installed in 19” frame or cabinet. Application for FTTX network, LAN/WAN or CATV network.
Features
l Low Insertion loss
l Low PDL
l Compact Design
l Good channel-to-channel uniformity
l Wide Operating Wavelength: From 1260nm to 1650nm
l Wide Operating Temperature: From -40℃to 85℃
l High Reliability and Stability
Add To Quote List
Add To Compare
Inquiry Now
l Low PDL
l Compact Design
l Good channel-to-channel uniformity
l Wide Operating Wavelength: From 1260nm to 1650nm
l Wide Operating Temperature: From -40℃to 85℃
l High Reliability and Stability
| Technical Specification 1×N Series | ||||||
| Parameters | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×64 |
| Operation Wavelength (nm) |
1260 - 1650 | 1310 ± 40 1490 ± 10 1550 ± 40 |
||||
| Insertion Loss (dB) | ≤ 7.4 | ≤ 10.7 | ≤ 13.9 | ≤ 17.2 | ≤ 21.5 | ≤ 20.1 |
| PDL | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 |
| Uniformity of l.L | ≤0.8 | ≤ 1.0 | ≤ 1.4 | ≤ 1.6 | ≤ 2.0 | ≤ 1.6 |
| Return loss (dB) | ≥ 55 | |||||
| Directivity (dB) | ≥ 55 | |||||
| Working / Storage Temperature (℃) |
-40 ~ + 85 | |||||
| Technical Specification 2×N Series | ||||||
| Parameters | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×64 |
| Operation Wavelength (nm) |
1260 - 1650 | 1310 ± 40 1490 ± 10 1550 ± 40 |
||||
| Insertion Loss (dB) | ≤ 7.6 | ≤ 11.0 | ≤ 14.8 | ≤ 17.9 | ≤ 21.5 | ≤ 20.1 |
| PDL | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.5 |
| Uniformity of l.L | ≤ 0.8 | ≤ 1.0 | ≤ 1.4 | ≤ 1.4 | ≤ 1.6 | ≤ 2.0 |
| Return Loss (dB) | ≥ 55 | |||||
| Directivity (dB) | ≥ 55 | |||||
| Working / Storage Temperature (℃) |
-40 ~ + 85 | |||||
| Operation Conditions | |
| Temperature | -40℃ -- 85℃ |
| Humidity | 93% at 40℃ |
| Air Pressure | 62kPa – 101kPa |
| Shipping Information | |
| Package Contents | Optical Splitter PLC Mini Type 1 unit |
| Package Dimensions(W*H*D) | It depends on the dimensions of the product. |
| Material | Plastic Box |
| Weight | It depends on the weight of the product. |
| Lead Time | 10-15 working days normally |
