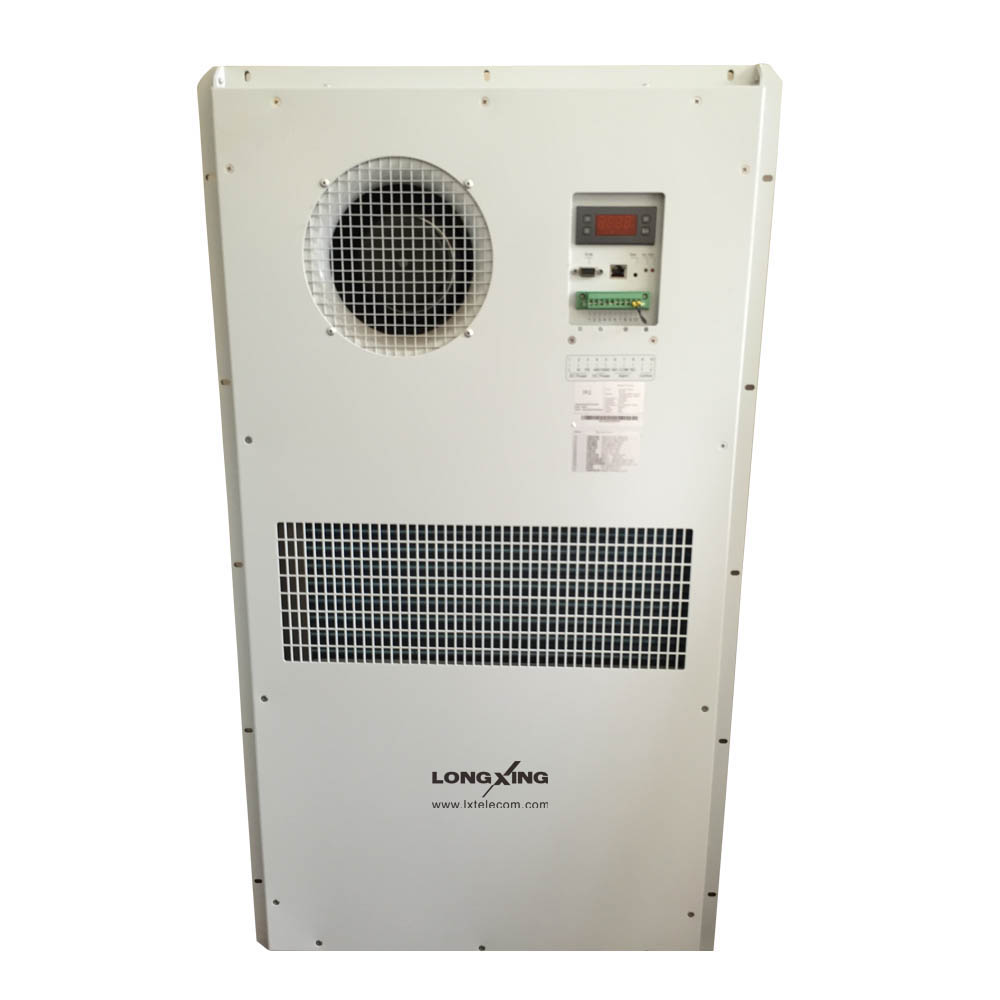

Combined Unit of A/C with HEX

Overview

LongXing Air Conditioner Cooling Solution can be widely used in enclosed area for climate control, such as wireless communication cabinet, battery cabinet,industry control cabinet etc. LongXing air conditioners are designed to cool your electronic and electrical controls, instruments, computer terminals, printers, telecommunications equipment, surveillance devices, cameras, laser and optical equipment and many other electronics in variety of environments. Our electronic cabinet cooling systems are designed for use with a wide range of enclosures and transit cases. Models are available for both indoor and outdoor use in AC and DC power configurations. Coolers feature corrosion-resistant stainless steel construction.

Features

l Double system integration, double power supply, reliability greatly improved, especially suitable for telecom outdoor cabinet;
l Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;
l Strict process control and international brand parts deployed to ensure high quality and reliable of this product;
l Unique energy-saving & control technology;
l DC Fan speed PWM control, low acoustic noise during low speed running;
l Fit for T3 high temperature working condition by using of R134a refrigerant gas;
l Multiple self-protection design & visible monitoring interface, RS422 / RS485 communication port (MODBUS-RTU protocol);
l LED Display, all the settings can be changed at the field;
l The heating function is optional;
l Dry contact alarm output,NO/NC optional;
l Equipped with communication interface: RS422 / RS485 optional.
Add To Quote List Add To Compare
Technical parameters
Name Combined Unit of Air Conditioner with Heat Exchanger
Code CN1500
Mounting Method Semi-embedded Mounting
AC Power Supply 230VAC±15%/50Hz
DC Power Supply 48V±20%
Cooling Capacity 1500W@L35/L35
Cooling Consumption AC 420W@L35/L35
DC 68W@L35/L35
Cooling Capacity 1125W@L35/L55
Cooling Consumption AC 540W@L35/L55
DC 68W@L35/L55
Heat Exchange Capacity 80W/K
Heat Exchange Consumption DC 68W
Internal Airflow 450m³/h
Cooling Working Temperature Range -15℃~+55℃
Heat Exchange Internal Circulation Temperature Range -40℃~+65℃
Heat Exchange External Circulation Temperature Range -40℃~+55℃
Max Noise Level 65dB(A)
IP Grade IP55
Net Weight 45kg
Refrigerant R134a
Dimensions(H*W*D) 950mm*510mm*200mm
CE&RoHS Compliant Yes
Surface Treatment Outdoor type powder coating
Standard color:RAL7035
Heater Optional (800W)
None
