Enclosure Air Conditioner AC1500


LongXing Air Conditioner Cooling Solution can be widely used in enclosed area for climate control, such as wireless communication cabinet, battery cabinet,industry control cabinet etc. LongXing air conditioners are designed to cool your electronic and electrical controls, instruments, computer terminals, printers, telecommunications equipment, surveillance devices, cameras, laser and optical equipment and many other electronics in variety of environments. Our electronic cabinet cooling systems are designed for use with a wide range of enclosures and transit cases. Models are available for both indoor and outdoor use in AC and DC power configurations. Coolers feature corrosion-resistant stainless steel construction.


l Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function;
l Strict process control and famous brand components to ensure high quality and reliability of this product;
l Fit for harsh condition (T3), R134a refrigerant ;
l Multiple self-protection design & visible monitoring interface, RS485 communication port (MODBUS-RTU protocol);

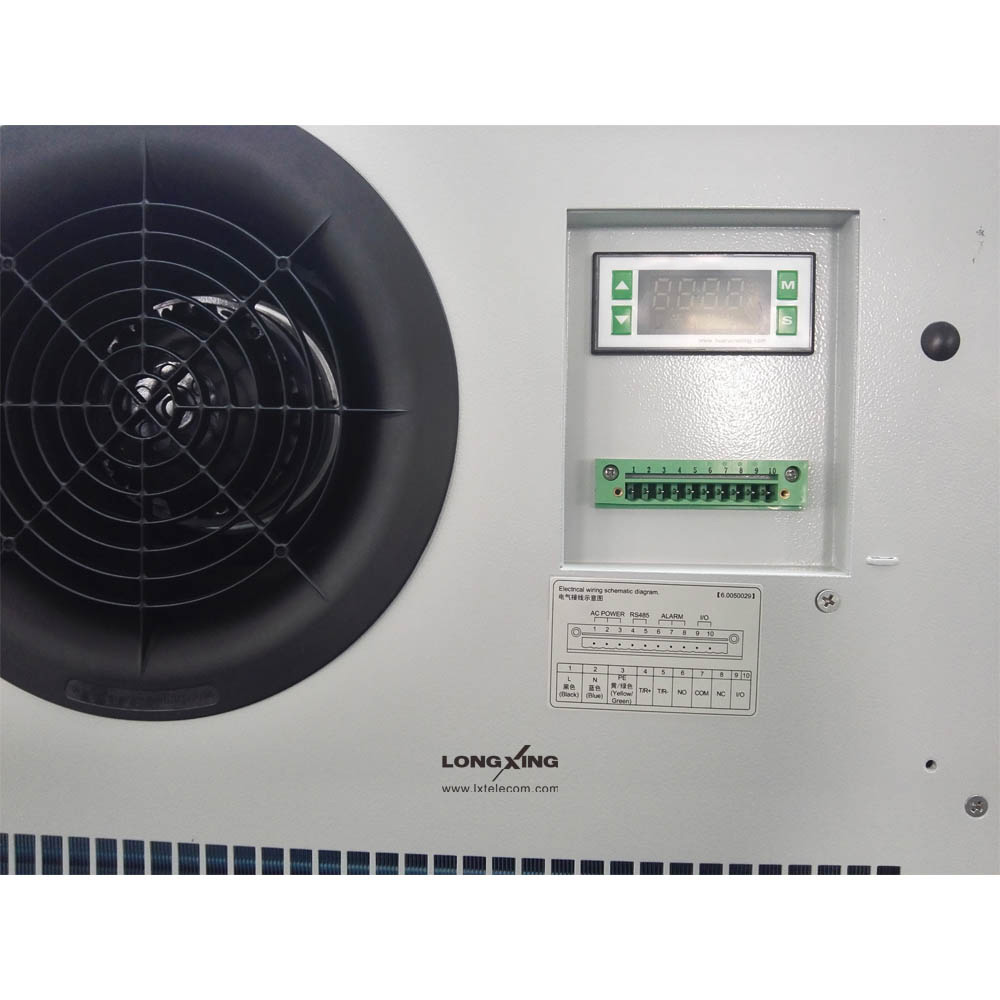

l LED display, all the settings can changed at the field;
l The heating function and the hydrogen function is optional;
l Dry contact alarm output,NO/NC optional;
Add To Quote List Add To Compare
Technical parameters
Name Outdoor Cabinet Air Conditioner
Code AC1500
Mounting Method Semi-embedded Mounting
Power Supply 230VAC±15%  50Hz/60Hz
Cooling Capacity 1500W@L35/L35
Power Consumption 550W@L35/L35
Cooling Capacity 900W@L35/L55
Power Consumption 670W@L35/L55
Internal Airflow 600m³/h
Working Temperature Range 40℃~+55℃
Max Noise Level 60dB(A)
IP Grade IP55
Net Weight 40kg
Refrigerant R134a
Dimensions(H*W*D) 745mm*445mm*175mm
CE&RoHS Compliant Yes
Surface Treatment Outdoor type powder coating
Standard color:RAL7035
Heater Optional (800W)
Hydrogen Function Optional
