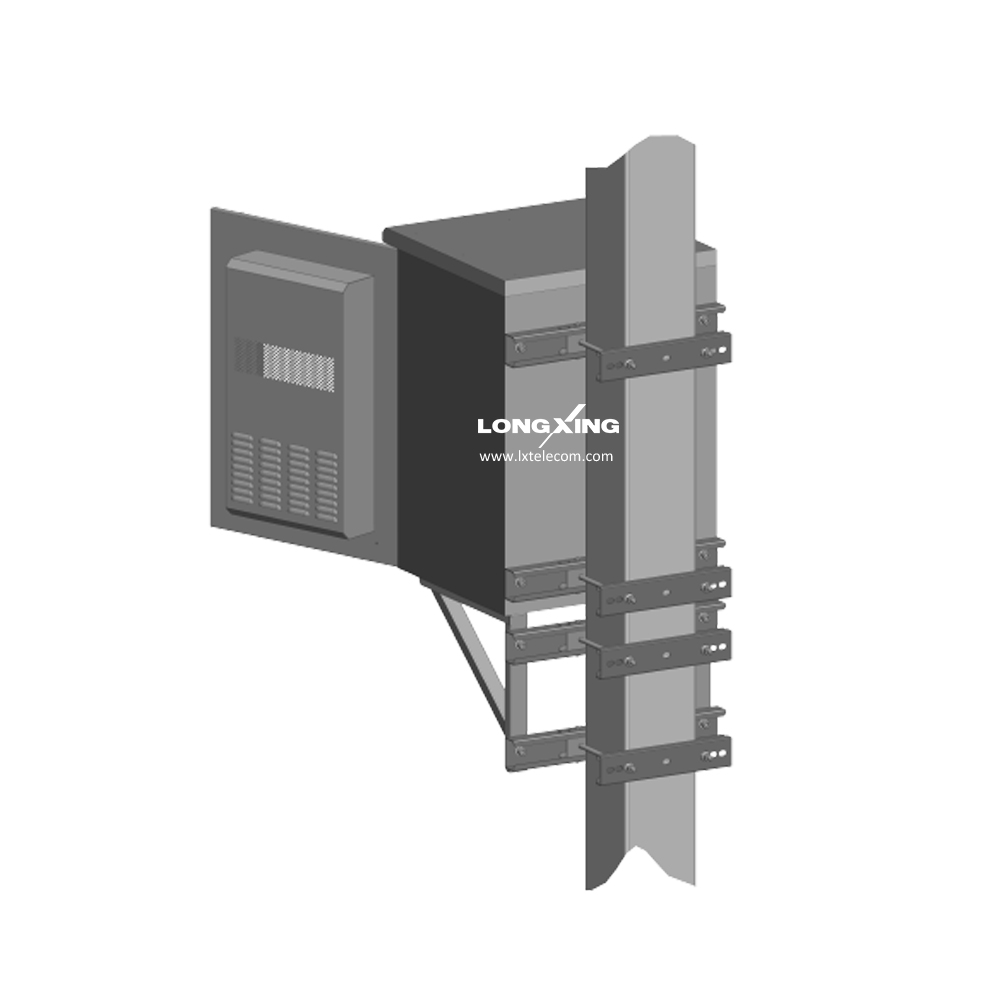

Pole Mounted Cabinet NPX06-C

Overview

LongXing Outdoor cabinets are designed to provide a safe solution to install telecommunications equipment in outdoor conditions. These cabinets are offering protection against different weather conditions, dust and vandalism.

Features

l The cabinet is dustproof, sun proof and rainproof, which is used in outdoor environment
l Cabinet design with IP55 (according to IEC 60529) protection class.
l The layout of the cabinet is reasonable, which will facilitate cable access and fixing. There are entrance holes individually for power cable, signal cable and optical cable.
l Have Ground System
l Lockable cabinet with vandal proof hinges and three-point locking mechanism
l Ambient temperature range: -40°C ~ +55°C.
l Storage temperature range: -50°C ~ + 70°C.
l Transport Temperature range: -50°C ~ +70°C.
l Have cooling system if the cabinet temperature is abnormally high.
l Air Pressure: 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude).
l The electrical system is sufficient for the use of all equipment installed inside the cabinet.
l Door key is Heavy duty master key for outdoor type.
l It has a single front door with a heat exchanger.
l Standard version is equipped with: Door Sensor and LED light.
l Optional versions can contain: DC or AC cooling, heat exchangers, heaters, humidity sensors, smoke detectors.
Add To Quote List Add To Compare
Cabinet Specifications
Dimension(H*W*D)mm 880 x 600 x 600
Ingress Protection IP55
Material Outer case: Aluminum 2mm, Inner parts: Galvanized
Surface finishing Powder painted as required
Structure Sandwich Structure, Double Wall
Configuration HEX(35W/K), LED light, Door sensor, Pole mounted accessories
Power 18-50W ±10%
Frequency 100-240 VAC, 50Hz





HEX Specifications
Dimension(H*W*D)mm 740 x 340 x 121
Power Supply AC 100-240 VAC, 50Hz
Cooling Capacity 35 W/K
IP Grade IP55
Mounting Method Door Mounting
Heat Exchanger Fan Humidity seal
Cooling Capacity 35 W/C or 35 W/K
Maximum Internal air flow 200CFM
Maximum External air flow 200CFM
Motor Protection Yes
None
