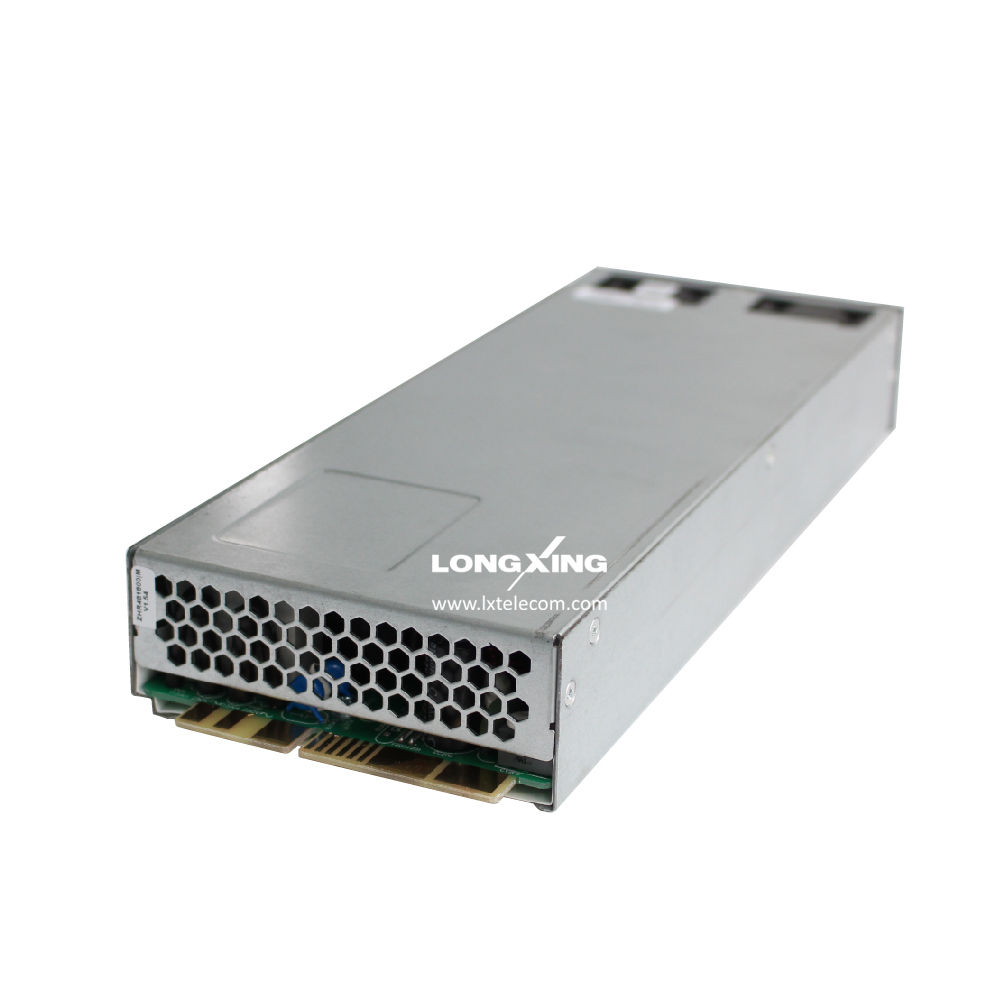

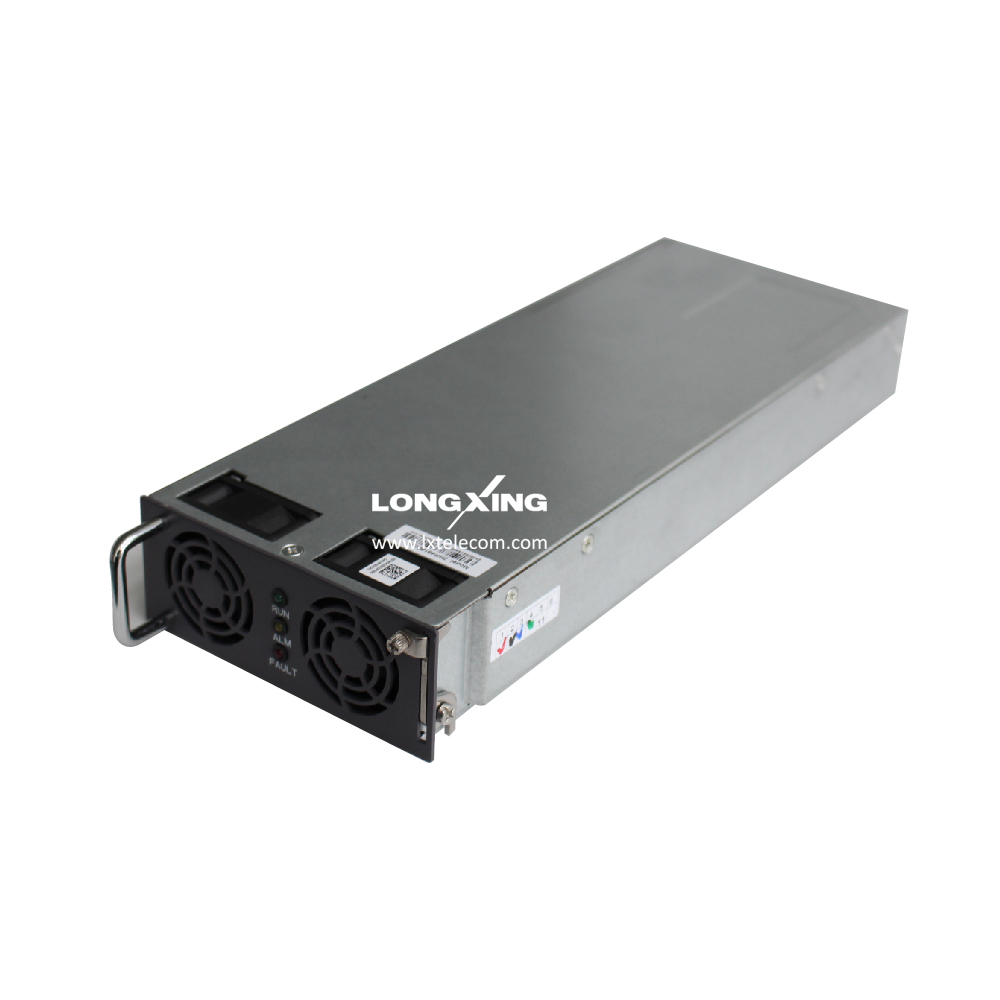

Rectifier Module 2000 Series
Overview
The innovative design makes great customer advantages of high efficiency, reliable and cost-effective.
Features
l 2000S: ≥93%@220Vac@peak
l 2000M: ≥95%@220Vac@peak
l 2000H: ≥96%@220Vac@peak
Add To Quote List
Add To Compare
Inquiry Now
l 2000M: ≥95%@220Vac@peak
l 2000H: ≥96%@220Vac@peak
| Applications |
| BTS, fiber and switch telecom |
| Network access |
| Data center, powers server and computer |
| Self protection and reliability |
| AC Input | |
| Voltage | 85Vac~ 300Vac（nominal 100Vac to 240Vac) |
| Frequency | 45Hz-65Hz |
| Power factor | ≥0.99@220Vac/50A, ≥0.98@220Vac/25A |
| Input pretection | L-line fuse 15A Varistors for transient protection |
| DC Output | |||
| Voltage | +53.5Vdc | ||
| Output power | 2000S | 2000M | 2000H |
| 1800W(154Vac~300Vac), 900W(85Vac~154Vac) | 2000W(154Vac~300Vac), 1000W(85Vac~154Vac) | 2000W(154Vac~300Vac), 1000W(85Vac~154Vac) | |
| Maximum current | 2000S | 2000M | 2000H |
| 33A | 37.5A | 37.5A | |
| Current sharing | 5% | ||
| Dynamic voltage regulation | ±5.0% for 10-90% or 90-10% load variation, regulation time < 200us | ||
| load regulation | ±0.5% from 10% to 100% load | ||
| Ripple and noise | < 200 mV peak to peak, 30 MHz bandwidth, < 2 mV rms psophometric |
||
| Output protection | Overvoltage shutdown Hot swapable - Inrush current limiting Fuse Short circuit proof High temperature protection |
||
| Design Standards | |
| Safety | IEC 60950-1 |
| EMC | EN 61000-6 |
| Environment | ETSI EN 300 019-2 RoHS compliant |
| Other Specifications | |
| Isolation | 3.0 KVAC – input and output 1.5 KVAC – input earth 0.5 KVDC – output earth |

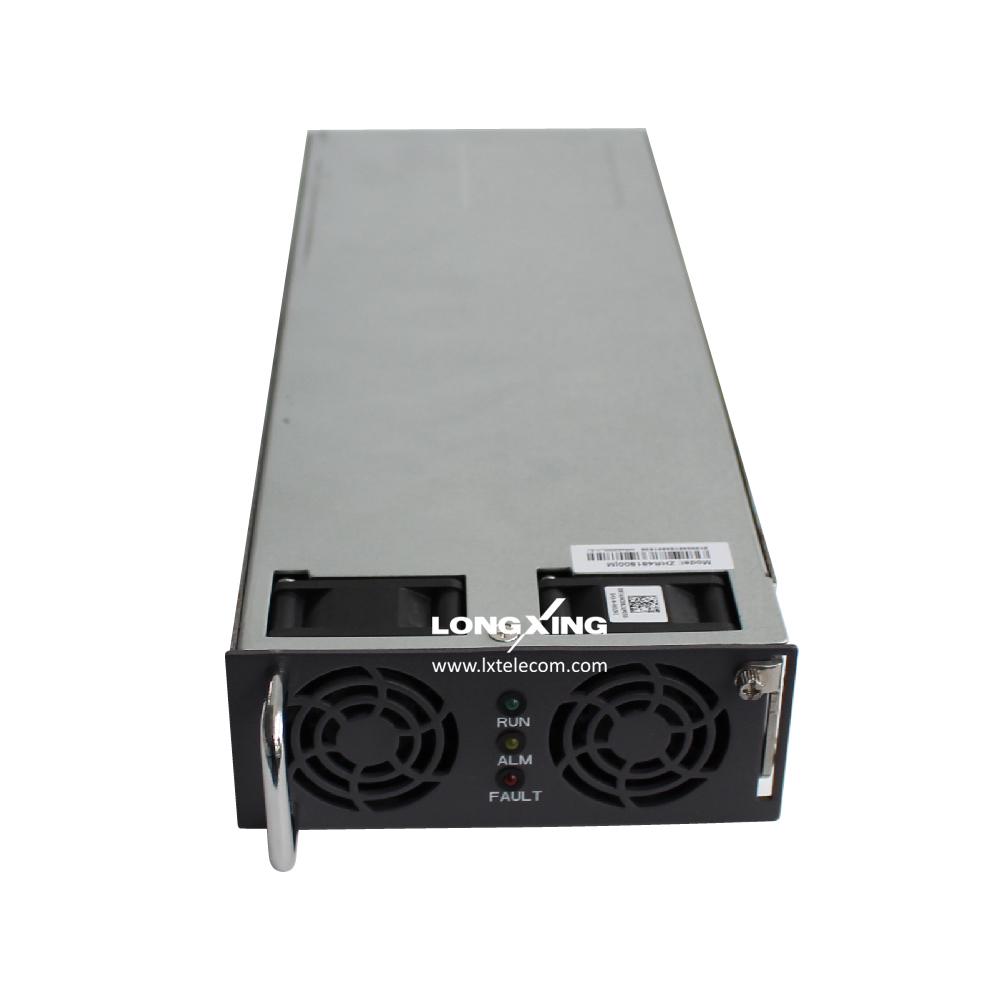

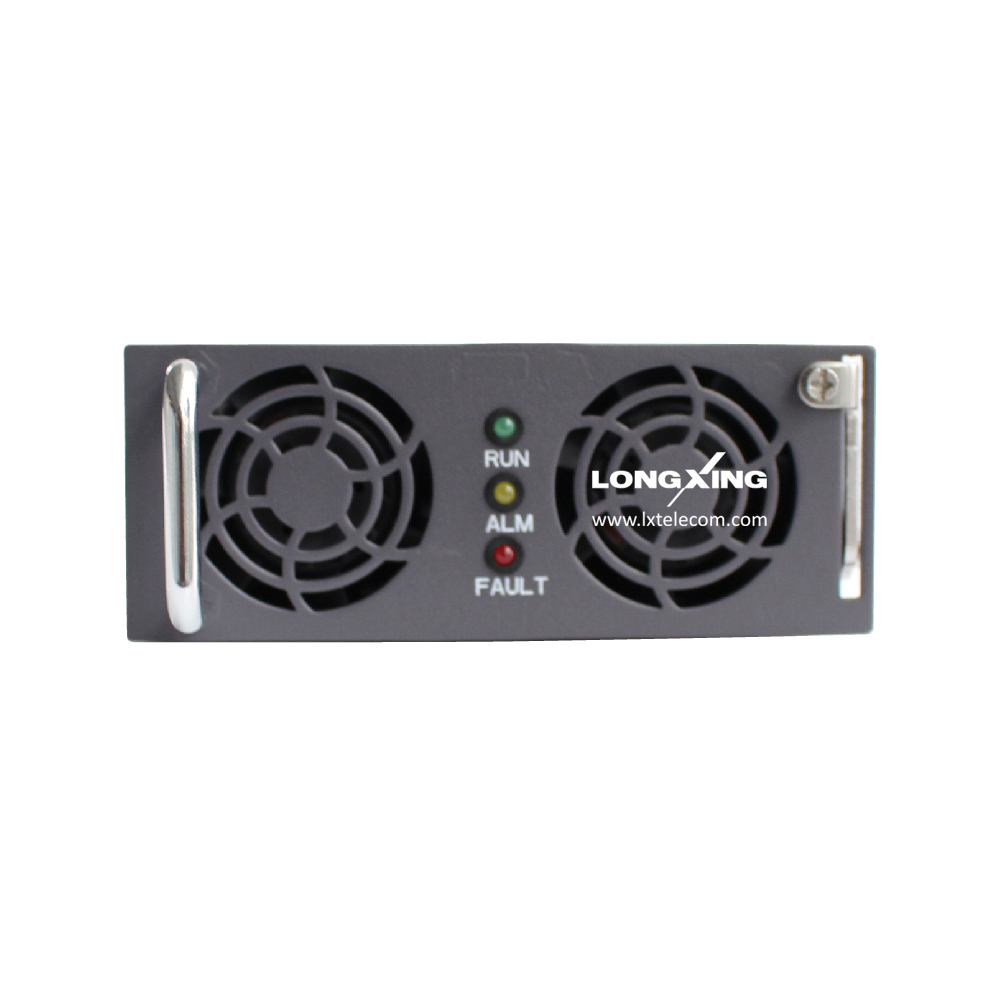

| Indicator LEDs | Green--normal Yellow--protection warning Red--failure |
| Alarms | Low mains shutdown High temperature shutdown Rectifier Failure Output overvoltage shutdown Fan failure |
| Warnings | Rectifier in power derate mode Remote battery current limit activated Input voltage out of range Low voltage alarm LVD activated |
| Operating temp | -40～+55℃ 100% power output +55～+65℃, 50% power derated output |
| Storage temp | -40 to +70°C |
| Cooling fan | Temperature regulated air front to back |
| MTBF | 500000 hours |
| Acoustic noise | 50dB |
| Humidity | 10%～95% no condensing |
| dimensions | 106mm(W)*298.5mm(D)*40.5mm(H) |
| Weight | 1.7kg |
