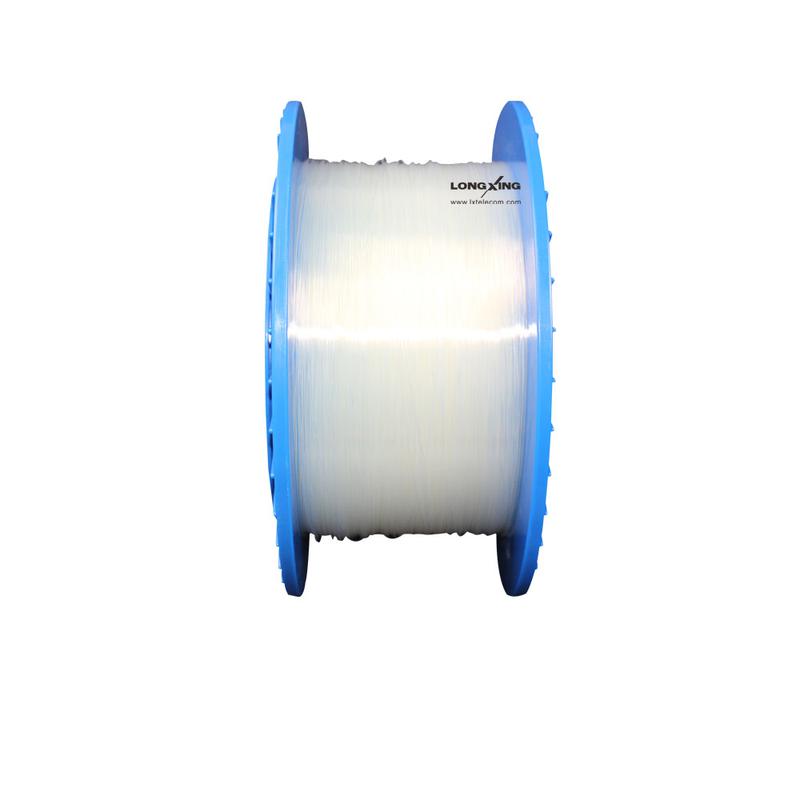

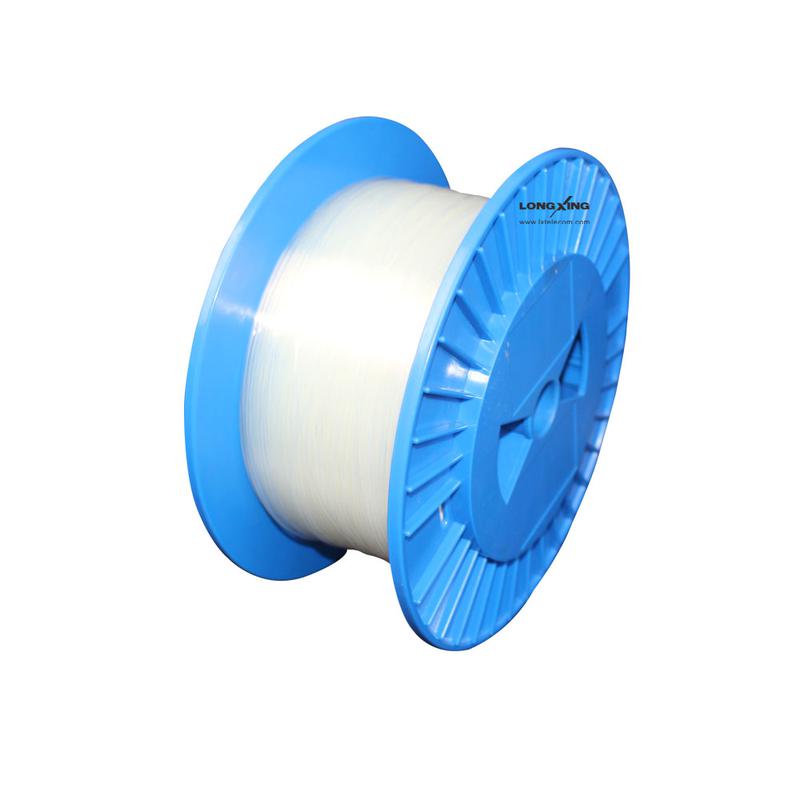

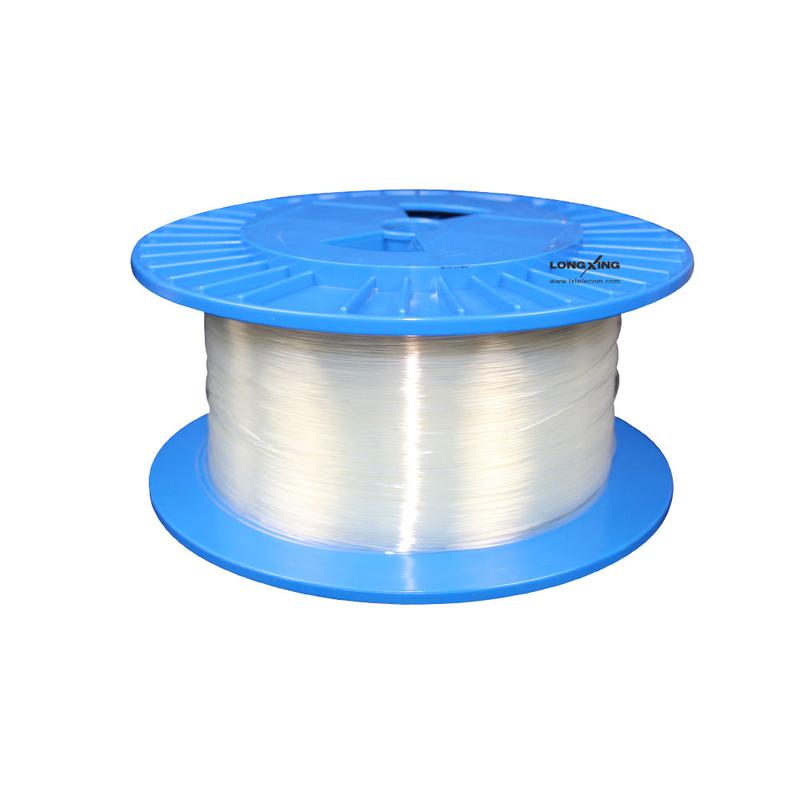

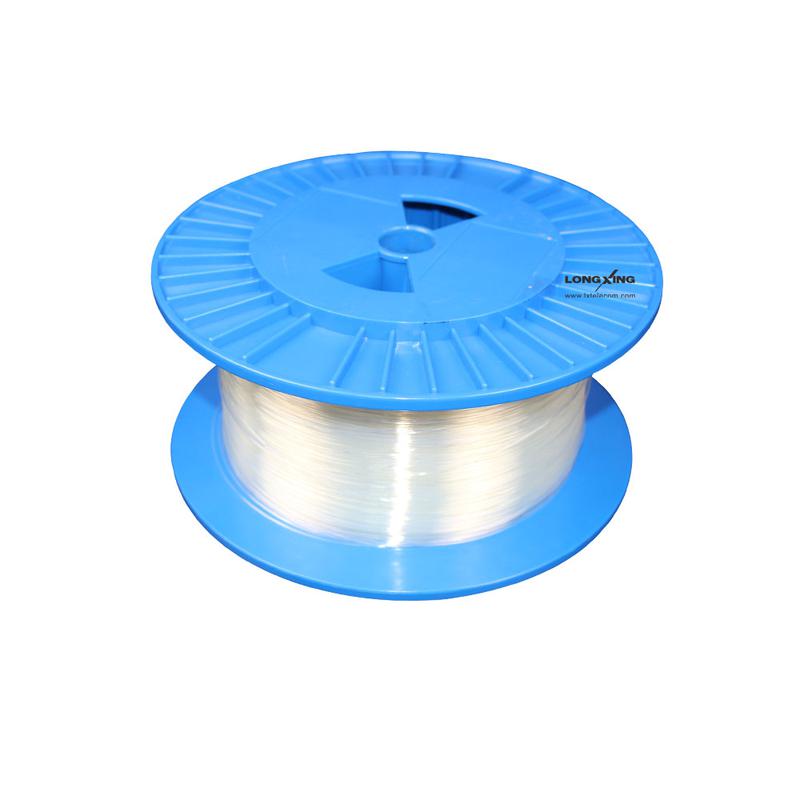

Transparent Cable
Overview
When using a totally transparent cable it becomes apparent even for a none technical person that its only fiber and light that is used. People will be more careful with this cable as it distinguishes from other cables and treat it with more care than a normal copper cable.
Features
l Easy to distinguishes from other cables
l Low Attenuation and Bend Loss
Add To Quote List
Add To Compare
Inquiry Now
l Low Attenuation and Bend Loss

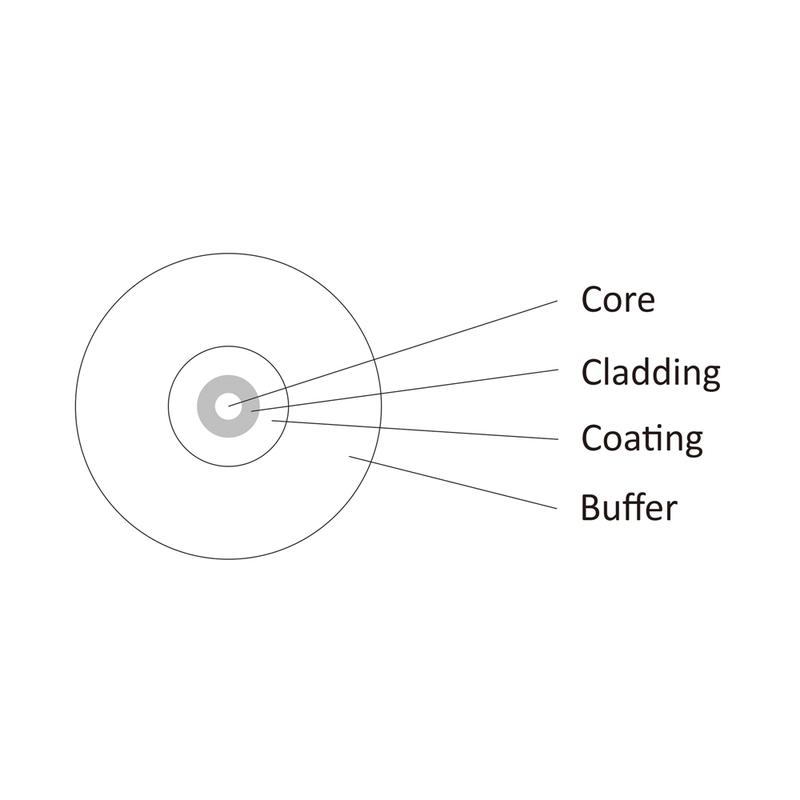

| Cable Parameters | |||
| Cladding Diameter (μm) | 125±0.7 | ||
| Cladding Non-Circularity (%) | ≤0.8 | ||
| Core-Cladding Concentricity Error (μm) | ≤0.5 | ||
| Mode Field Diameter (μm) | 1310nm | 8.6±0.4 | |
| 1550nm | 9.8±0.5 | ||
| Coating Diameter(un-colored) (μm) | 245±7 | ||
| Cladding-Coating Concentricity Error (μm) | ＜10 | ||
| Cut-off Wavelength (nm) | λcc≤1260 | ||
| Attenuation (dB/km) | 1310nm | ≤0.35 | |
| 1383nm | ≤0.35 | ||
| 1550nm | ≤0.21 | ||
| 1625nm | ≤0.23 | ||
| Bend Loss | Attenuation @1550nm |
10 turns ( R=15mm) | ≤0.03dB |
| 1 turns ( R=10mm) | ≤0.1dB | ||
| 1 turns ( R=7.5mm) | ≤0.5dB | ||
| Attenuation @1625nm |
10 turns ( R=15mm) | ≤0.1dB | |
| 1 turns ( R=10mm) | ≤0.2dB | ||
| 1 turns ( R=7.5mm) | ≤1.0dB | ||
| Transparent Cable | Dimension | 900±50μm | |
| Material | Nylon | ||
| Transparent Cable Attenuation (dB/km) |
1310nm | ≤0.40 | |
| 1550nm | ≤0.30 | ||
| Operation temperature (℃) | -10～+50 | ||
| Storage temperature (℃) | -10～+50 | ||
