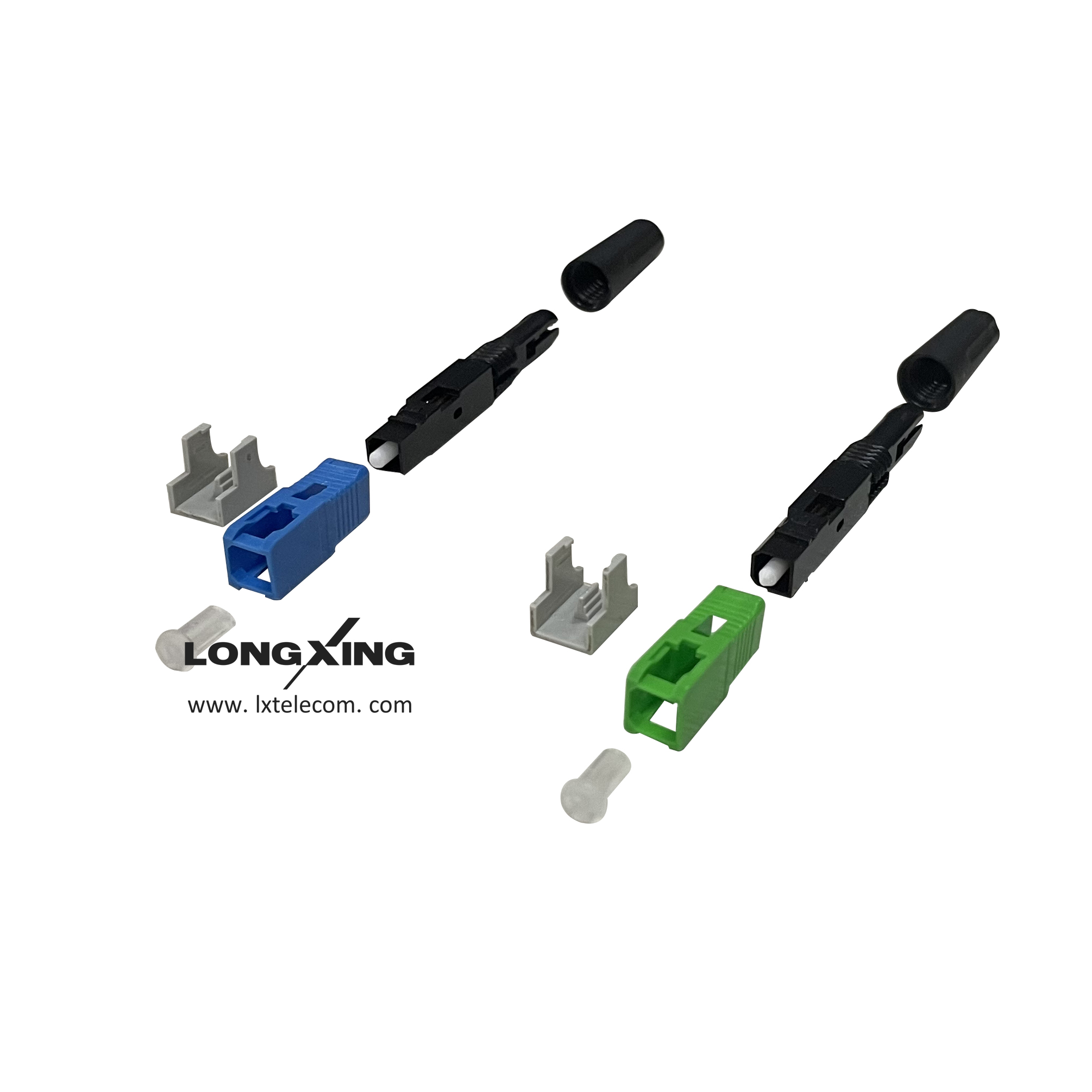

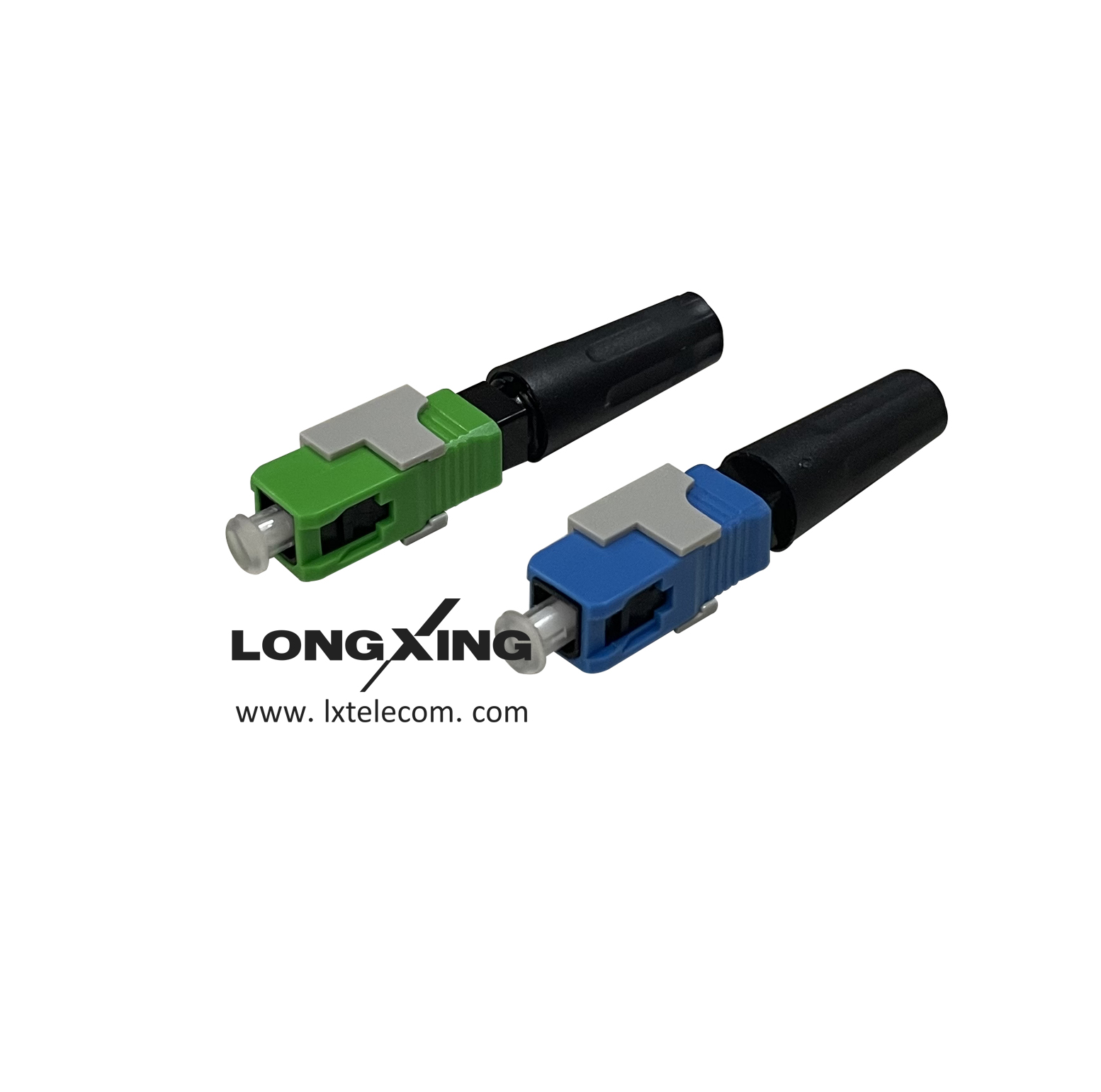

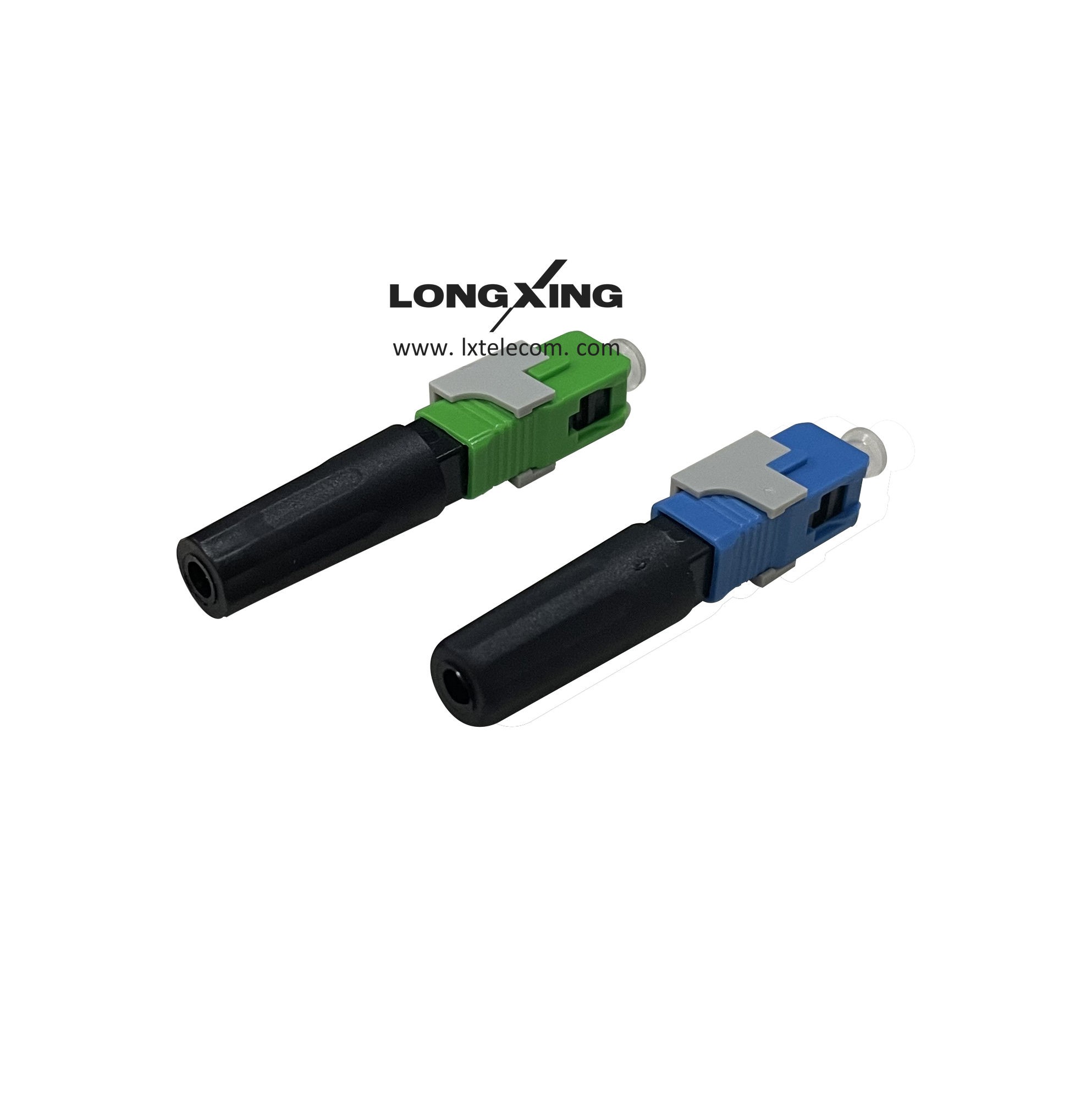

Fiber Optic Fast Connector Series B Type E
Overview
LongXing Fast connectors make fiber terminations fast, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Assembly of the quickly assembly fiber connector requires only normal fiber preparation tools, no electrical power supply is needed.
Features
l Compatible with standard SC connectors;
l Field installable, cost effective, user friendly;
l PC, APC polishing optional;
l No electricity required;
l FTTH cable, fiber optic cable optional;
l Reliable durable and superior optical performance
l Low insertion loss and high return loss
l Stable capability and high reliability
l Excellent mechanical capability
Add To Quote List
Add To Compare
Inquiry Now
l Field installable, cost effective, user friendly;
l PC, APC polishing optional;
l No electricity required;
l FTTH cable, fiber optic cable optional;
l Reliable durable and superior optical performance
l Low insertion loss and high return loss
l Stable capability and high reliability
l Excellent mechanical capability
| Product Dimensions | |||
| External Dimensions (L*W) | Housing Length | Cap Length | Fiber Diameter mm |
| 50mm*9mm | 20mm | 23.5mm | 3.0*2.0mm drop cable; 3.0mm; 2.0mm |
| Technical Specifications | ||||
| Insertion Loss | Return Loss | Fiber Retention Force | ||
| APC | UPC | APC | UPC | |
| Avg ≤ 0.25dB; Max ≤ 0.4dB | Min.＞55dB Typ.＞55dB | Min.＞45dB Typ.＞50dB | ＜30N (＜0.2dB with impressed pressure) | |
