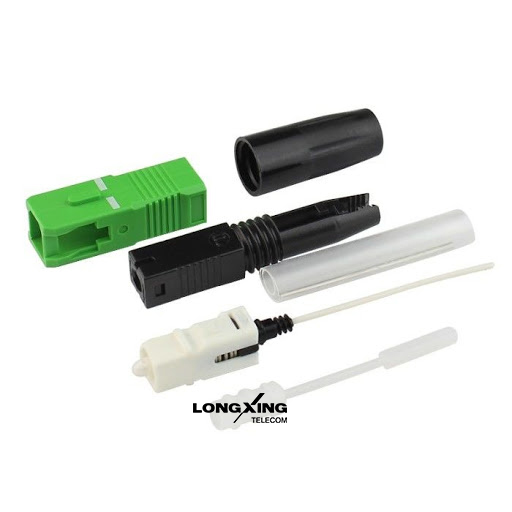

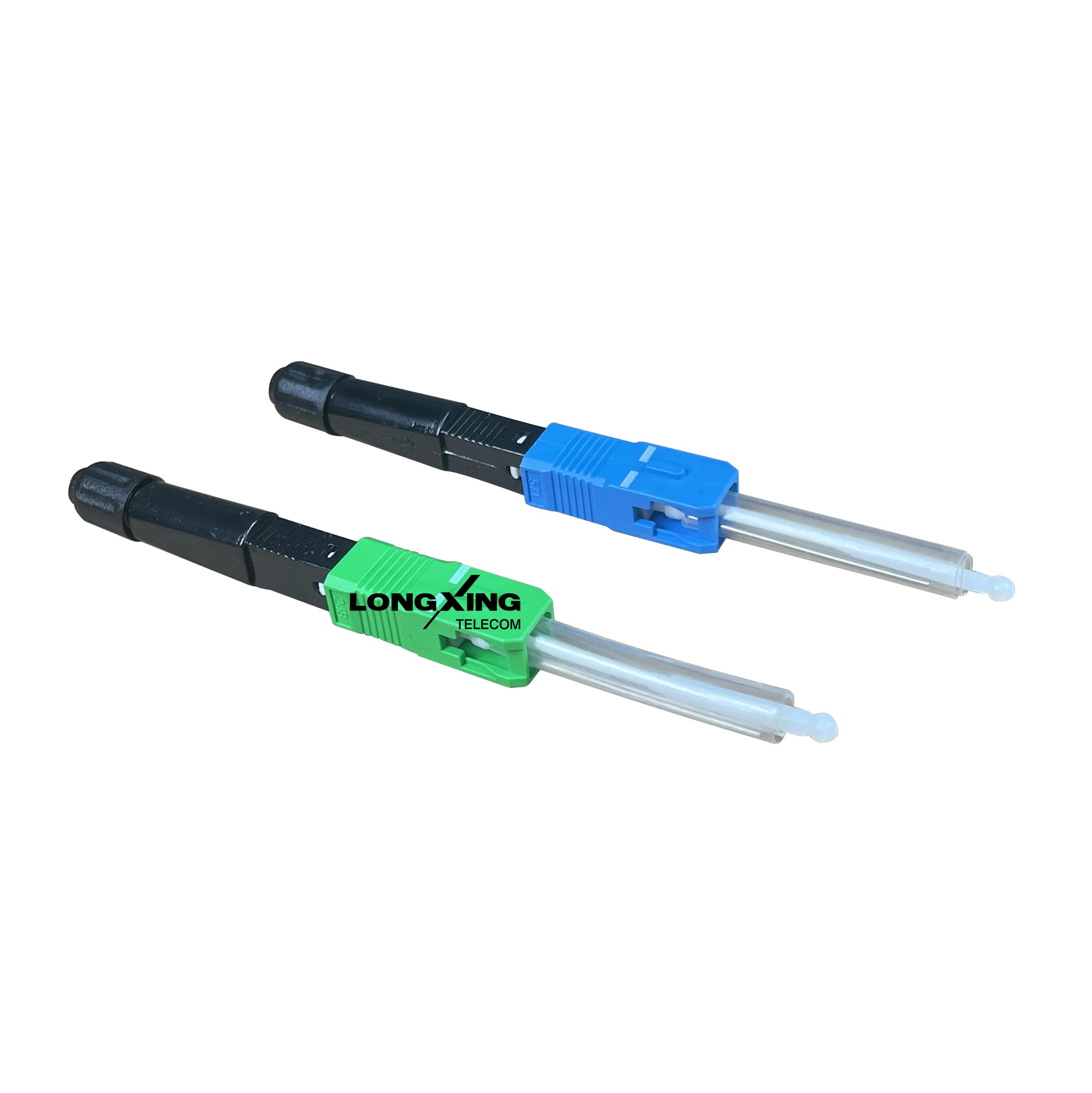

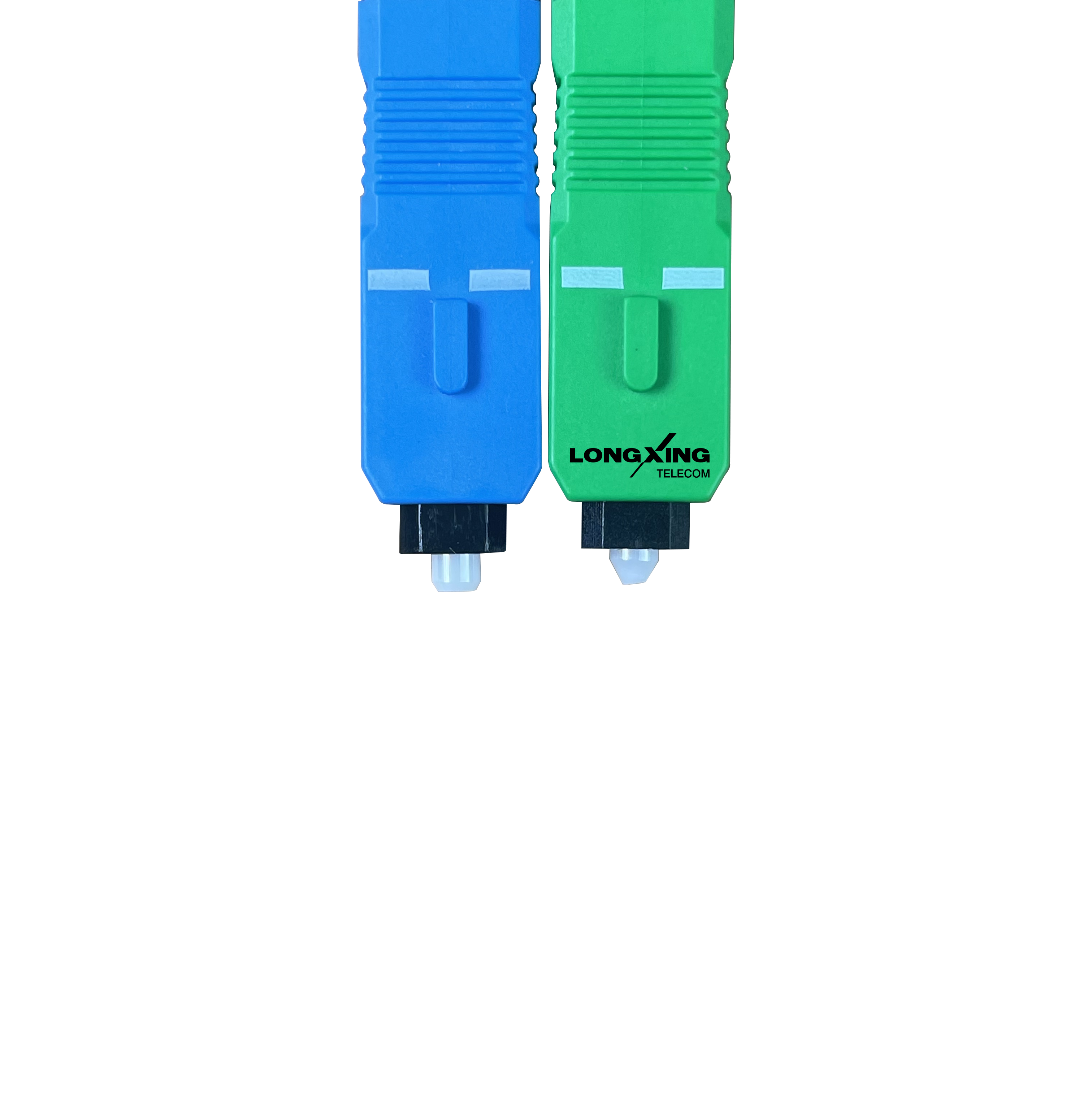

Fiber Optic Fusion Splice-On Connectors
Overview
LongXing Fast connectors make fiber terminations fast, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Assembly of the quickly assembly fiber connector requires only normal fiber preparation tools, no electrical power supply is needed.
Features
l Low insertion loss and back reflection loss
l Ferrule end surface predomed
l Precision anti-rotation key and corrosion resistant body
l UL-rated plastic housing
l Telcordia style boots
l Free-floating ceramic ferrule
Add To Quote List
Add To Compare
Inquiry Now
l Ferrule end surface predomed
l Precision anti-rotation key and corrosion resistant body
l UL-rated plastic housing
l Telcordia style boots
l Free-floating ceramic ferrule
| Product Dimensions | |||
| External Dimensions (L*W) |
Housing Length |
Cap Length |
Fiber Diameter mm |
| 83mm*9mm Fusion Length 28.5mm*3mm |
24.9mm | 23.5mm |
3.0*2.0mm drop cable; 3.0mm; 2.0mm; 0.9mm |
| Technical Specifications | ||||
| Insertion Loss | Return Loss | Fiber Retention Force |
||
| APC | UPC | APC | UPC | |
| ≤ 0.2dB | ≤ 0.2dB | ≥ 60dB | ≥ 50dB | 60N |
