MTP/MPO Adapter Plates LX-M
Overview

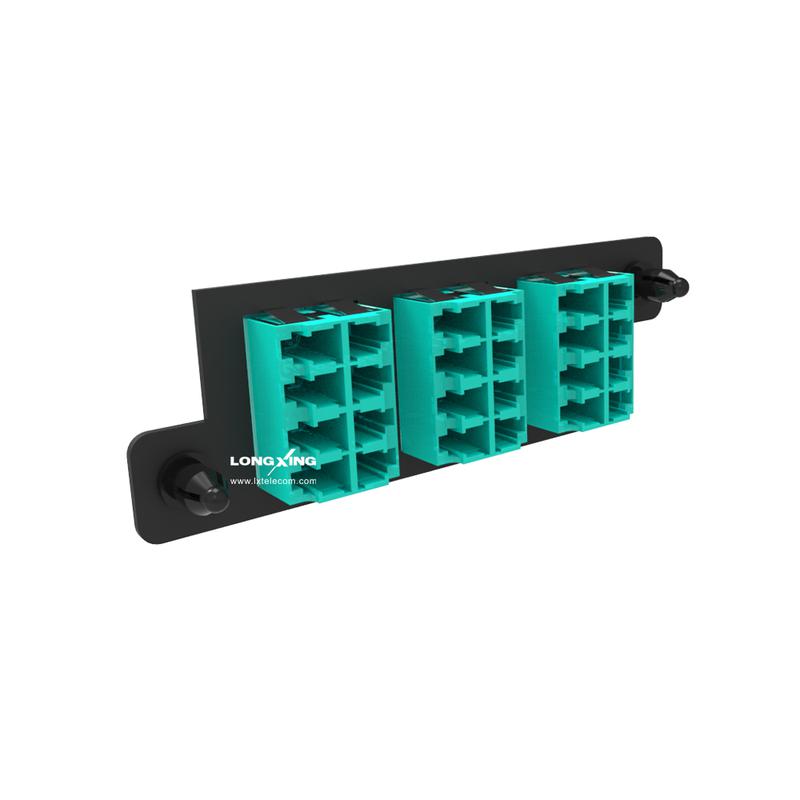

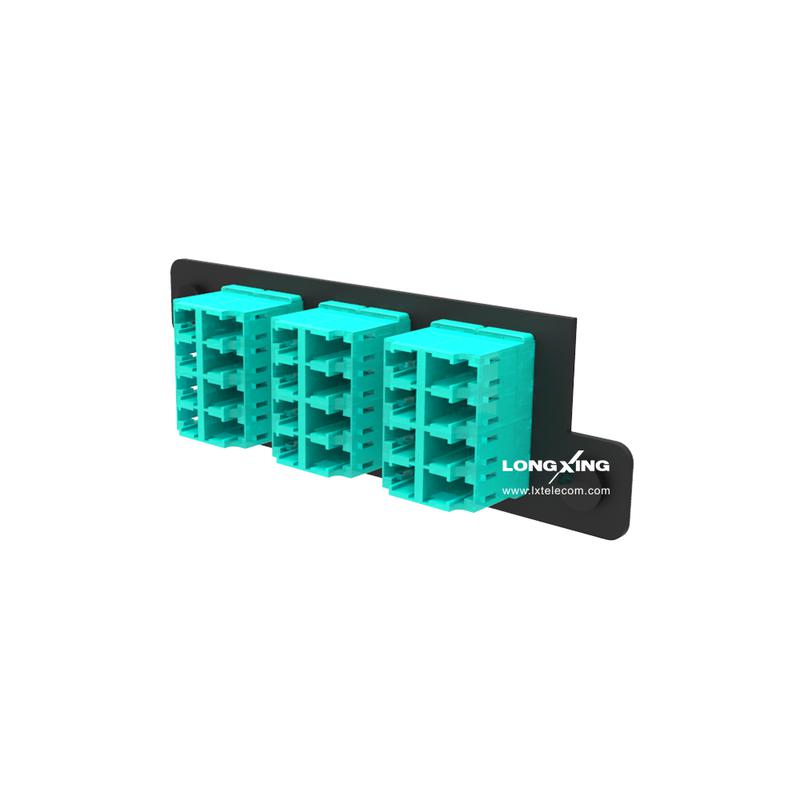

LongXing’s pre-loaded fiber optic Adapter Plates are designed to make the most of a limited space with high density network expansion, providing MTP/MPO connectivity between LC, LC APC, and SC fiber ports. Featured options include 12-port duplex or 24-port quad single-mode or multimode connections. Compatible with LongXing’s HD series panel enclosures. Install up to three adapter plates per 1U of patch panel, or mix with LongXing’s HD series Adapter Cassettes.
Features
l Compatible with LongXing Rack Mount ODU-18 HD Series Fiber Enclosures/Patch Panels
l Up to 4 Fiber Adapter Panels per 1U Fiber Patch Panel
l Flexibility to Mix Adapter Plates with Cassettes in Patch Panel
l Available with LC, LC/APC, SC and MTP/MPO Adapters
l Compliant with IEC-61754-7, EIA/TIA-604-5 & RoHS
l Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards.
Add To Quote List
Add To Compare
Inquiry Now
l Up to 4 Fiber Adapter Panels per 1U Fiber Patch Panel
l Flexibility to Mix Adapter Plates with Cassettes in Patch Panel
l Available with LC, LC/APC, SC and MTP/MPO Adapters
l Compliant with IEC-61754-7, EIA/TIA-604-5 & RoHS
l Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards.
| Technical Specifications | ||
| SPECIFICATION | LX-M-1 | LX-M-2 |
| Total Fiber Count | 12 | 24 |
| Front Adapter Type | LC Duplex | LC QUAD |
| Front Port Count | 6 | 6 |
| Return Loss (LC) | > 55 dB | |
| Insertion Loss (LC) | Typical 0.18dB; Max 0.30dB | |
| Color | Black | |
| Material | Cold-rolled Steel | |
