MTP/MPO Cassette LX-J
Overview

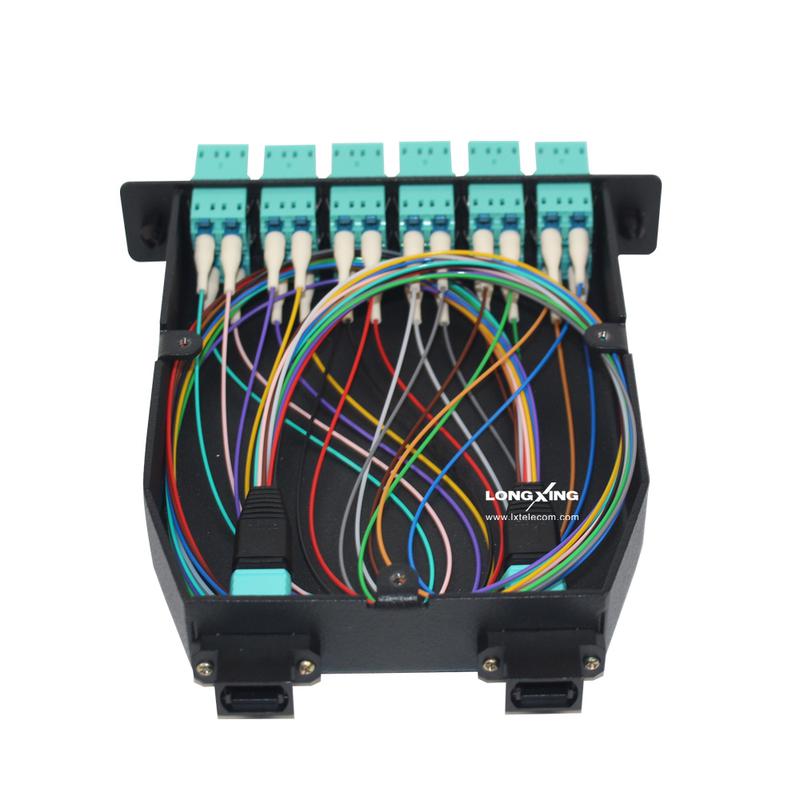

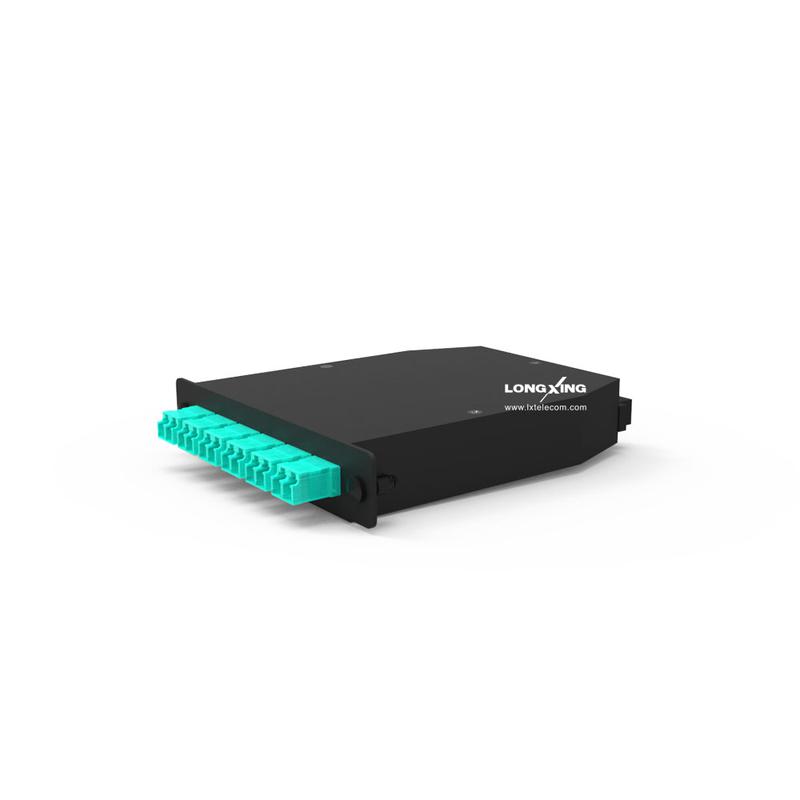

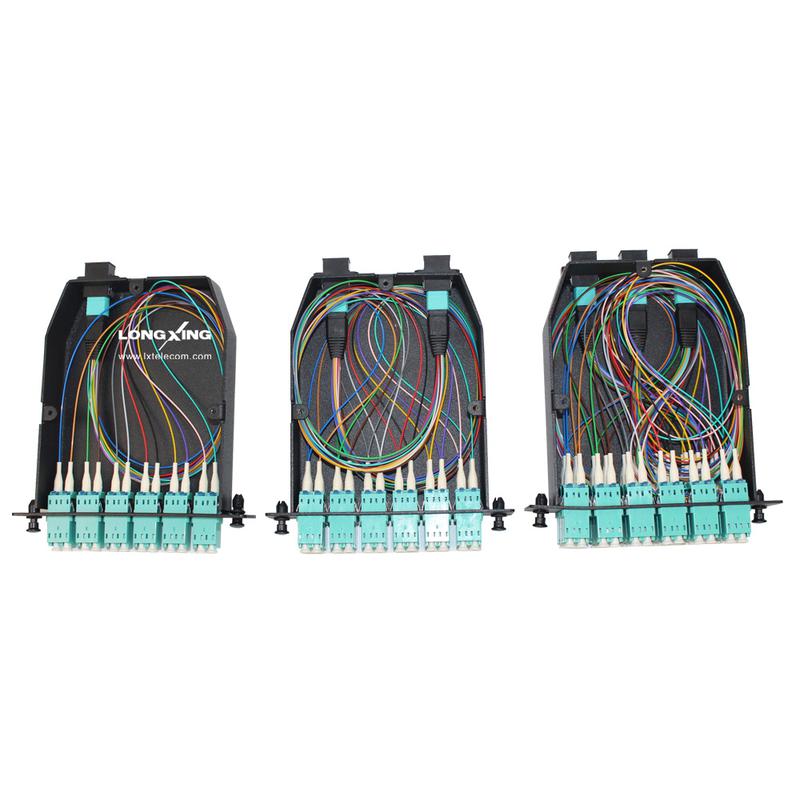

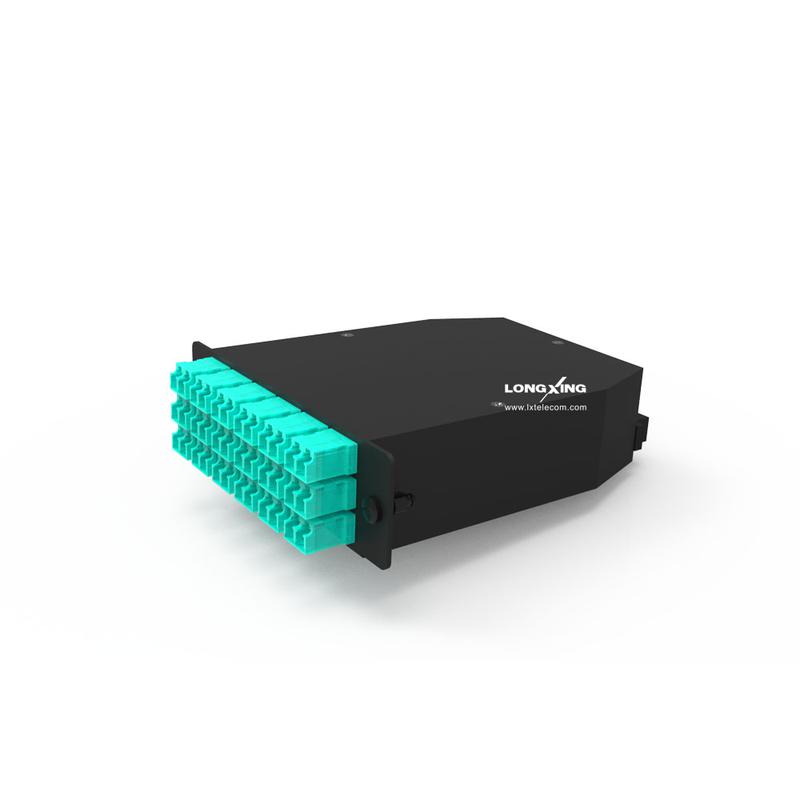

LongXing’s pre-terminated MTP/MPO Adapter Cassettes provide a high density connection from LC, LC/APC, or SC fiber ports to MTP/MPO backbone trunks. These MTP/MPO cassettes are ideal for accompanying LongXing’s High Density and MPO fiber distribution patch panel enclosures. Featured options include 12 fiber ports, 24 fiber ports or 36 fiber ports in single-mode or multimode selections per MPO/MTP connection.
Features
l Compatible with LongXing Rack Mount ODU-14 HD Series Fiber Enclosures/Patch Panels
l Up to 3 Fiber Cassettes per 1U Fiber Patch Panel
l Flexibility to Mix Adapter Plates with Cassettes in Patch Panel
l Available with LC, LC/APC, SC and MTP/MPO Adapters
l Easily Accessible MTP/MPO Ports for Connection to Trunk Cable
l Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards.
Add To Quote List
Add To Compare
Inquiry Now
l Up to 3 Fiber Cassettes per 1U Fiber Patch Panel
l Flexibility to Mix Adapter Plates with Cassettes in Patch Panel
l Available with LC, LC/APC, SC and MTP/MPO Adapters
l Easily Accessible MTP/MPO Ports for Connection to Trunk Cable
l Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards.
| Technical Specifications | |||
| SPECIFICATION | LX-J-1 | LX-J-2 | LX-J-3 |
| Total Fiber Count | 12 | 24 | 36 |
| Front Adapter Type | LC Duplex | LC Duplex | LC Duplex |
| Front Port Count | 6 | 12 | 18 |
| Rear Adapter Type | MTP/MPO | MTP/MPO | MTP/MPO |
| Rear Port Count | 1 | 2 | 3 |
| Return Loss (MTP/MPO) | > 25 dB | ||
| Insertion Loss (MTP/MPO) | Typical 0.15dB; Max 0.70dB | ||
| Return Loss (LC) | > 50 dB | ||
| Insertion Loss (LC) | Typical 0.15dB; Max 0.30dB | ||
| Color | Black | ||
| Material | Cold-rolled Steel | ||
