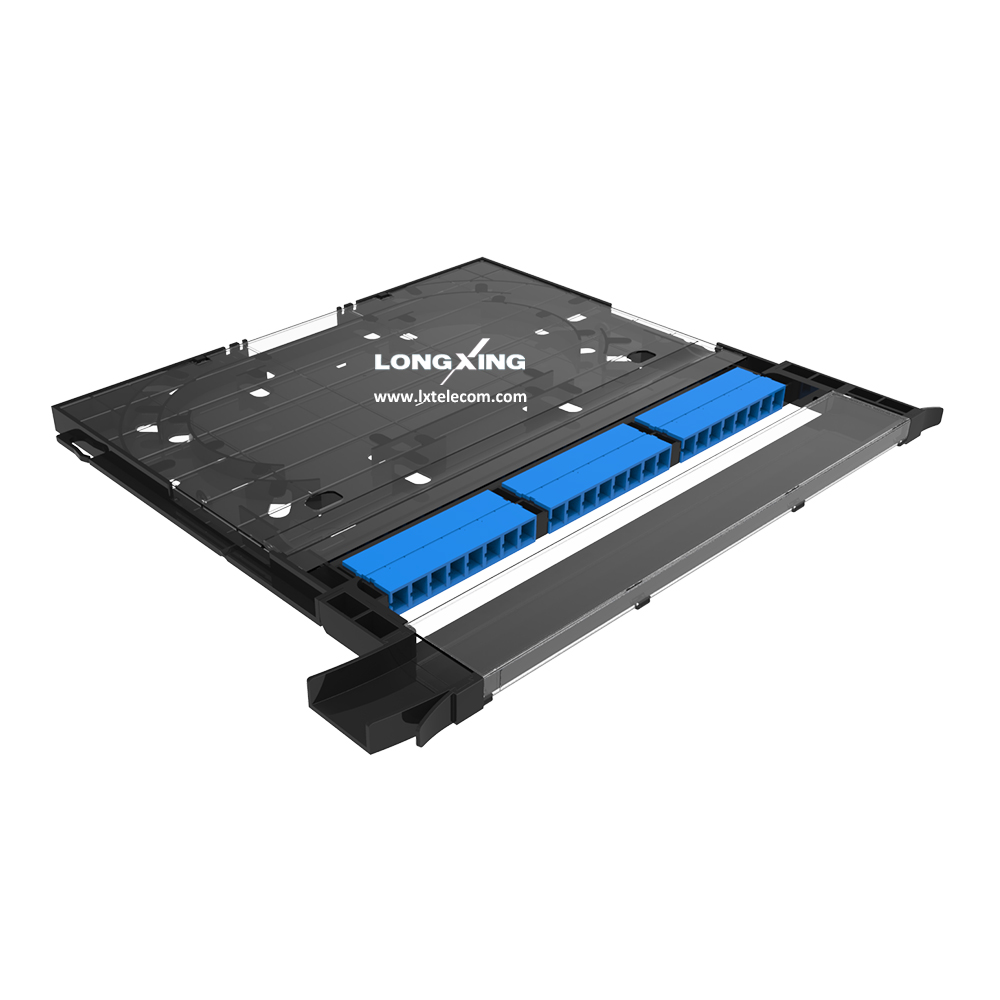

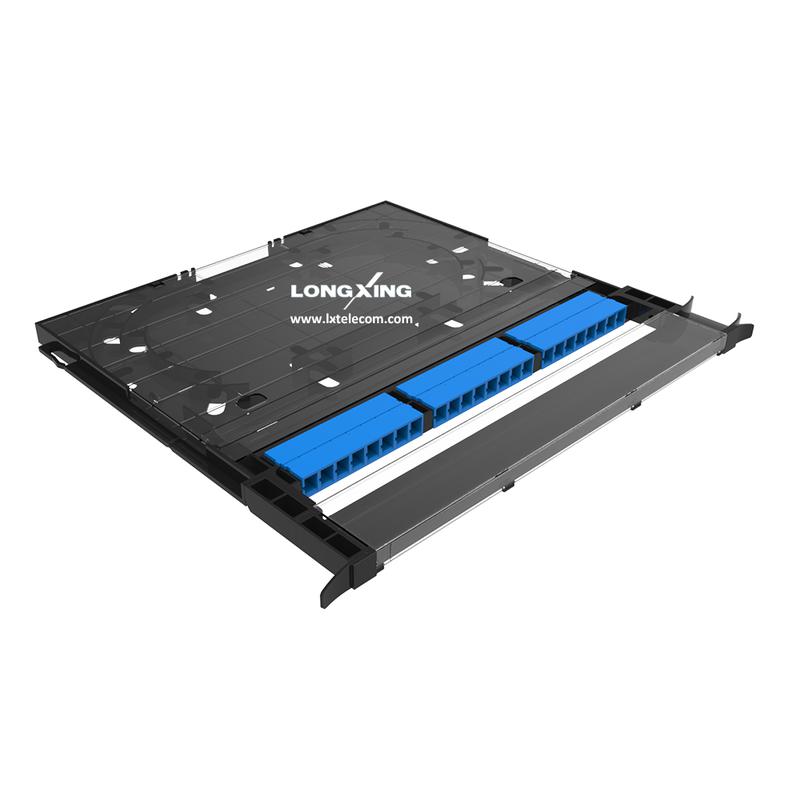

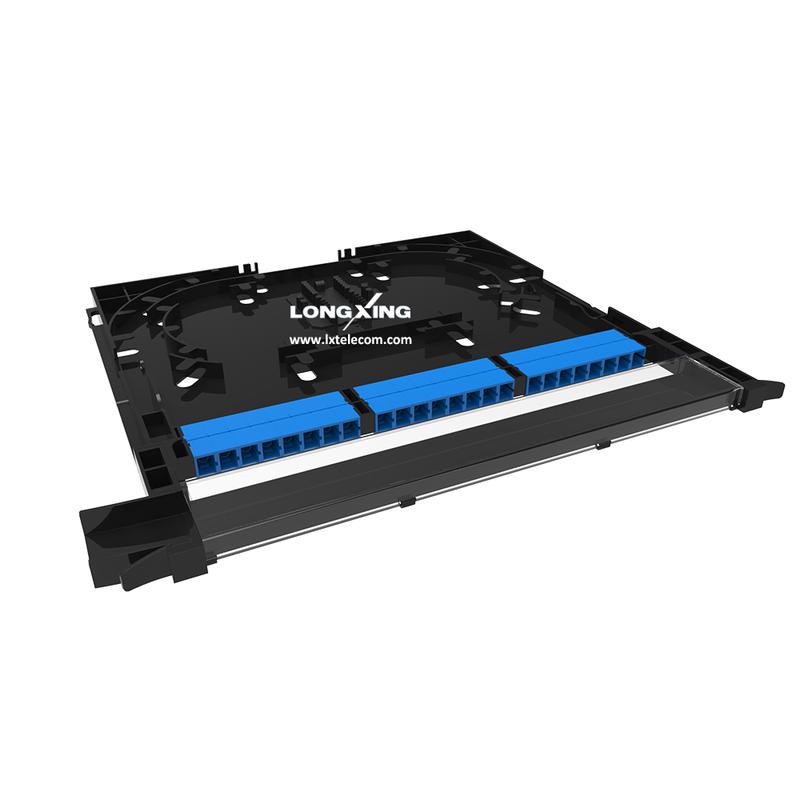

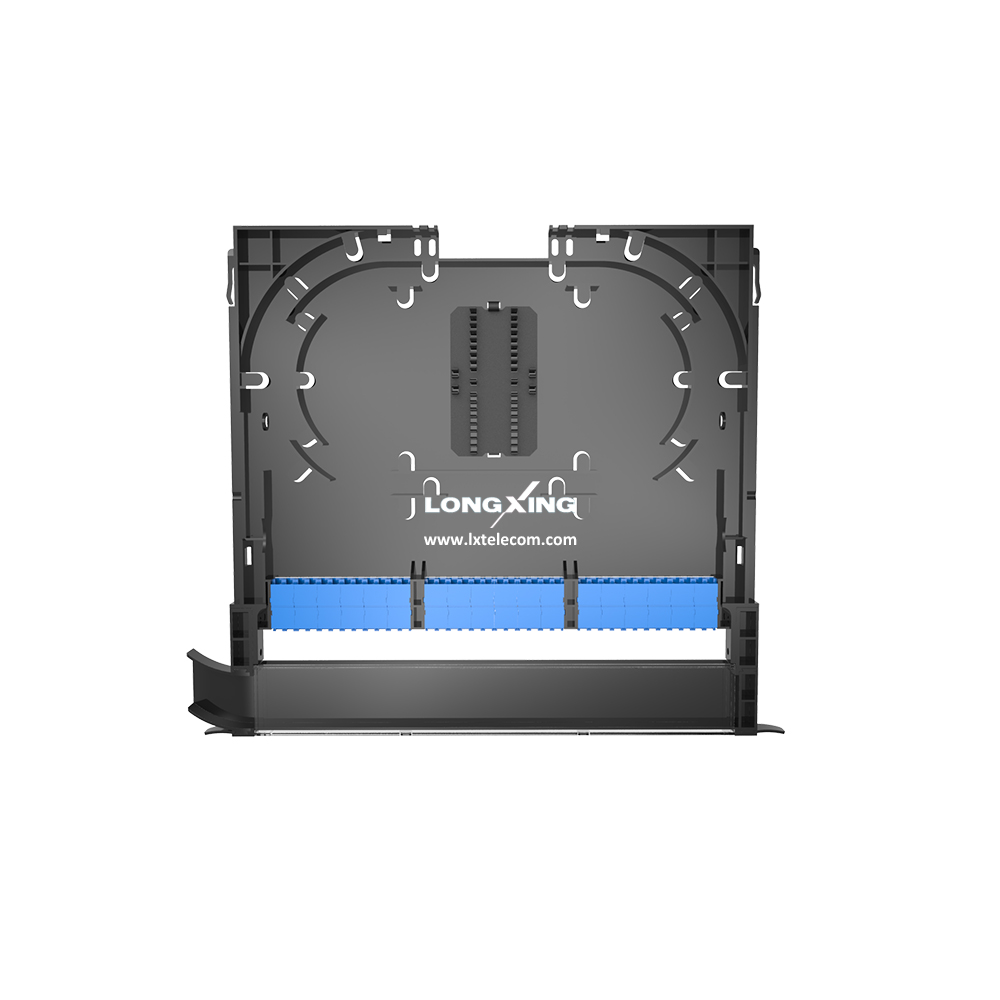

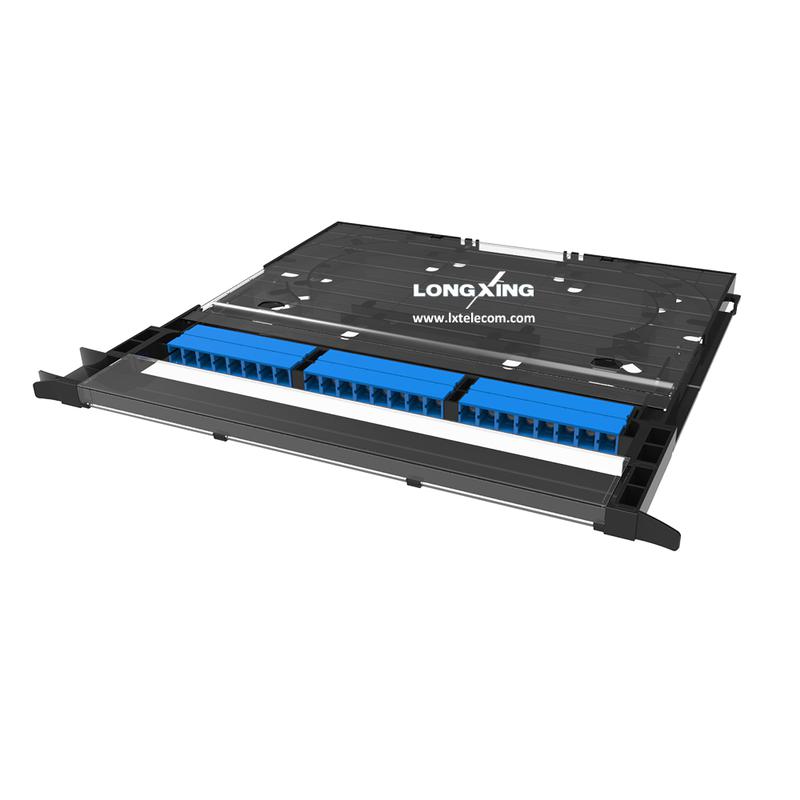

Optical Splice & Distribution Module Series H (H1, H2, H3)
Overview
Features
l Light and beautiful plastic structure
l Protected patch panel ODU-L11 offers secure environment for adapters, patch cords and pigtails
l Ensuring minimum fiber bending radius
l Adoptable adapters types: SC, LC
l Space saving
l Compact & simple design, easy to work, cost saving
| Dimension and Capacity | ||||||
| Module | H1 | H2 | H3 | |||
| Dimension (W x H x D) | 326mm*13mm*280mm | 326mm*13mm*280mm | 326mm*13mm*306.5mm | |||
| Entry Direction | Rear | Rear and right | Rear, right and left | |||
| Cable Guide Direction | Left or Right | Left or Right | Left or Right | |||
| Adapter Type | SC Simplex/Duplex | LC Duplex/Quad | SC Simplex/Duplex | LC Duplex/Quad | SC Duplex | LC Quad |
| Adapter Capacity | 24 | 36 | 24 | 36 | 24 | 36 |
| ODU-11 Dimensions and Capability | |||||
| Height | Depth(mm) | Width | Module H1 | Module Quantity | |
| Capacity | |||||
| SC | LC | ||||
| 1U | 280 | 19’’/21’’/23’’ | 72 | 108 | 3 |
| 2U | 280*2 | 19’’/21’’/23’’ | 144 | 216 | 6 |
| 3U | 280*3 | 19’’/21’’/23’’ | 216 | 324 | 9 |
| 4U | 280*4 | 19’’/21’’/23’’ | 288 | 432 | 12 |
| Operation Conditions | |
| Temperature | -5℃ -- 60℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | HD optical distribution modules |
| Package Dimensions(W*H*D) | 376mm*65mm*330mm |
| Material | Carton box |
| Weight | 0.65kg |
| Lead Time | 10-15 working days normally |
