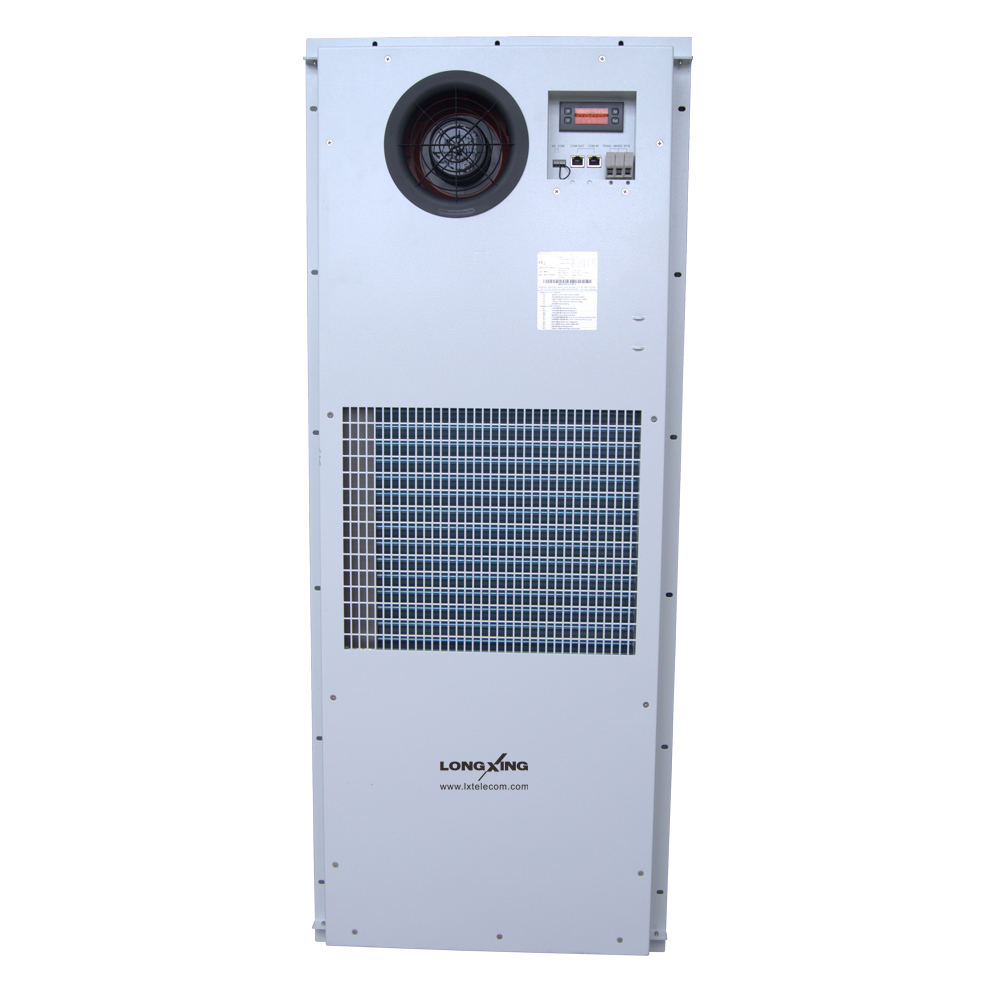

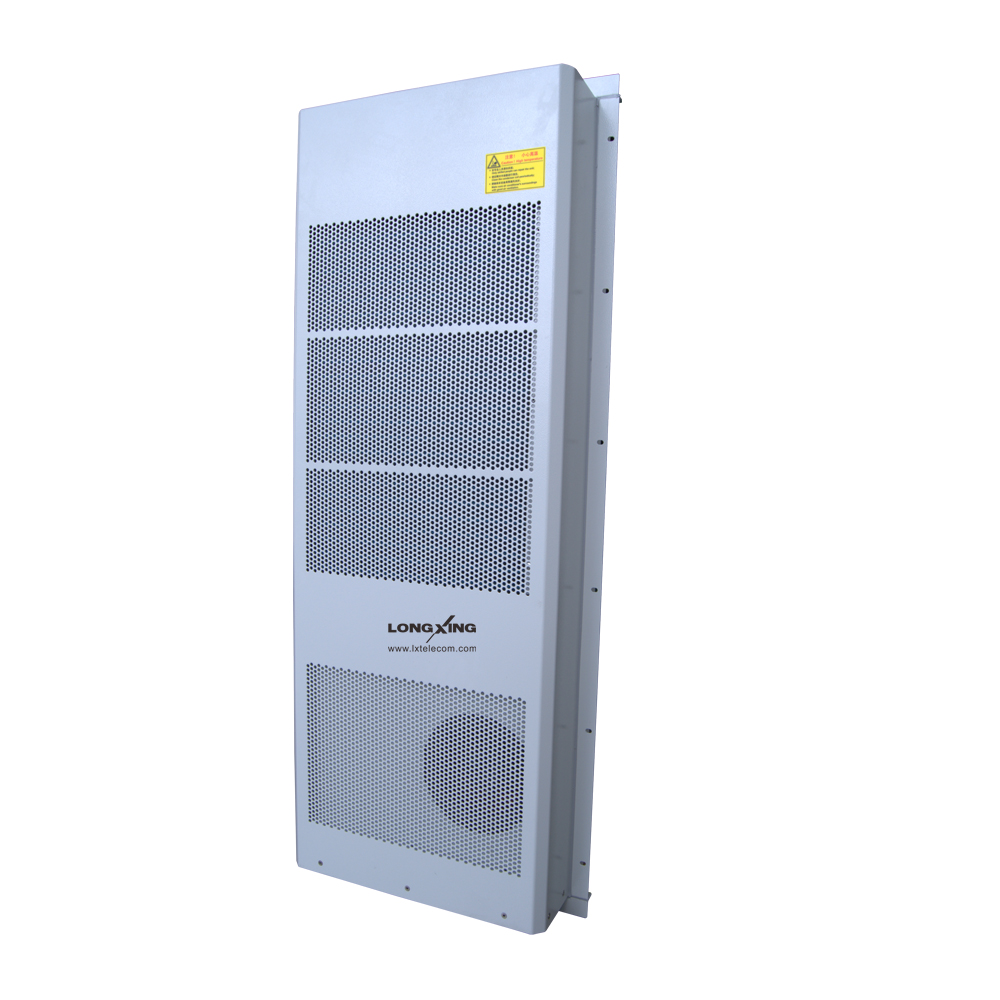

Enclosure Air Conditioner DC1500

Overview

LongXing Air Conditioner Cooling Solution can be widely used in enclosed area for climate control, such as wireless communication cabinet, battery cabinet,industry control cabinet etc. LongXing air conditioners are designed to cool your electronic and electrical controls, instruments, computer terminals, printers, telecommunications equipment, surveillance devices, cameras, laser and optical equipment and many other electronics in variety of environments. Our electronic cabinet cooling systems are designed for use with a wide range of enclosures and transit cases. Models are available for both indoor and outdoor use in AC and DC power configurations. Coolers feature corrosion-resistant stainless steel construction.

Features

l Designed with all DC driven components like fans, compressor;
l Precise temperature control through inverter digital regulation of compressor, fans;
l Power supply voltage range: DC44~59 V;
l A comprehensive sell-protection design to realize partial load starting, partial load operation at severe ambient condition;
l Low power consumption design with EER≥3.5, SEER≥ 5.5;
l Energy saving reach to 50% comparing with A.C. version product;
l IP55 environment protection & fit for T3 high temperature working condition by using of R134a refrigerant gas;
l The best cooling solution for solar, wind, disel generator etc,hybrid power system;
l Strict process control and international brand parts deployed to ensure high quality and reliable of this product;
l Multiple self protection design;
l LED Display, all the settings can be changed at the field;
l Dry contact alarm output,NO/NC optional;
l Equipped with communication interface:RS485.
Add To Quote List Add To Compare
Technical parameters
Name Outdoor Cabinet Air Conditioner
Code DC1500
Mounting Method Semi-embedded Mounting
Power Supply -48VDC
Cooling Capacity 1500W@L35/L35
Power Consumption 395W@L35/L35
Cooling Capacity(Optional) 940W@L35/L55
Power Consumption 490W@L35/L55
Internal Airflow 400m³/h
Working Temperature Range -40℃~+55℃
Max Noise Level 65dB(A)
IP Grade IP55
Net Weight 45kg
Refrigerant R134a
Dimensions(H*W*D) 1116mm*416mm*170mm
CE&RoHS Compliant Yes
Surface Treatment Outdoor type power coating,
Standard color: RAL7035
