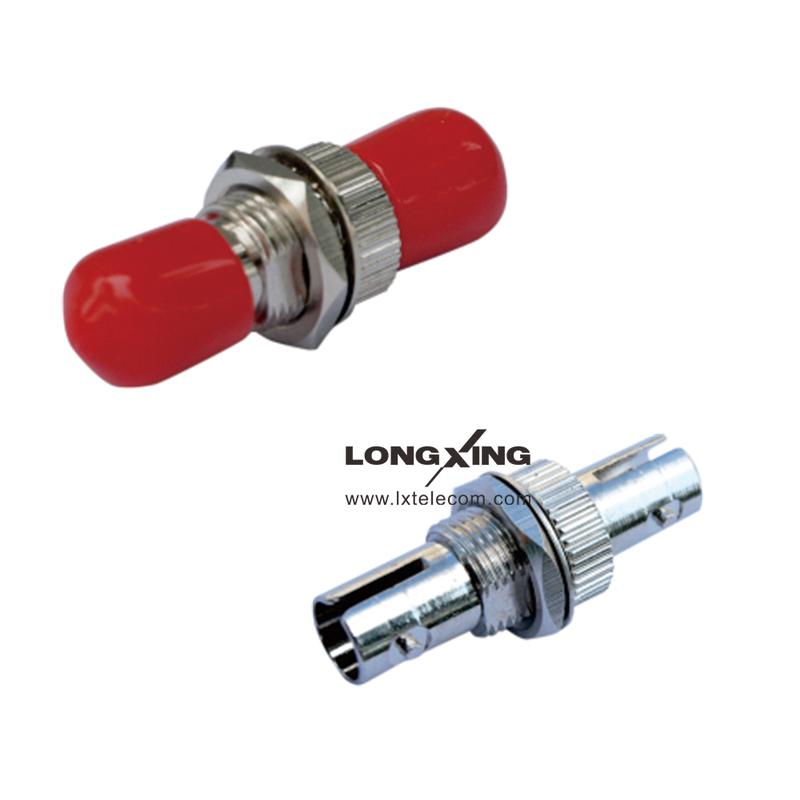

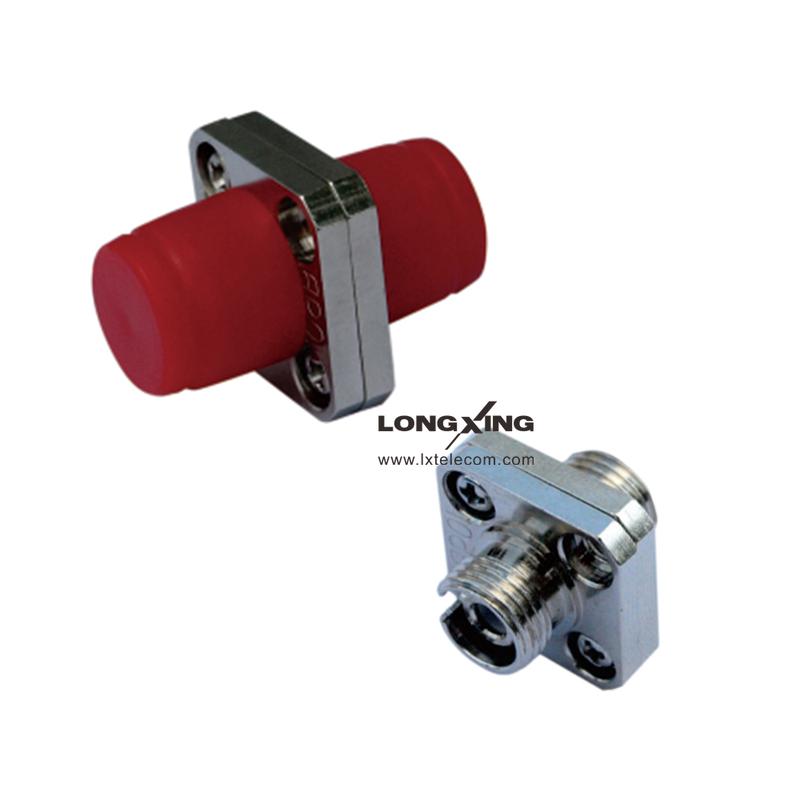

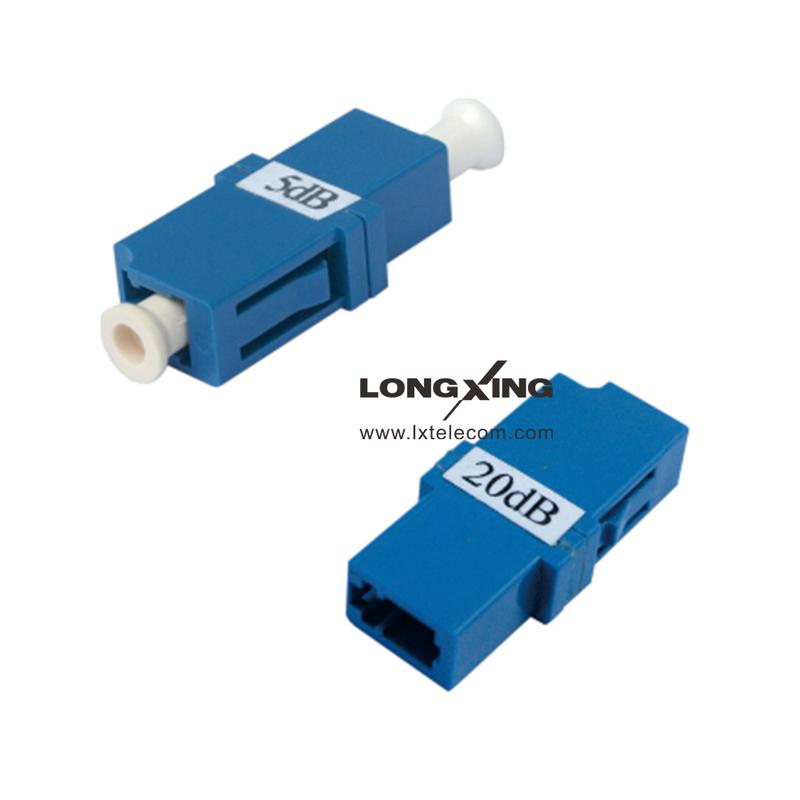

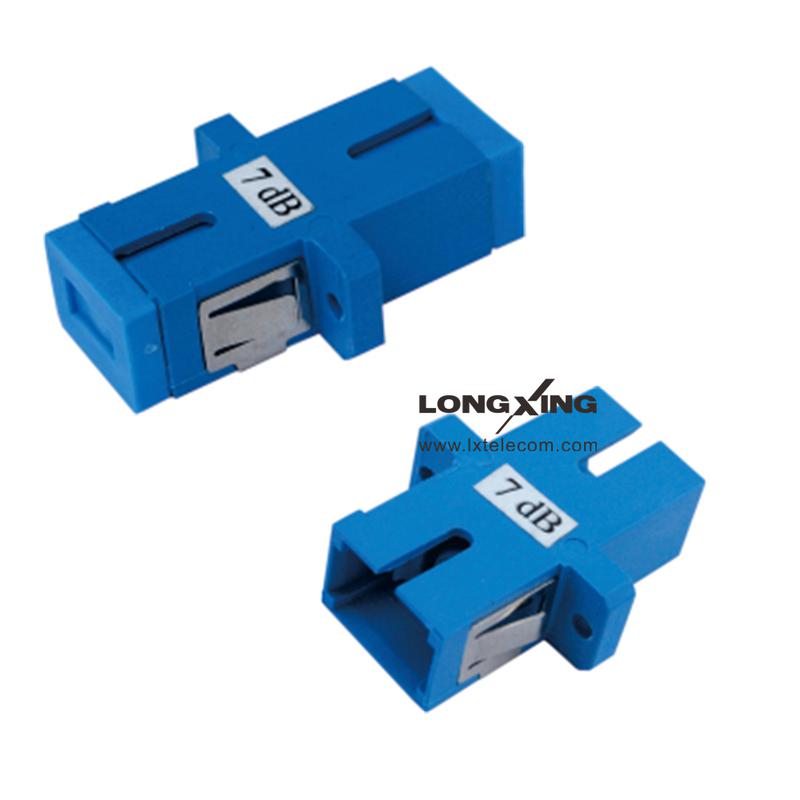

Optical Attenuator (Female to Female)
Overview
Attenuators are installed between an adapter and a connector and providing exceptional optical performance. LongXing supplies top quality optical fiber attenuators with variable types of connectors, every single attenuator is tested in the workshop before delivering to the customer.
Features
l High Precision Fiber Optic Ceramic Ferrules
l High return loss, low insertion loss
l Simple and reliable structure, east to install
l Low wavelength relativity
l Low polarization related loss
Add To Quote List
Add To Compare
Inquiry Now
l High return loss, low insertion loss
l Simple and reliable structure, east to install
l Low wavelength relativity
l Low polarization related loss
| Technical Specifications | |
| Attenuation | 1dB ~ 30dB |
| Operating Wavelength | Single mode 1310nm ~ 1550nm |
| Multi-mode 850nm or 50/125um | |
| Return Loss | UPC >55dB |
| APC >65dB | |
| Attenuation Accuracy |
1 ~ 10 dB ±0.5dB 11 ~ 25 dB ±5dB |
| Maximum Optical Input Power | 1000mW |
| Polarization Dependent Loss | ≤0.1dB |
| Operating Temperature Range | -40 to 80 |
| Storage Temperature Range | -50 to 85 |
| Humidity | 95%RH |
