Optical Attenuator (Male to Female)
Overview
Fiber optic attenuators are used in the fiber optic communications to reduce the optical fiber power at a certain level, the most commonly used type is female to male plug type fiber optic attenuator, it has the optical fiber connector at one side and the other side is a female type fiber optic adapter
.
Features
l Able to withstand the high laser energy;
l Insensitive to the wavelength;
l Attenuation Value: 1dB-30dB;
l Wavelength: 1310nm, 1550nm, 1250-1625nm and 1350/1550nm double wavelength.

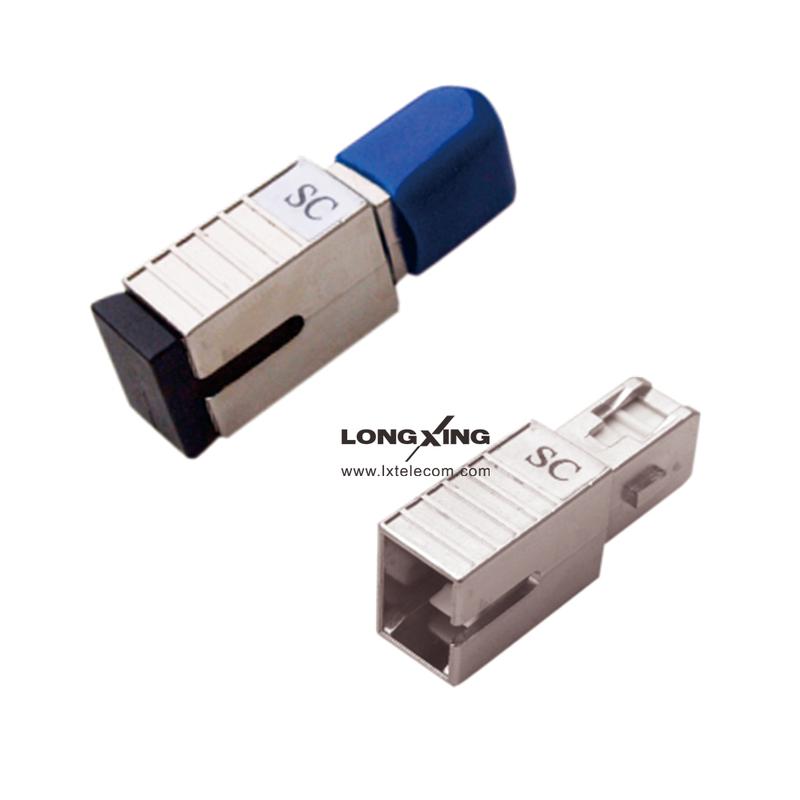

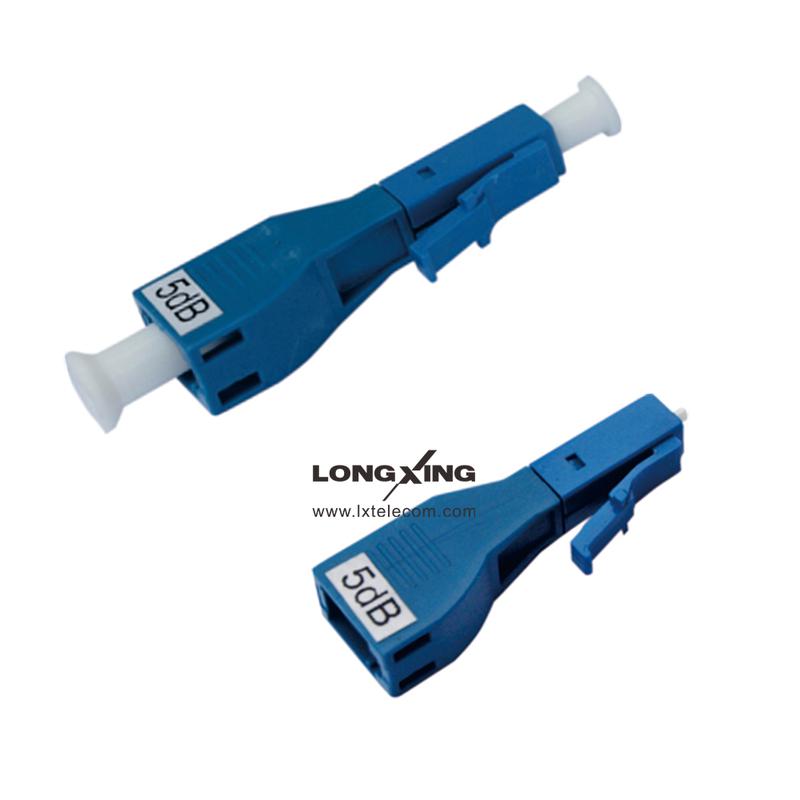

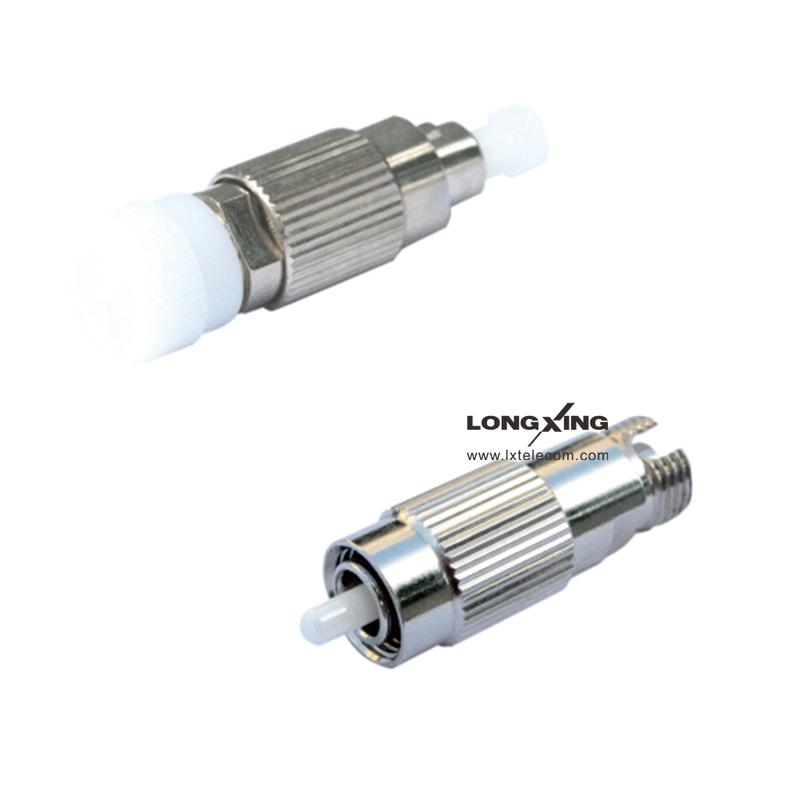

l Available Connector Types for Male – Female Attenuators: SC / FC / LC.
Add To Quote List
Add To Compare
Inquiry Now
l Insensitive to the wavelength;
l Attenuation Value: 1dB-30dB;
l Wavelength: 1310nm, 1550nm, 1250-1625nm and 1350/1550nm double wavelength.
l Available Connector Types for Male – Female Attenuators: SC / FC / LC.
| Technical Specifications | |
| Attenuation | 1dB ~ 30dB |
| Operating Wavelength | 1310/1550/1250 ~ 1625nm (Dual 1350/1550nm) |
| Return Loss | UPC >55dB |
| APC >65dB | |
| Attenuation Accuracy |
1 ~ 10 dB ±0.5dB 11 ~ 25 dB ±5dB |
| Maximum Optical Input Power | 1000mW |
| Polarization Dependent Loss | ≤0.1dB |
| Operating Temperature Range | -40 to 80 |
| Storage Temperature Range | -50 to 85 |
| Humidity | 95%RH |
