Ultra Density MTP/MPO Patch Panel ODU-L13

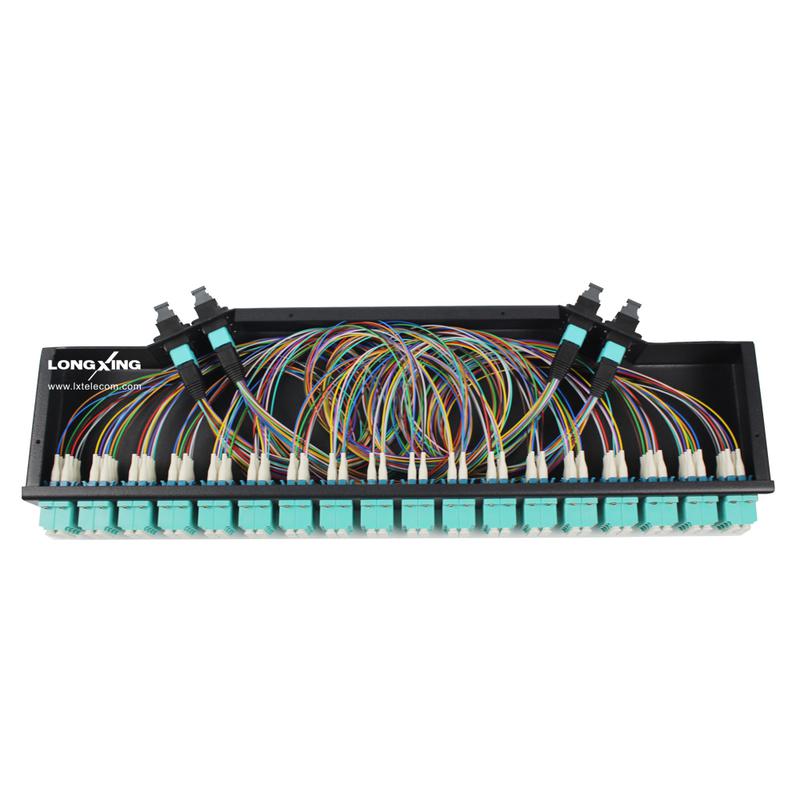

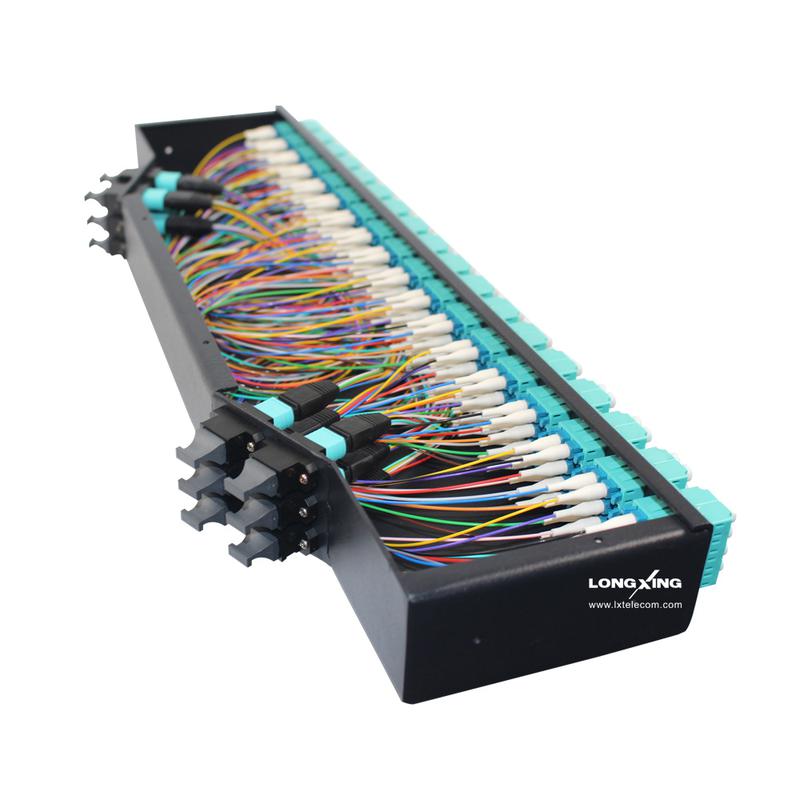

​LongXing's Ultra High Density 1U Rack is specially designed to accommodate high density cabling in high end Data Centre and Telecommunication central office environment. Front and rear cable management facilitates provides a neat and tidy solution for managing incoming and exiting cables. This rack mountable MPO/MTP patch panel ODU-L13 is loaded with 36 LC QUAD connectors, giving it 144 ports total within 1U of rack space. Inside the MPO/MTP patch panel, the fiber is spliced out up to twelve MPO/MTP connectors, giving you an easy plug-and-play option for your high-density fiber application. The 1U 96 fiber MPO/MTP UltraSlim Panel contains factory controlled and tested MPO/MTP-LC assemblies to deliver optical performance and reliability. Low loss MPO/MTP and LC Premium versions are offered featuring significantly improved insertion losses for demanding low power budget, high speed networks.

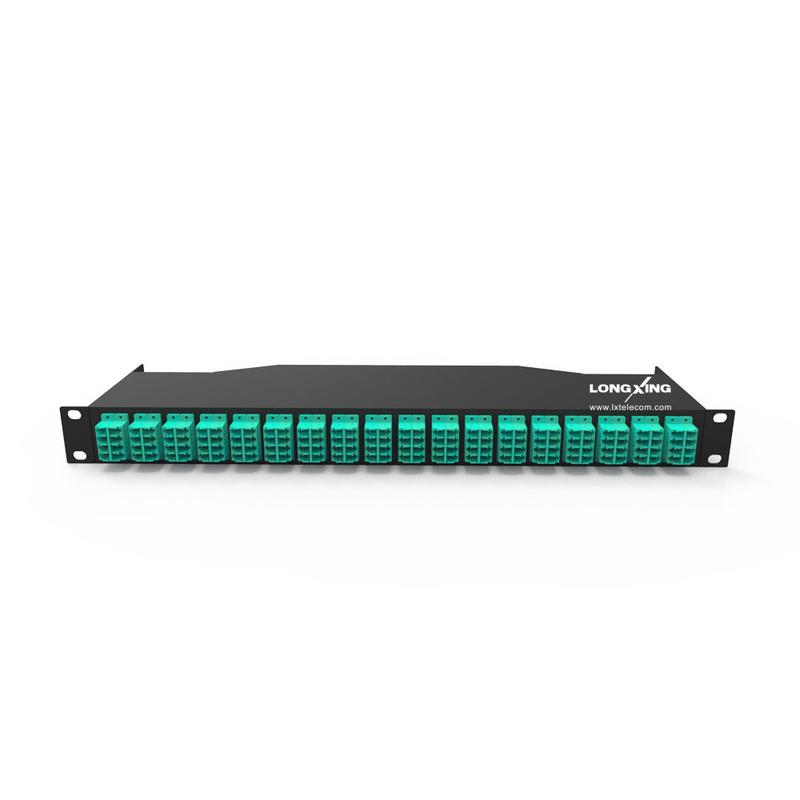

l 144 LC Fiber Ports in 1RU with Flat Front

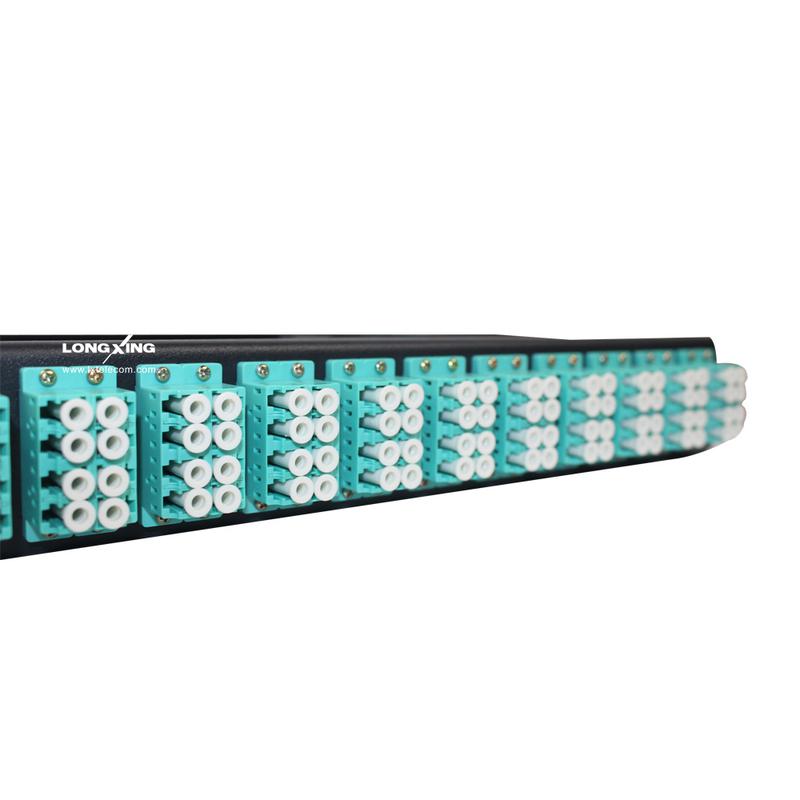

l Comprise from 36 QUAD LC adapters at the front and 12 MPO/MTP adapters at the back
l Available in SM, OM1, OM2, OM3 and OM4 fiber grades
l Flat Front Panel for Optimal Cable Routing
l Removable Top for Easier Fiber Cable Management

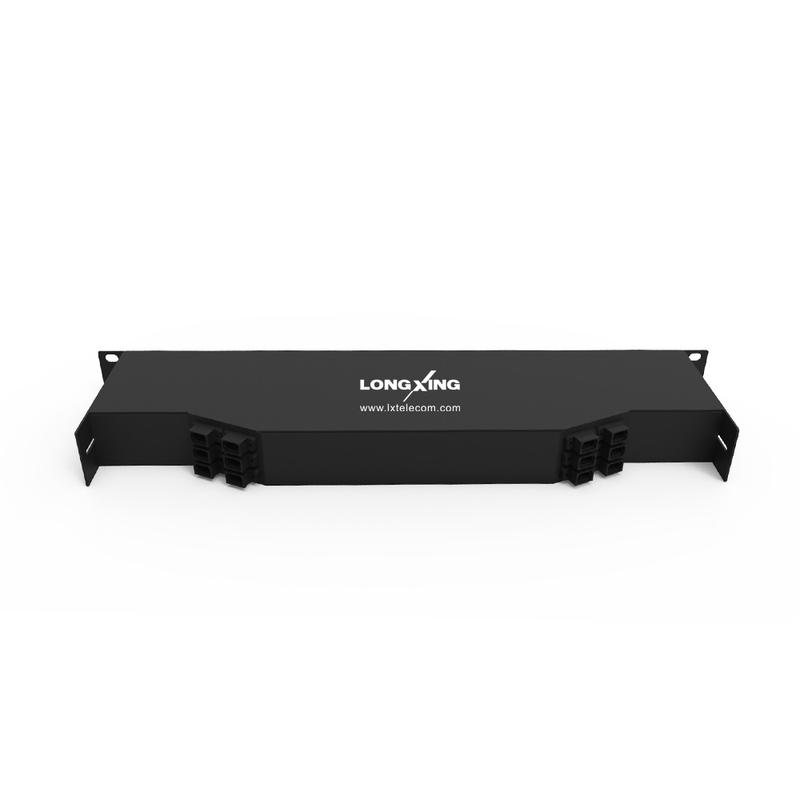

l Easily Accessible MPO/MTP Ports for Connection to Trunk Cable
l Compliant IEC-61754-7, EIA/TIA-604-5 & RoHS
l Factory terminated and tested
l MPO/MTP components feature superior optical and mechanical properties
Add To Quote List Add To Compare
Dimensions and Capability
Total Fiber Count 144
Dimensions(W*H*D) 485mm x120mm x44mm
Fiber Optic Mode SM OM1 OM2 OM3 OM4
Insert Loss(LC) 0.18(Avg); 0.30(Max)
Return Loss(LC) > 55/65dB(UPC/APC)


Technical Specification
Front Adapter Type LC
Front Port Count 144
Front Port Fiber Count QUAD
Rear Adapter Type MPO/MTP
Rear Port Count 12
Rear Port Fiber Count 12


Operation Conditions
Operating Temperature -20℃ -- +60℃
Storage Temperature -40℃ -- +70℃
Humidity 90% at 30℃
Air Pressure 70kPa – 106kPa


Shipping Information
Package Contents Patch panel, 1 unit
Package Dimensions(W*H*D) 510mm*210mm*120mm
Material Carton box
Weight 8KG
Lead Time 10-15 working days normally
