Modular MTP/MPO Patch Panel ODU-L14
Overview
The LongXing High Density fiber patch panels are designed to accommodate high density applications in Data Centers and Telecommunication environments. This factory pre-populated and tested Fiber Patch Panel saves on-site installation time and increase reliability. The design of enclosure allows for easy connection to the LC adapters using LongXing’s multi-fiber optical patch cords (sold separately) and is mountable in a standard 19in or 23in rack or cabinet frame. Maximum expandable to 108 LC ports.

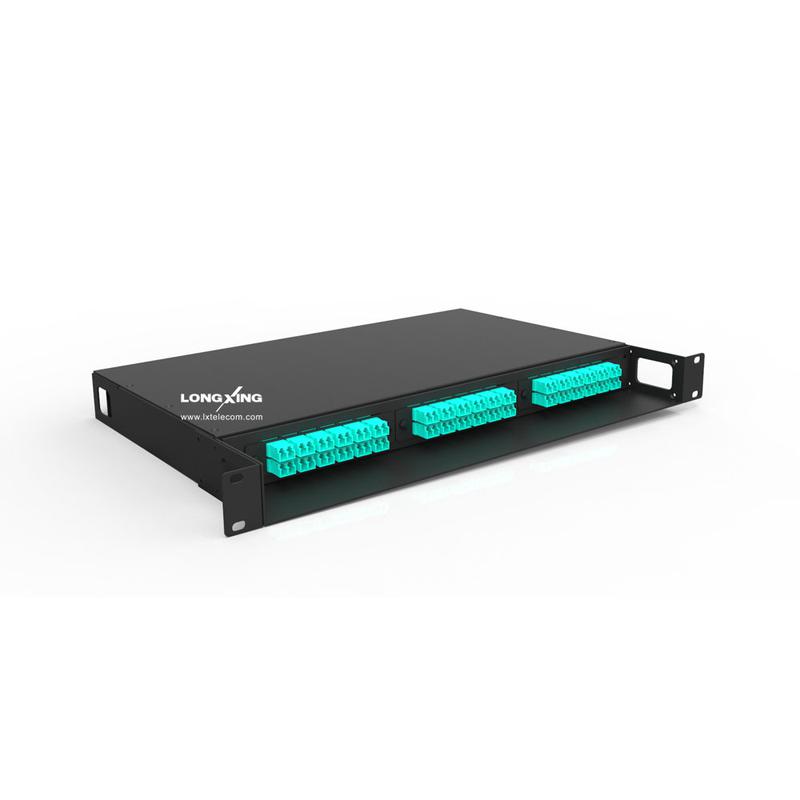

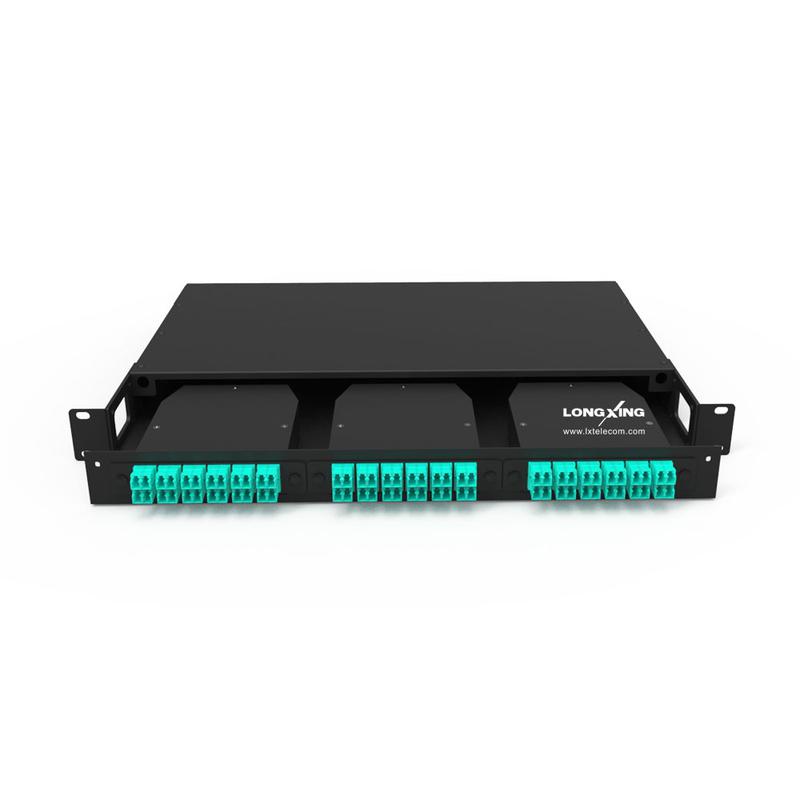

The rack mount MTP/MPO patch panel ODU-L14 is a high density, modular (LX-J MTP/MPO Cassette or LX-K Adapter Plate), fully-loaded LC Flat 1U fiber patch panel. It is a complete Fiber Adapter Panel based turnkey solution with a total of max 108 LC fibers (54 Duplex LC) in 1U. This modular fiber patch panel is factory pre-loaded with Qty. 3 12/24/36 fiber LC Duplex LX-J MTP/MPO Cassettes or 12/24 LX-K Adapter Plates for quick implementations in 10/100G networks.
Features
l UP to 108 Fiber LC Ports in 1U

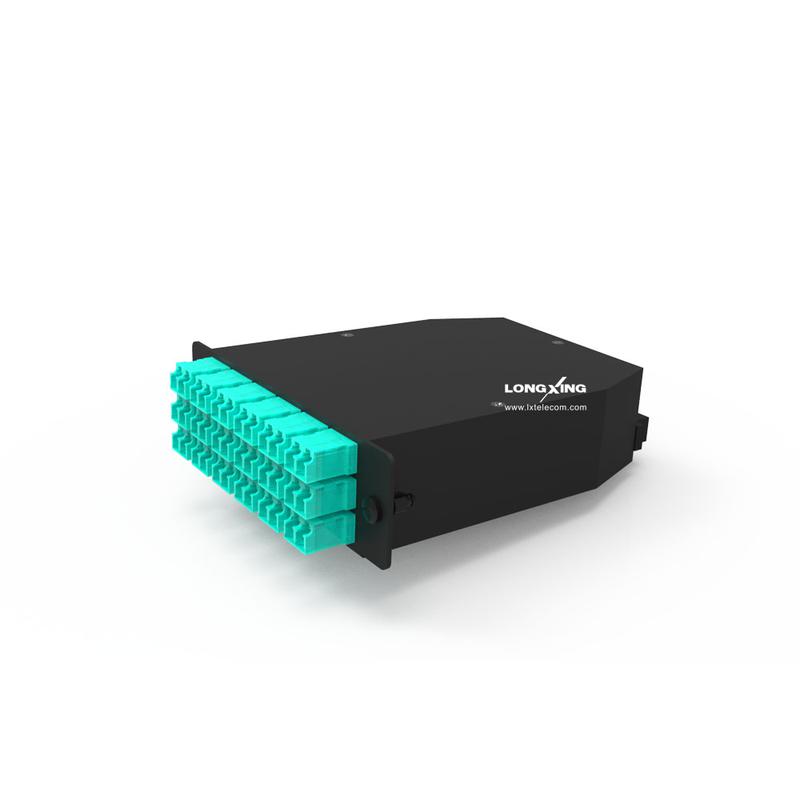

l Qty. 3 LX-J MTP/MPO Cassettes with 12/24/36 LC

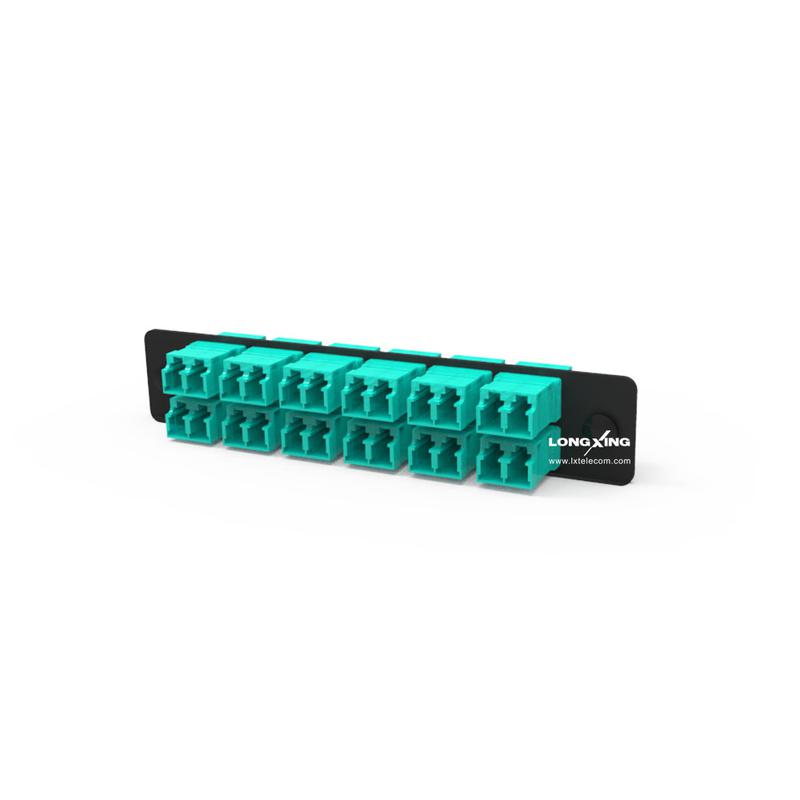

l Qty. 3 LX-K Adapter Plates with 12/24 LC
l Flexibility to Mix Adapter Plates with Cassettes in Patch Panel
l Available in SM, OM1, OM2, OM3 and OM4 fiber grades
l Flat Front Panel for Optimal Cable Routing

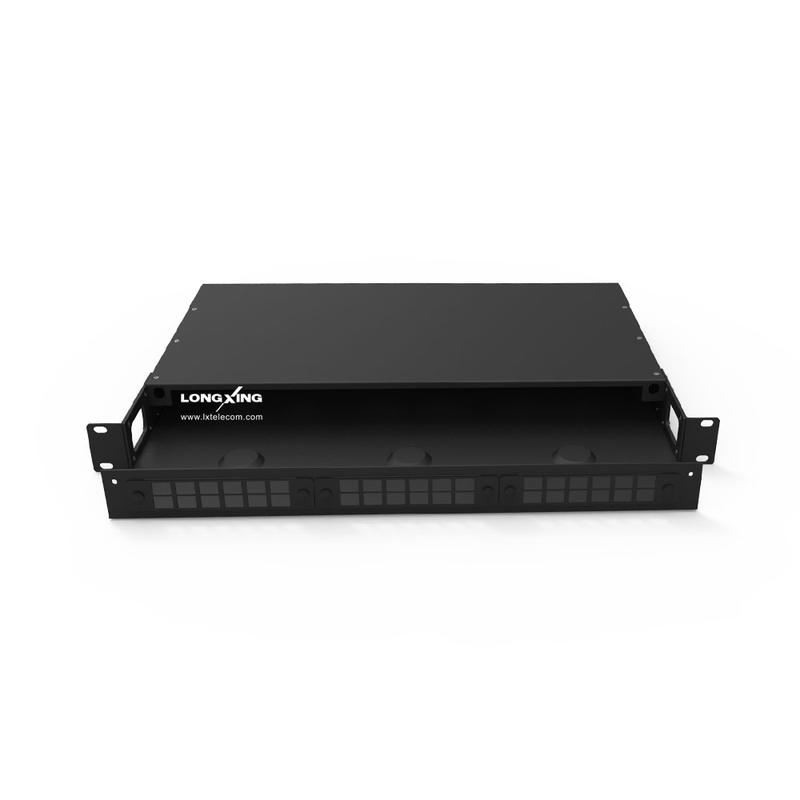

l Removable Top for Easier Fiber Cable Management
l Easily Accessible MPO/MTP Ports for Connection to Trunk Cable
l Compliant IEC-61754-7, EIA/TIA-604-5 & RoHS
l Factory terminated and tested
l MPO/MTP components feature superior optical and mechanical properties
Add To Quote List
Add To Compare
Inquiry Now
l Qty. 3 LX-J MTP/MPO Cassettes with 12/24/36 LC
l Qty. 3 LX-K Adapter Plates with 12/24 LC
l Flexibility to Mix Adapter Plates with Cassettes in Patch Panel
l Available in SM, OM1, OM2, OM3 and OM4 fiber grades
l Flat Front Panel for Optimal Cable Routing
l Removable Top for Easier Fiber Cable Management
l Easily Accessible MPO/MTP Ports for Connection to Trunk Cable
l Compliant IEC-61754-7, EIA/TIA-604-5 & RoHS
l Factory terminated and tested
l MPO/MTP components feature superior optical and mechanical properties

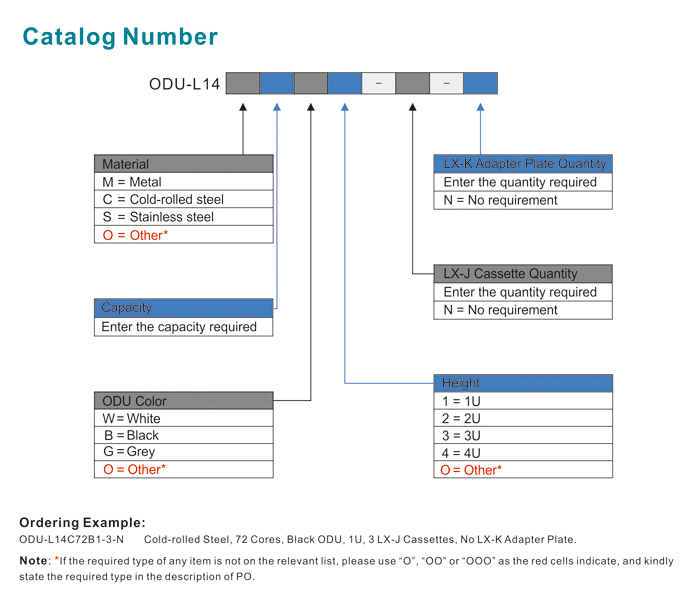

| ODU-L14 Dimensions and Capability | ||||
| Height | Dimensions(W*D*H) | Quantity of Cassette/Plate | Max Capacity | |
| LX-J Cassette | LX-K Plate | |||
| 1U | 485mm*294mm*44mm | 3 | 3 | 108 |
| LX-J Cassette Technical Specifications | |||
| SPECIFICATION | LX-J-1 | LX-J-2 | LX-J-3 |
| Total Fiber Count | 12 | 24 | 36 |
| Front Adapter Type | LC Duplex | LC Duplex | LC Duplex |
| Front Port Count | 6 | 12 | 18 |
| Rear Adapter Type | MTP/MPO | MTP/MPO | MTP/MPO |
| Rear Port Count | 1 | 2 | 3 |
| LX-K PlateTechnical Specifications | ||
| SPECIFICATION | LX-K-1 | LX-K-2 |
| Total Fiber Count | 12 | 24 |
| Front Adapter Type | LC Duplex | LC Duplex |
| Front Port Count | 6 | 12 |
| Operation Conditions | |
| Operating Temperature | -20℃ -- +60℃ |
| Storage Temperature | -40℃ -- +70℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
| Shipping Information | |
| Package Contents | Patch panel, 1 unit |
| Package Dimensions(W*H*D) | It depends on the dimensions of the product |
| Material | Carton box |
| Weight | It depends on the dimensions of the product |
| Lead Time | 10-15 working days normally |
