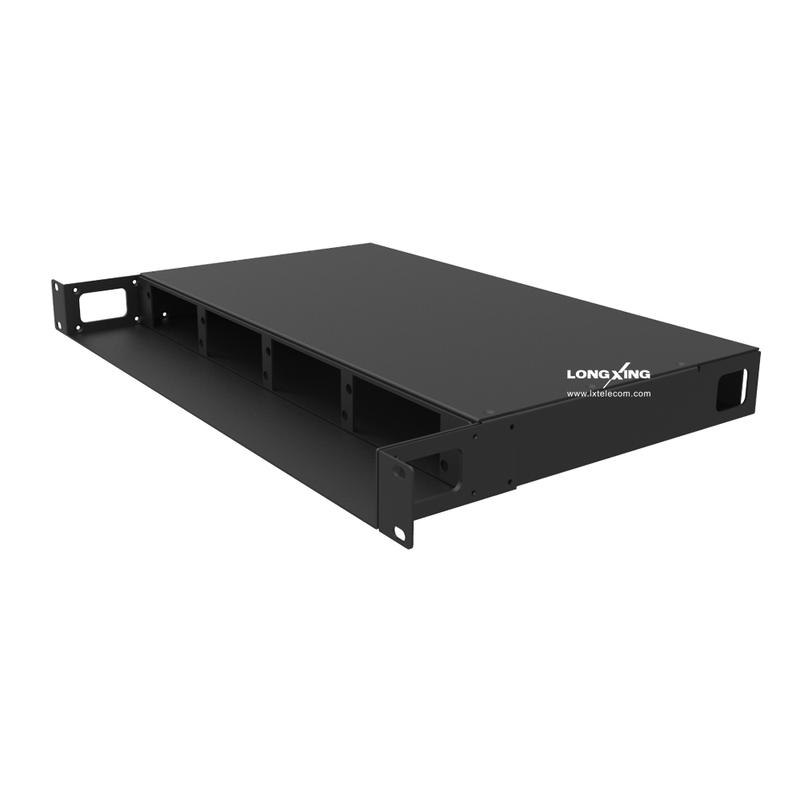

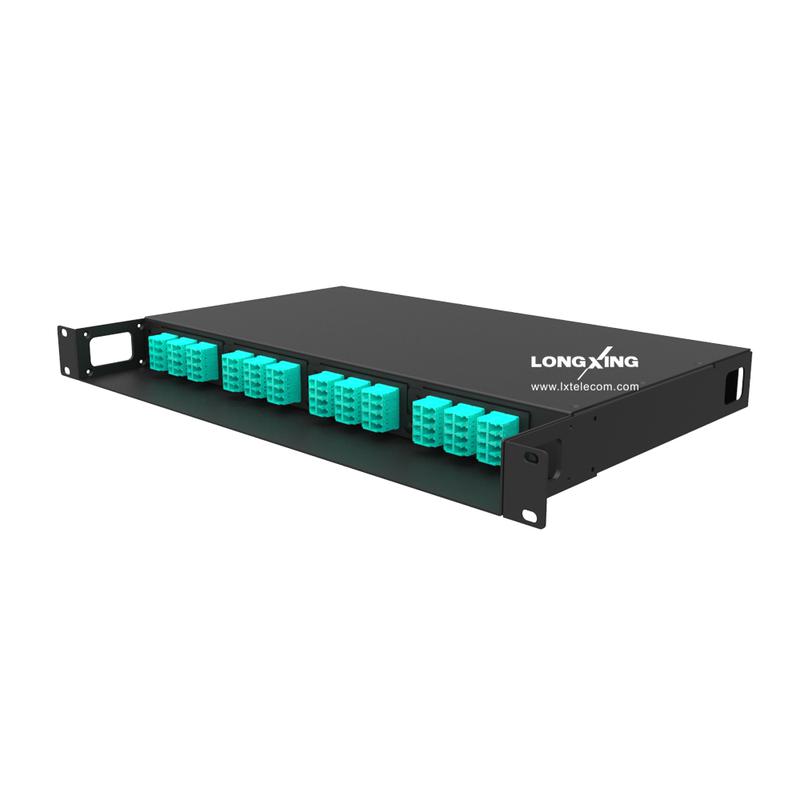

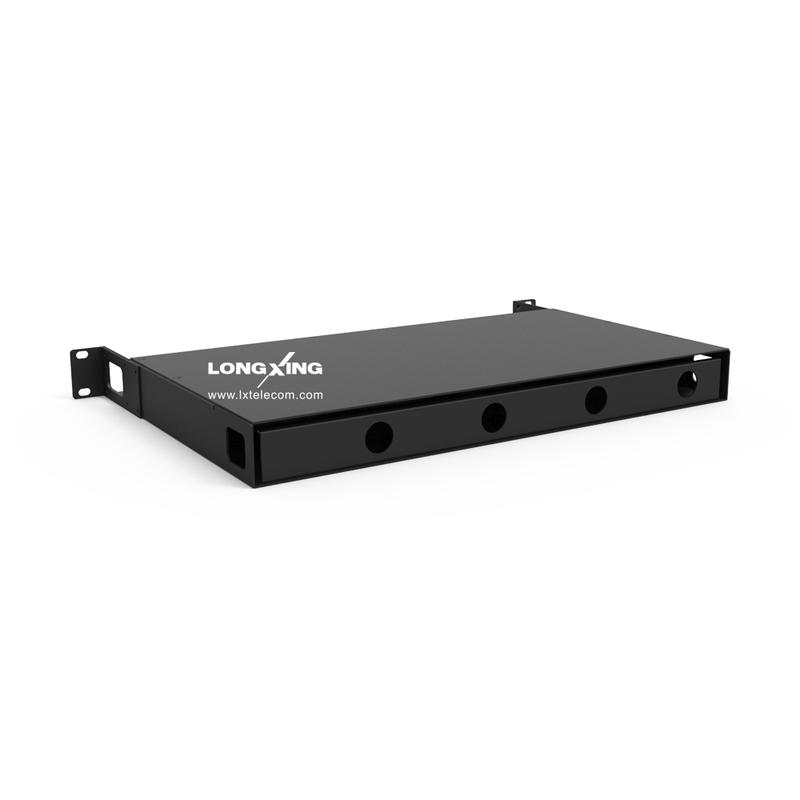

Modular MTP/MPO Patch Panel ODU-L18

Overview

The LongXing High Density fiber patch panels are designed to accommodate high density applications in Data Centers and Telecommunication environments. This factory pre-populated and tested Fiber Patch Panel saves on-site installation time and increase reliability. The design of enclosure allows for easy connection to the LC adapters using LongXing’s multi-fiber optical patch cords (sold separately) and is mountable in a standard 19in or 23in rack or cabinet frame. Maximum expandable to 96 LC ports. The rack mount MTP/MPO patch panel ODU-L18 is a high density, modular (LX-L MTP/MPO Cassette or LX-M Adapter Plate), fully-loaded LC Flat 1U fiber patch panel. It is a complete Fiber Adapter Panel based turnkey solution with a total of max 96 LC fibers (24 LC QUAD) in 1U. This modular fiber patch panel is factory pre-loaded with Qty. 4 12/24 fiber LX-L MTP/MPO Cassettes or LX-M Adapter Plates for quick implementations in 10/100G networks.

Features

l UP to 96 Fiber LC Ports in 1U
l Qty. 4 LX-L MTP/MPO Cassettes with 12/24 LC
l Qty. 4 LX-M Adapter Plates with 12/24 LC
l Flexibility to Mix Adapter Plates with Cassettes in Patch Panel
l Available in SM, OM1, OM2, OM3 and OM4 fiber grades
l Flat Front Panel for Optimal Cable Routing
l Removable Top for Easier Fiber Cable Management
l Easily Accessible MPO/MTP Ports for Connection to Trunk Cable
l Compliant IEC-61754-7, EIA/TIA-604-5 & RoHS
l Factory terminated and tested
l MPO/MTP components feature superior optical and mechanical properties
Add To Quote List Add To Compare
ODU-L18 Dimensions and Capability
Height Dimensions(W*D*H) Quantity of Cassette/Plate Max Capacity
LX-L Cassette LX-M Plate
1U 485mm*294mm*44mm 4 4 96

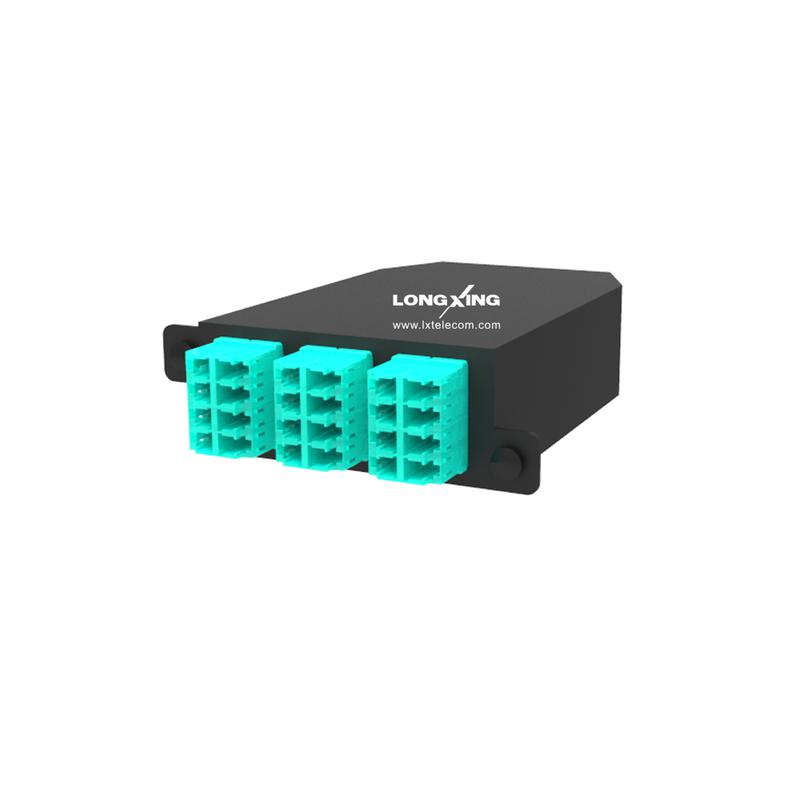

LX-L Cassette Technical Specifications
SPECIFICATION LX-L-1 LX-L-2
Total Fiber Count 12 24
Front Adapter Type LC Duplex LC QUAD
Front Port Count 6 6
Rear Adapter Type MTP/MPO MTP/MPO
Rear Port Count 1 2

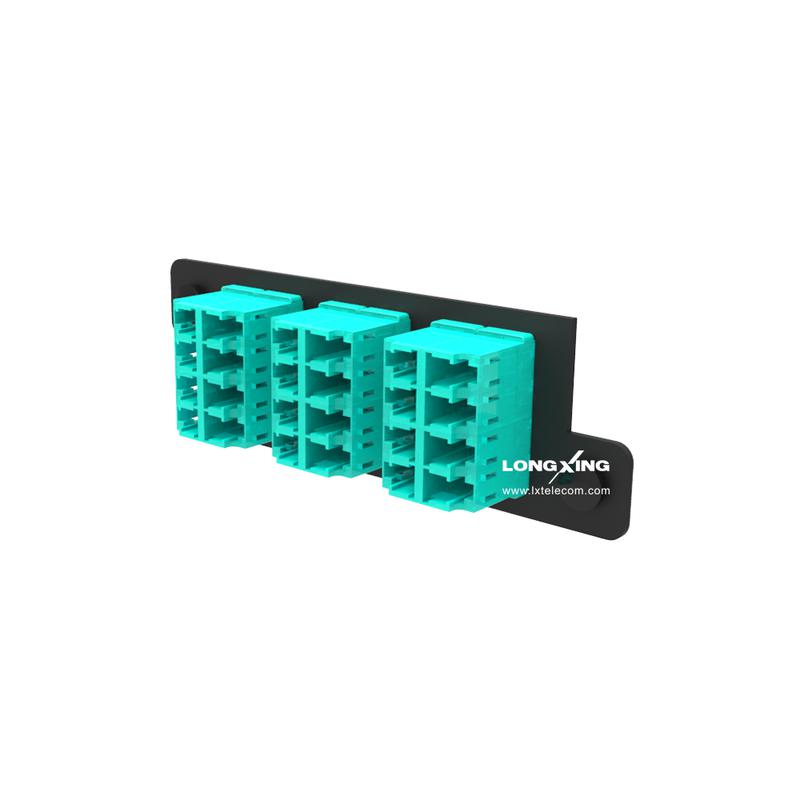

LX-M Plate Technical Specifications
SPECIFICATION LX-M-1 LX-M-2
Total Fiber Count 12 24
Front Adapter Type LC Duplex LC QUAD
Front Port Count 6 6



Operation Conditions
Operating Temperature -20℃ -- +60℃
Storage Temperature -40℃ -- +70℃
Humidity 90% at 30℃
Air Pressure 70kPa – 106kPa



Shipping Information
Package Contents Patch panel, 1 unit
Package Dimensions(W*H*D) 530mm*380mm*115mm
Material Carton box
Weight 10 KG
Lead Time 10-15 working days normally
