Modular MTP/MPO-LC Patch Panel ODU-L19
Overview

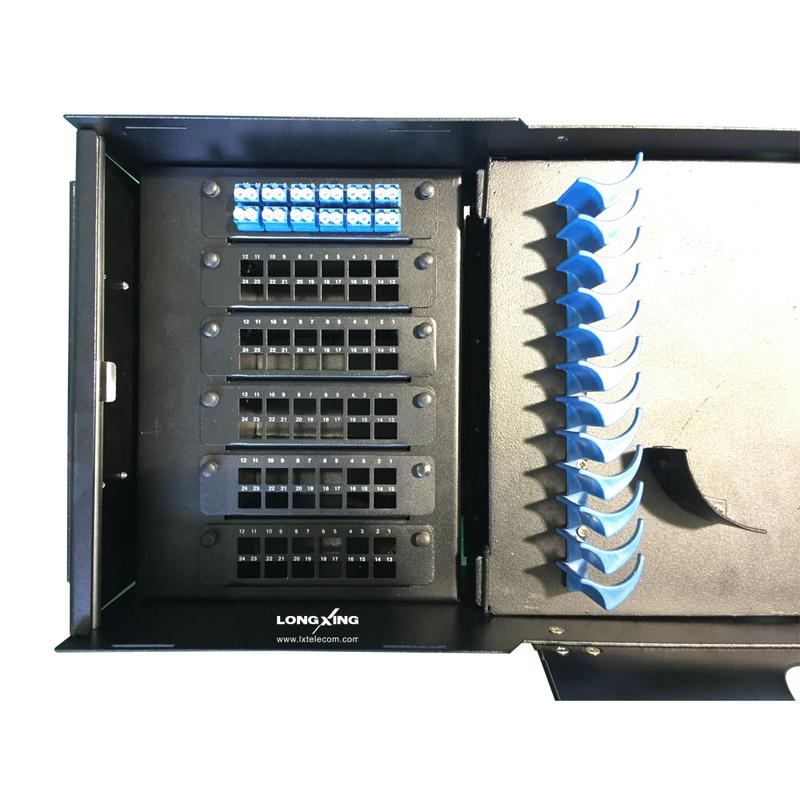

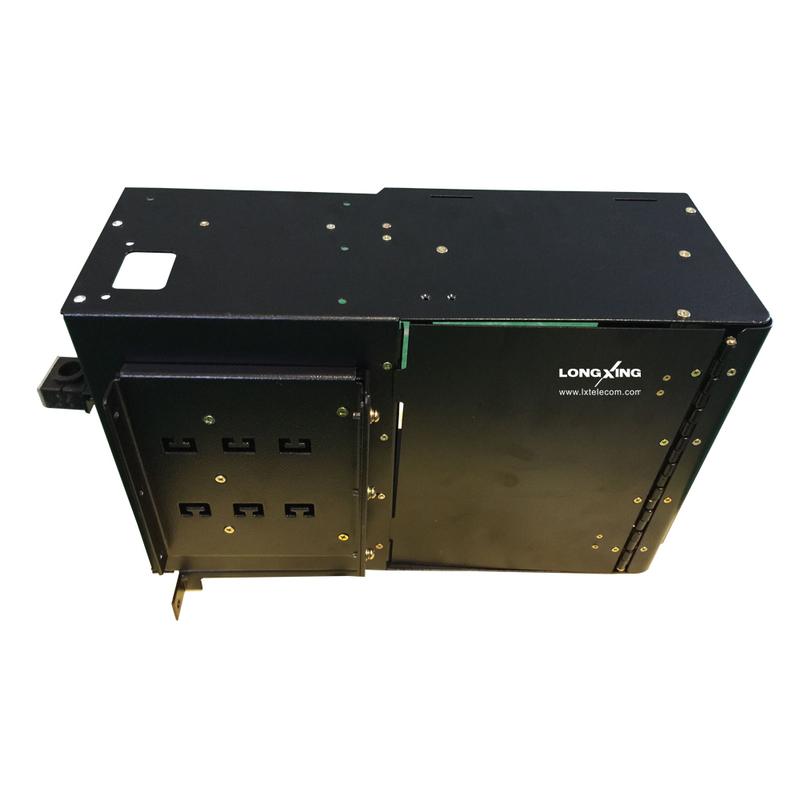

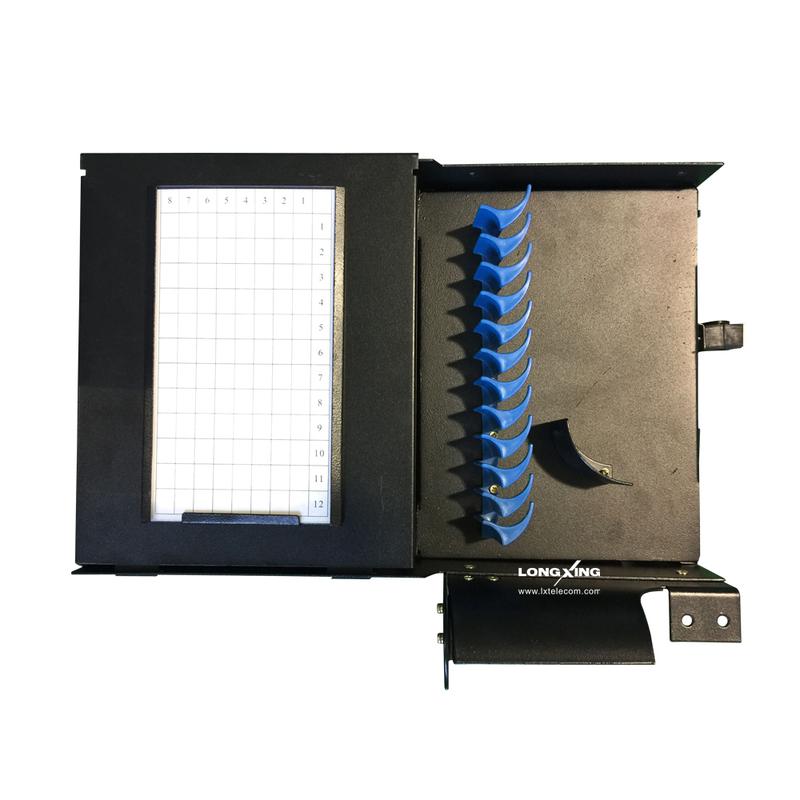

The LongXing High Density fiber patch panels are designed to accommodate high density applications in Data Centers and Telecommunication environments. This factory pre-populated and tested Fiber Patch Panel saves on-site installation time and increase reliability. The design of enclosure allows for easy connection to the LC adapters using LongXing’s multi-fiber optical patch cords (sold separately) and is mountable in a standard 19in or 23in rack or cabinet frame. Maximum expandable to 144 LC ports. The ODU-L19 modular fiber patch panel is factory pre-loaded with Qty. 6 LX-N series 12/24 fiber LC Duplex LX-J MTP/MPO Cassettes for quick implementations in 10/100G networks.
Features
l UP to 144Fiber LC Ports
l Qty. 6 MTP/MPO Cassettes with 12/24 LC
l Flexibility to Mix Adapter Plates with Cassettes in Patch Panel
l Available in SM, OM1, OM2, OM3 and OM4 fiber grades
l Flat Front Panel for Optimal Cable Routing
l Removable Top for Easier Fiber Cable Management
l Easily Accessible MPO/MTP Ports for Connection to Trunk Cable
l Compliant IEC-61754-7, EIA/TIA-604-5 & RoHS
l Factory terminated and tested
l MPO/MTP components feature superior optical and mechanical properties
Add To Quote List
Add To Compare
Inquiry Now
l Qty. 6 MTP/MPO Cassettes with 12/24 LC
l Flexibility to Mix Adapter Plates with Cassettes in Patch Panel
l Available in SM, OM1, OM2, OM3 and OM4 fiber grades
l Flat Front Panel for Optimal Cable Routing
l Removable Top for Easier Fiber Cable Management
l Easily Accessible MPO/MTP Ports for Connection to Trunk Cable
l Compliant IEC-61754-7, EIA/TIA-604-5 & RoHS
l Factory terminated and tested
l MPO/MTP components feature superior optical and mechanical properties
| ODU-L19 Dimensions and Capability | ||
| Dimensions(W*D*H) | Quantity of Cassette | Max Capacity |
| 390mm*250mm*159mm | 6 | 144 |

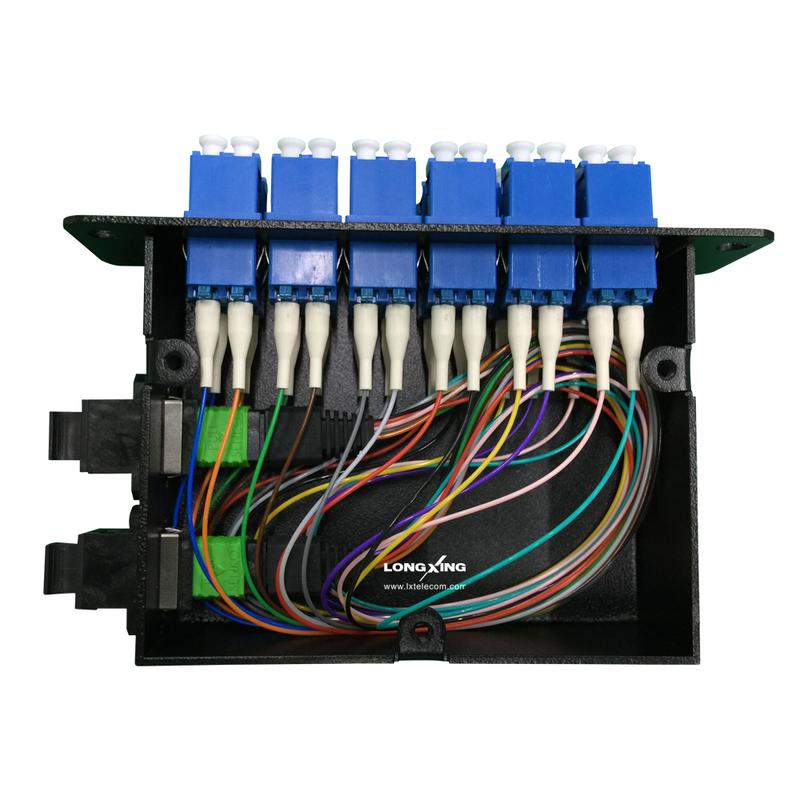

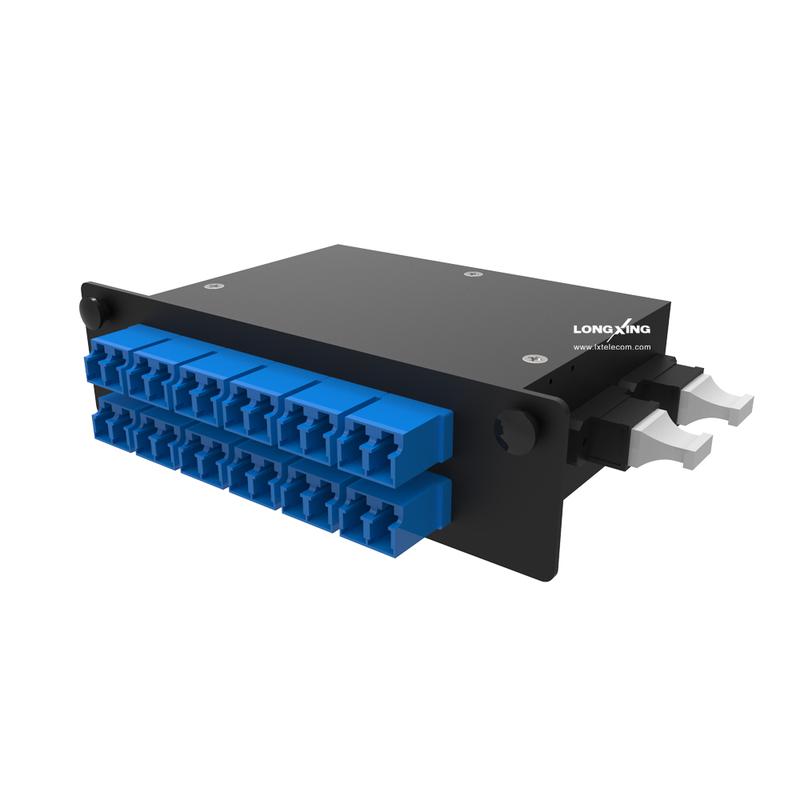

| LX-N Cassette Technical Specifications | ||
| SPECIFICATION | LX-N-1 | LX-N-2 |
| Total Fiber Count | 12 | 24 |
| Front Adapter Type | LC Duplex | LC Duplex |
| Front Port Count | 6 | 12 |
| Rear Adapter Type | MTP/MPO | MTP/MPO |
| Rear Port Count | 1 | 2 |
| Operation Conditions | |
| Operating Temperature | -20℃ -- +60℃ |
| Storage Temperature | -40℃ -- +70℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70kPa – 106kPa |
