40G CFP
Overview
LongXing's 40G CFP transceivers are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the CFP MSA1 and IEEE 802.3ba 40GBASE-LR42. Digital diagnostics functions are available via an MDIO interface, as specified by the CFP MSA. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC3.
Features
l Supports 41.2Gbps aggregate bit rates
l CWDM DFB/EML laser and PIN/APD receiver
l Up to 2km, 10km, 20km, 40km transmission on SMF
l Single 3.3V Power Supply and Power dissipation <8W
l Hot-Pluggable CFP Footprint Duplex LC Connector Interface
l Class 1 FDA and IEC60825-1 Laser Safety Compliant
l Operating Case Temperature Standard: 0~+70C
l Compliant with CFP MSA Specification
l MDIO interface with integrated Digital Diagnostic Monitoring
l XLAUI electrical interface
| Specifications | |||||||||
| Package | P/N | Data Rate | Wavelength | OSA Type | Distance | Connector | Case Temp. | DDM | Application |
| CFP | LXDCD10H-CCL | 40G | 1270nm~1330nm | DFB/PIN | 10km | LC | 0~70 | D | 40GBASE-LR4 |
| CFP | LXDCD20H-CCL | 40G | 1270nm~1330nm | DFB/PIN | 20km | LC | 0~70 | D | 40GBASE-LR4 |
| CFP | LXDCD40H-CCL | 40G | 1270nm~1330nm | DFB/APD | 40km | LC | 0~70 | D | 40GBASE-ER4 |
| CFP | LXDCE02H-CCL | 40G | 1550nm | EML/APD | 2km | LC | 0~70 | D | 40GBASE-FR |

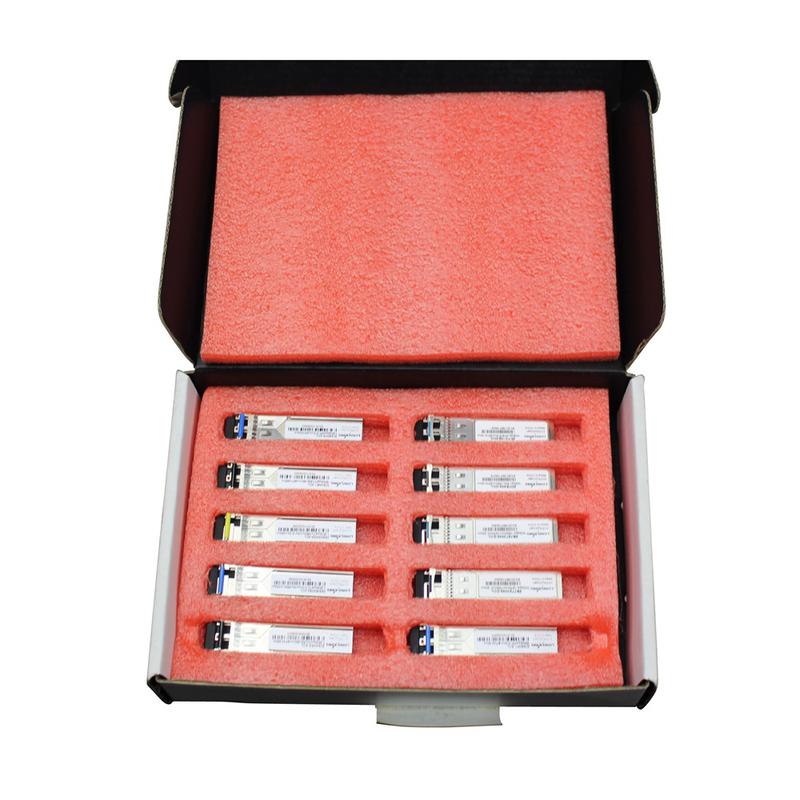

| Shipping Information | |
| Package Contents | Transceiver, 10 units |
| Package Dimensions(W*H*D) | 20mm*13.5mm*3.8mm |
| Material | Carton box |
| Weight | 0.5 KG |
| Lead Time | 10-15 working days normally |
