BiDi SFP SDH
Overview
LongXing's BIDI Multi-rate Series 2.67Gb/s transceiver module integrates optics and electronics in a Small Form Factor Pluggable (SFP) package. It is MSA compatible and designed for operation at 1310 nm and 1550 nm. Although optimized for OC-48/STM-16, it provides multi-rate capabilities and can be used from OC-3/STM-1(155 Mb/s) up to 2.7 Gb/s. Multi Rate SFP transceiver provides a fully OC-48 SONET compliant interface between the SONET/SDH photonic layer and the electrical layer. Its microprocessor - based modular design implements all features specified in the SFP MSA compatible 2-wire Serial Digital Diagnostic Monitoring Interface for Optical Transceivers. OC-48 / STM-16 is a network line with transmission speeds of up to 2488.32 Mbit/s .OC-12 or STM-4 is a network line with transmission speeds of up to 622.08 Mbit/s OC-3/STM-1 is a network line with transmission speeds of up to 155.52 Mbit/s using fibre optics.
Features
l Bi-Directional SFP Optical Transceiver
l Simplex SC or LC Connector
l Up to 2.67 Gb/s bi-directional data links
l Multirate for SONET OC-48 / SDH STM-16, Fibre Channel 1x/2x, 1000BASE, STM-1/OC3, STM-4/OC12
l AC/AC Coupling according to MSA
l Single +3.3 V Power Supply
l RoHS Compliant
l 0 to 70C, -10 to 85C, -40 to 85C Case operation temperature ranges
l Class 1 Laser International Safety Standard IEC 60825 Compliant
l Class 1 Laser International Safety Standard IEC 60825 Compliant
| Specifications | |||||||||
| Package | P/N | Data Rate | Wavelength | OSA Type | Distance | Connector | Case Temp. | DDM | Application |
| BIDI SFP | LXB5350211-Dxx | 100M~155Mbps | 1310nm/1550nm | FP/PIN | 2km | LC/SC | Com./Ind. | D | FE, SDH, SONET |
| BIDI SFP | LXB5530211-Dxx | 100M~155Mbps | 1550nm/1310nm | FP/PIN | 2km | LC/SC | Com./Ind. | D | FE, SDH, SONET |
| BIDI SFP | LXB5351511-Dxx | 100M~155Mbps | 1310nm/1550nm | FP/PIN | 15km | LC/SC | Com./Ind. | D | FE, SDH, SONET |
| BIDI SFP | LXB5531511-Dxx | 100M~155Mbps | 1550nm/1310nm | FP/PIN | 15km | LC/SC | Com./Ind. | D | FE, SDH, SONET |
| BIDI SFP | LXB5354011-Dxx | 100M~155Mbps | 1310nm/1550nm | FP/PIN | 40km | LC/SC | Com./Ind. | D | FE, SDH, SONET |
| BIDI SFP | LXB5534011-Dxx | 100M~155Mbps | 1550nm/1310nm | DFB/PIN | 40km | LC/SC | Com./Ind. | D | FE, SDH, SONET |
| BIDI SFP | LXB5358011-Dxx | 100M~155Mbps | 1310nm/1550nm | DFB/PIN | 80km | LC/SC | Com./Ind. | D | FE, SDH, SONET |
| BIDI SFP | LXB5538011-Dxx | 100M~155Mbps | 1550nm/1310nm | DFB/PIN | 80km | LC/SC | Com./Ind. | D | FE, SDH, SONET |
| BIDI SFP | LXB5112911-Dxx | 100M~155Mbps | CWDM/CWDM | DFB/PIN | 29DB | LC/SC | Com./Ind. | D | FE, SDH, SONET |
| BIDI SFP | LXB5113411-Dxx | 100M~155Mbps | CWDM/CWDM | DFB/PIN | 34DB | LC/SC | Com./Ind. | D | FE, SDH, SONET |
| BIDI SFP | LXB5113611-Dxx | 100M~155Mbps | CWDM/CWDM | DFB/PIN | 36DB | LC/SC | Com./Ind. | D | FE, SDH, SONET |
| BIDI SFP | LXB5350222-Dxx | 100M~622Mbps | 1310nm/1550nm | FP/PIN | 2km | LC/SC | Com./Ind. | D | SDH, SONET |
| BIDI SFP | LXB5530222-Dxx | 100M~622Mbps | 1550nm/1310nm | FP/PIN | 2km | LC/SC | Com./Ind. | D | SDH, SONET |
| BIDI SFP | LXB5351522-Dxx | 100M~622Mbps | 1310nm/1550nm | FP/PIN | 15km | LC/SC | Com./Ind. | D | SDH, SONET |
| BIDI SFP | LXB5531522-Dxx | 100M~622Mbps | 1550nm/1310nm | DFB/PIN | 15km | LC/SC | Com./Ind. | D | SDH, SONET |
| BIDI SFP | LXB5354022-Dxx | 100M~622Mbps | 1310nm/1550nm | FP/PIN | 40km | LC/SC | Com./Ind. | D | SDH, SONET |
| BIDI SFP | LXB5534022-Dxx | 100M~622Mbps | 1550nm/1310nm | DFB/PIN | 40km | LC/SC | Com./Ind. | D | SDH, SONET |
| BIDI SFP | LXB5112322-Dxx | 100M~622Mbps | CWDM/CWDM | DFB/PIN | 23dB | LC/SC | Com./Ind. | D | SDH, SONET |
| BIDI SFP | LXB5112822-Dxx | 100M~622Mbps | CWDM/CWDM | DFB/PIN | 28dB | LC/SC | Com./Ind. | D | SDH, SONET |
| BIDI SFP | LXB5113522-Dxx | 100M~622Mbps | CWDM/CWDM | DFB/PIN | 35dB | LC/SC | Com. | D | SDH, SONET |
| BIDI SFP | LXB535M344-Dxx | up to 2.5Gbps | 1310nm/1550nm | FP/PIN | 300m | LC/SC | Com./Ind. | D | GBE,FC,SDH,SONET |
| BIDI SFP | LXB553M344-Dxx | up to 2.5Gbps | 1550nm/1310nm | FP/PIN | 300m | LC/SC | Com./Ind. | D | GBE,FC,SDH,SONET |
| BIDI SFP | LXB5350544-Dxx | up to 2.5Gbps | 1310nm/1550nm | FP/PIN | 5km | LC/SC | Com./Ind. | D | GBE,FC,SDH,SONET |
| BIDI SFP | LXB5530544-Dxx | up to 2.5Gbps | 1550nm/1310nm | DFB/PIN | 5km | LC/SC | Com./Ind. | D | GBE,FC,SDH,SONET |
| BIDI SFP | LXB5351544-Dxx | up to 2.5Gbps | 1310nm/1550nm | DFB/PIN | 15km | LC/SC | Com./Ind. | D | GBE,FC,SDH,SONET |
| BIDI SFP | LXB5531544-Dxx | up to 2.5Gbps | 1310nm/1550nm | DFB/PIN | 15km | LC/SC | Com./Ind. | D | GBE,FC,SDH,SONET |
| BIDI SFP | LXB5354044-Dxx | up to 2.5Gbps | 1310nm/1550nm | DFB/PIN | 40km | LC/SC | Com./Ind. | D | GBE,FC,SDH,SONET |
| BIDI SFP | LXB5534044-Dxx | up to 2.5Gbps | 1550nm/1310nm | DFB/PIN | 40km | LC/SC | Com./Ind. | D | GBE,FC,SDH,SONET |
| BIDI SFP | LXB5111544-Dxx | up to 2.5Gbps | CWDM/CWDM | DFB/PIN | 15dB | LC/SC | Com./Ind. | D | GBE,FC,SDH,SONET |
| BIDI SFP | LXB5111744-Dxx | up to 2.5Gbps | CWDM/CWDM | DFB/PIN | 17dB | LC/SC | Com./Ind. | D | GBE,FC,SDH,SONET |
| BIDI SFP | LXB5112044-Dxx | up to 2.5Gbps | CWDM/CWDM | DFB/PIN | 20dB | LC/SC | Com./Ind. | D | GBE,FC,SDH,SONET |
| BIDI SFP | LXB5112944-Dxx | up to 2.5Gbps | CWDM/CWDM | DFB/PIN | 29dB | LC/SC | Com./Ind. | D | GBE,FC,SDH,SONET |
| Shipping Information | |

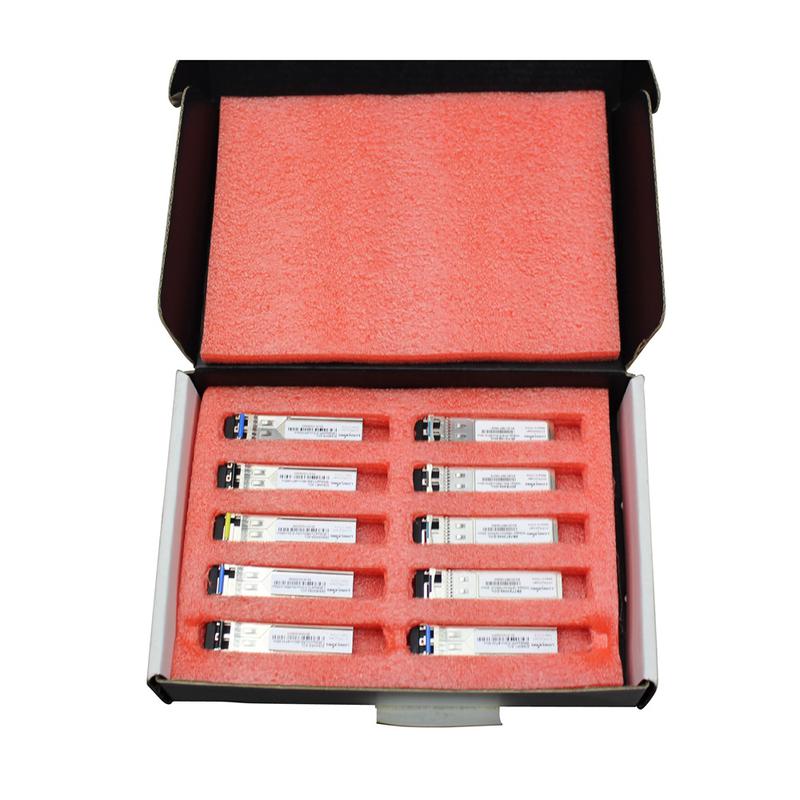

| Package Contents | Transceiver, 10 units |
| Package Dimensions(W*H*D) | 20mm*13.5mm*3.8mm |
| Material | Carton box |
| Weight | 0.5 KG |
| Lead Time | 10-15 working days normally |
