BiDi SFP ETHERNET
Overview
LongXing's BIDI Fast and Gigabit Ethernet SFP is a compact optical transceiver used in optical communications for both telecommunication and data bidirectional communications applications
Features
l Bi-Directional SFP Optical Transceiver
l Simplex SC or LC Connector
l 1310/1550, 1490/1550, 1310/1490 or other BOSA Tx/Rx combination is available .
l up to 160km
l AC/AC Coupling according to MSA
l RoHS Compliant
l Commercial 0 to 70C, -10 to 85C or -40 to 85C Case Operation Temperature Ranges
l Class 1 Laser International Safety Standard IEC 60825 Compliant
| Specifications | |||||||||
| Package | P/N | Data Rate | Wavelength | OSA Type | Distance | Connector | Case Temp. | DDM | Application |
| BIDI SFP | LXB5350211-Dxx | 100M~155Mbps | 1310nm/1550nm | FP/PIN | 2km | LC/SC | Com./Ind. | D | FE, FTTx |
| BIDI SFP | LXB5530211-Dxx | 100M~155Mbps | 1550nm/1310nm | FP/PIN | 2km | LC/SC | Com./Ind. | D | FE, FTTx |
| BIDI SFP | LXB5351511-Dxx | 100M~155Mbps | 1310nm/1550nm | FP/PIN | 15km | LC/SC | Com./Ind. | D | FE, FTTx |
| BIDI SFP | LXB5531511-Dxx | 100M~155Mbps | 1550nm/1310nm | FP/PIN | 15km | LC/SC | Com./Ind. | D | FE, FTTx |
| BIDI SFP | LXB5354011-Dxx | 100M~155Mbps | 1310nm/1550nm | FP/PIN | 40km | LC/SC | Com./Ind. | D | FE, FTTx |
| BIDI SFP | LXB5534011-Dxx | 100M~155Mbps | 1550nm/1310nm | DFB/PIN | 40km | LC/SC | Com./Ind. | D | FE, FTTx |
| BIDI SFP | LXB5358011-Dxx | 100M~155Mbps | 1310nm/1550nm | DFB/PIN | 80km | LC/SC | Com./Ind. | D | FE, FTTx |
| BIDI SFP | LXB5538011-Dxx | 100M~155Mbps | 1550nm/1310nm | DFB/PIN | 80km | LC/SC | Com./Ind. | D | FE, FTTx |
| BIDI SFP | LXB5112911-Dxx | 100M~155Mbps | CWDM/CWDM | DFB/PIN | 29DB | LC/SC | Com./Ind. | D | FE, FTTx |
| BIDI SFP | LXB5113411-Dxx | 100M~155Mbps | CWDM/CWDM | DFB/PIN | 34DB | LC/SC | Com./Ind. | D | FE, FTTx |
| BIDI SFP | LXB5113611-Dxx | 100M~155Mbps | CWDM/CWDM | DFB/PIN | 36DB | LC/SC | Com./Ind. | D | FE, FTTx |
| BIDI SFP | LXB535M533-Dxx | up to 1.25Gbps | 1310nm/1550nm | FP/PIN | 550m | LC/SC | Com./Ind. | D | GBE, FC, FTTx |
| BIDI SFP | LXB553M533-Dxx | up to 1.25Gbps | 1550nm/1310nm | FP/PIN | 550m | LC/SC | Com./Ind. | D | GBE, FC, FTTx |
| BIDI SFP | LXB5350333-Dxx | up to 1.25Gbps | 1550nm/1310nm | FP/PIN | 3km | LC/SC | Com./Ind. | D | GBE, FC, FTTx |
| BIDI SFP | LXB5530333-Dxx | up to 1.25Gbps | 1550nm/1310nm | FP/PIN | 3km | LC/SC | Com./Ind. | D | GBE, FC, FTTx |
| BIDI SFP | LXB5351033-Dxx | up to 1.25Gbps | 1310nm/1550nm | FP/PIN | 10km | LC/SC | Com./Ind. | D | GBE, FC, FTTx |
| BIDI SFP | LXB5531033-Dxx | up to 1.25Gbps | 1550nm/1310nm | DFB/PIN | 10km | LC/SC | Com./Ind. | D | GBE, FC, FTTx |
| BIDI SFP | LXB5352033-Dxx | up to 1.25Gbps | 1310nm/1550nm | FP/PIN | 20km | LC/SC | Com./Ind. | D | GBE, FC, FTTx |
| BIDI SFP | LXB5532033-Dxx | up to 1.25Gbps | 1550nm/1310nm | DFB/PIN | 20km | LC/SC | Com./Ind. | D | GBE, FC, FTTx |
| BIDI SFP | LXB5354033-Dxx | up to 1.25Gbps | 1310nm/1550nm | DFB/PIN | 40km | LC/SC | Com./Ind. | D | GBE, FC, FTTx |
| BIDI SFP | LXB5534033-Dxx | up to 1.25Gbps | 1550nm/1310nm | DFB/PIN | 40km | LC/SC | Com./Ind. | D | GBE, FC, FTTx |
| BIDI SFP | LXB5356033-Dxx | up to 1.25Gbps | 1310nm/1550nm | DFB/PIN | 60km | LC/SC | Com./Ind. | D | GBE, FC, FTTx |
| BIDI SFP | LXB5536033-Dxx | up to 1.25Gbps | 1550nm/1310nm | DFB/PIN | 60km | LC/SC | Com./Ind. | D | GBE, FC, FTTx |
| BIDI SFP | LXB5111933-Dxx | up to 1.25Gbps | CWDM/CWDM | DFB/PIN | 19dB | LC/SC | Com./Ind. | D | GBE, FC, FTTx |
| BIDI SFP | LXB5112433-Dxx | up to 1.25Gbps | CWDM/CWDM | DFB/PIN | 24dB | LC/SC | Com./Ind. | D | GBE, FC, FTTx |
| BIDI SFP | LXB5112633-Dxx | up to 1.25Gbps | CWDM/CWDM | DFB/PIN | 26dB | LC/SC | Com./Ind. | D | GBE, FC, FTTx |
| BIDI SFP | LXB5112833-Dxx | up to 1.25Gbps | CWDM/CWDM | DFB/PIN | 28dB | LC/SC | Com./Ind. | D | GBE, FC, FTTx |
| BIDI SFP | LXB5113333-Dxx | up to 1.25Gbps | CWDM/CWDM | DFB/PIN | 33dB | LC/SC | Com./Ind. | D | GBE, FC, FTTx |
| BIDI SFP | LXB5113633-Dxx | up to 1.25Gbps | CWDM/CWDM | DFB/PIN | 36dB | LC/SC | Com./Ind. | D | GBE, FC, FTTx |

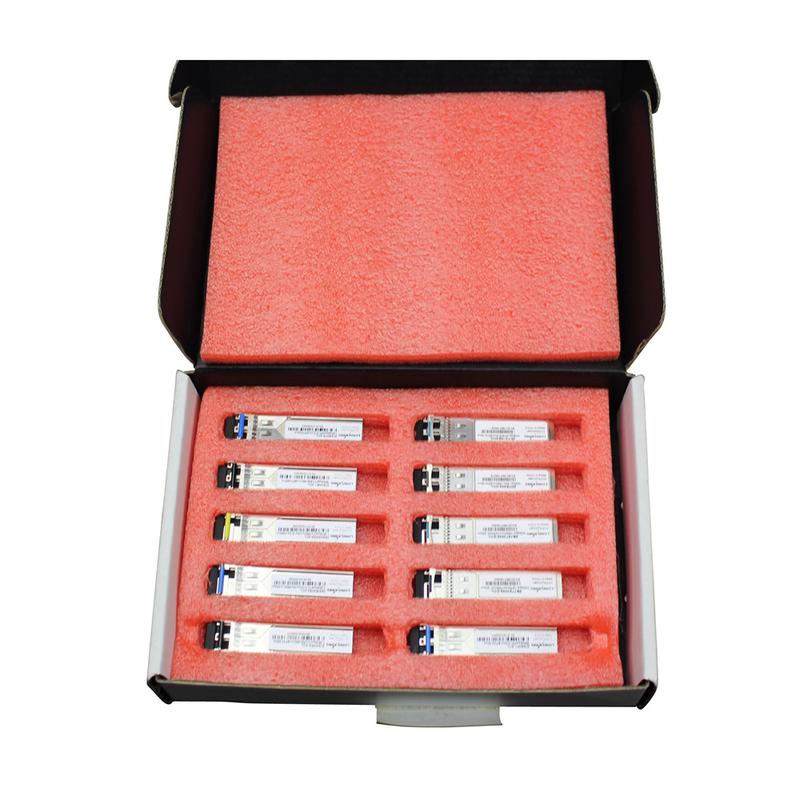

| Shipping Information | |
| Package Contents | Transceiver, 10 units |
| Package Dimensions(W*H*D) | 20mm*13.5mm*3.8mm |
| Material | Carton box |
| Weight | 0.5 KG |
| Lead Time | 10-15 working days normally |
