40G QSFP+
Overview
LongXing's QSFP+ (Quad Small Form-factor Pluggable Plus) is a new Multi-Source Agreement (MSA) for high speed application, such as 40Gbps, which provide four channels of data in one pluggable interface. Each channel is capable of transferring data at 10Gbps and supports a total of 40Gbps.
The 40Gbps QSFP+ transceiver is well suited for Infiniband and 40GBASE-SR4/ 40GBASE-LR4 applications. It combines the higher density attractions of parallel modules with some of the key advantages normally associated with SFP+ based modules. It is intended for use short reach applications in switches, routers and data center equipment where it provides higher density and lower cost when compared with standard SFP+ modules.
Features
l Hot Pluggable
l Aggregate Bandwidth of up to 40G
l 4 Independent Full-duplex Channels
l IEEE 802.3ba Compliant
l QSFP+ MSA Compliant
l Operating Teperature:0~70℃
l Single 3.3V Power Supply
| Specifications | |||||||||
| Package | P/N | Data Rate | Wavelength | OSA Type | Distance | Connector | Case Temp. | DDM | Application |
| QSFP | LXFQAM1H-DCM | 40G | 850nm | VCSEL/PIN | 100m | MPO | 0~70 | D | QSFP-SR4 |
| QSFP | LXFQAM3H-DCM | 40G | 850nm | VCSEL/PIN | 300m | MPO | 0~70 | D | QSFP-eSR4 |
| QSFP | LXDQB01H-DCM | 40G | 1310nm | FP/PIN | 1.4km | MPO | 0~70 | D | QSFP-IR4PSM |
| QSFP | LXDQD10H-DCM | 40G | 1310nm | DFB/PIN | 10km | MPO | 0~70 | D | QSFP-LR4PSM |
| QSFP | LXDQH10H-DCL | 40G | CWDM | DFB/PIN | 10km | LC | 0~70 | D | QSFP-LR4 |
| QSFP | LXEQH02H-DCL | 40G | CWDM | DFB/PIN | 2km/150m | LC | 0~70 | D | QSFP-LX4 |

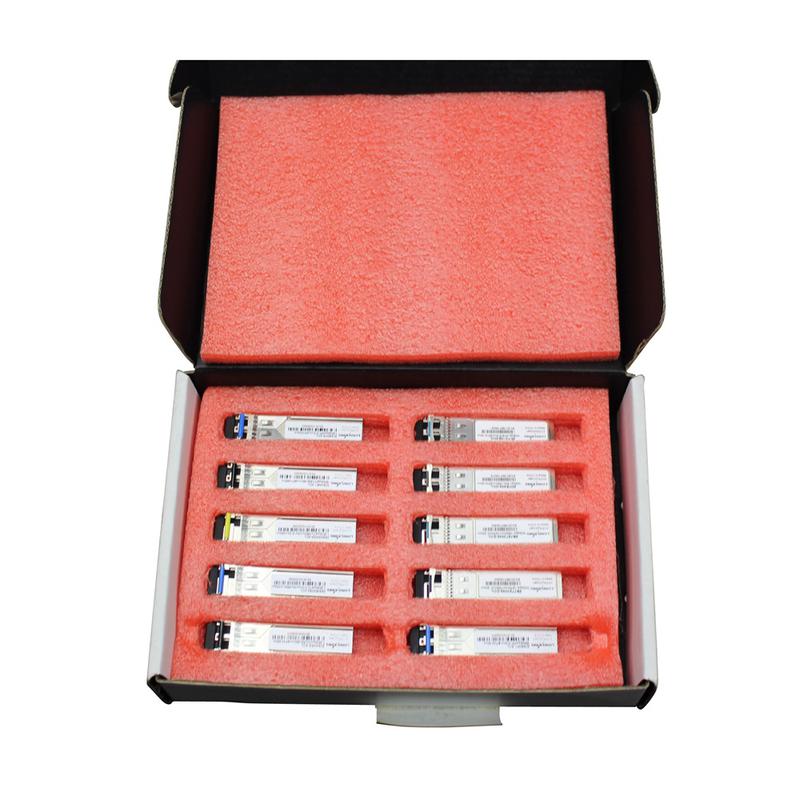

| Shipping Information | |
| Package Contents | Transceiver, 10 units |
| Package Dimensions(W*H*D) | 20mm*13.5mm*3.8mm |
| Material | Carton box |
| Weight | 0.5 KG |
| Lead Time | 10-15 working days normally |
