BiDi XFP
Overview
LongXing's Bidi XFP transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270)nm transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Features
l One fiber Bi-directional XFP Optical Transceiver
l Fully Compliant with XFP MSA
l Compliant to IEEE 802.3ae 10GBASE-BX
l SFF-8472 Digital Diagnostic Function
l Simplex LC Connector
l Distance Up to 40 km
l XFP Loopback Mode
l No reference Clock required
l RoHS Compliant
l -5 to 70C Operating Temperature
| Specifications | |||||||||
| Package | P/N | Data Rate | Wavelength | OSA Type | Distance | Connector | Case Temp. | DDM | Application |
| BIDI XFP | LXB6781099-DCL | 9.95~11.1G | 1270nm/1330nm | DFB/PIN | 10km | LC | 0~70 | D | Eth, SONET, 10GFC |
| BIDI XFP | LXB6871099-DCL | 9.95~11.1G | 1330nm/1270nm | DFB/PIN | 10km | LC | 0~70 | D | Eth, SONET, 10GFC |
| BIDI XFP | LXB6782099-DCL | 9.95~11.1G | 1270nm/1330nm | DFB/PIN | 20km | LC | 0~70 | D | Eth, SONET, 10GFC |
| BIDI XFP | LXB6872099-DCL | 9.95~11.1G | 1330nm/1270nm | DFB/PIN | 20km | LC | 0~70 | D | Eth, SONET, 10GFC |
| BIDI XFP | LXB6784099-DCL | 9.95~11.1G | 1270nm/1330nm | DFB/PIN | 40km | LC | 0~70 | D | Eth, SONET, 10GFC |
| BIDI XFP | LXB6874099-DCL | 9.95~11.1G | 1330nm/1270nm | DFB/PIN | 40km | LC | 0~70 | D | Eth, SONET, 10GFC |
| BIDI XFP | LXB6786099-DCL | 9.95~11.1G | 1270nm/1330nm | DFB/APD | 60km | LC | 0~70 | D | Eth, SONET, 10GFC |
| BIDI XFP | LXB6876099-DCL | 9.95~11.1G | 1330nm/1270nm | DFB/APD | 60km | LC | 0~70 | D | Eth, SONET, 10GFC |
| BIDI XFP | LXB6781099-DEL | 9.95~11.1G | 1270nm/1330nm | DFB/PIN | 10km | LC | -10~85 | D | Eth, SONET, 10GFC |
| BIDI XFP | LXB6871099-DEL | 9.95~11.1G | 1330nm/1270nm | DFB/PIN | 10km | LC | -10~85 | D | Eth, SONET, 10GFC |
| BIDI XFP | LXB6782099-DEL | 9.95~11.1G | 1270nm/1330nm | DFB/PIN | 20km | LC | -10~85 | D | Eth, SONET, 10GFC |
| BIDI XFP | LXB6872099-DEL | 9.95~11.1G | 1330nm/1270nm | DFB/PIN | 20km | LC | -10~85 | D | Eth, SONET, 10GFC |
| BIDI XFP | LXB6784099-DEL | 9.95~11.1G | 1270nm/1330nm | DFB/PIN | 40km | LC | -10~85 | D | Eth, SONET, 10GFC |
| BIDI XFP | LXB6874099-DEL | 9.95~11.1G | 1330nm/1270nm | DFB/PIN | 40km | LC | -10~85 | D | Eth, SONET, 10GFC |
| BIDI XFP | LXB6786099-DEL | 9.95~11.1G | 1270nm/1330nm | DFB/APD | 60km | LC | -10~85 | D | Eth, SONET, 10GFC |
| BIDI XFP | LXB6876099-DEL | 9.95~11.1G | 1330nm/1270nm | DFB/APD | 60km | LC | -10~85 | D | Eth, SONET, 10GFC |

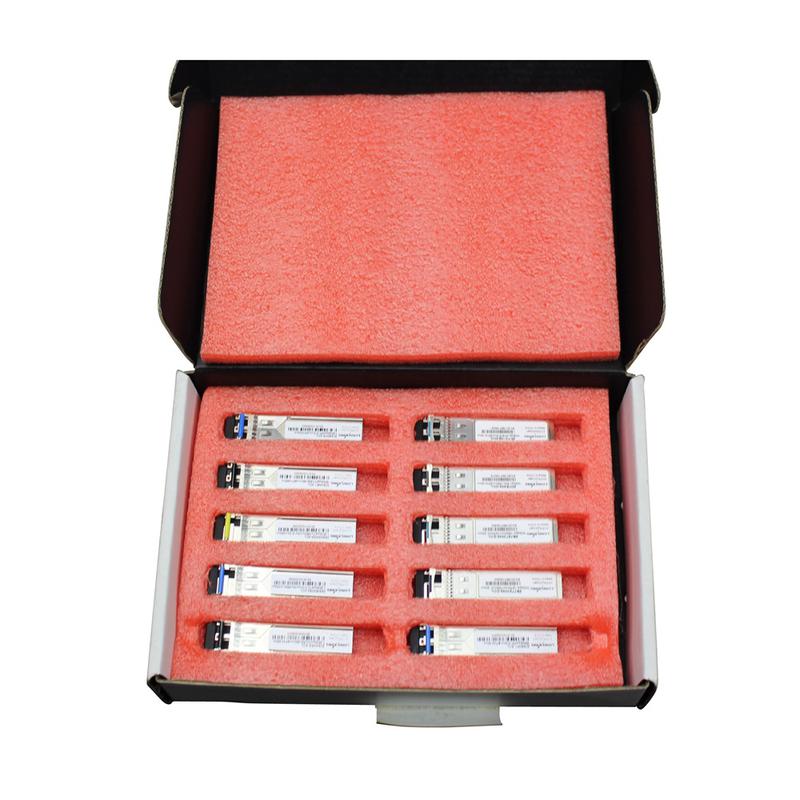

| Shipping Information | |
| Package Contents | Transceiver, 10 units |
| Package Dimensions(W*H*D) | 20mm*13.5mm*3.8mm |
| Material | Carton box |
| Weight | 0.5 KG |
| Lead Time | 10-15 working days normally |
