CWDM XFP
Overview
LongXing's CWDM XFP 40/80km comply with the current XFP Multi-Source Agreement (MSA) Specification. They support CWDM 10Gb/s SONET/SDH, DWDM 10-Gigabit Ethernet and 10-Gigabit Fibre Channel applications. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
Features
l Supports 9.95Gb/s to 11.1Gb/s bit rates
l Hot-pluggable XFP footprint
l Maximum link length of 80km
l Cooled CWDM EML laser.
l Duplex LC connectors
l Low Power dissipation
l Built-in digital diagnostic functions, DDMI
l Temperature range -5°C to 70°C
| Specifications | |||||||||
| Package | P/N | Data Rate | Wavelength | OSA Type | Power Budget | Connector | Case Temp. | DDM | Application |
| XFP | LXD6H409-DCLxx | 9.95~11.1G | CWDM 1270/1290/1310/1330nm |
DFB/PIN | 10dB | LC | 0~70 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6H409-DCLxx | 9.95~11.1G | CWDM 1470~1610nm |
DFB/PIN | 10dB | LC | 0~70 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6H409-DCLxx | 9.95~11.1G | CWDM 1270/1290/1310/1330nm |
DFB/PIN | 14dB | LC | 0~70 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6H409-DCLxx | 9.95~11.1G | CWDM 1470~1610nm |
EML/PIN | 14dB | LC | 0~70 | D | Ethernet, SONET, 10GFC |
| XFP | LXD61809-DCLxx | 9.95~11.1G | CWDM 1270/1290/1310/1330nm |
EML/APD | 23dB | LC | 0~70 | D | Ethernet, SONET, 10GFC |
| XFP | LXD61809-DCLxx | 9.95~11.1G | CWDM 1470~1610nm |
EML/APD | 23dB | LC | 0~70 | D | Ethernet, SONET, 10GFC |

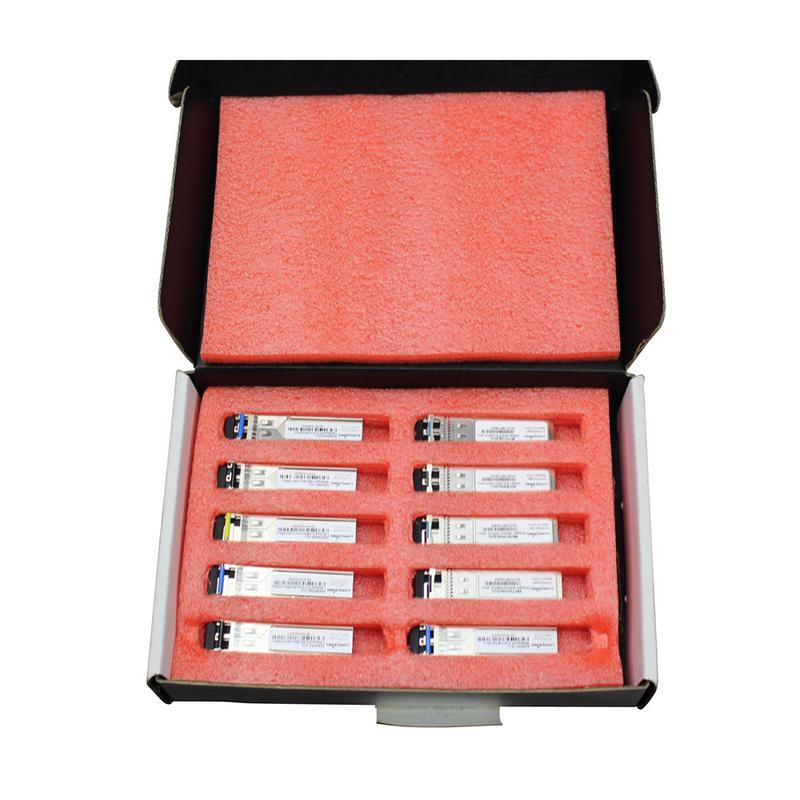

| Shipping Information | |
| Package Contents | Transceiver, 10 units |
| Package Dimensions(W*H*D) | 20mm*13.5mm*3.8mm |
| Material | Carton box |
| Weight | 0.5 KG |
| Lead Time | 10-15 working days normally |
