DWDM SFP+
Overview
LongXing's DWDM SFP+ specifically designed for carriers and large enterprises that require a scalable, flexible, cost-effective system for multiplexing, transporting and protecting high-speed data, storage, voice and video applications in point-to-point, add/drop, ring, mesh and star network topologies. Digital diagnostic functions are available via an I2C. This module is designed for single mode fiber and operates at a nominal wavelength of 100GHz or 50GHz ITU Grid, C Band DWDM wavelength. A guaranteed minimum optical link budget of 23 dB is offered.
Features
l Support 9.95 Gbps to 11.1Gbps
l Complaint to SFP+ MSA
l Compliant to IEEE 802.3ae 10GBASE-ZR
l Compliant with OC-192 / SDH STM LR2
l Maximum Link Length of 80 km
l Temperature-stabilized DWDM EML Transmitter
l 23 dB Power Budget at Least
l 100 or 50GHz ITU Grid, C Band
l SFF-8472 Digital Diagnostic Function
l AC/AC Coupling according to MSA
l Single +3.3 V Power Supply
l RoHS6 Compliant
l 0 to 70C Operating Temp.
l Class 1 Laser International Safety Standard IEC 60825 Complian
| Specifications | |||||||||
| Package | P/N | Data Rate | Wavelength | OSA Type | Distance | Connector | Case Temp. | DDM | Application |
| SFP+ | LXD7J409-DCLxx | 9.95~11.1G | DWDM 100GHz |
EML/PIN | 14dB | LC | 0~70 | D | Ethernet, 10GFC |
| SFP+ | LXD7K809-DCLxx | 9.95~11.1G | DWDM 100GHz |
EML/APD | 23dB | LC | 0~70 | D | Ethernet, 10GFC |
| SFP+ | LXD7J409-DCLxx | 9.95~11.1G | DWDM 50GHz |
EML/PIN | 14dB | LC | 0~70 | D | Ethernet, 10GFC |
| SFP+ | LXD7K809-DCLxx | 9.95~11.1G | DWDM 50GHz |
EML/APD | 23dB | LC | 0~70 | D | Ethernet, 10GFC |

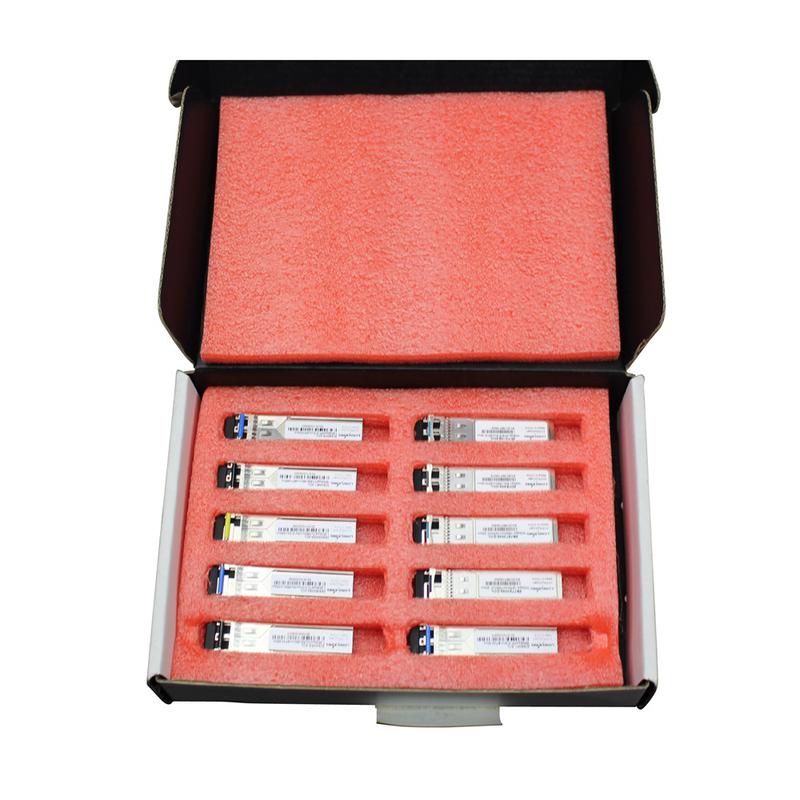

| Shipping Information | |
| Package Contents | Transceiver, 10 units |
| Package Dimensions(W*H*D) | 20mm*13.5mm*3.8mm |
| Material | Carton box |
| Weight | 0.5 KG |
| Lead Time | 10-15 working days normally |
