DWDM XFP
Overview
LongXing's DWDM XFP 40/80km comply with the current XFP Multi-Source Agreement (MSA) Specification. They support DWDM 10Gb/s SONET/SDH, DWDM 10-Gigabit Ethernet and 10-Gigabit Fibre Channel applications. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
Features
l Supports 9.95Gb/s to 11.1Gb/s bit rates
l 100Ghz or 50Ghz
l Hot-pluggable XFP footprint
l Maximum link length of 80km
l Cooled DWDM EML laser.
l Duplex LC connector
l Low Power dissipation
l Built-in digital diagnostic functions, DDMI
l Temperature range -5°C to 70°C
l RoHS, CE, FDA, FCC, TUV, UL certificate
| Specifications | |||||||||
| Package | P/N | Data Rate | Wavelength | OSA Type | Power Budget | Connector | Case Temp. | DDM | Application |
| XFP | LXD6J409-DCLxx | 9.95~11.1G | DWDM 100GHz |
EML/PIN | 14dB | LC | 0~70 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6J409-DILxx | 9.95~11.1G | DWDM 100GHz |
EML/PIN | 14dB | LC | -40~85 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6K809-DCLxx | 9.95~11.1G | DWDM 100GHz |
EML/APD | 23dB | LC | 0~70 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6J409-DCLxx | 9.95~11.1G | DWDM 50GHz |
EML/PIN | 14dB | LC | 0~70 | D | Ethernet, SONET, 10GFC |
| XFP | LXD6K809-DCLxx | 9.95~11.1G | DWDM 50GHz |
EML/APD | 23dB | LC | 0~70 | D | Ethernet, SONET, 10GFC |

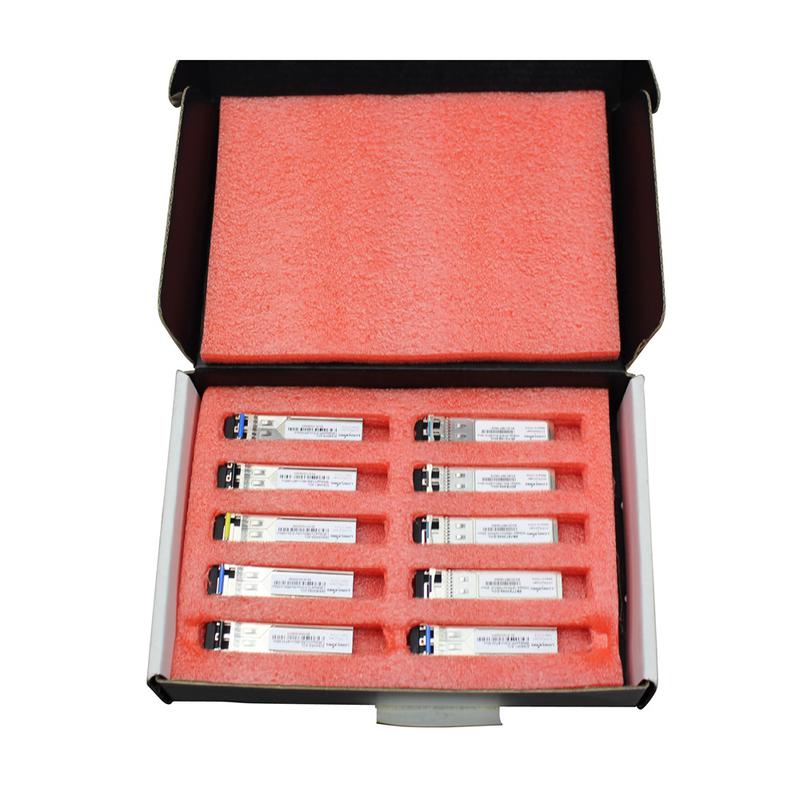

| Shipping Information | |
| Package Contents | Transceiver, 10 units |
| Package Dimensions(W*H*D) | 20mm*13.5mm*3.8mm |
| Material | Carton box |
| Weight | 0.5 KG |
| Lead Time | 10-15 working days normally |
