TUNABLE SFP+

Overview

LongXing's Tunable DWDM SFP+ transceiver is fully compliant to SFP+ MSA. It supports 50GHz DWDM 10Gb/s SONET/SDH, 10 Gigabit Ethernet, and 10 Gigabit Fibre Channel applications over fiber without dispersion compensation. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA and SFF 8472 MSA..

Features

Compliant with SFF 8431&8432&8472 MSA
C-band wavelengths (with 50 GHz DWDM ITU grid)
Data Rates: 8.5 - 11.35 Gbps
Power budget 14dB or 22dB option
Hot-swap SFP Footprint Duplex LC Connector Interface
Class 1 FDA and IEC60825-1 Laser Safety Compliant
Operating Case Temperature: -5 ~+70℃
Add To Quote List Add To Compare





Shipping Information

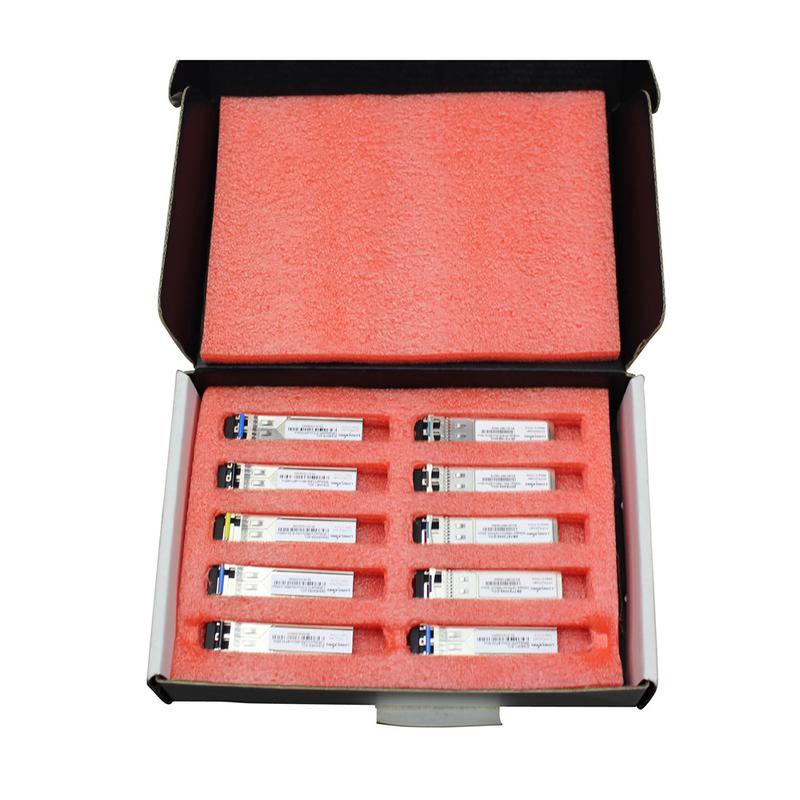

Package Contents Transceiver, 10 units
Package Dimensions(W*H*D) 20mm*13.5mm*3.8mm
Material Carton box
Weight 0.82 KG
Lead Time 10-15 working days normally
