TUNABLE XFP
Overview
LongXing's DWDM tunable XFP 10 Gbps multiprotocol optical transceiver is an integrated fiber optic transceiver that provides a high-speed serial link at signaling rates from 9.95 Gbps to 11.1 Gbps.
Features
l Supports 9.953 Gbps (SONET and SDH), 10.31 Gbps (Ethernet), 10.52 Gbps (Fibre Channel), and corresponding Forward Error Correction (FEC) rates of 10.66/10.709/11.09/11.35 Gbps
l Monolithically integrated full C-band tunable transmitter
l 50 GHz ITU channel spacing with integrated wavelength locker
l 40 or 80km reach
l Commercial operating temperature from -5°C to 70°C
l Maximum power dissipation of 3.5 W
l No reference clock required
l Digital diagnostic monitoring support
l SFF-8477
l Telcordia GR-253-CORE and tested in accordance with GR-468
l ITU-T G.691
l IEEE 802-3ae-2002
l 10 GFC 1200-SM-LL-L
l Class 1 laser safety
| Specifications | ||||||
| Package | P/N | Data Rate | Wavelength | Distance | Case Temp. | Application |
| XFP | LXD6L409-DCL | 9.95~11.1G | DWDM 50GHz |
40km | 0~70 | Eth, SDH, 10GFC |
| XFP | LXD6M809-DCL | 9.95~11.1G | DWDM 50GHz |
80km | 0~70 | Eth, SDH, 10GFC |

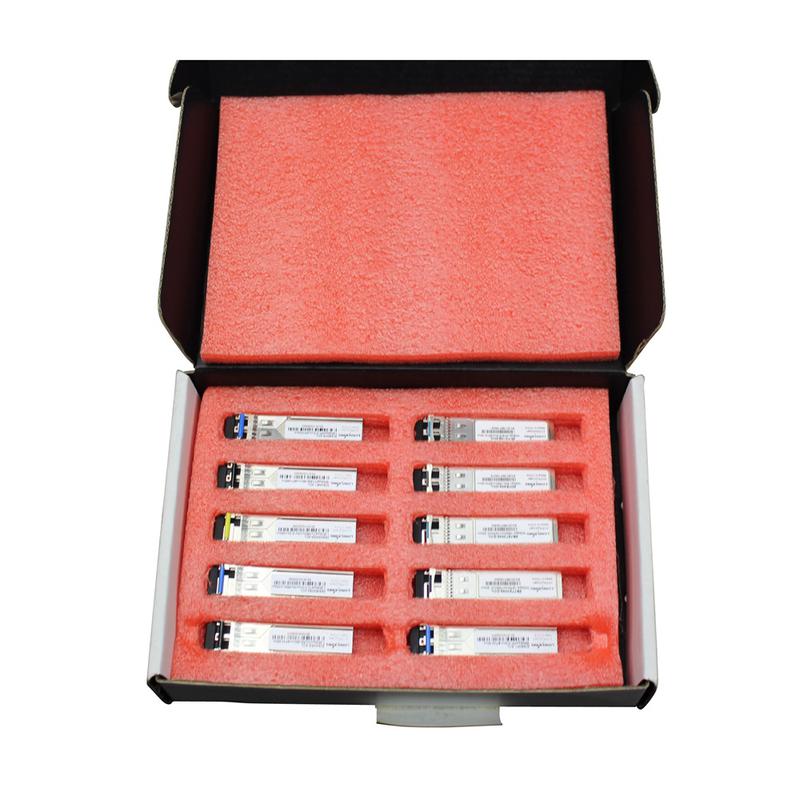

| Shipping Information | |
| Package Contents | Transceiver, 10 units |
| Package Dimensions(W*H*D) | 20mm*13.5mm*3.8mm |
| Material | Carton box |
| Weight | 0.5 KG |
| Lead Time | 10-15 working days normally |
